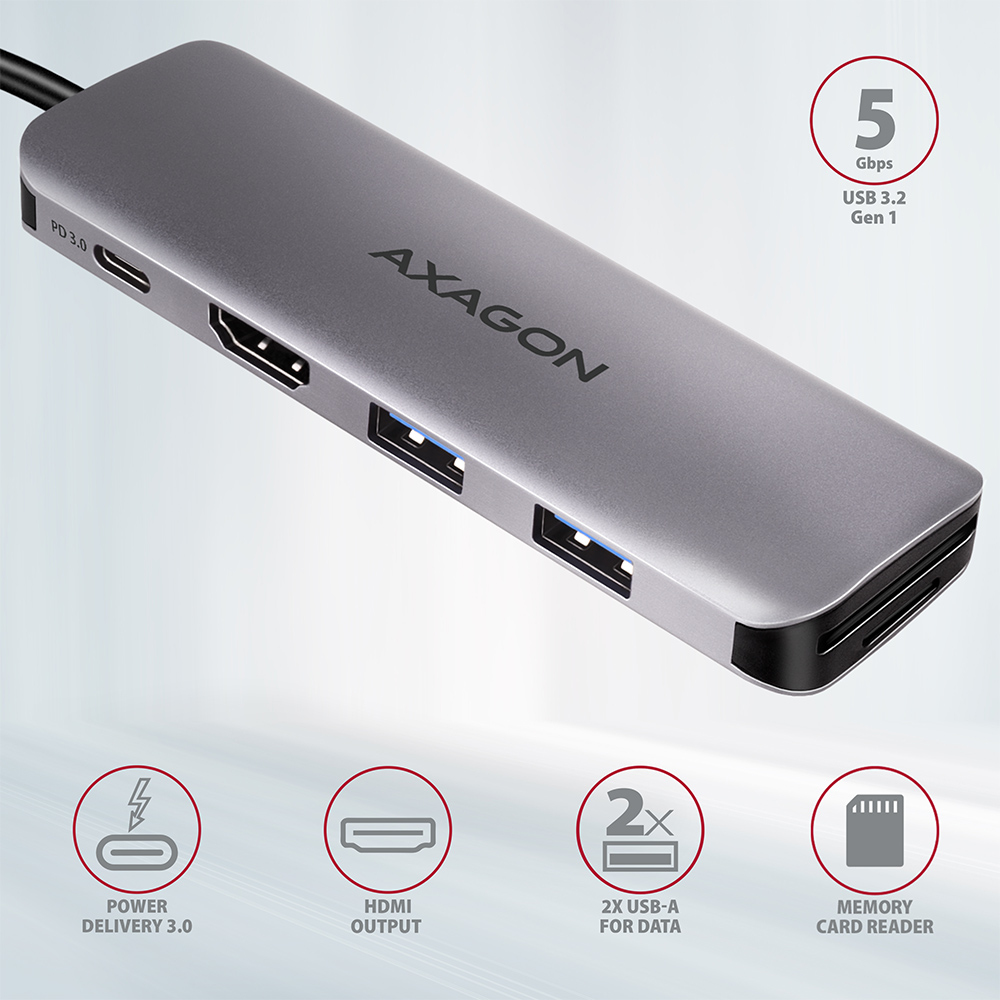

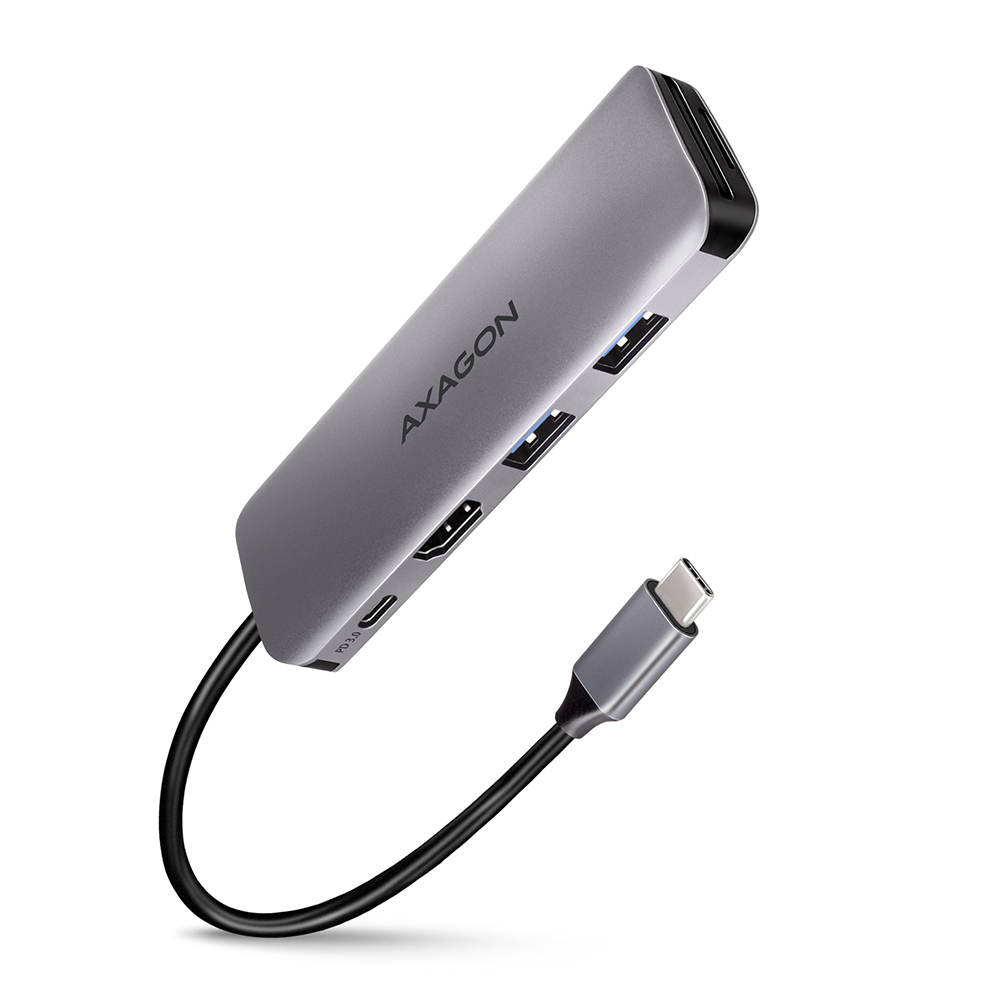

HMC-5 USB 3.2 Gen 1 hub, 2x USB-A, HDMI, SD/microSD, PD
100W, 20cm USB-C cable
Model HMC-5EAN 8595247906175
56 specifications
- ConnectivityWired
- Weight55 g
- ColourGrey
- Ethernet LANNo
- Power source typeUSB
- Windows operating systems supportedYes
Overview
- Connectivity
- Wired
- Weight
- 55 g
- Colour
- Grey
- Ethernet LAN
- No
- Power source type
- USB
- Windows operating systems supported
- Yes
- Brand
- Axagon
- Category
- Laptop Docks & Port Replicators
- Model
- HMC-5
- Part number
- HMC-5
- EAN / UPC
- 8595247906175
- Also known as
- Axagon HMC-5 USB 3.2 Gen 1 hub, 2x USB-A, HDMI, SD/microSD, PD 100W, 20cm USB-C cable
Specifications
56 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

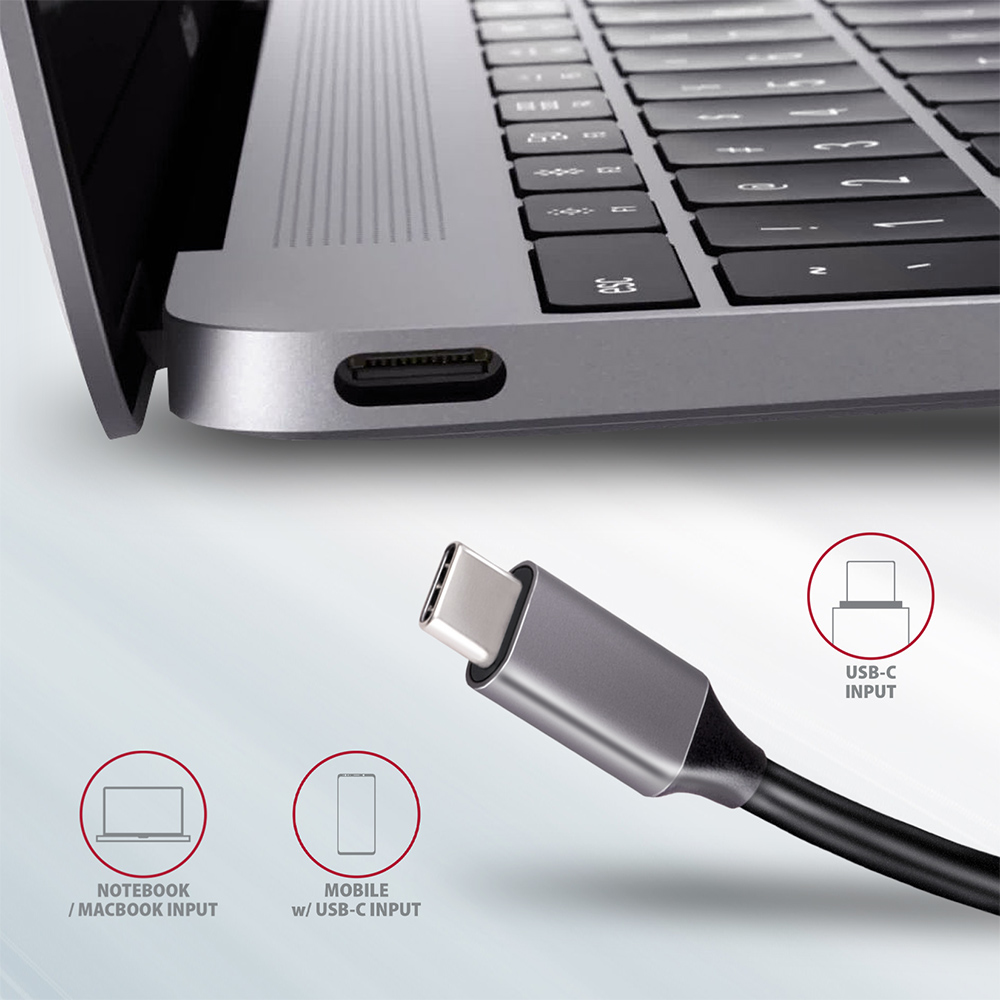

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Combo headphone/mic port | No |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |

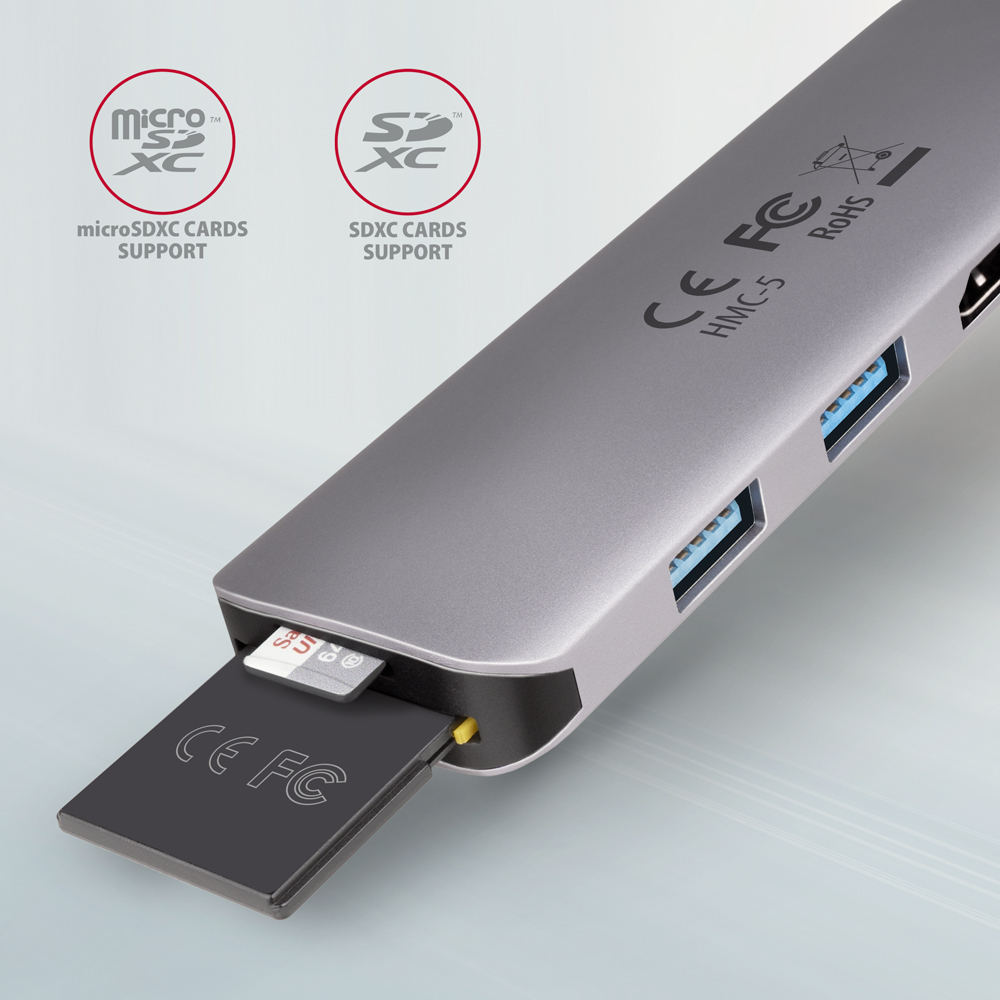

| Card reader integrated | Yes |
| Compatible memory cards | MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 120 Hz |
| Hot-Plug support | Yes |
| Hub interfaces | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Charging function | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Country of origin | China |
| Brand compatibility | Universal |
| Certification | CE, RoHS |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in microphone | No |
Cooling
| Specification | Value |
|---|---|
| Built-in fan | No |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| Power supply type | USB |
| USB cable length | 0.2 m |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mobile operating systems supported | Yes |
| Server operating systems supported | Yes |
| Other operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 12.5 mm |
| Height | 35 mm |
| Weight | 55 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 203 mm |
| Package depth | 99 mm |
| Package height | 28 mm |
| Package weight | 93 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 3 year(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.2 m |
