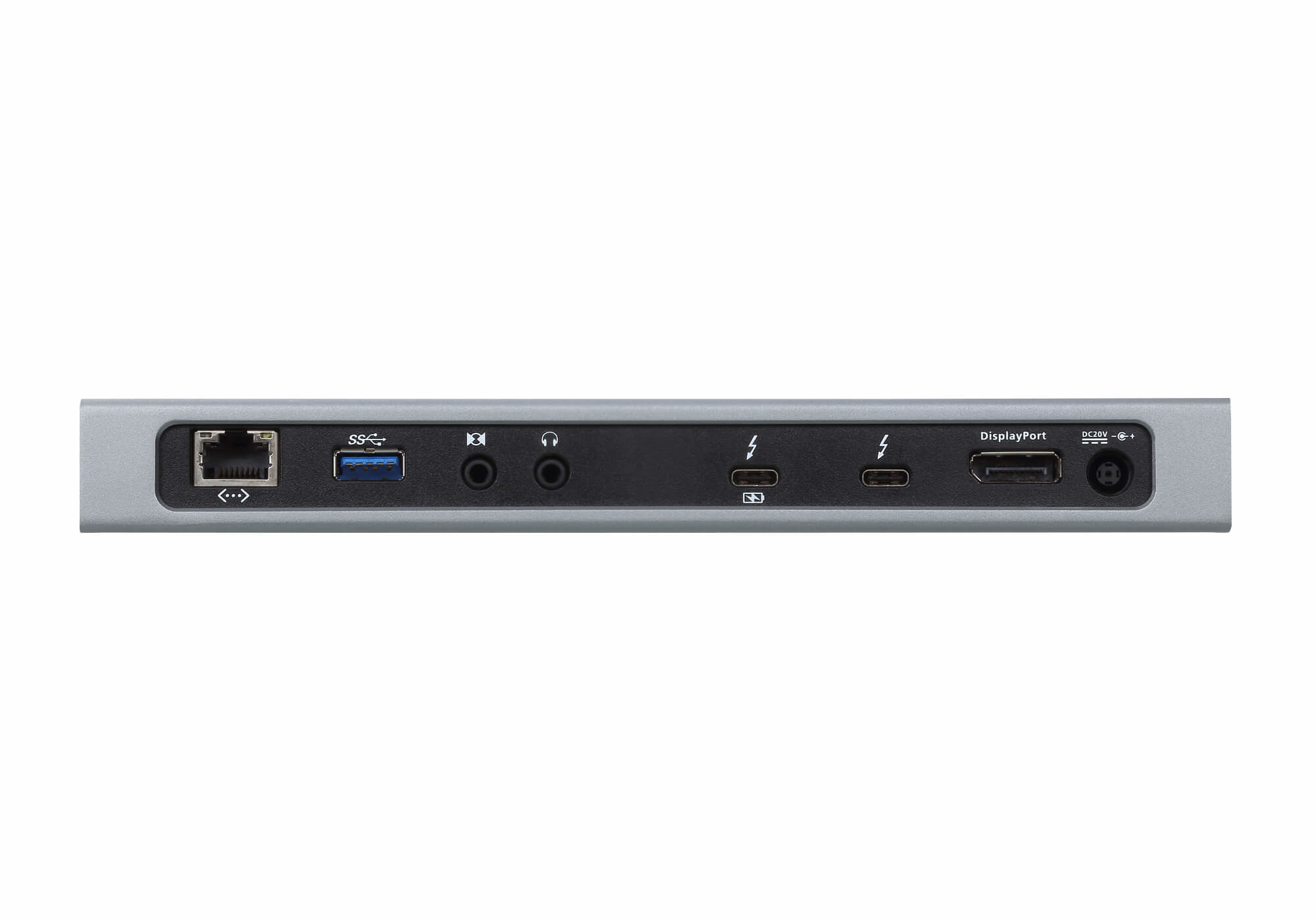

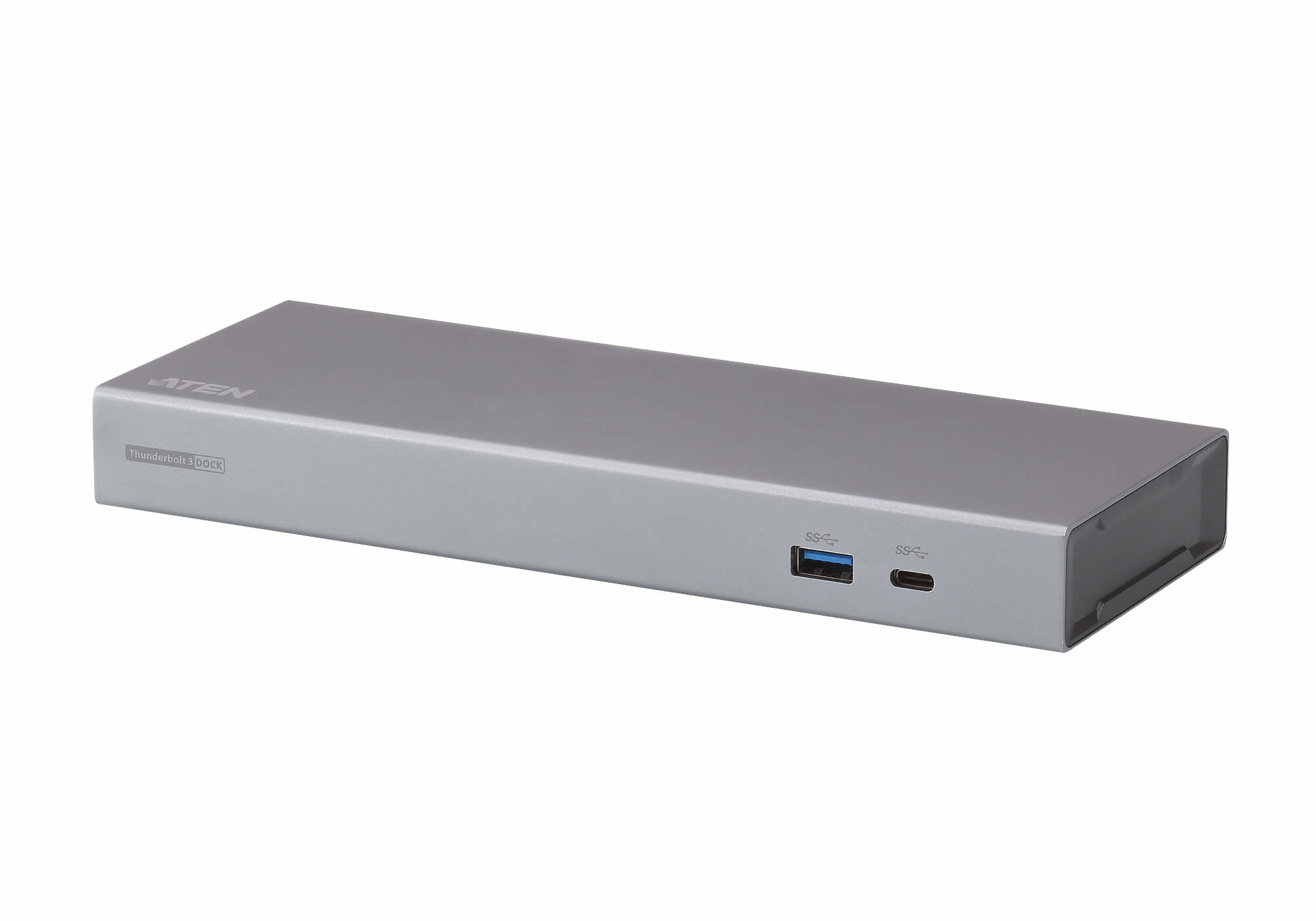

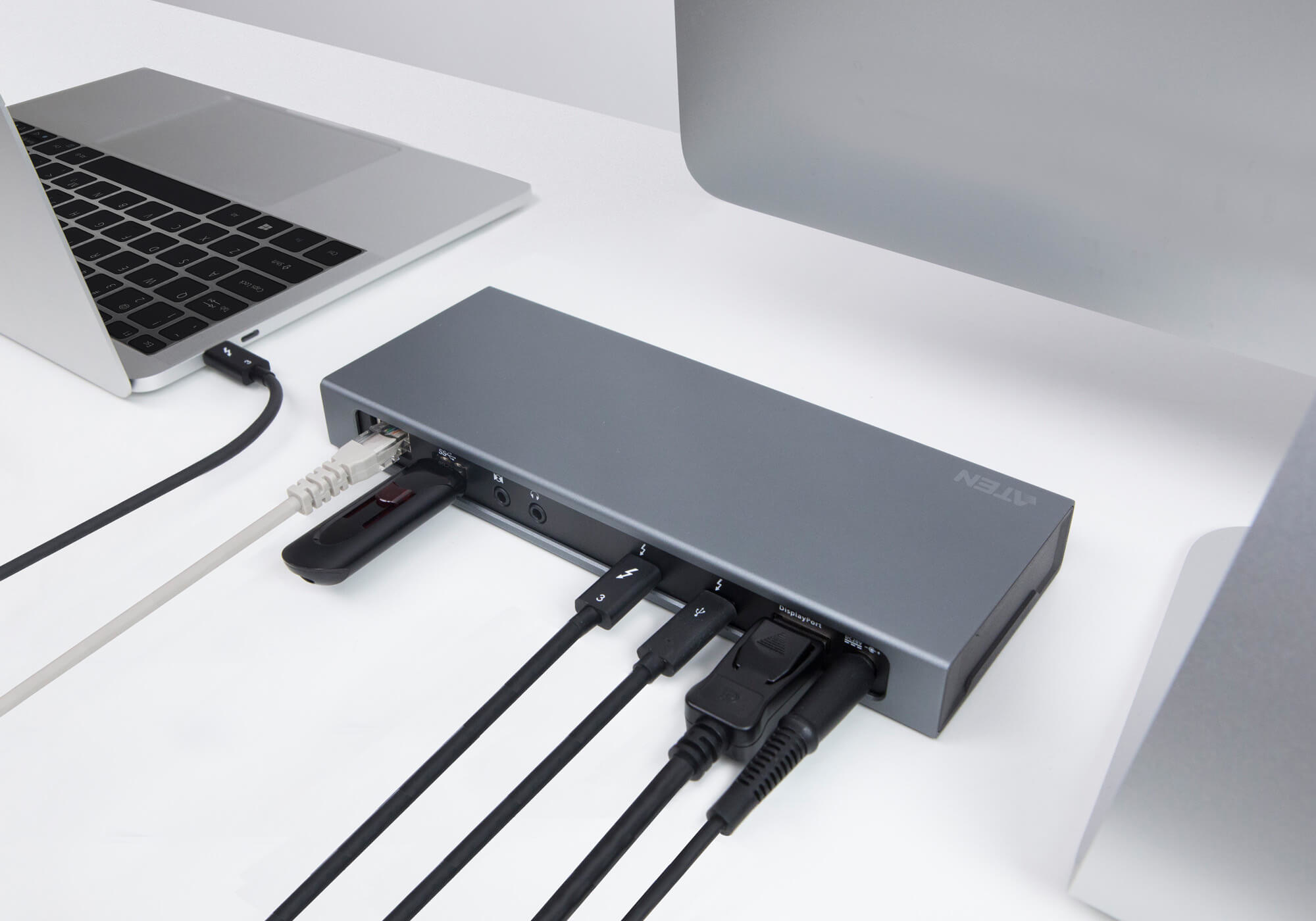

UH7230-AT-E laptop dock/port replicator Wired Thunderbolt 3 Silver
Model UH7230-AT-E
41 specifications
- ConnectivityWired
- Weight370 g
- ColourSilver
- Ethernet LANYes
- Power source typeAC
- Windows operating systems supportedWindows 10
Overview
- Connectivity
- Wired
- Weight
- 370 g
- Colour
- Silver
- Ethernet LAN
- Yes
- Power source type
- AC
- Windows operating systems supported
- Windows 10
- Brand
- ATEN
- Category
- Laptop Docks & Port Replicators
- Model
- UH7230-AT-E
- Part number
- UH7230-AT-E
- Also known as
- ATEN UH7230-AT-E laptop dock/port replicator Wired Thunderbolt 3 Silver
Specifications
41 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Thunderbolt 3 Power Delivery | Yes |
| Thunderbolt 3 Power Delivery up to | 85 W |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Housing material | Aluminium |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output current | 8.5 A |
| Output voltage | 20 V |
| Power consumption (typical) | 8.5 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 222 mm |
| Depth | 82 mm |
| Height | 26 mm |
| Weight | 370 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Thunderbolt |
| User guide | Yes |
