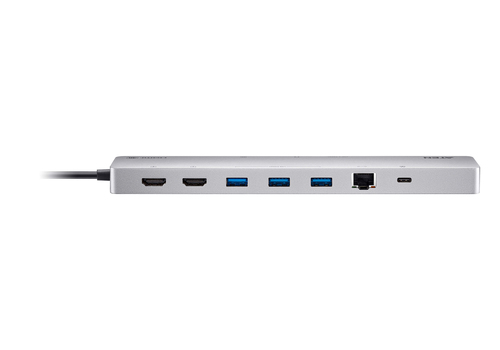

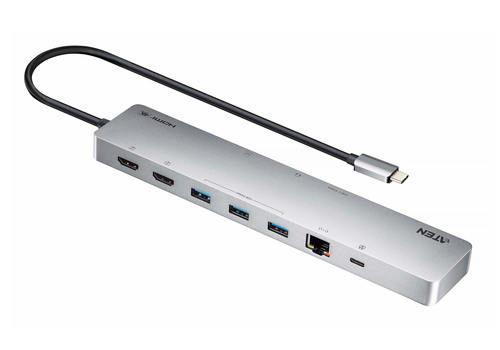

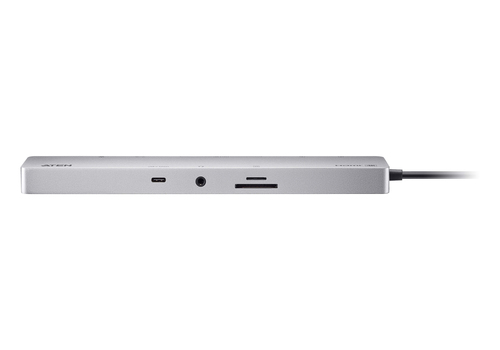

UH3240-AT laptop dock/port replicator Wired USB Type-C Silver
Model UH3240-AT
38 specifications
- ConnectivityWired
- Weight180 g
- ColourSilver
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 180 g
- Colour
- Silver
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Laptop Docks & Port Replicators
- Model
- UH3240-AT
- Part number
- UH3240-AT
- Also known as
- ATEN UH3240-AT laptop dock/port replicator Wired USB Type-C Silver
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |

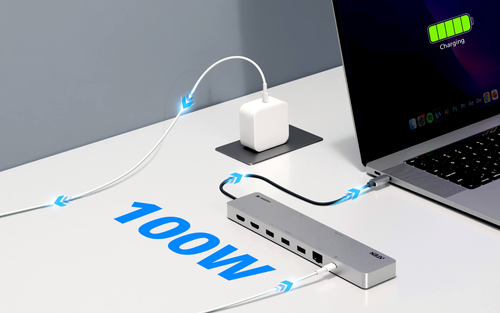

| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum memory card size | 2 TB |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |

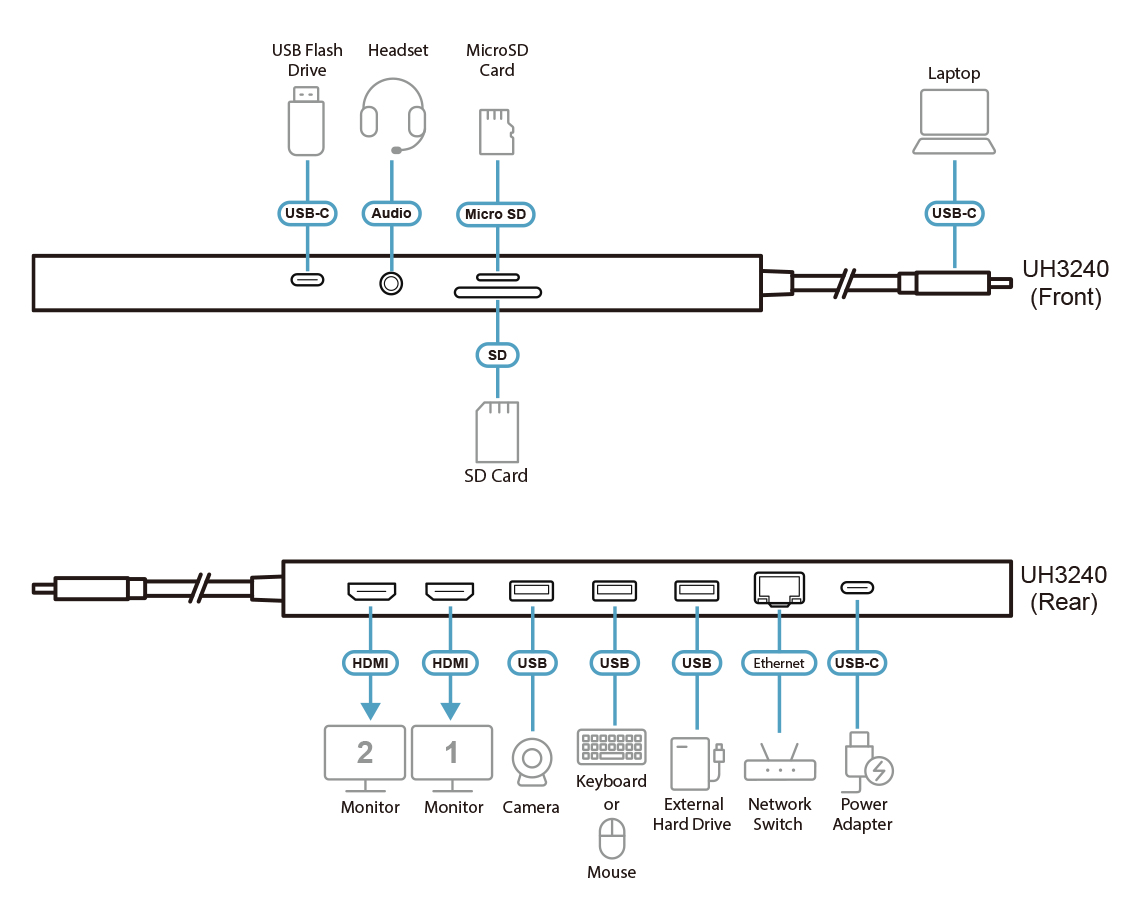

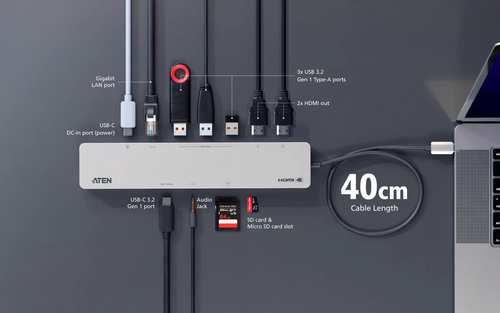

| Hub interfaces | 3.5mm, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Housing material | Aluminium |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power supply type | DC |
| Output voltage | 5 V |
| Power consumption (typical) | 18 W |
| USB cable length | 0.4 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |

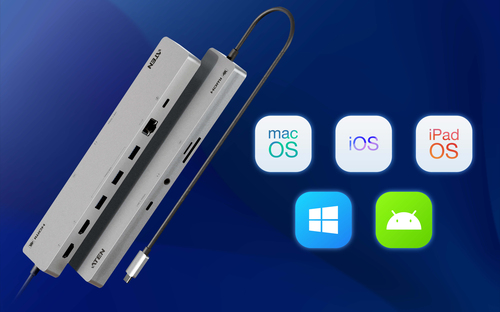

| Other operating systems supported | Android, iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 220 mm |
| Height | 16 mm |
| Weight | 180 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.4 m |
