USB-C Multiport Dock with Power Pass-Through
Model UH3237-ATEAN 672792010699
46 specifications
- ConnectivityWired
- Weight371 g
- ColourBlack, Grey
- Ethernet LANYes
- Power source typeDC
- Operating temperature (T-T)0 - 40 °C
Overview
- Connectivity
- Wired
- Weight
- 371 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- ATEN
- Category
- Laptop Docks & Port Replicators
- Model
- UH3237-AT
- Part number
- UH3237-AT
- EAN / UPC
- 672792010699, 2000001220245, 4719264648960
- Also known as
- ATEN USB-C Multiport Dock with Power Pass-Through
Specifications
46 specifications in 10 groups

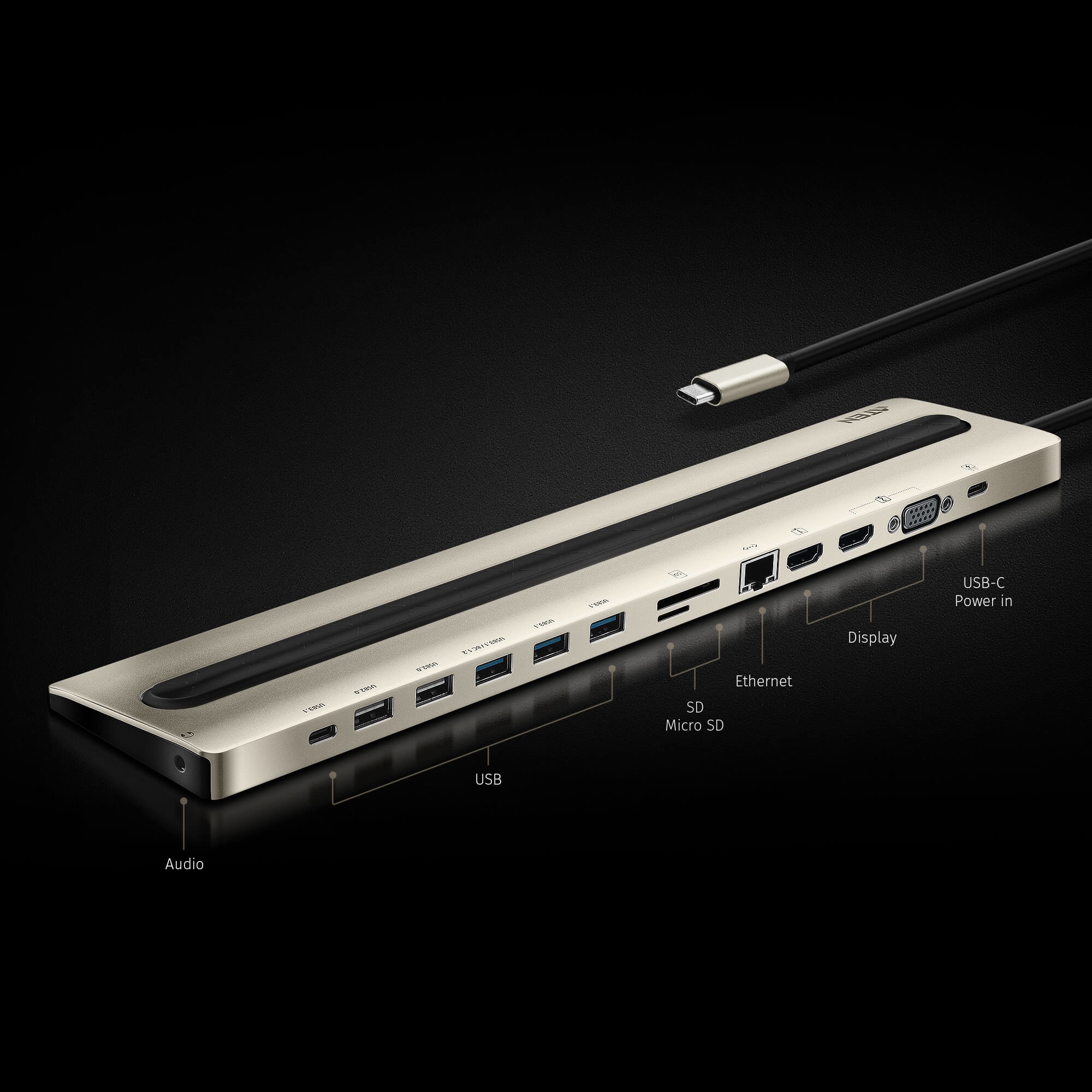

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum memory card size | 128 GB |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1080 pixels |
| Maximum refresh rate | 60 Hz |
| Number of displays supported | 2 |
| Housing material | Aluminium, Plastic |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power connector | USB Type-C |
| Power consumption (typical) | 15 W |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | iOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 75 mm |
| Depth | 350.3 mm |
| Height | 14.8 mm |
| Weight | 371 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 115 mm |
| Package depth | 420 mm |
| Package height | 38 mm |
| Package weight | 480 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Master (outer) case gross weight | 5.4 kg |
| Master (outer) case height | 210 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case net weight | 3.71 kg |
| Master (outer) case width | 250 mm |
| Products per master (outer) case | 10 pc(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.3 m |
