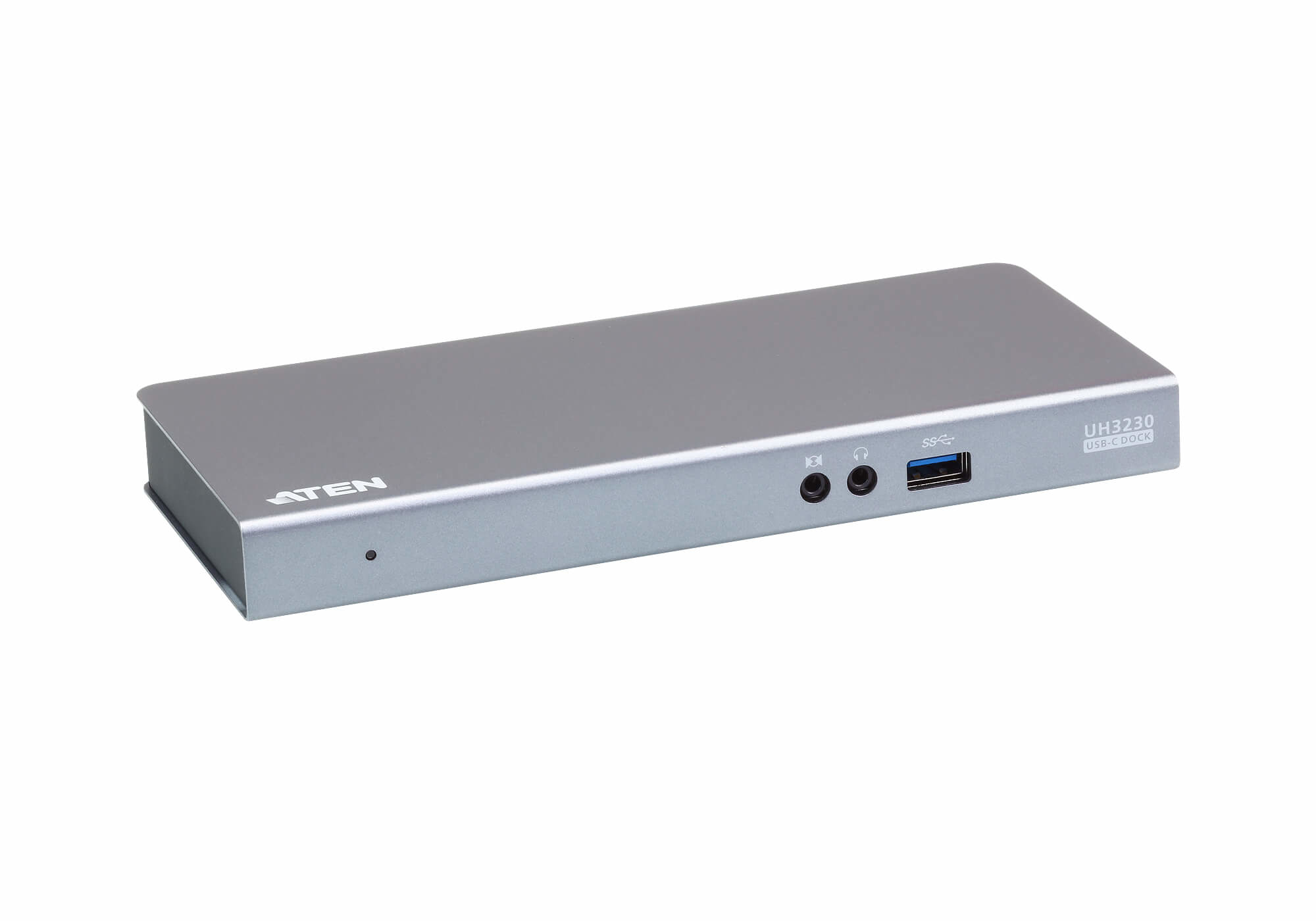

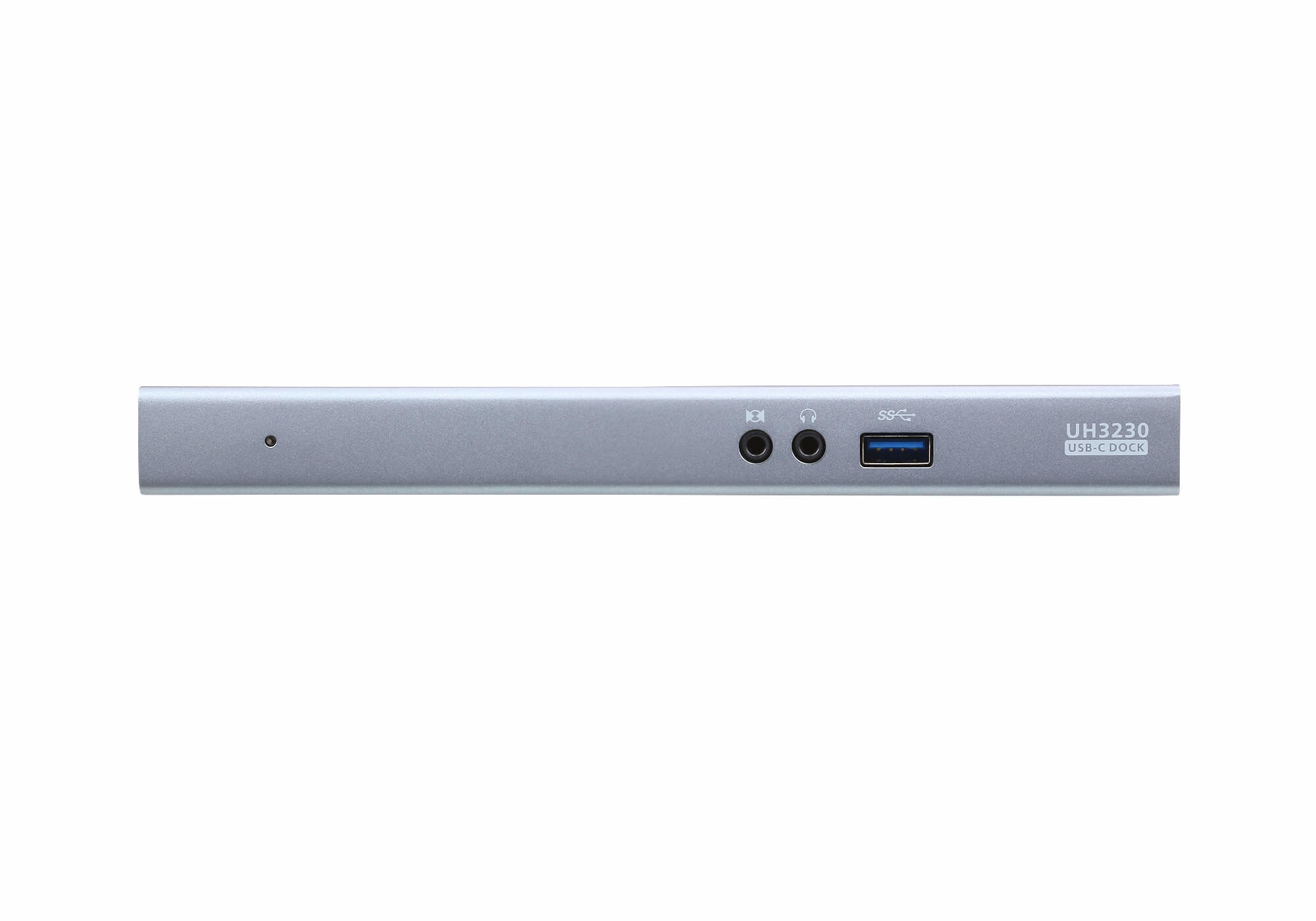

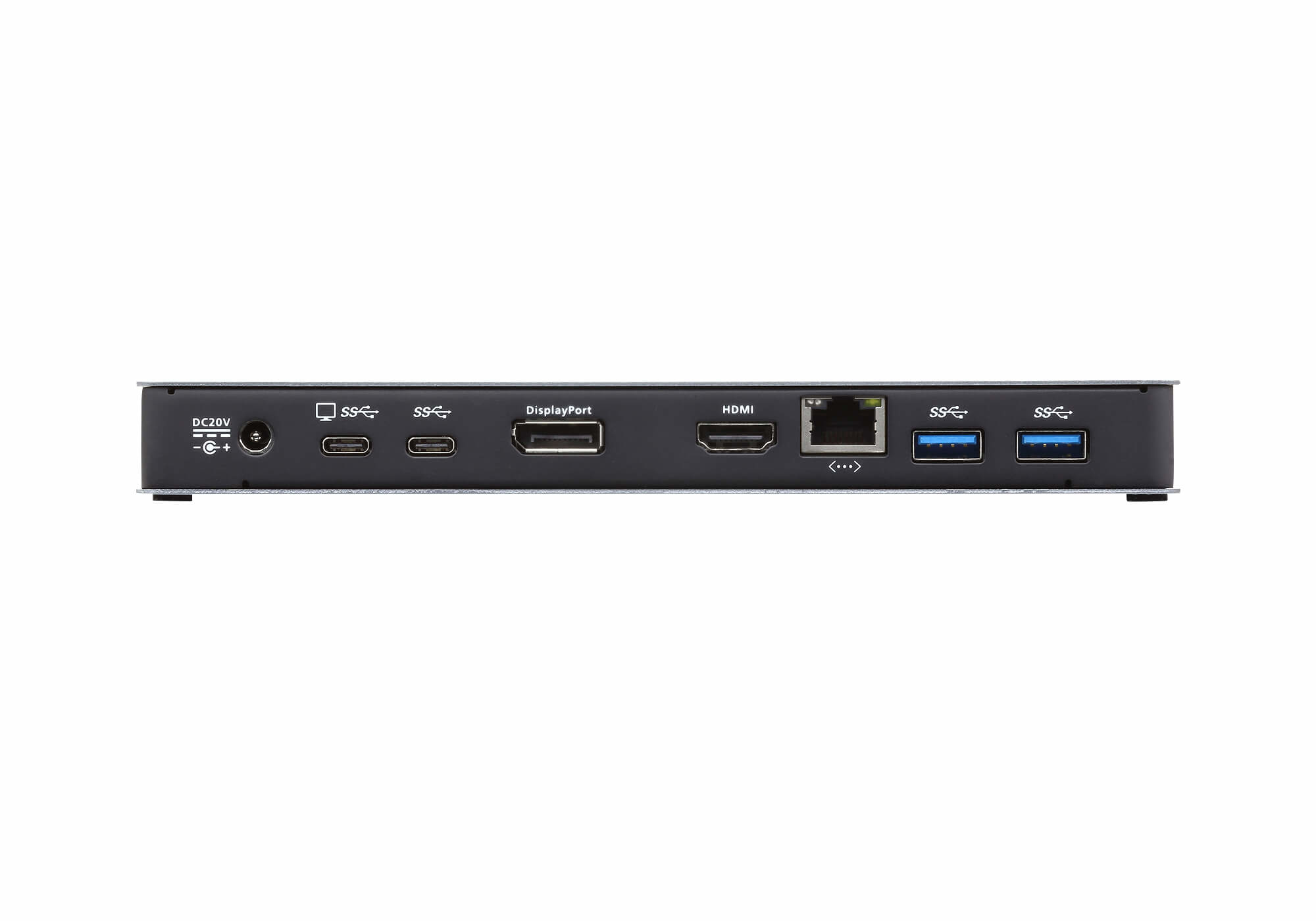

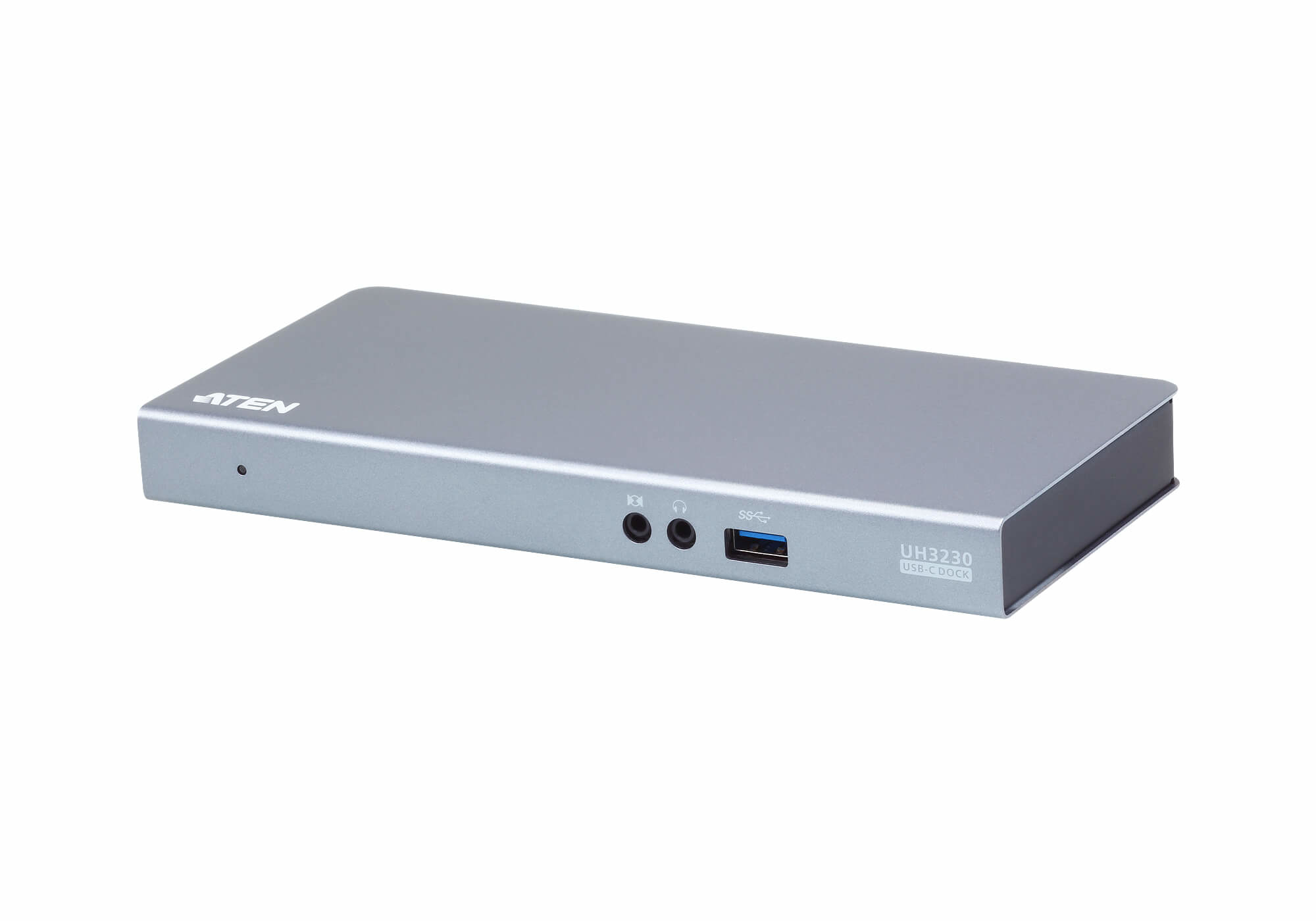

UH3230-AT-E laptop dock/port replicator USB 3.2 Gen 1 (3.1 Gen 1) Type-C Silver
Model UH3230-AT-E
27 specifications
- Weight574 g
- ColourSilver
- Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Ethernet LAN (RJ-45) ports1
- Output voltage20 V
- Mac operating systems supportedYes
Overview
- Weight
- 574 g
- Colour
- Silver
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Ethernet LAN (RJ-45) ports
- 1
- Output voltage
- 20 V
- Mac operating systems supported
- Yes
- Brand
- ATEN
- Category
- Laptop Docks & Port Replicators
- Model
- UH3230-AT-E
- Part number
- UH3230-AT-E
- Also known as
- ATEN UH3230-AT-E laptop dock/port replicator USB 3.2 Gen 1 (3.1 Gen 1) Type-C Silver
Specifications
27 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Line-out | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Silver |
| Hub interfaces | DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Housing material | Metal |
| LED indicators | Power |
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Output voltage | 20 V |
| Power consumption (typical) | 90 W |
Software
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.7 mm |
| Depth | 200 mm |
| Height | 21.5 mm |
| Weight | 574 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB Type-C |
| Manual | Yes |
