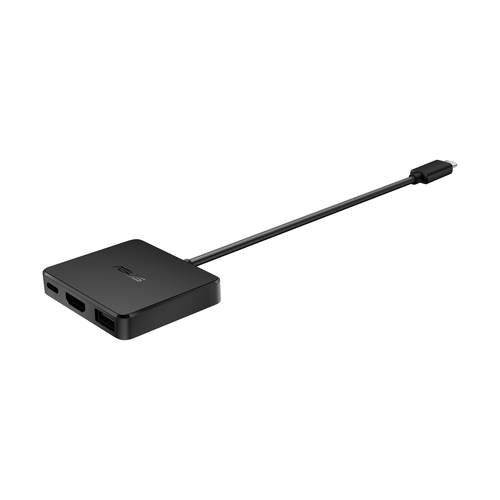

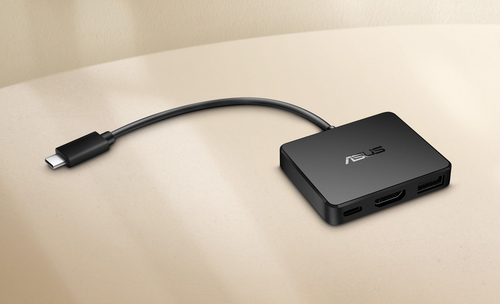

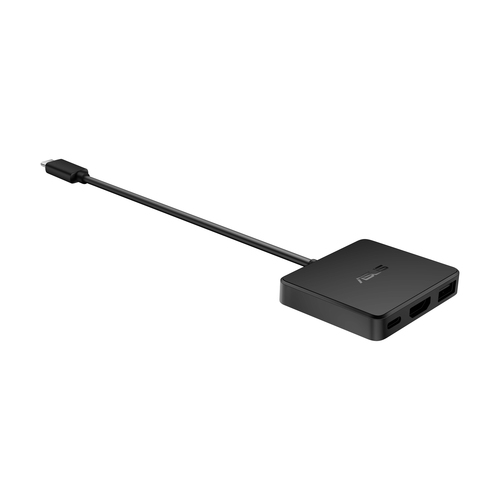

USB-C Mini Dock
Model USB-C Mini DockPart no. 90XB0820-BDS000EAN 195553799324
35 specifications
- ConnectivityWired
- Weight48 g
- ColourBlack
- Ethernet LANNo
- Power source typeUSB
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Connectivity
- Wired
- Weight
- 48 g
- Colour
- Black
- Ethernet LAN
- No
- Power source type
- USB
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- ASUS
- Category
- Laptop Docks & Port Replicators
- Model
- USB-C Mini Dock
- Part number
- 90XB0820-BDS000
- EAN / UPC
- 195553799324, 4711081799320
- Also known as
- ASUS USB-C Mini Dock Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
Specifications
35 specifications in 8 groups

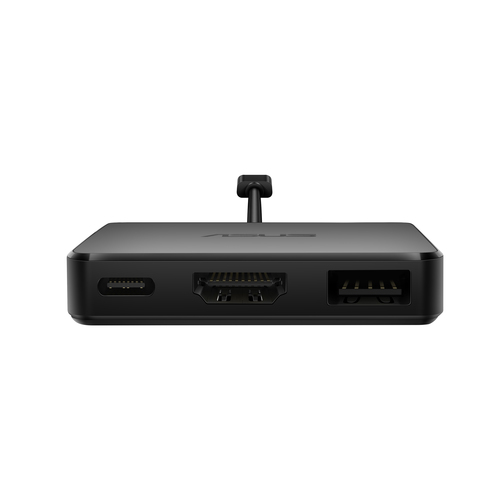

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |

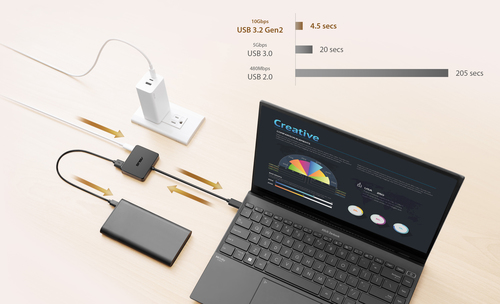

| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 144 Hz |
| Number of displays supported | 2 |
| Housing material | Plastic |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| USB cable length | 0.15 m |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 20 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 59 mm |
| Depth | 48 mm |
| Height | 11.3 mm |
| Weight | 48 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
