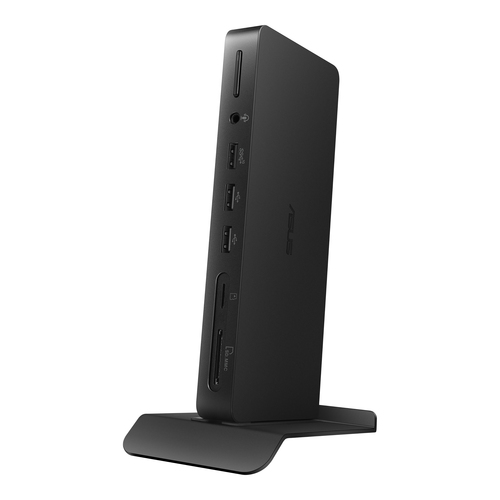

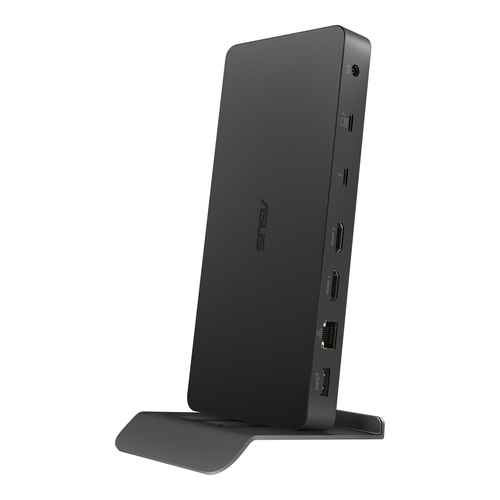

ASUS Triple 4K Thunderbolt 4 Dock DC500 Specs

Overview

Connectivity: Wired
Weight: 335 g
Colour: Black
Ethernet LAN: Yes
Power source type: DC
Windows operating systems supported: Windows 10, Windows 11

Brand: ASUS
Category: Laptop Docks & Port Replicators
Model: Triple 4K Thunderbolt 4 Dock DC500
Part numbers: 90XB08DN-BDS010, 90XB08DN-BDS020, 90XB08DN-BDS0B0, 90XB08DN-BDS080
EAN / UPC: 4711387541074, 4711387125014, 4711387471982
Also known as: ASUS Triple 4K Thunderbolt 4 Dock DC500 Wired Black

Specifications

40 specifications in 8 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	Thunderbolt 4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
HDMI ports quantity	2
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Microphone in	No
Combo headphone/mic port	Yes
Headphone outputs	0
DC-in jack	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes

Performance

Specification	Value
Product colour	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Number of displays supported	3
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
Housing material	Metal, Plastic

Power

Specification	Value
Power source type	DC
Power supply	150 W
Output current	7.5 A
Output voltage	20 V

Software

Specification	Value
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	185 mm
Depth	80 mm
Height	21 mm
Weight	335 g

Packaging data

Specification	Value
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
AC adapter included	Yes
