Dual 4K USB-C Dock DC201
Model Dual 4K USB-C Dock DC201Part no. 90XB094N-BDS000EAN 197105429222
36 specifications
- ConnectivityWired
- Weight98 g
- ColourBlack
- Ethernet LANYes
- Power source typeUSB
- Width104 mm
Overview
- Connectivity
- Wired
- Weight
- 98 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- USB
- Width
- 104 mm
- Brand
- ASUS
- Category
- Laptop Docks & Port Replicators
- Model
- Dual 4K USB-C Dock DC201
- Part number
- 90XB094N-BDS000
- EAN / UPC
- 197105429222, 4711387228814, 4711387429228
- Also known as
- ASUS Dual 4K USB-C Dock DC201 Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
Specifications
36 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |

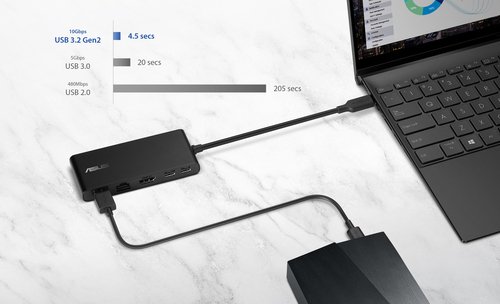

| Data transfer rate | 10 Gbit/s |

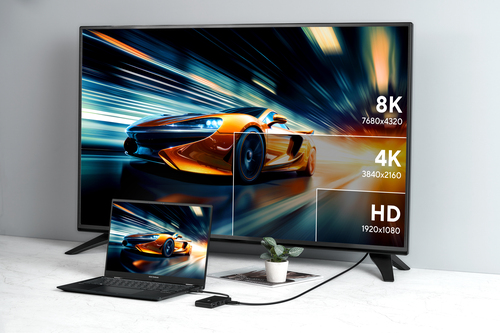

| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 144 Hz |

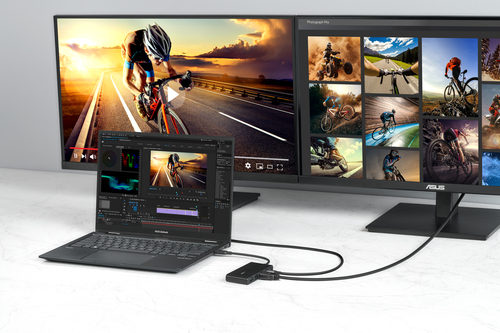

| Number of displays supported | 2 |
| Housing material | Metal, Plastic |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Output current | 1.5 A |
| Output voltage | 5 V |
| USB cable length | 0.15 m |
| Wireless charging | No |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 104 mm |
| Depth | 45 mm |
| Height | 14 mm |
| Weight | 98 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
