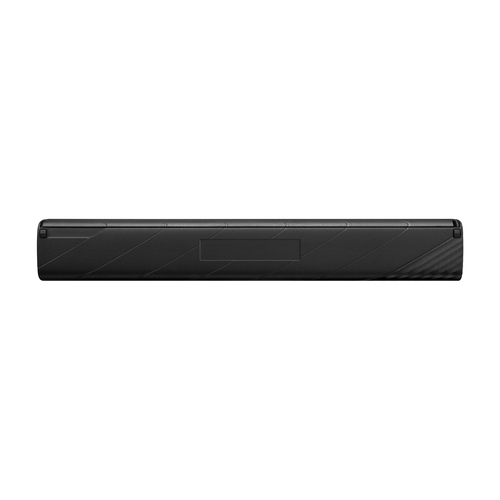

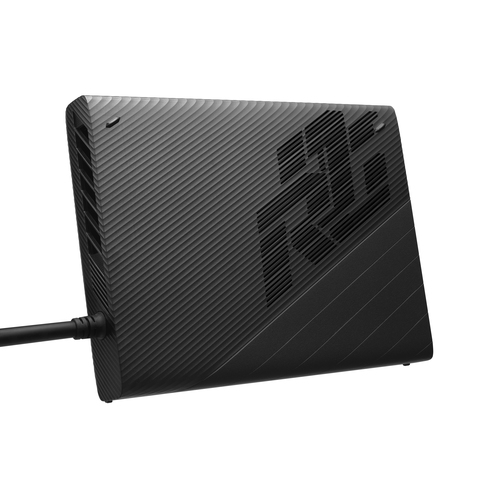

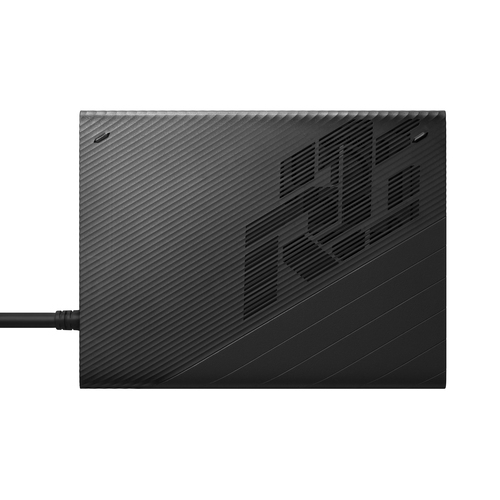

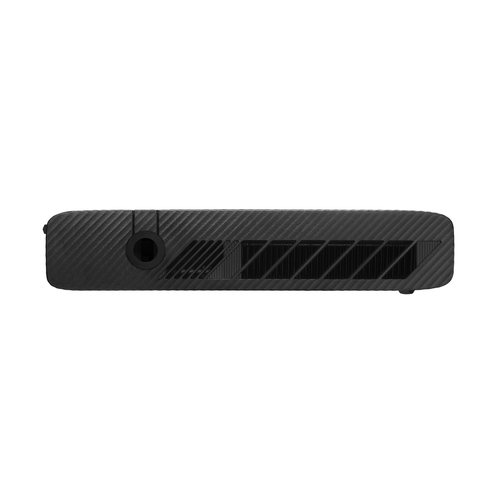

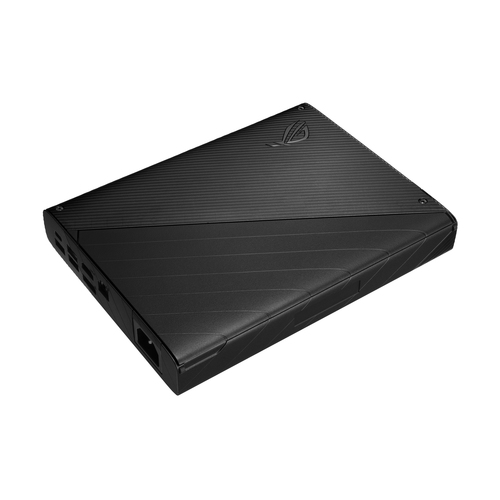

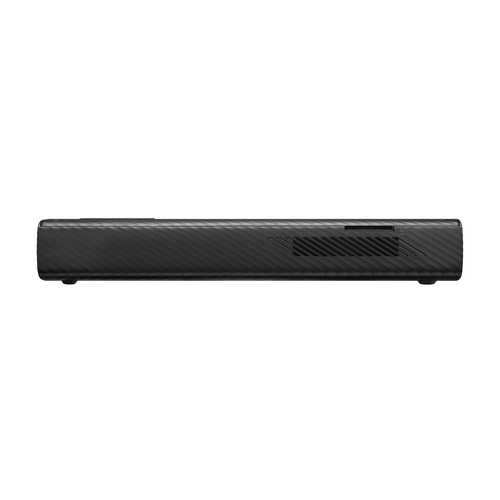

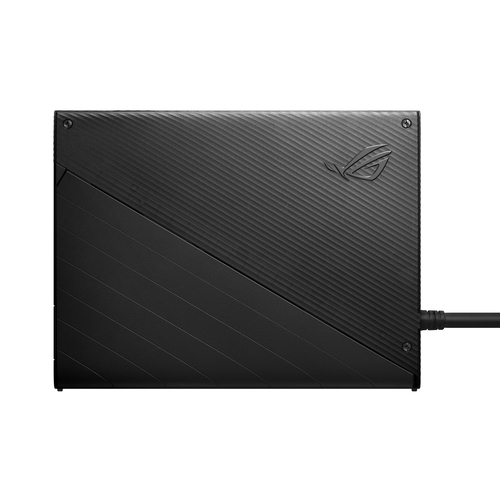

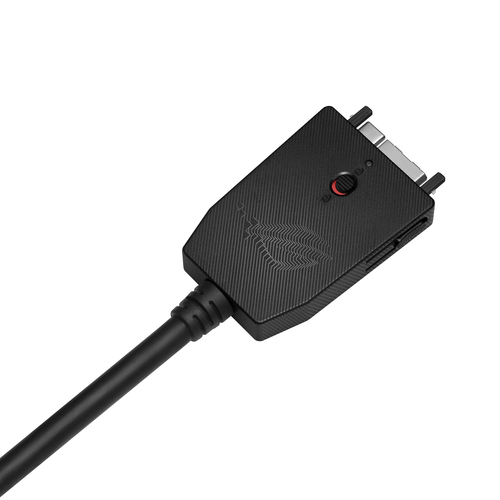

ROG XG Mobile 90NR0BP0-P10180 laptop dock/port replicator Wired ROG XG Mobile + USB Type-C Black
Model 90NR0BP0-P10180
36 specifications
- ConnectivityWired
- Weight1.3 kg
- ColourBlack
- Ethernet LANYes
- Graphics processor familyNVIDIA
- Power source typeAC
Overview
- Connectivity
- Wired
- Weight
- 1.3 kg
- Colour
- Black
- Ethernet LAN
- Yes
- Graphics processor family
- NVIDIA
- Power source type
- AC
- Brand
- ASUS
- Category
- Laptop Docks & Port Replicators
- Model
- 90NR0BP0-P10180
- Part number
- 90NR0BP0-P10180
- Also known as
- ASUS ROG XG Mobile 90NR0BP0-P10180 laptop dock/port replicator Wired ROG XG Mobile + USB Type-C Black
Specifications
36 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | ROG XG Mobile + USB Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Brand compatibility | Asus |
| Compatibility | ROG Flow X13(GV301/GV302)/ROG Flow Z13(GZ301)/ROG Flow X16(GV601)/ROG Ally(RC71L) |
Graphics
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4090 |
| Graphics card memory type | GDDR6 |
| Memory | 16 GB |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Power supply | 330 W |
| Output voltage | 19.5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 217 mm |
| Depth | 32.6 mm |
| Height | 165 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Other features
| Specification | Value |
|---|---|
| Special features | With Power cord |
