A109-1032 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Model A109-1032EAN 8435739905425
33 specifications
- ConnectivityWired
- ColourGrey
- Ethernet LANYes
- Power source typeUSB
- Windows operating systems supportedWindows 10, Windows 11
- Width24 mm
Overview
- Connectivity
- Wired
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- USB
- Windows operating systems supported
- Windows 10, Windows 11
- Width
- 24 mm
- Brand
- AISENS
- Category
- Laptop Docks & Port Replicators
- Model
- A109-1032
- Part number
- A109-1032
- EAN / UPC
- 8435739905425
- Also known as
- AISENS A109-1032 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
33 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| USB cable length | 0.15 m |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |

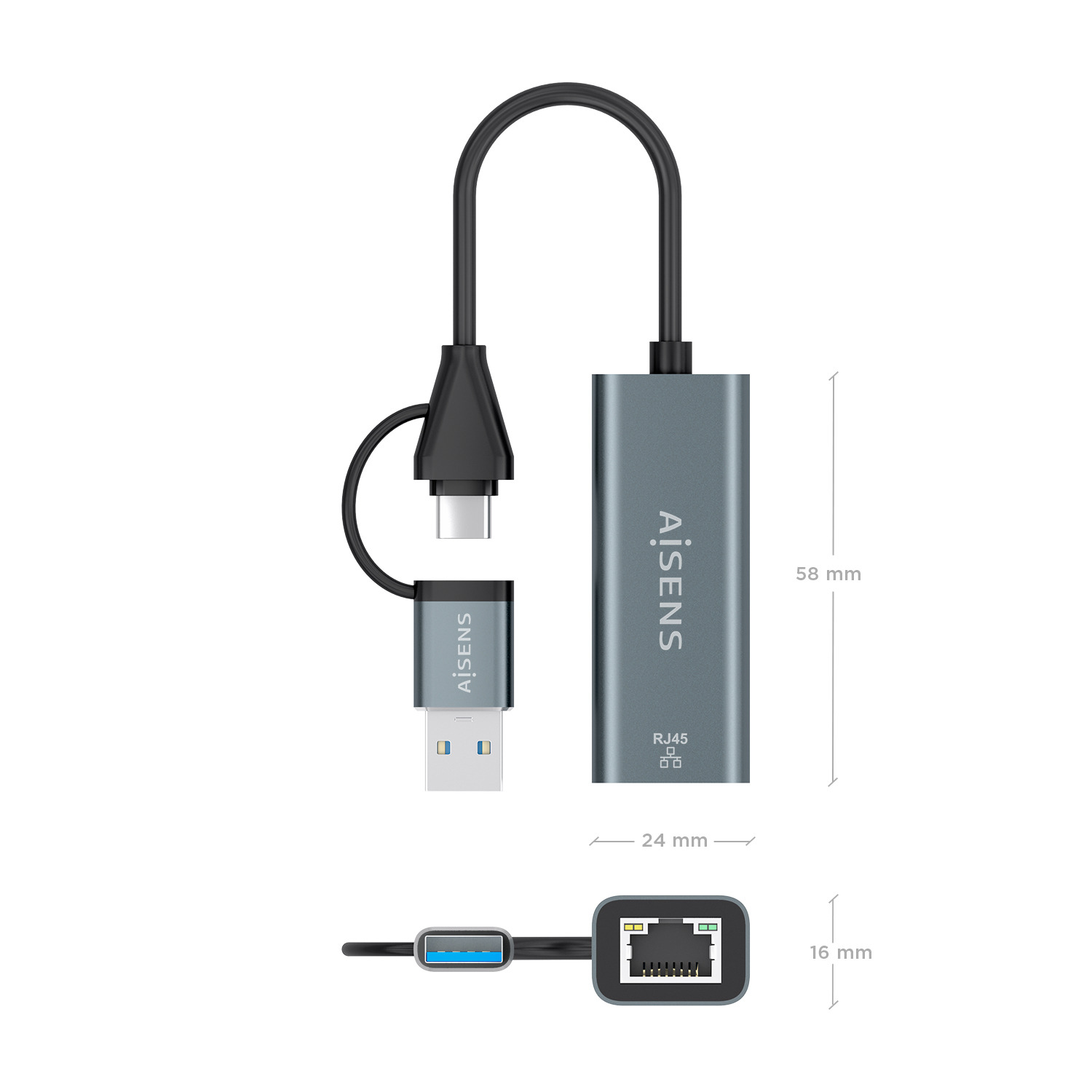

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 24 mm |
| Depth | 58 mm |
| Height | 16 mm |

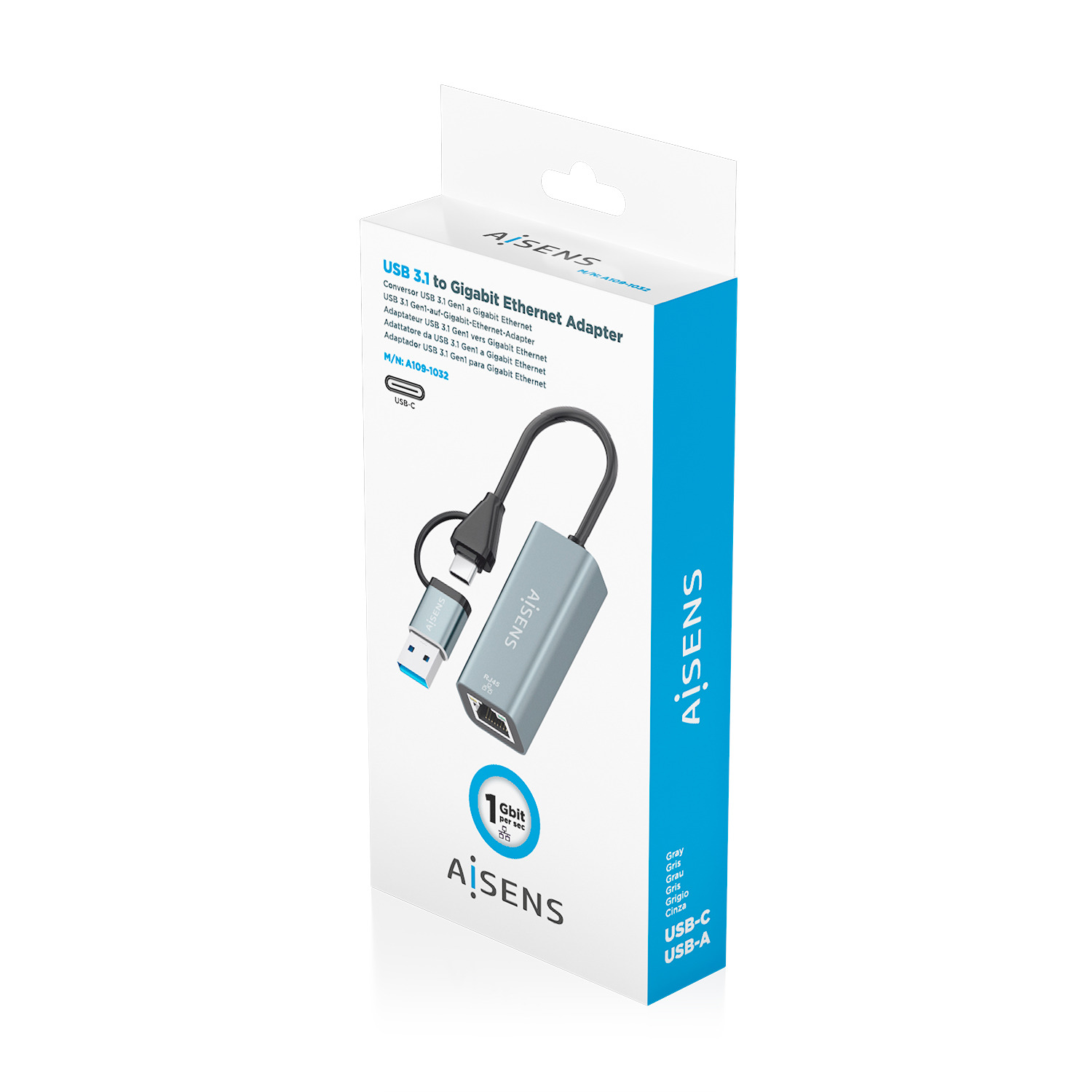

Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 70 mm |
| Package depth | 130 mm |
| Package height | 21 mm |
| Package weight | 53 g |
Packaging content
| Specification | Value |
|---|---|
| Interface adapters included | USB Type-C - USB Type-A |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Master (outer) case volume | 23828 cm³ |
| Package volume | 191 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 280 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case net weight | 5.3 kg |
| Master (outer) case width | 230 mm |
| Products per master (outer) case | 100 pc(s) |
Other features
| Specification | Value |
|---|---|
| Chipset | RTL8153E |
