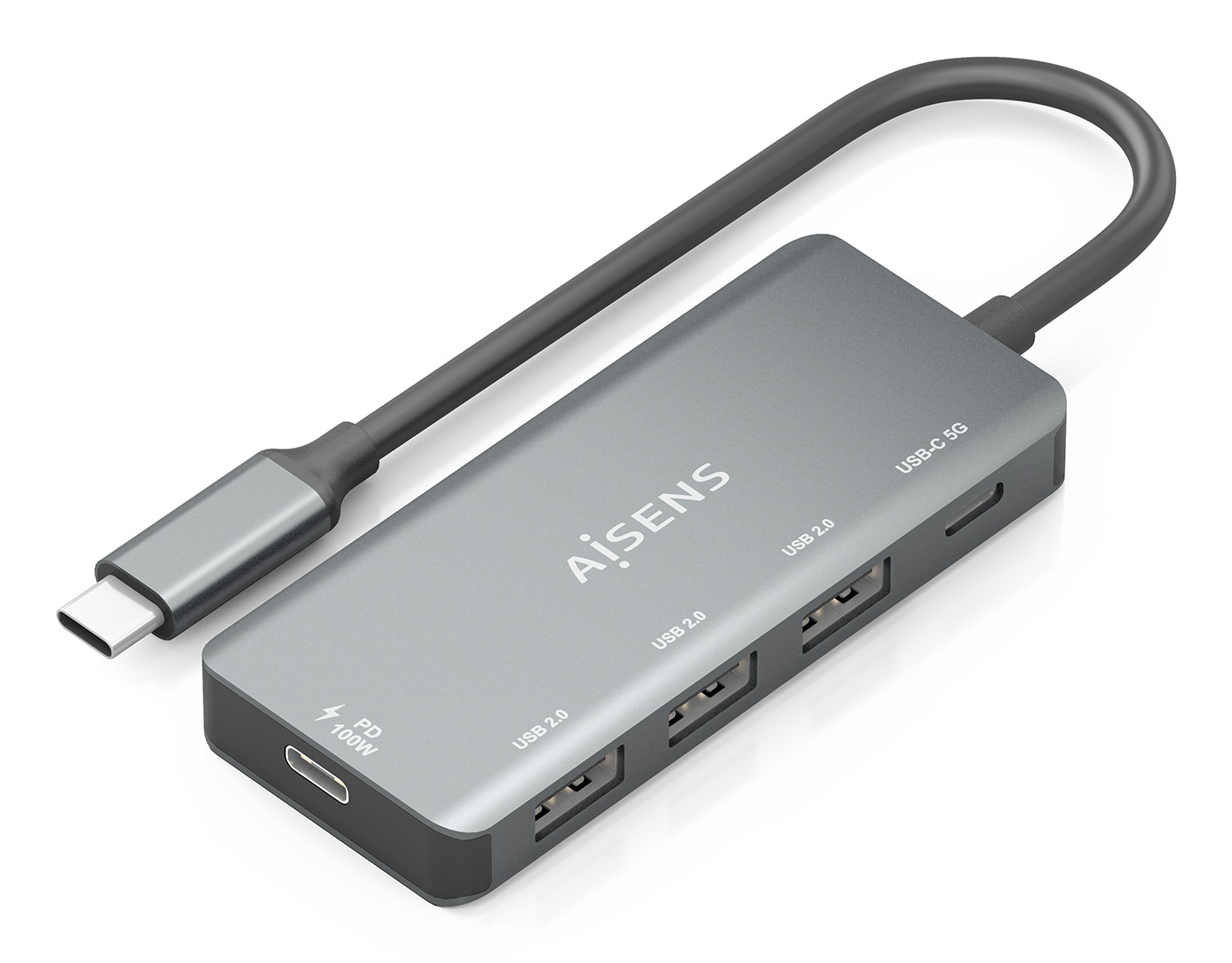

A109-0945 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Model A109-0945EAN 8435739903346
35 specifications
- ConnectivityWired
- ColourGrey
- Ethernet LANNo
- Power source typeUSB
- Width39 mm
- Compliance certificatesCE, RoHS
Overview
- Connectivity
- Wired
- Colour
- Grey
- Ethernet LAN
- No
- Power source type
- USB
- Width
- 39 mm
- Compliance certificates
- CE, RoHS
- Brand
- AISENS
- Category
- Laptop Docks & Port Replicators
- Model
- A109-0945
- Part number
- A109-0945
- EAN / UPC
- 8435739903346
- Also known as
- AISENS A109-0945 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
35 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Number of USB ports with PowerShare support | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 0 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Housing material | Aluminium |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power connector | USB Type-C |
| USB cable length | 0.15 m |

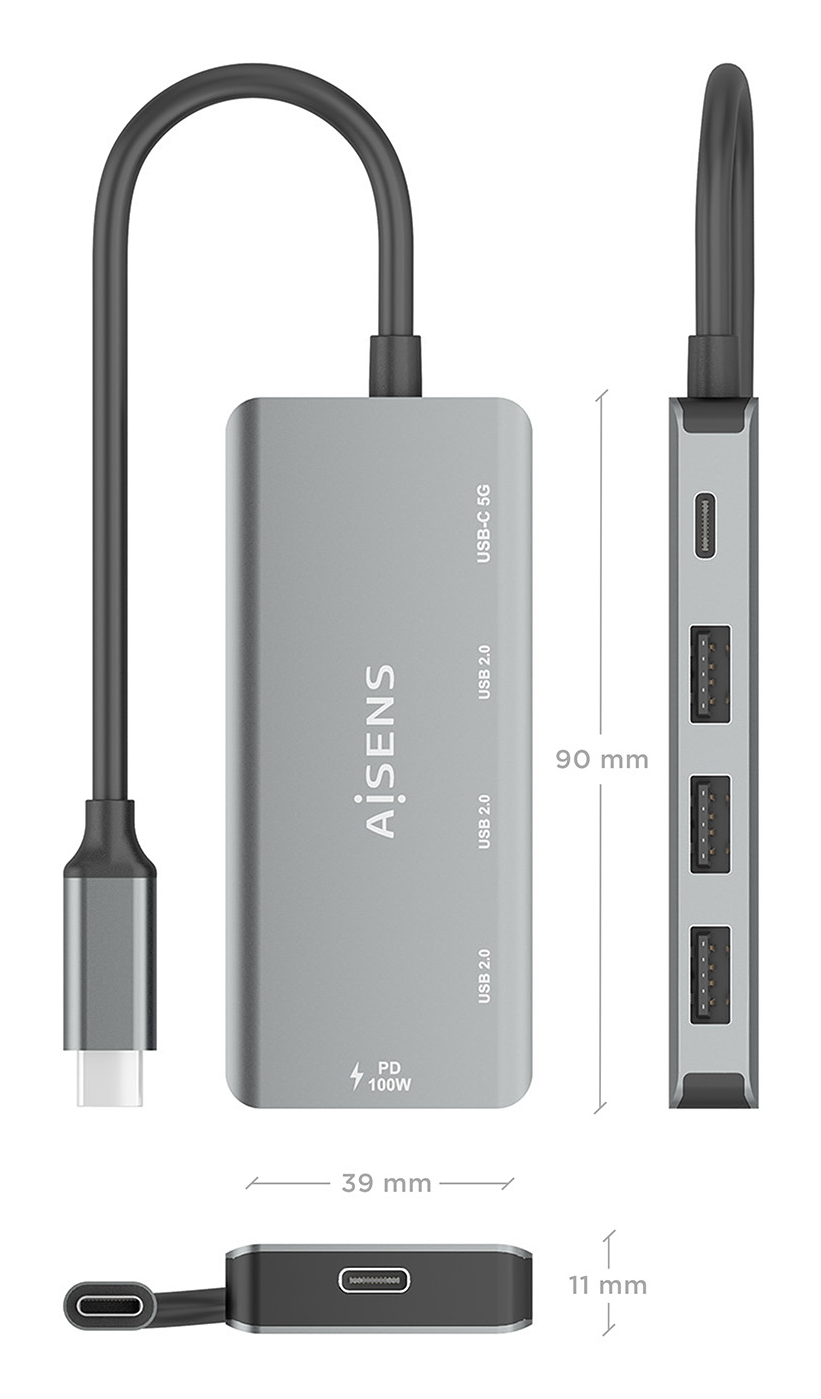

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 39 mm |
| Depth | 90 mm |
| Height | 11 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 160 mm |
| Package depth | 120 mm |
| Package height | 10 mm |
| Package weight | 55 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Master (outer) case volume | 38640 cm³ |
| Package volume | 192 cm³ |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 11 kg |
| Master (outer) case height | 280 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case width | 300 mm |
| Products per master (outer) case | 200 pc(s) |
