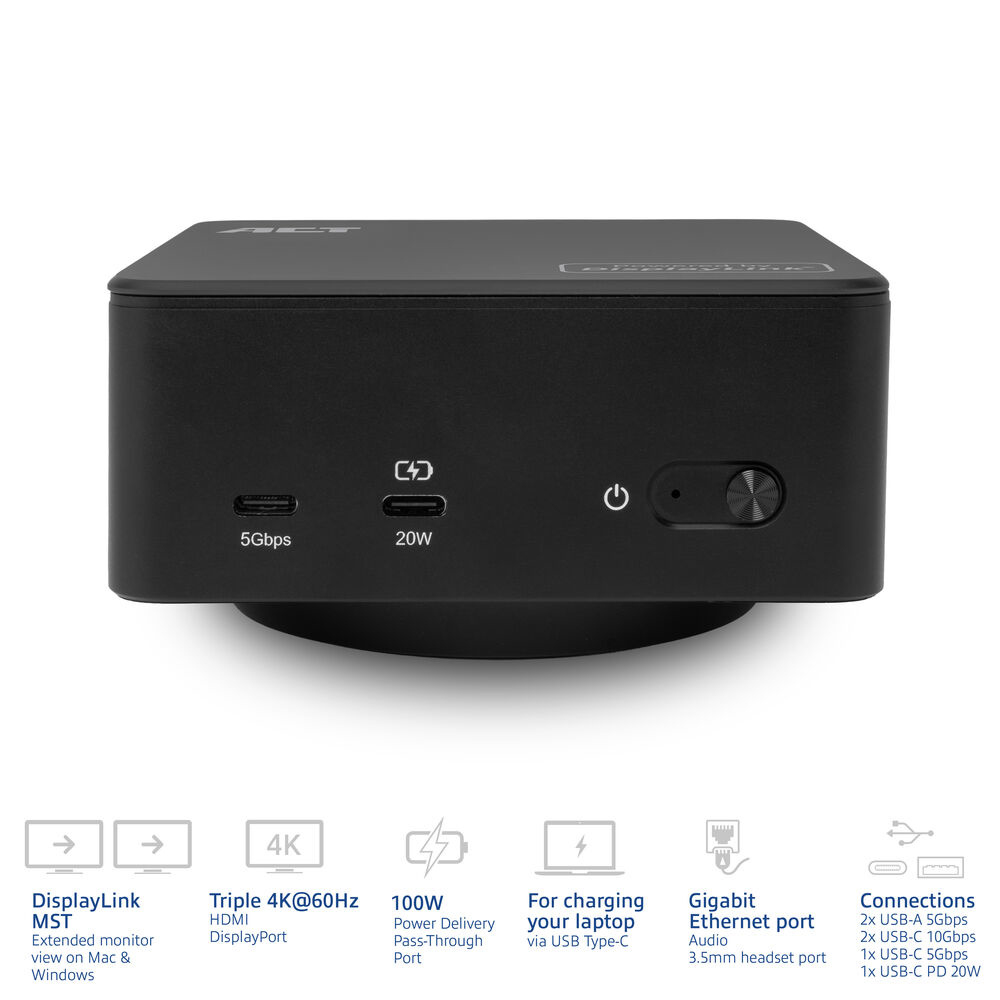

Universal USB-C Docking Station 4K, for 3 HDMI/DisplayPort monitors, DisplayLink
Model AC7148EAN 8716065599343
40 specifications
- ConnectivityWired
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Width107 mm
Overview
- Connectivity
- Wired
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 107 mm
- Brand
- ACT
- Category
- Laptop Docks & Port Replicators
- Model
- AC7148
- Part number
- AC7148
- EAN / UPC
- 8716065599343
- Also known as
- ACT Universal USB-C Docking Station 4K, for 3 HDMI/DisplayPort monitors, DisplayLink
Specifications
40 specifications in 7 groups

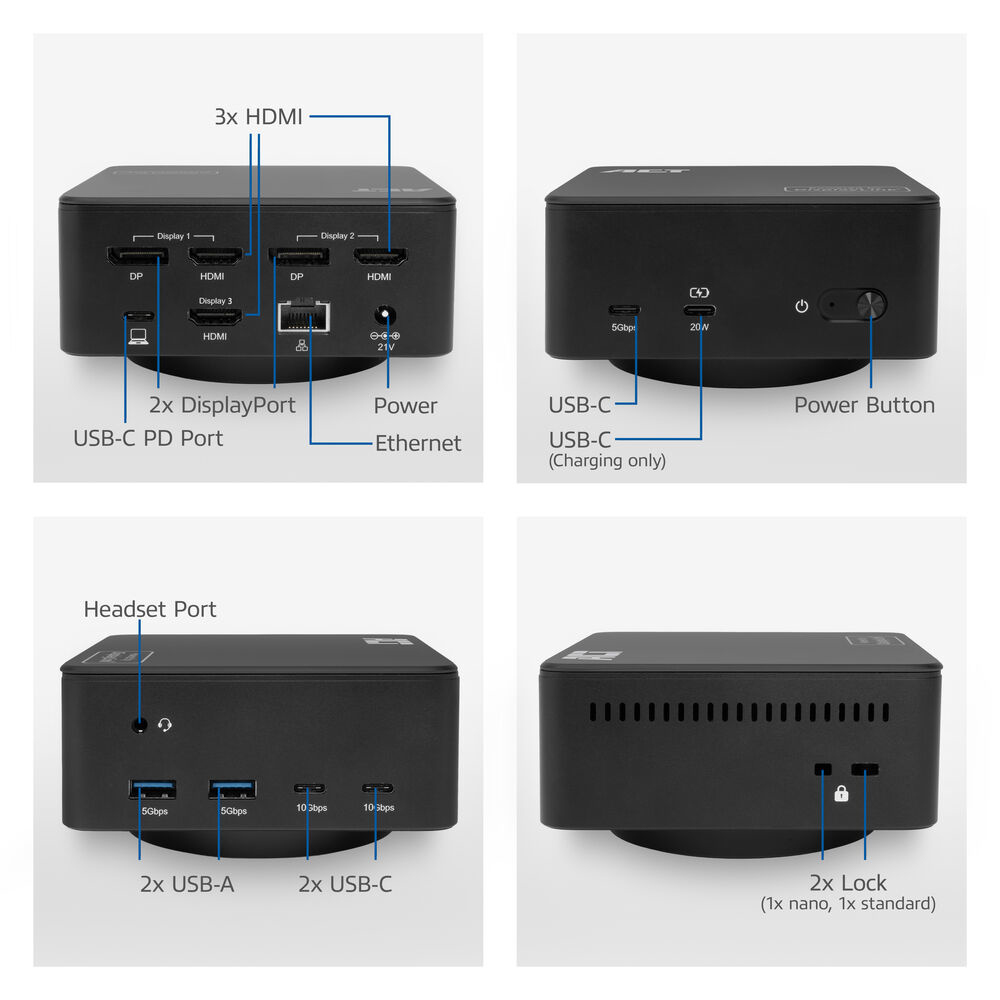

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100,10,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |

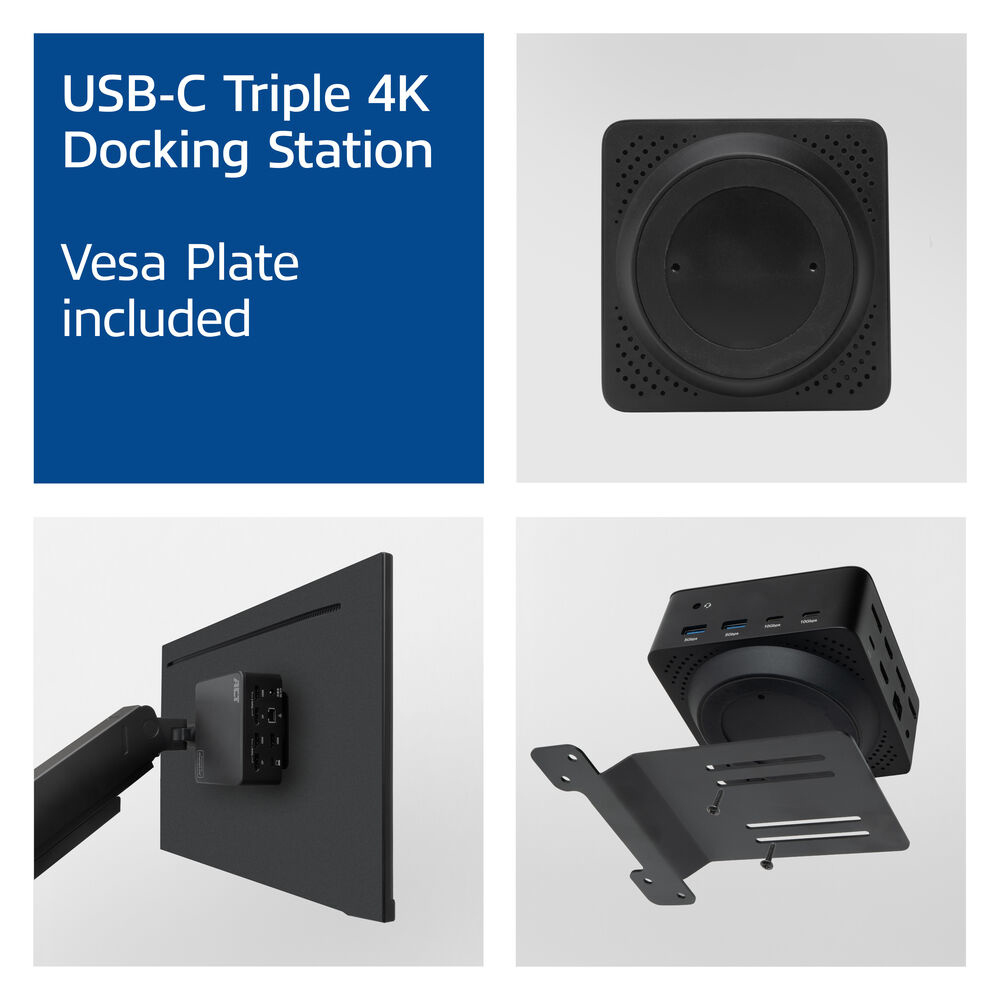

| VESA mounting | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power supply | 135 W |
| Output current | 6.43 A |
| Output voltage | 21 V |
| USB cable length | 1 m |

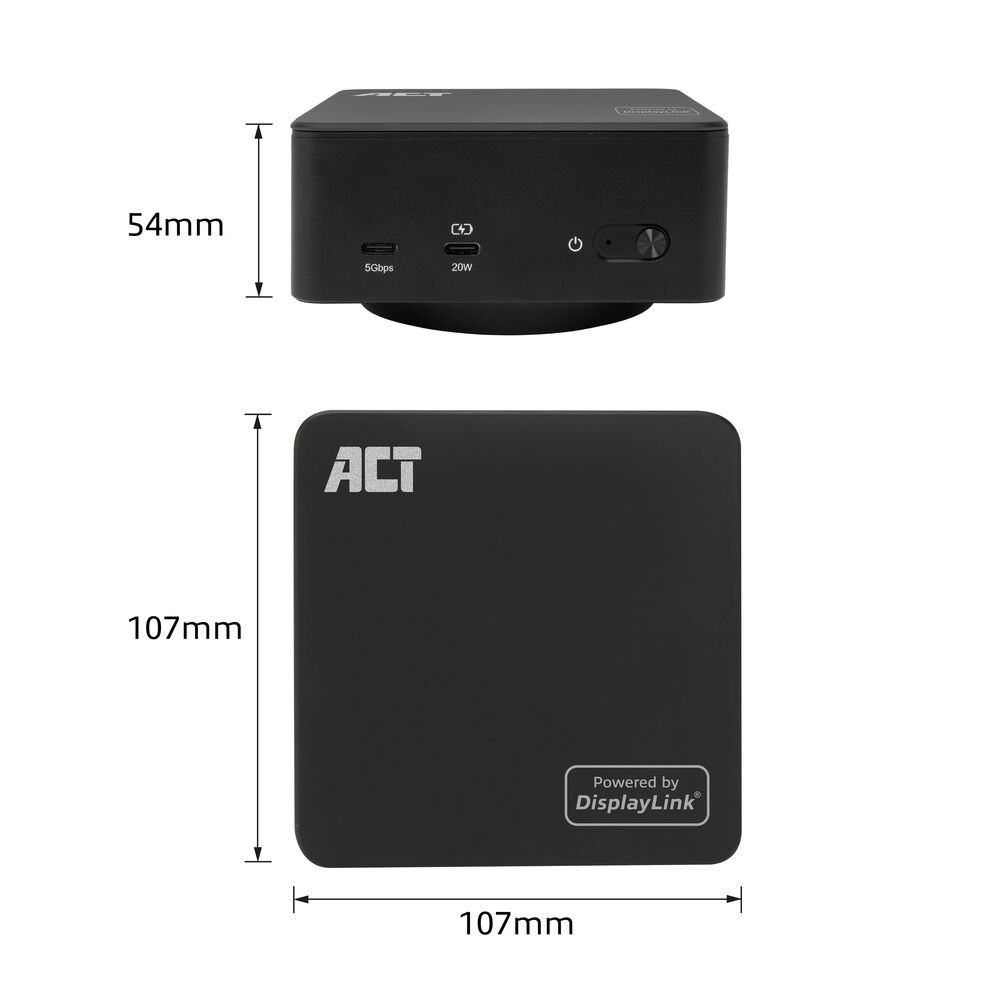

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 107 mm |
| Depth | 107 mm |
| Height | 54 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Cables included | USB Type-C to USB Type-C |
