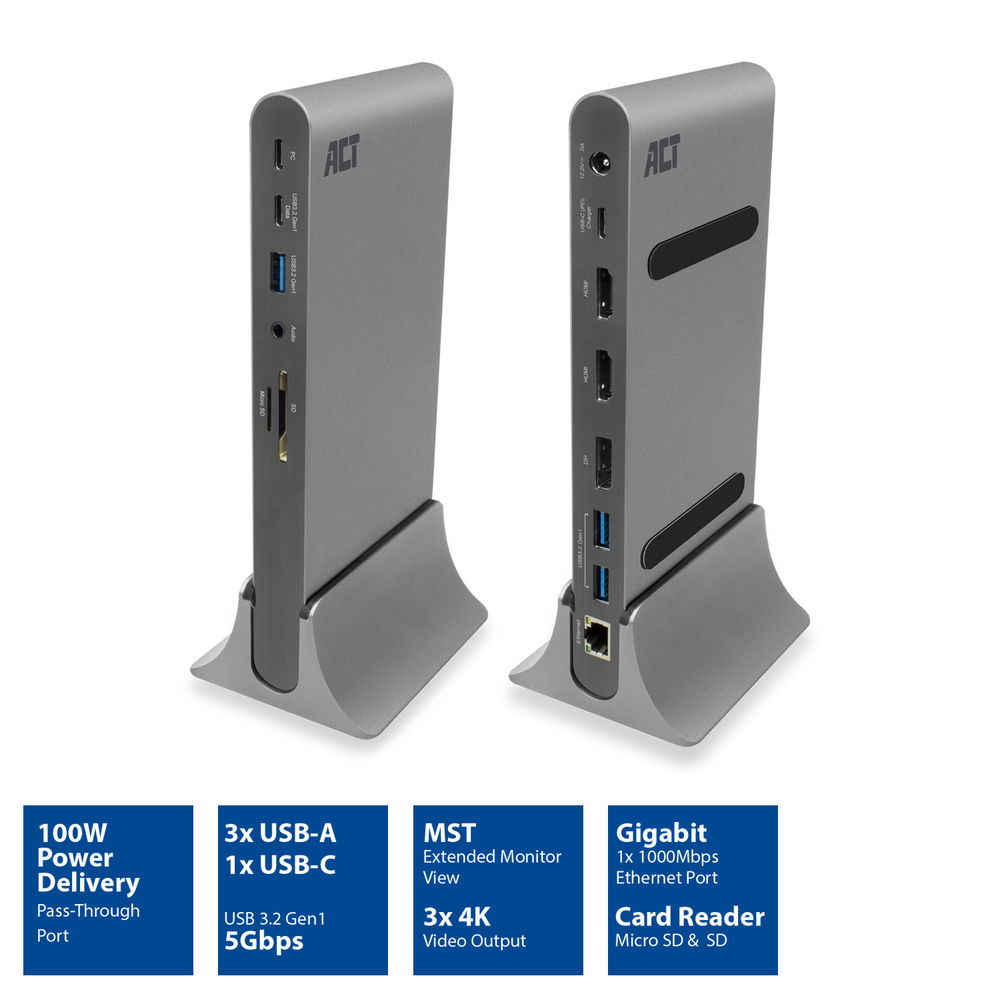

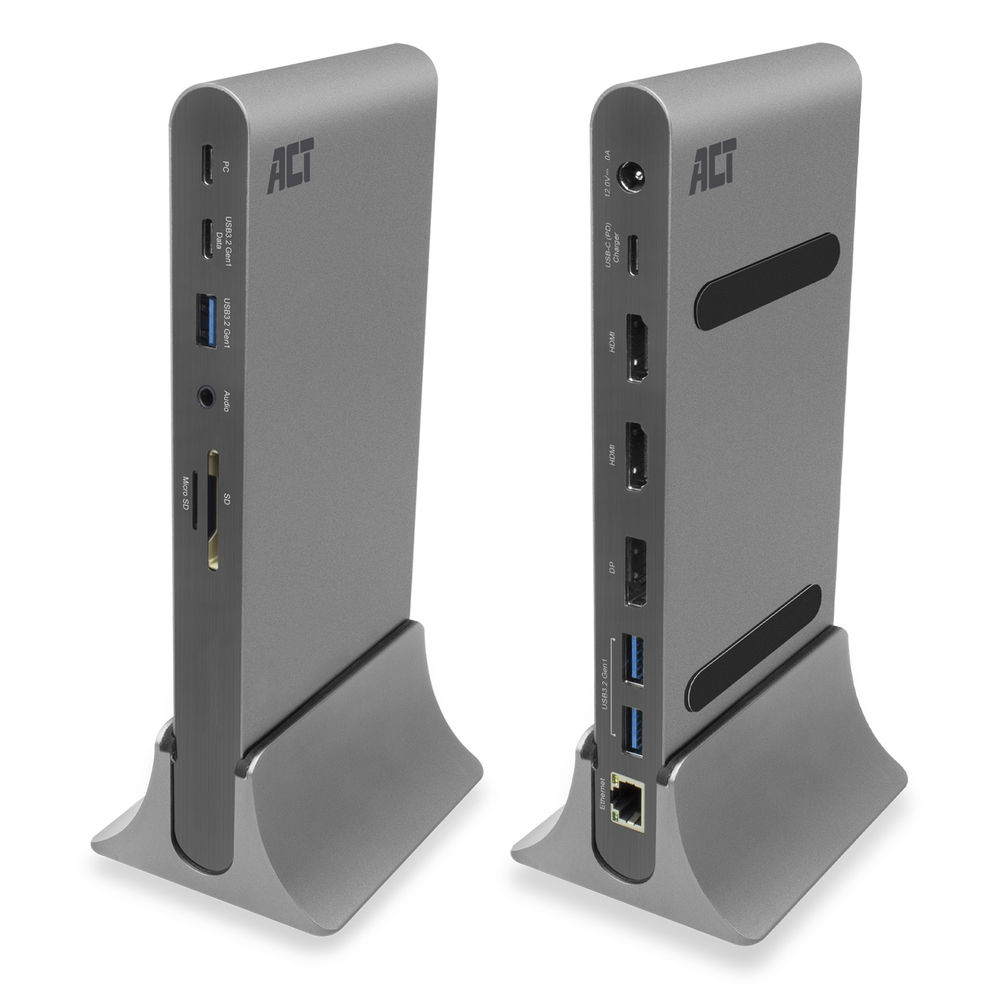

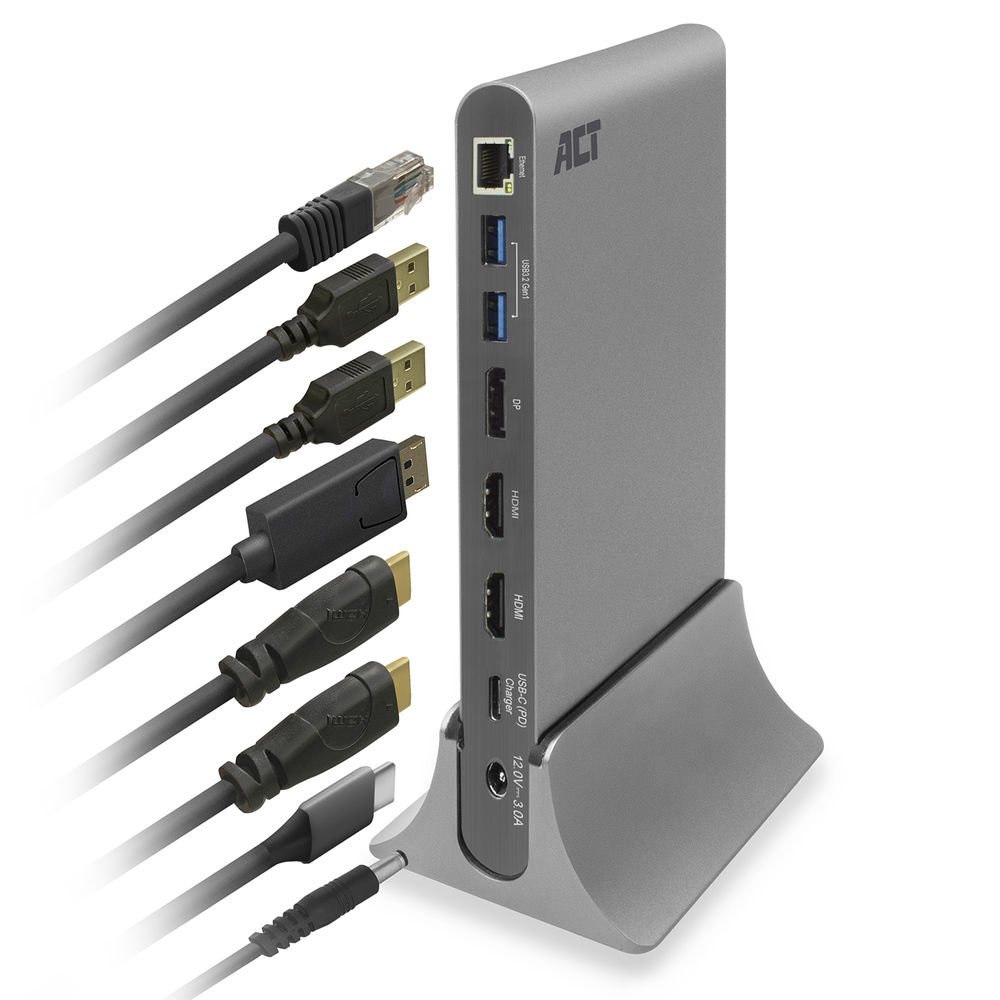

AC7047 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Model AC7047EAN 8716065506624
39 specifications
- ConnectivityWired
- ColourGrey
- Ethernet LANYes
- Power source typeDC
- Width180 mm
Overview
- Connectivity
- Wired
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 180 mm
- Brand
- ACT
- Category
- Laptop Docks & Port Replicators
- Model
- AC7047
- Part number
- AC7047
- EAN / UPC
- 8716065506624
- Also known as
- ACT AC7047 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
39 specifications in 8 groups

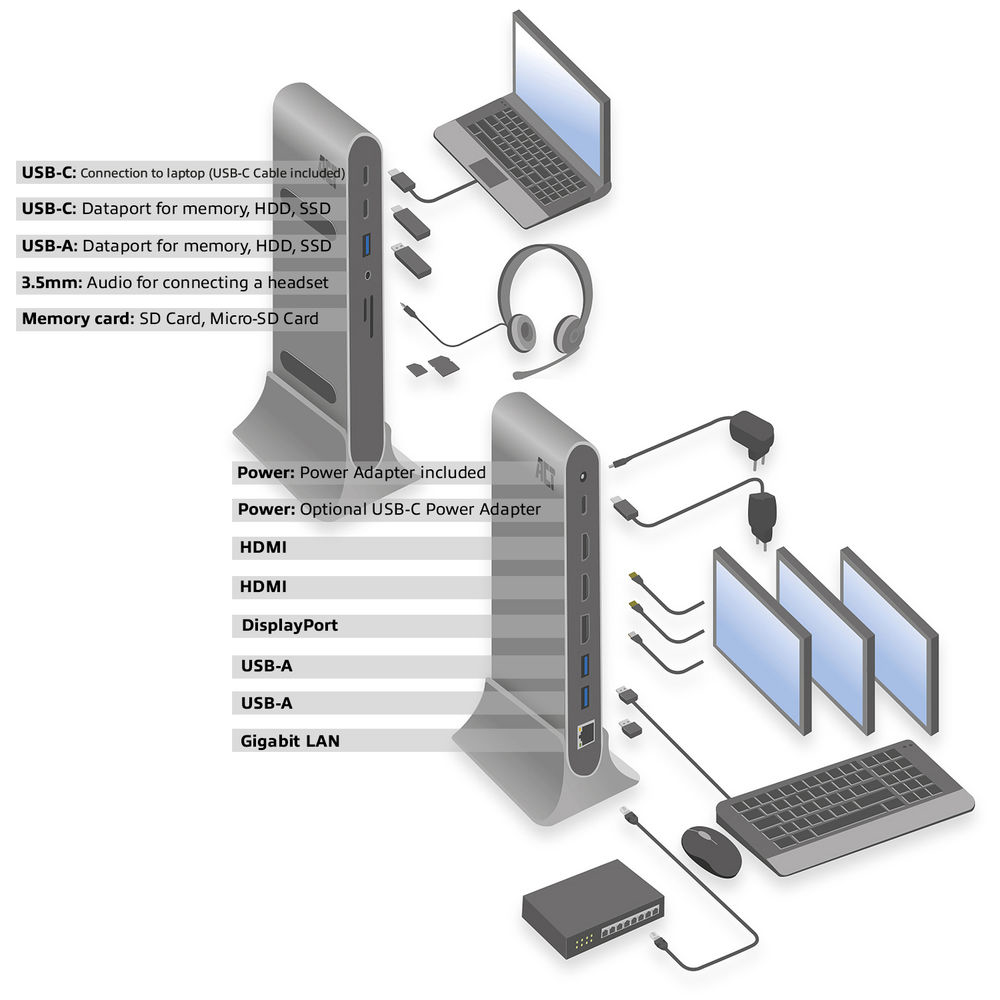

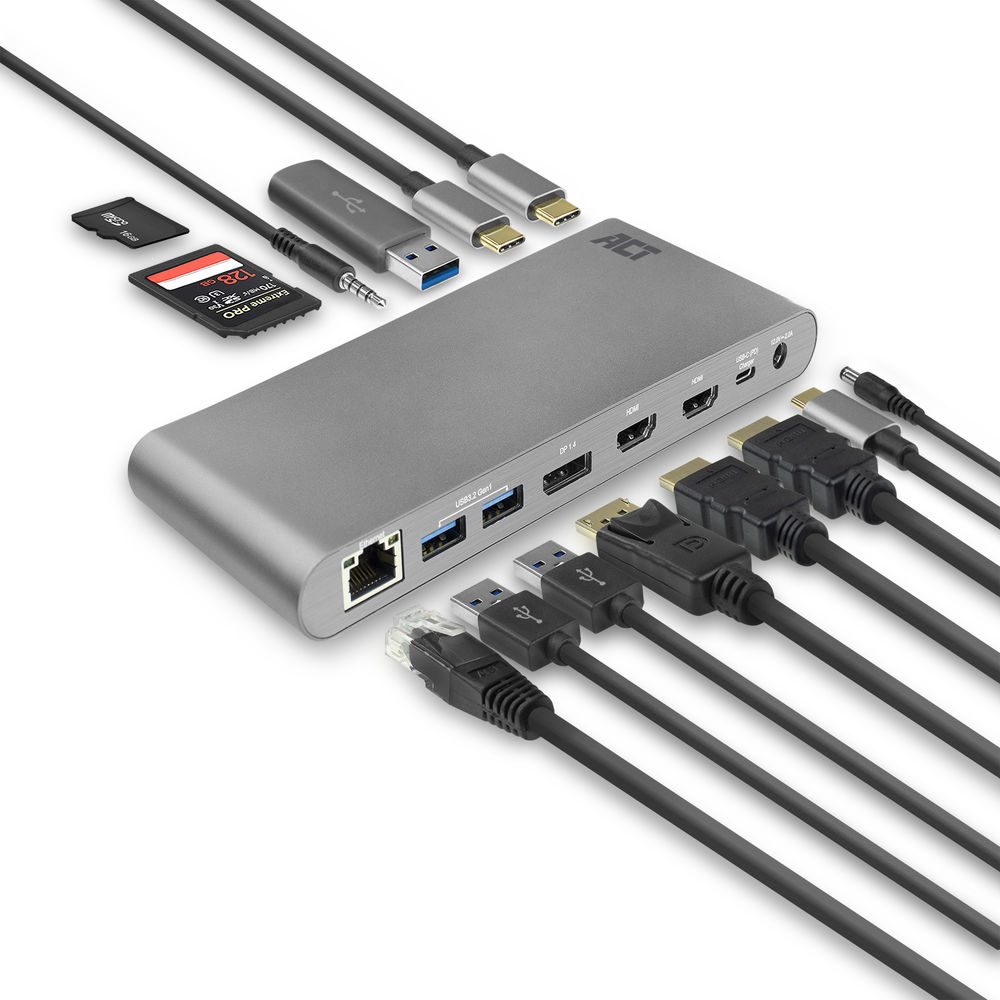

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |

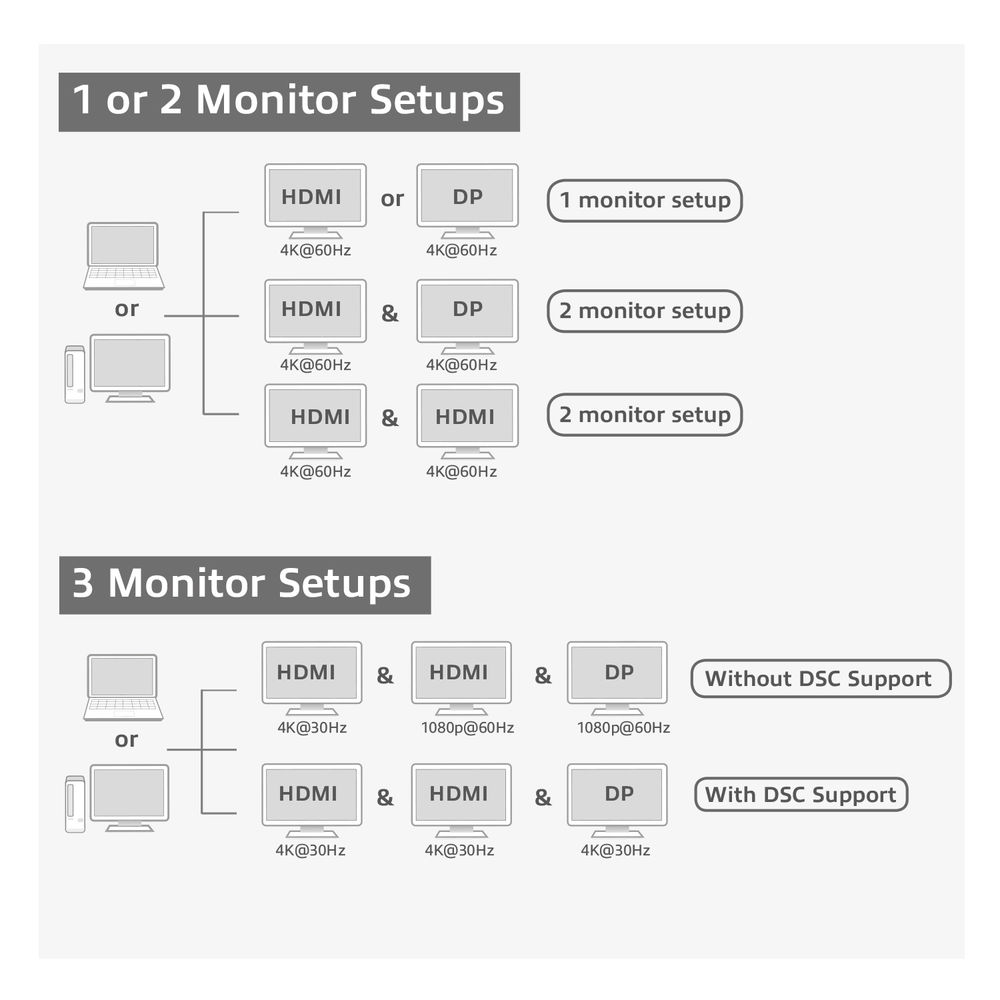

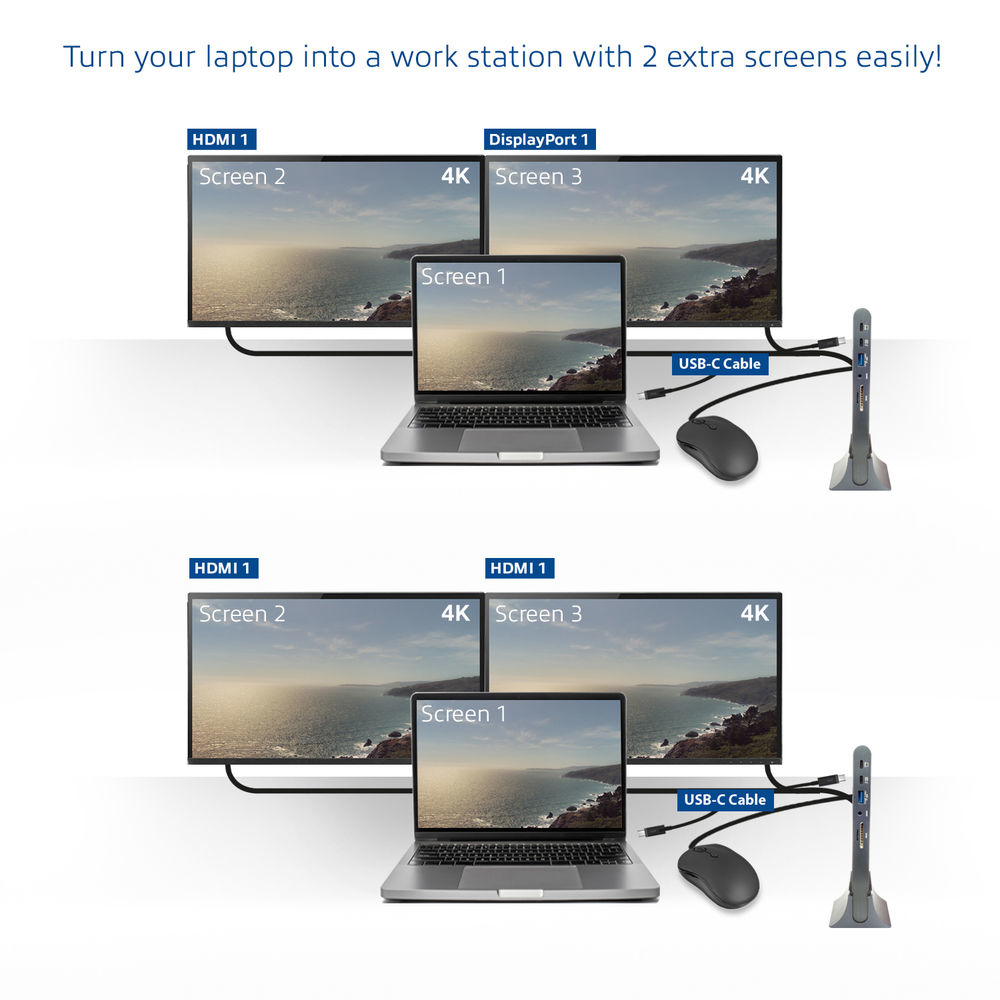

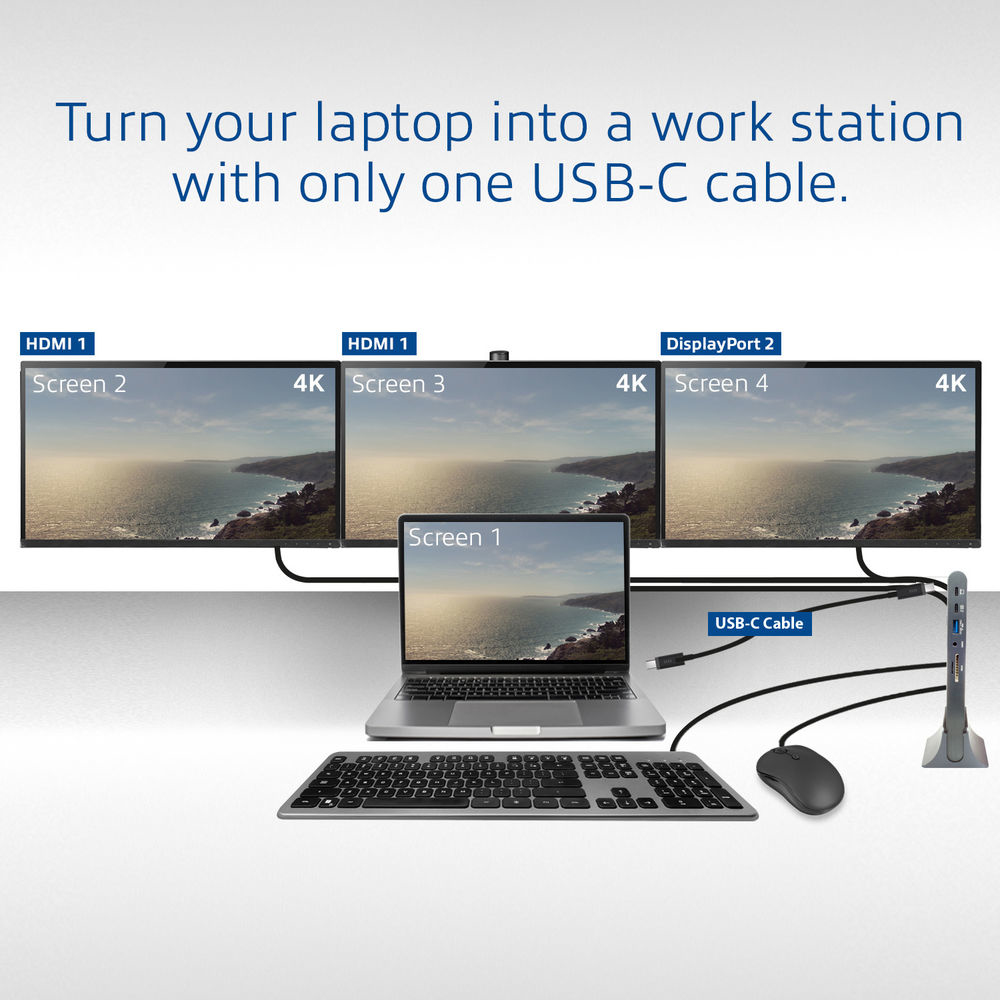

| Number of displays supported | 3 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Output voltage | 5, 9, 12, 15, 20 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 77 mm |
| Height | 18 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 205 mm |
| Package depth | 73 mm |
| Package height | 125 mm |
| Package weight | 790 g |
Packaging content
| Specification | Value |
|---|---|

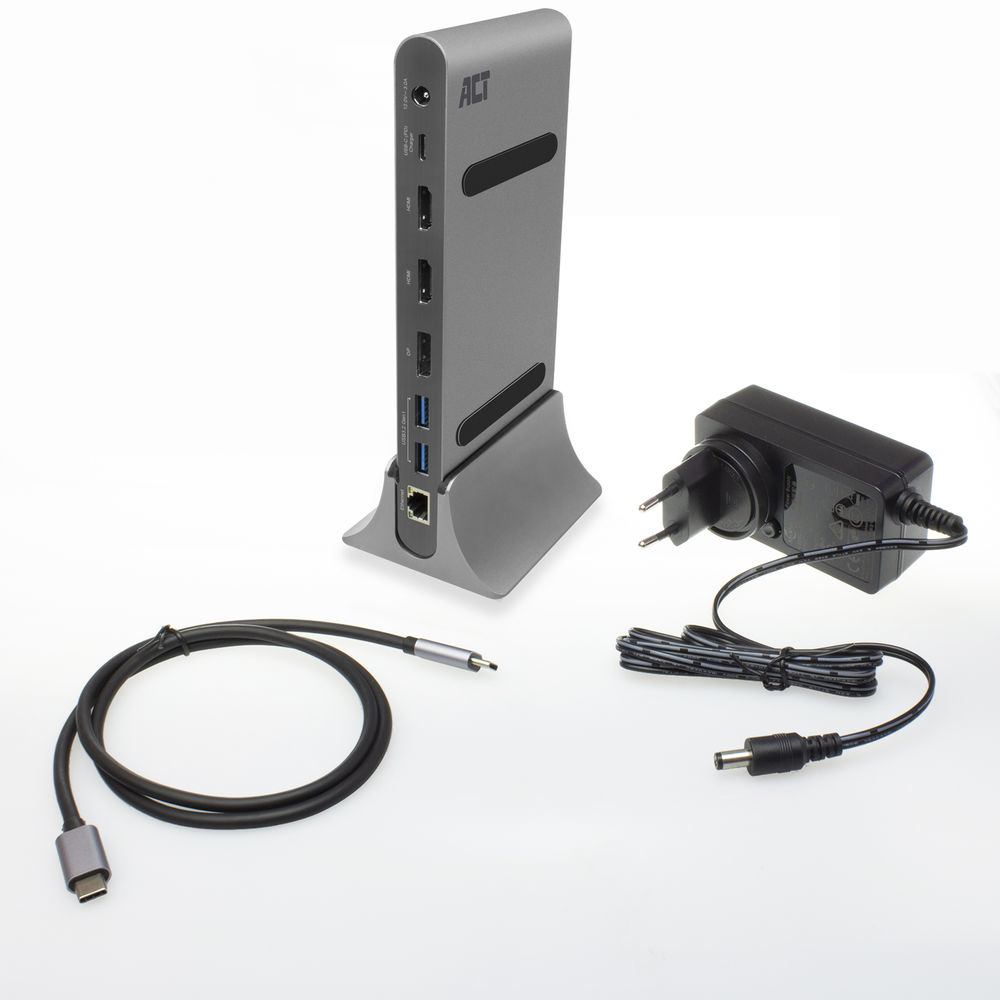

| AC adapter included | Yes |
| Cables included | USB Type-C to USB Type-C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
