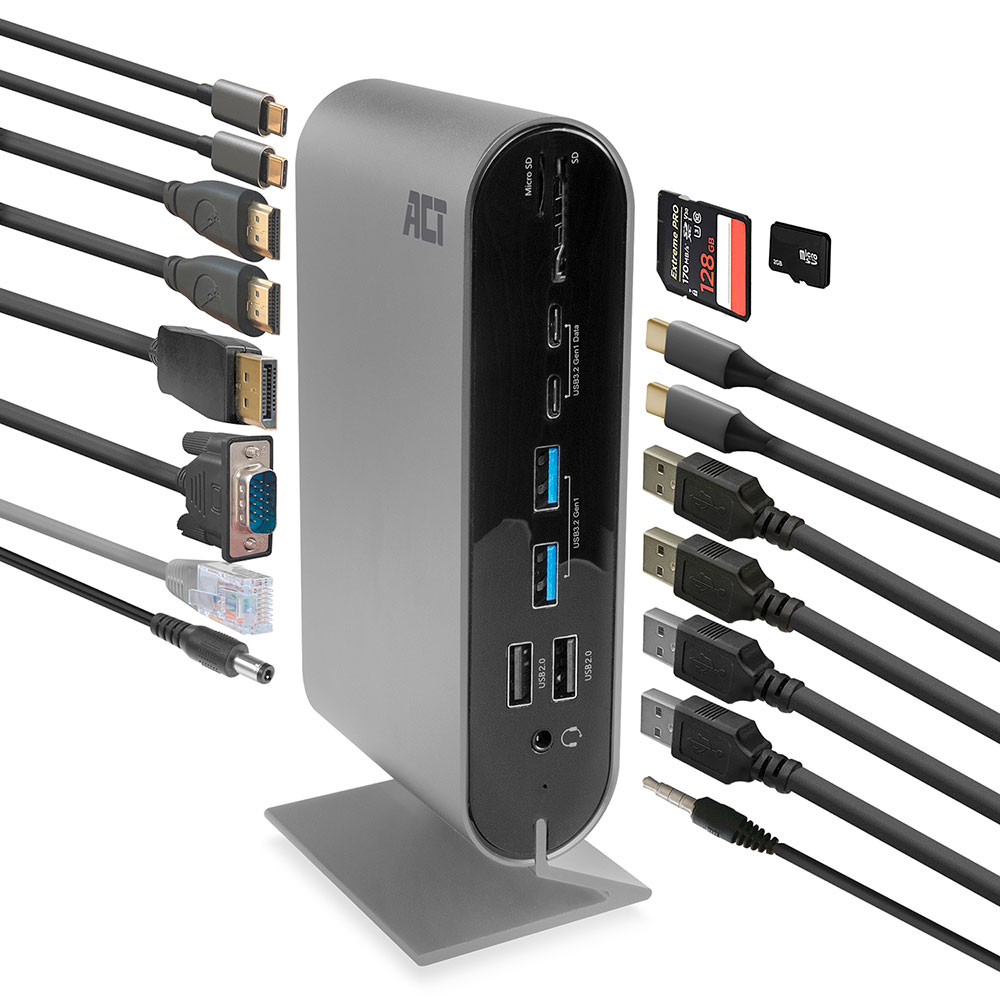

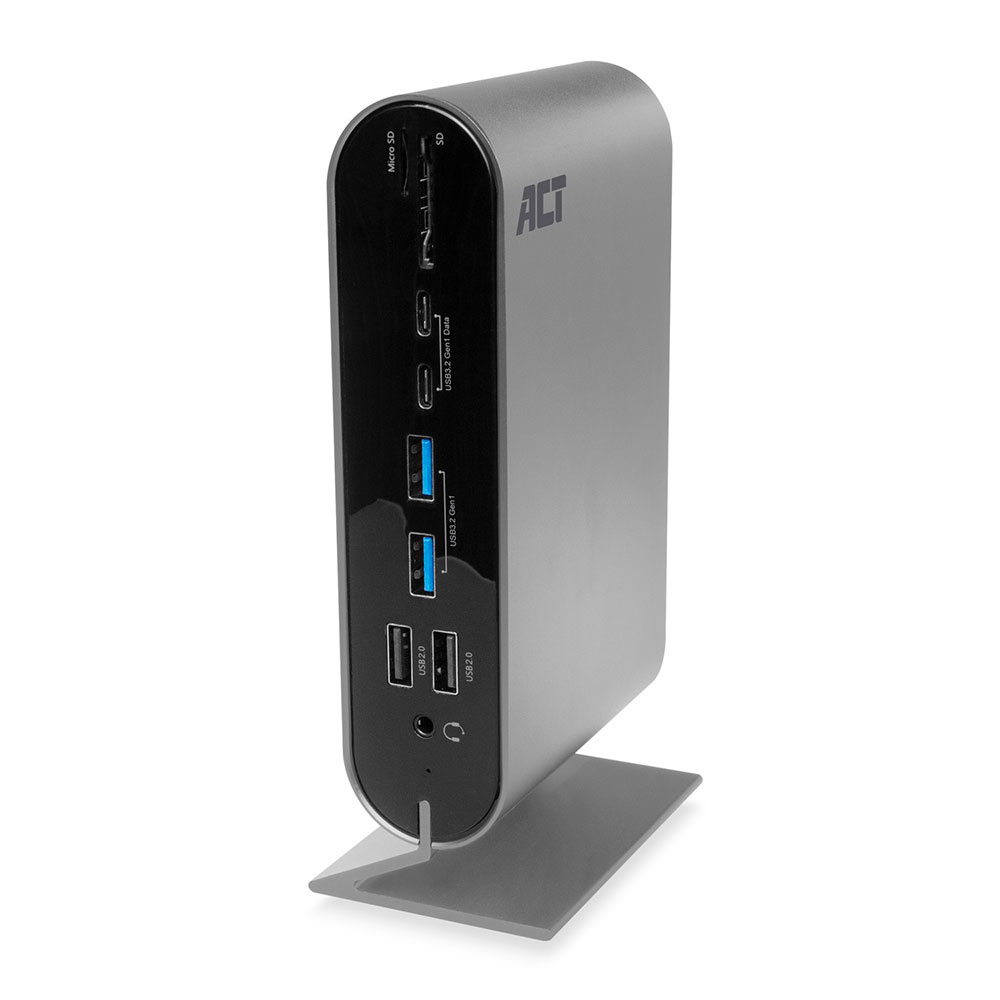

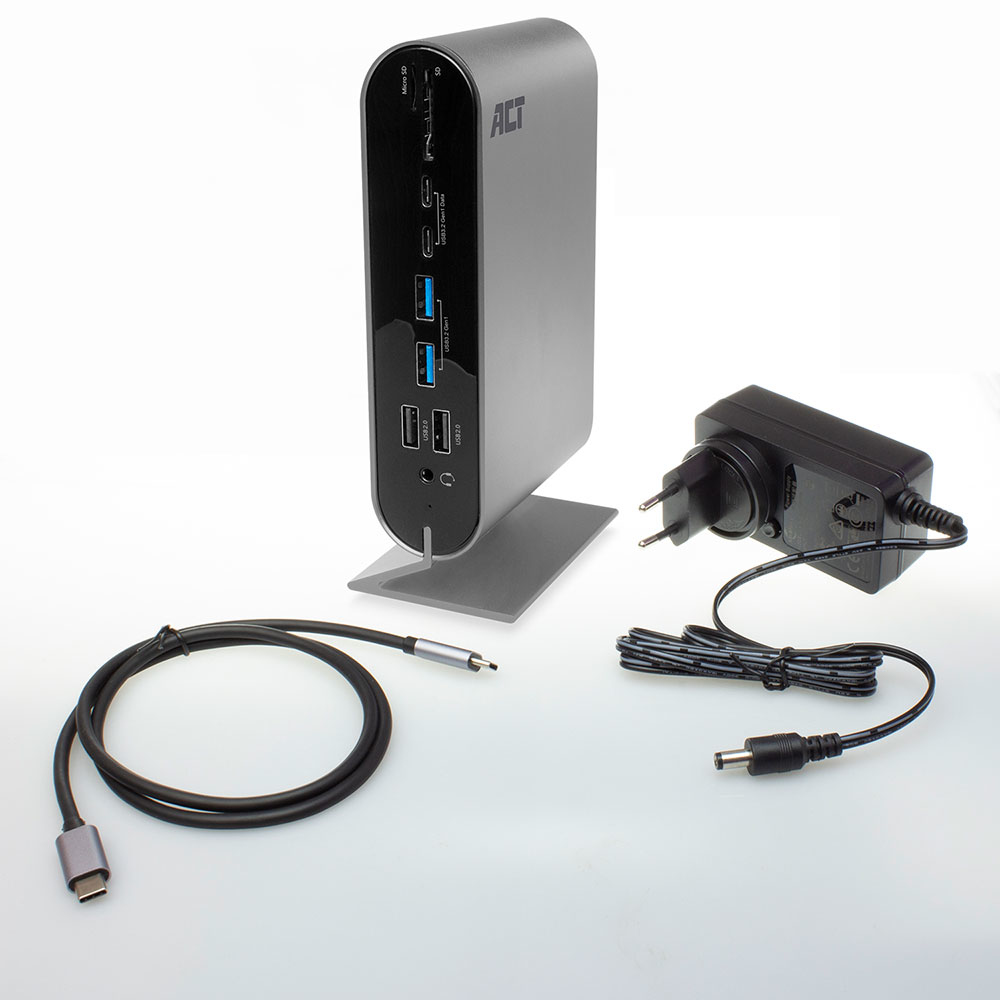

AC7045 USB-C Docking station 2 monitors, HDMI, DisplayPort, VGA with USB hub, ethernet, cardreader and audio
Model AC7045EAN 8716065412574
38 specifications
- ConnectivityWired
- Weight750 g
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Width210 mm
Overview
- Connectivity
- Wired
- Weight
- 750 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 210 mm
- Brand
- ACT
- Category
- Laptop Docks & Port Replicators
- Model
- AC7045
- Part number
- AC7045
- EAN / UPC
- 8716065412574
- Also known as
- ACT AC7045 USB-C Docking station 2 monitors, HDMI, DisplayPort, VGA with USB hub, ethernet, cardreader and audio
Specifications
38 specifications in 6 groups

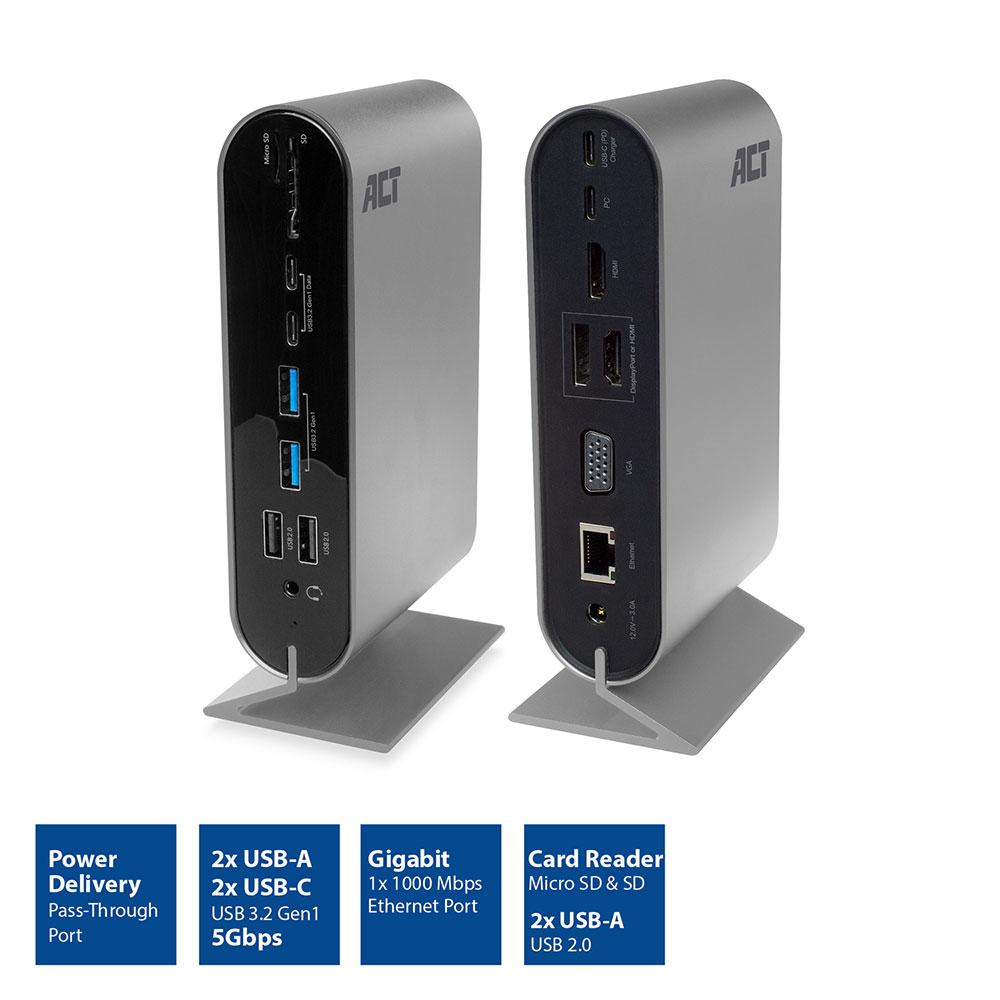

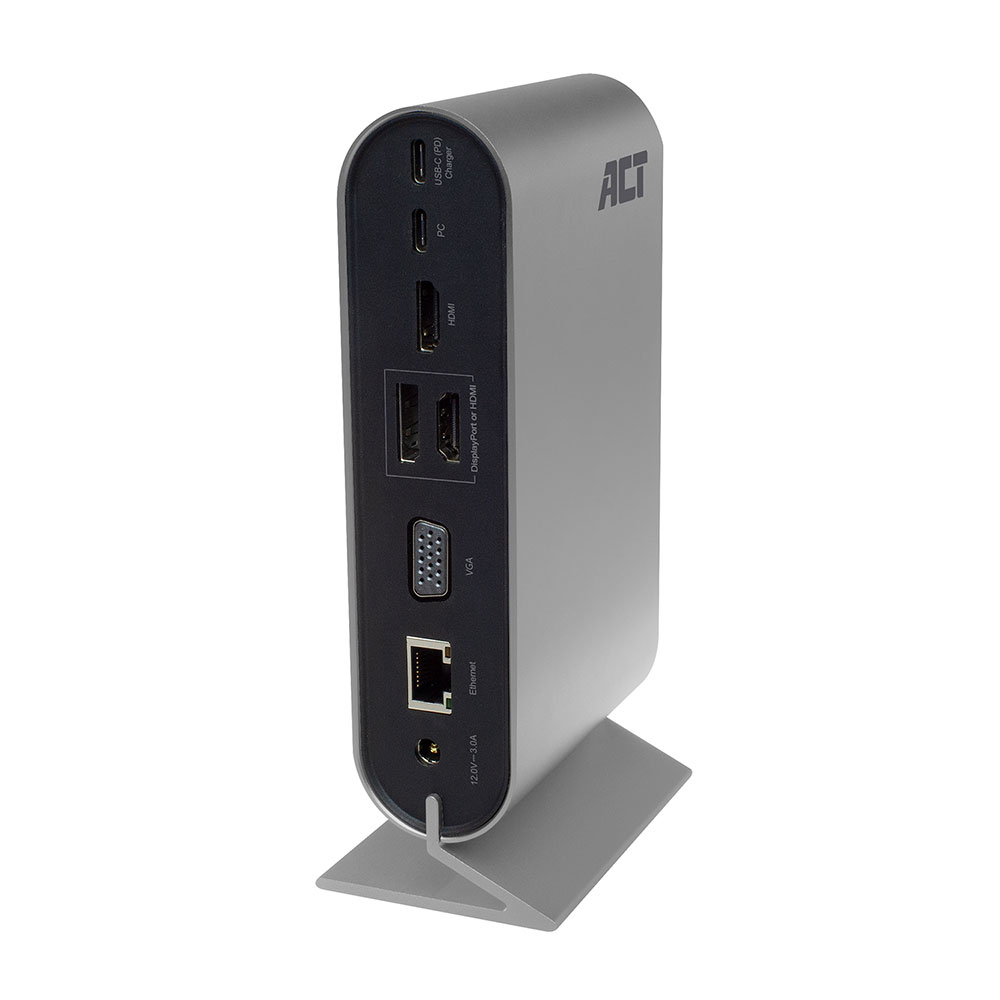

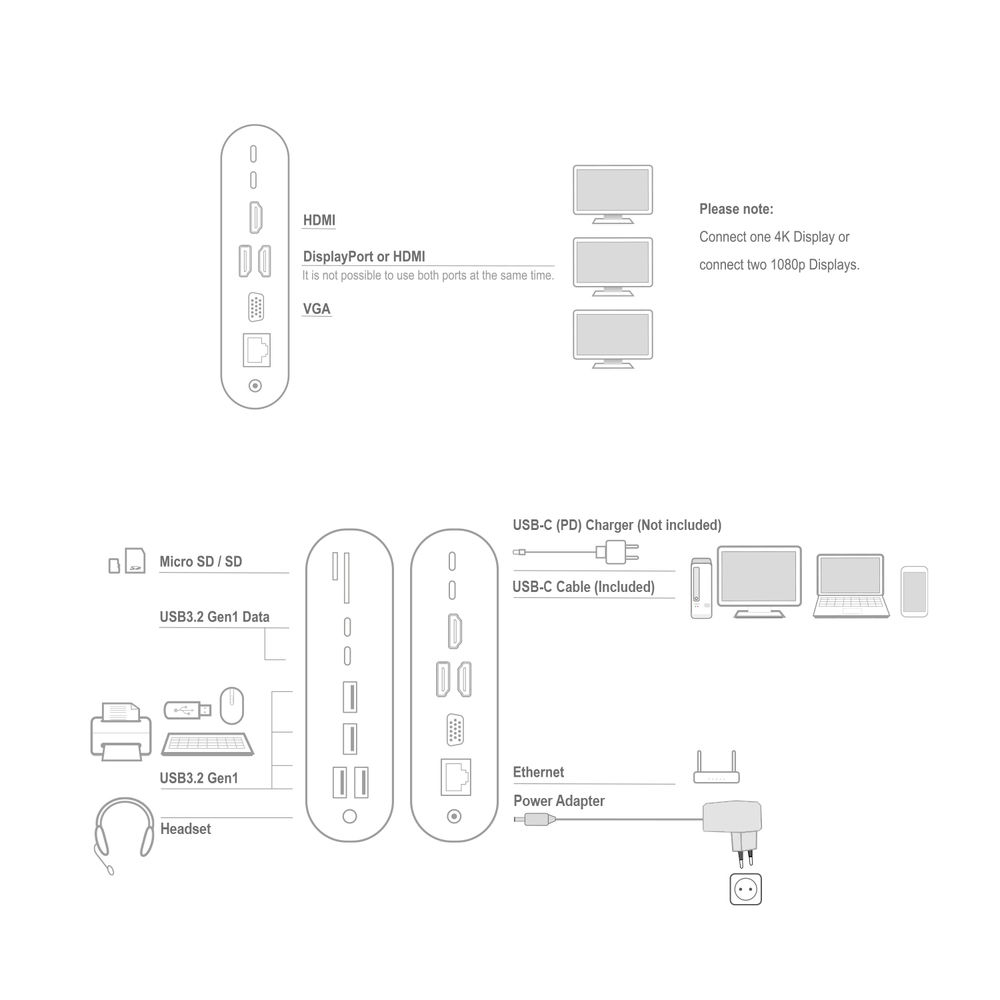

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| AC input voltage | 12 V |
| Input current | 3 A |
| Output current | 3 A |
| Output voltage | 5 - 15 V |
| Power cable length | 0.8 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 180 mm |
| Height | 60 mm |
| Weight | 750 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
