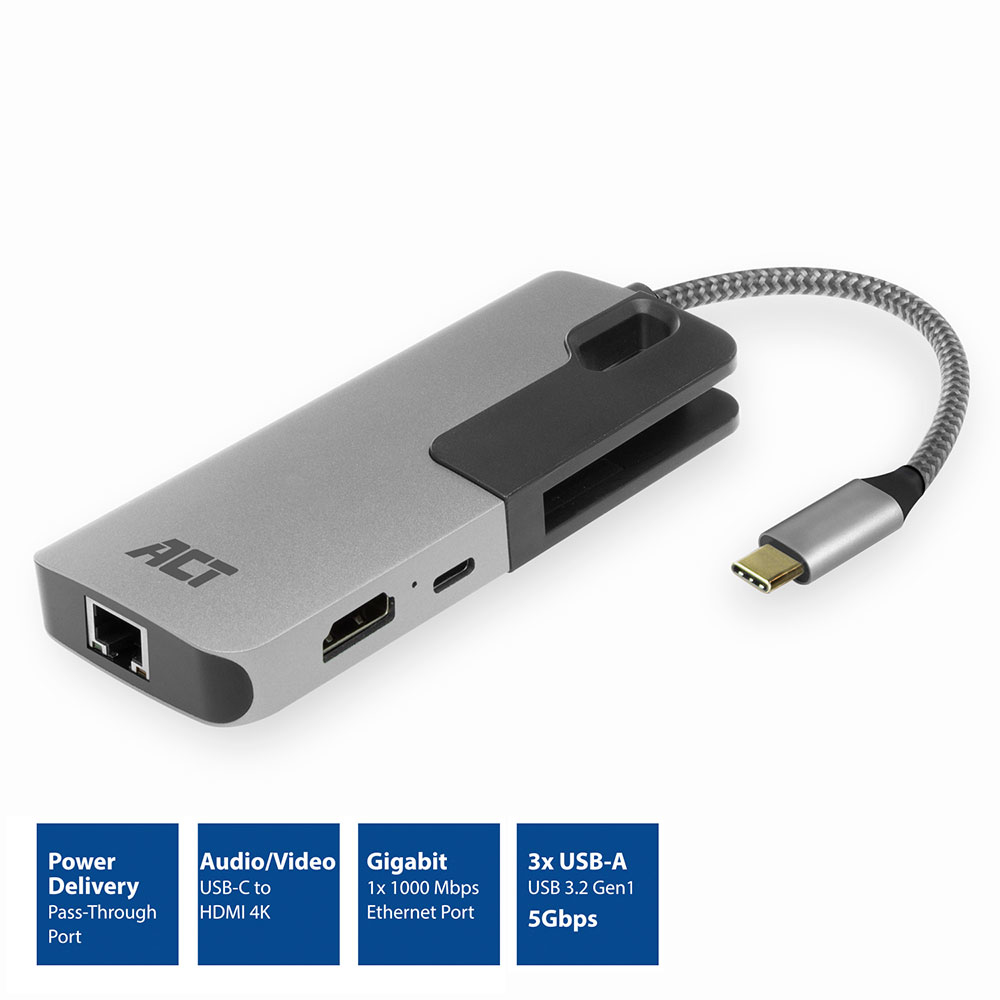

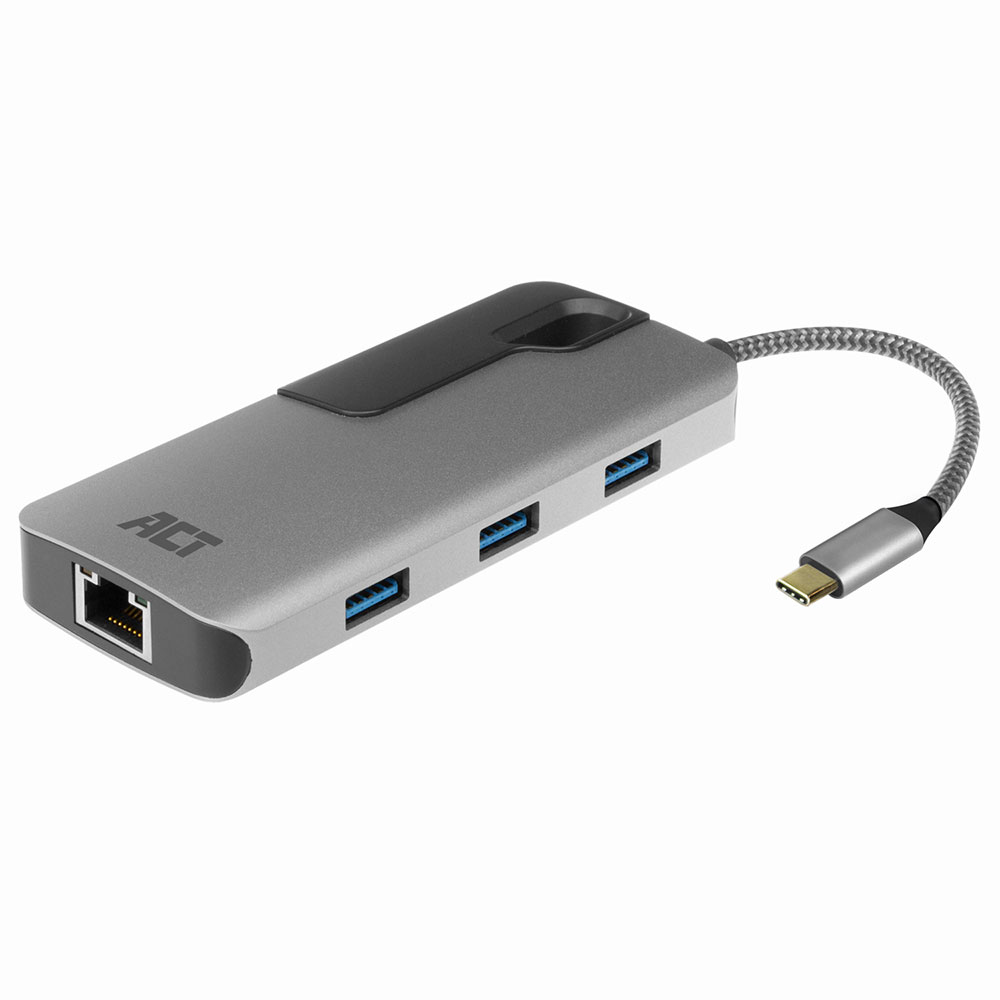

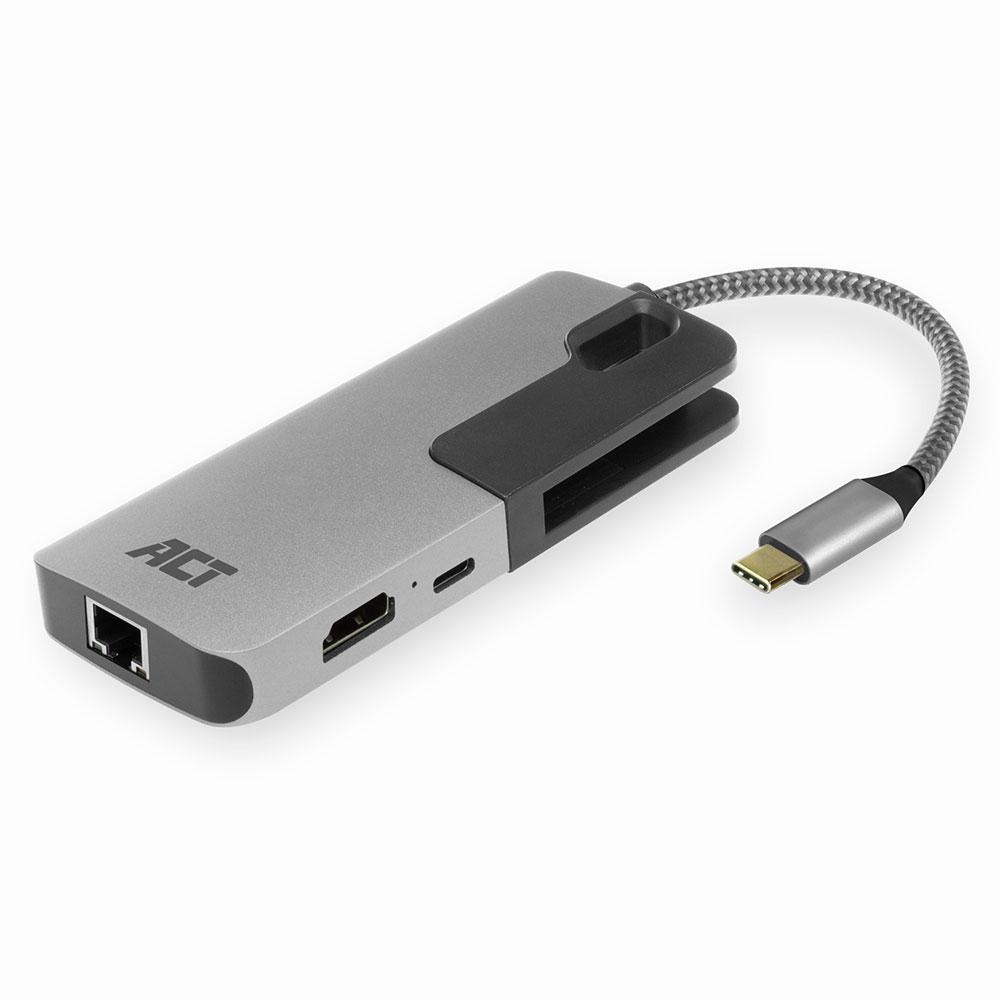

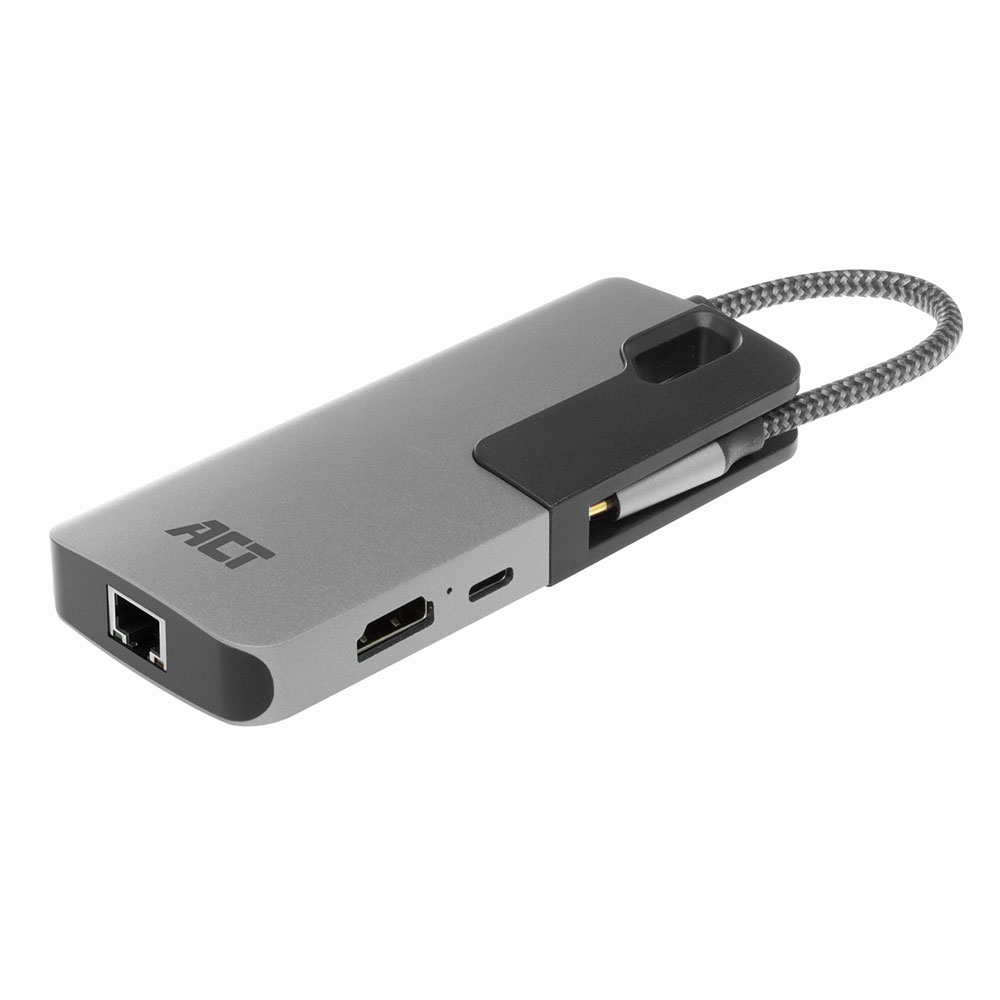

USB-C docking station for 1 HDMI monitor, ethernet, 3x USB-A, PD pass-through
Model AC7042EAN 8716065437508
32 specifications
- ConnectivityWired
- Weight120 g
- ColourBlack, Grey
- Ethernet LANYes
- Built-in fanNo
- Power source typeUSB
Overview
- Connectivity
- Wired
- Weight
- 120 g
- Colour
- Black, Grey
- Ethernet LAN
- Yes
- Built-in fan
- No
- Power source type
- USB
- Brand
- ACT
- Category
- Laptop Docks & Port Replicators
- Model
- AC7042
- Part number
- AC7042
- EAN / UPC
- 8716065437508
- Also known as
- ACT USB-C docking station for 1 HDMI monitor, ethernet, 3x USB-A, PD pass-through
Specifications
32 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 pixels |
| Housing material | Aluminium |
| LED indicators | Yes |
| Plug and Play | Yes |
Cooling
| Specification | Value |
|---|---|
| Built-in fan | No |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Output voltage | 12.0V (2.58A Max), 15.0V (2.67A Max), 20.0V (3.0A Max), 5.0V (2.0A Max), 9.0V( 2.44A Max) |
| Power cable length | 0.12 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 160 mm |
| Height | 25 mm |
| Weight | 120 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
