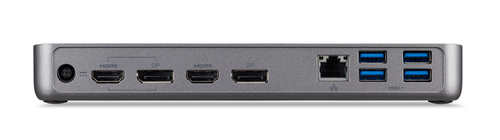

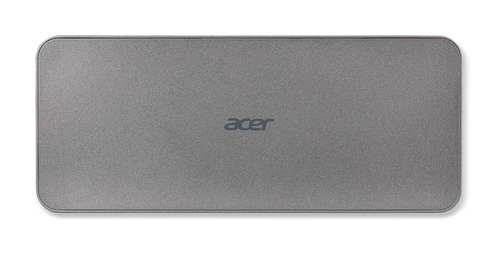

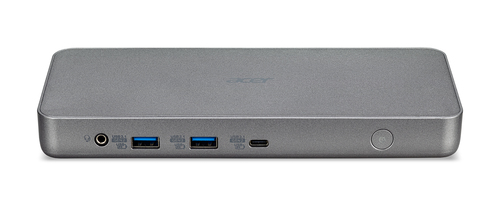

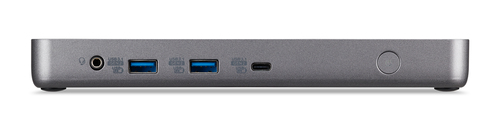

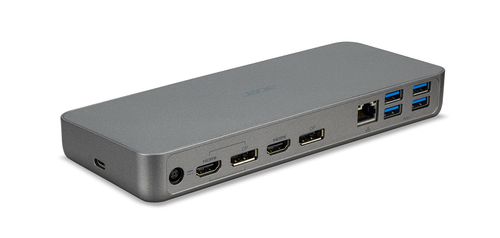

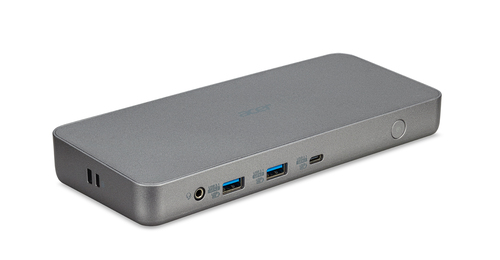

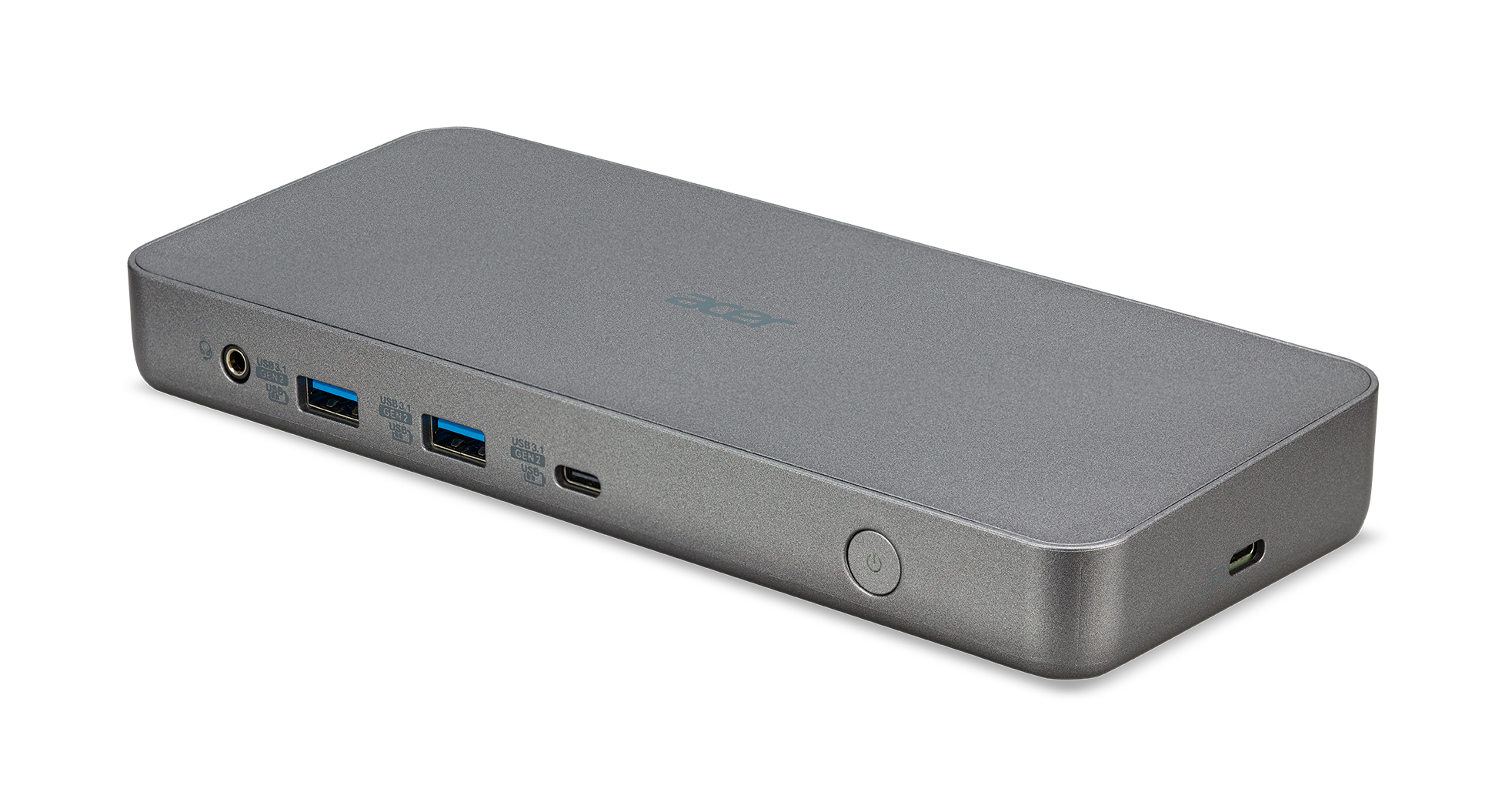

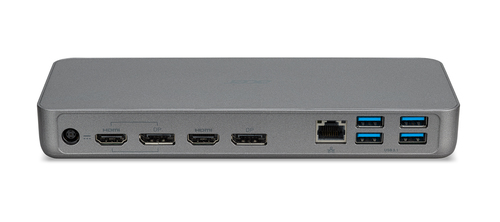

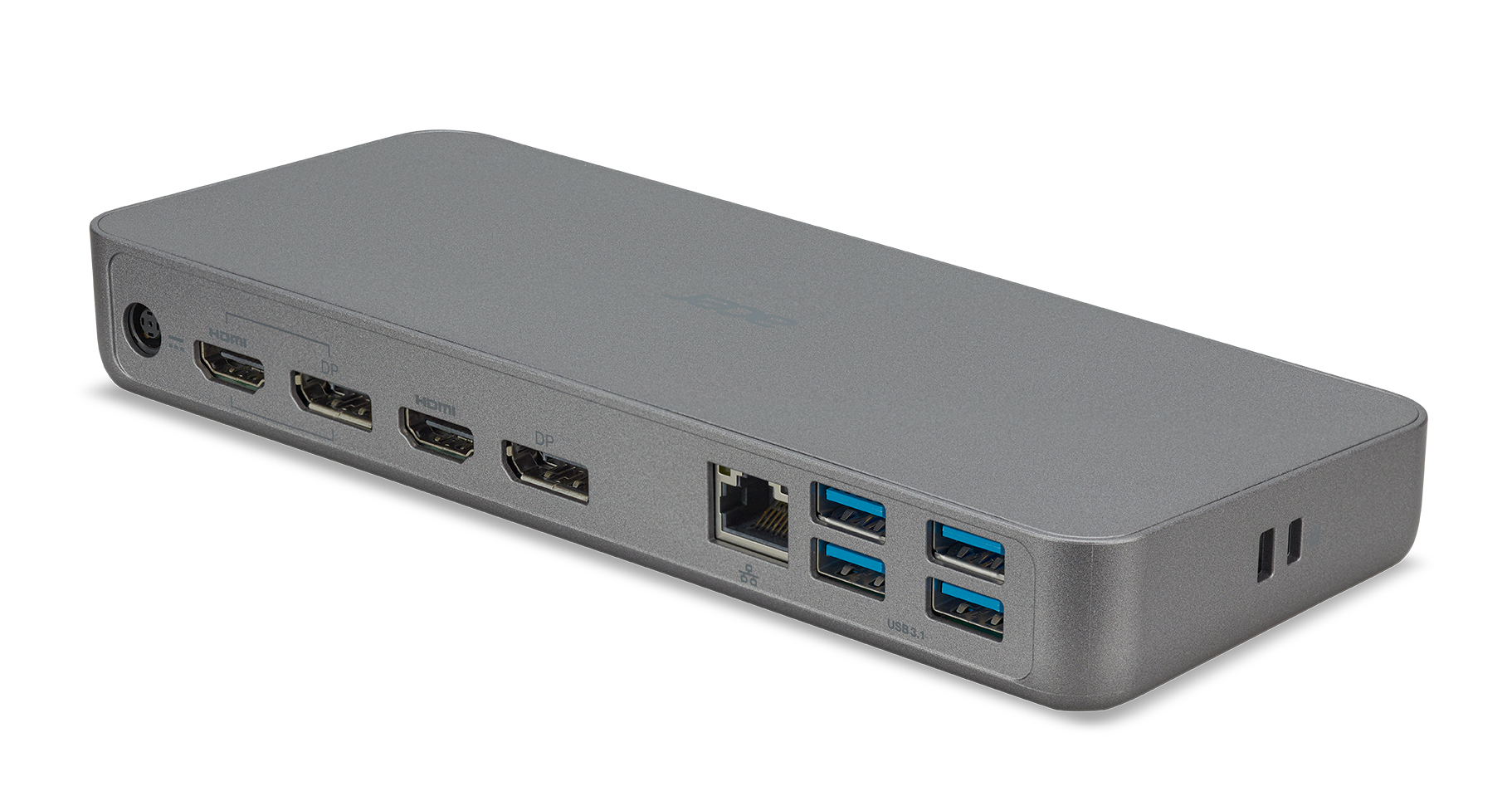

USB Type-C Docking Station D501
Model USB Type-C Docking Station D501Part no. GP.DCK11.00FEAN 4710886357605
33 specifications
- ConnectivityDocking
- Weight260 g
- ColourGrey
- Ethernet LANYes
- Power source typeDC
- Width204.5 mm
Overview
- Connectivity
- Docking
- Weight
- 260 g
- Colour
- Grey
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 204.5 mm
- Brand
- Acer
- Category
- Laptop Docks & Port Replicators
- Model
- USB Type-C Docking Station D501
- Part number
- GP.DCK11.00F
- EAN / UPC
- 4710886357605
- Also known as
- Acer USB Type-C Docking Station D501 USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Specifications
33 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Colour name | Cool Gray |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| On/off switch | Yes |
| Brand compatibility | Acer |
| Compatibility | Chromebook Spin 511, R753T(N), Chromebook Spin 513, Chromebook Spin 514-1H(H) / 1W(H), Chromebook Spin 713-3W, Chromebook Spin 512, R853TNA, Chromebook 314-1H(T), C933L/T/LT), Chromebook Spin 713-2W, Chromebook C721, Chromebook 511-3H, R722T, R723T |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204.5 mm |
| Depth | 85 mm |
| Height | 26 mm |
| Weight | 260 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
