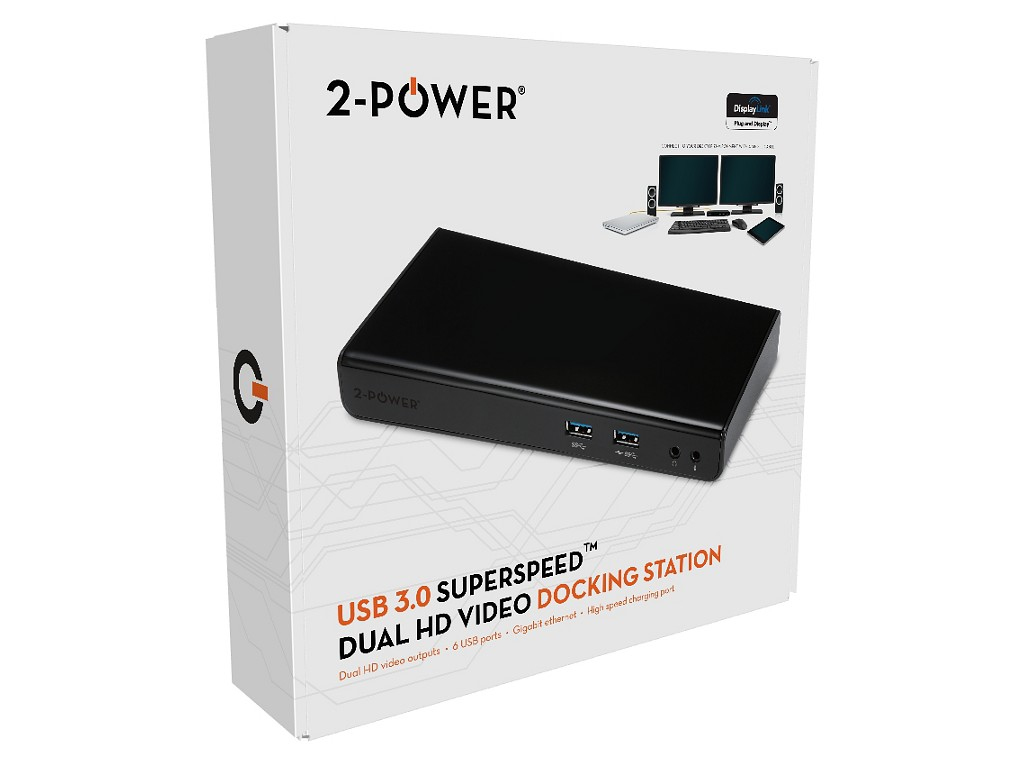

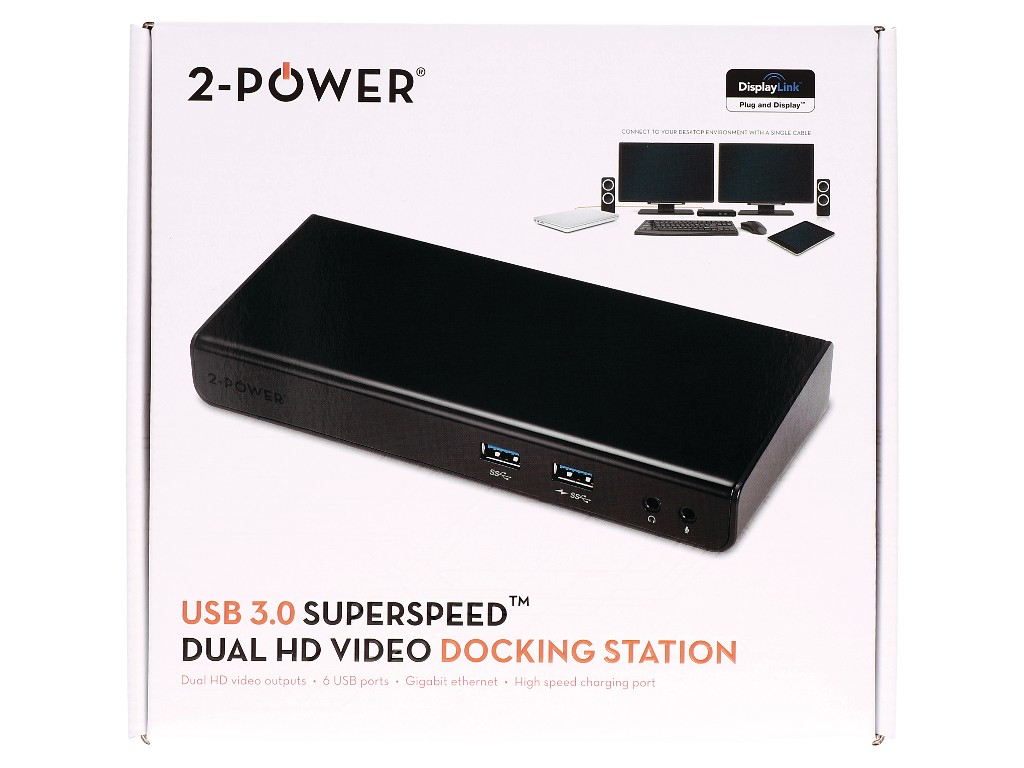

USB 3.0 Dual Display Docking Station
Model DOC0101AEAN 5055190174340
35 specifications
- ConnectivityDocking
- Weight223 g
- ColourBlack
- Ethernet LANYes
- Power source typeDC
- Width82 mm
Overview
- Connectivity
- Docking
- Weight
- 223 g
- Colour
- Black
- Ethernet LAN
- Yes
- Power source type
- DC
- Width
- 82 mm
- Brand
- 2-Power
- Category
- Laptop Docks & Port Replicators
- Model
- DOC0101A
- Part number
- DOC0101A
- EAN / UPC
- 5055190174340
- Also known as
- 2-Power USB 3.0 Dual Display Docking Station
Specifications
35 specifications in 10 groups

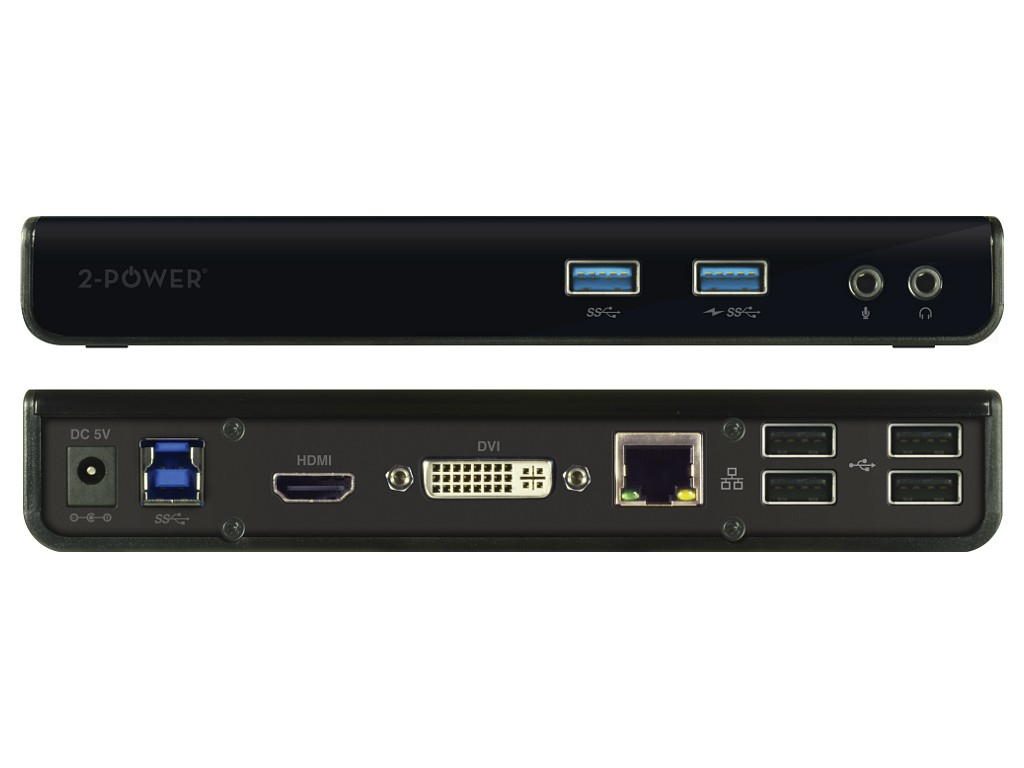

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Docking |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| USB connector type | USB Type-A, USB Type-B |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | QWXGA |
| Maximum digital resolution | 2048 x 1152 pixels |
| Charging function | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 82 mm |
| Depth | 180 mm |
| Height | 23 mm |
| Weight | 223 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 243 mm |
| Package depth | 258 mm |
| Package height | 58 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
| Drivers included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Number of microphone inputs | 1 |
