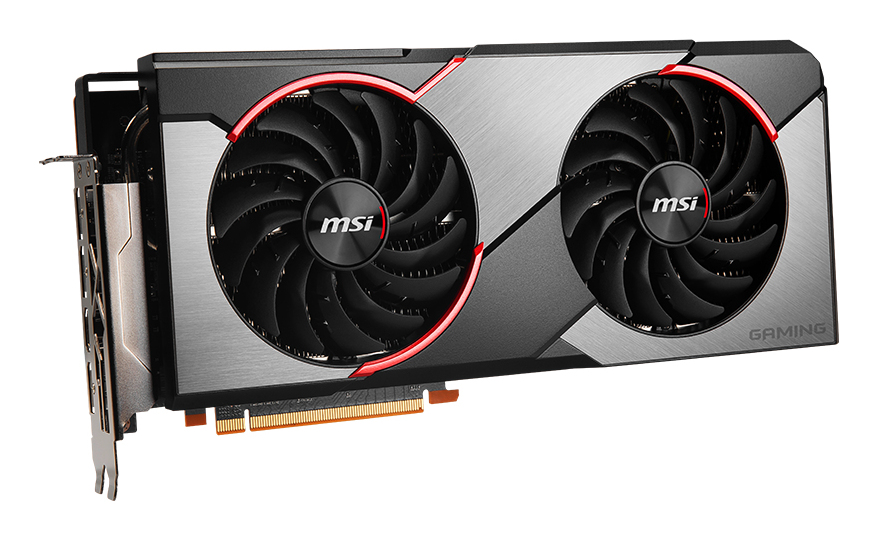

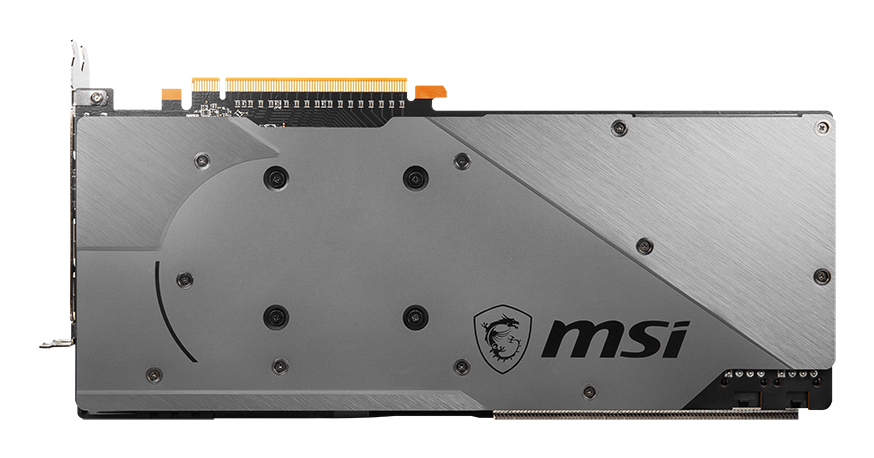

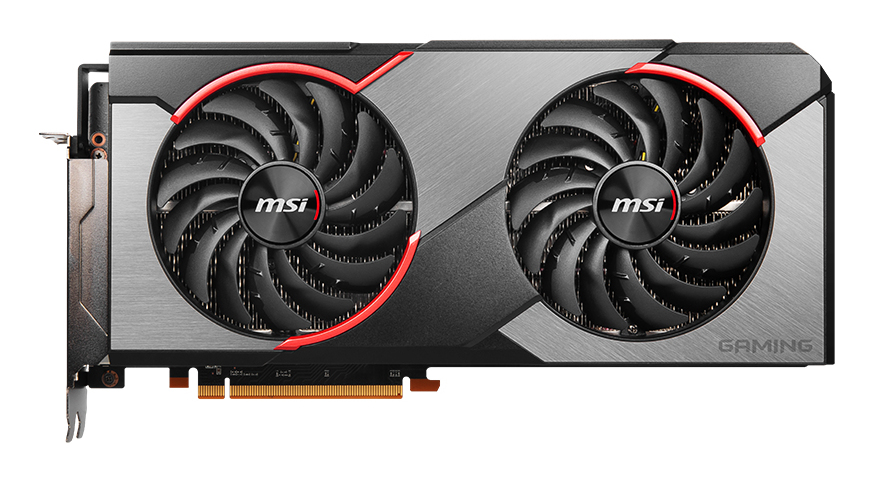

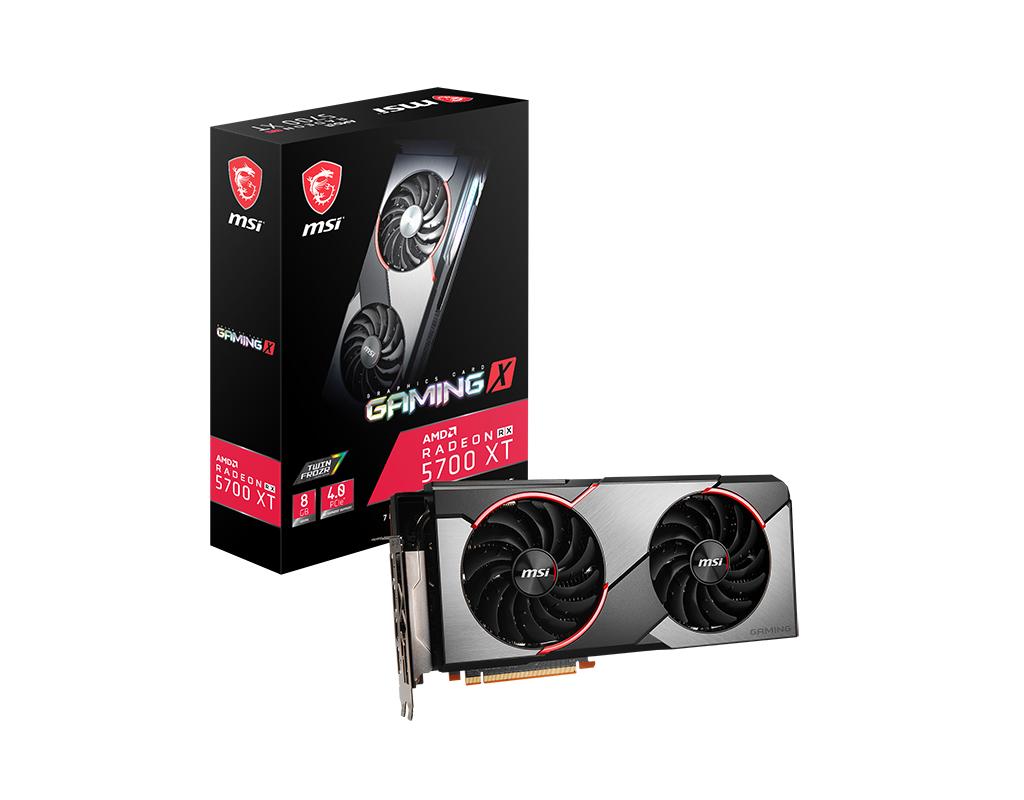

GAMING Radeon RX 5700 XT X
Model V381-032REAN 4719072670849
46 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.41 kg
- ColourBlack, Grey
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.41 kg
- Colour
- Black, Grey
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 4.0
- Brand
- MSI
- Category
- GPU
- Model
- V381-032R
- Part number
- V381-032R
- EAN / UPC
- 4719072670849
- Also known as
- MSI GAMING Radeon RX 5700 XT X
Specifications
46 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5700 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1730 MHz |
| Processor boost clock speed | 1980 MHz |
| FireStream | Yes |
| Maximum displays per videocard | 4 |
| Stream processors | 2560 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |

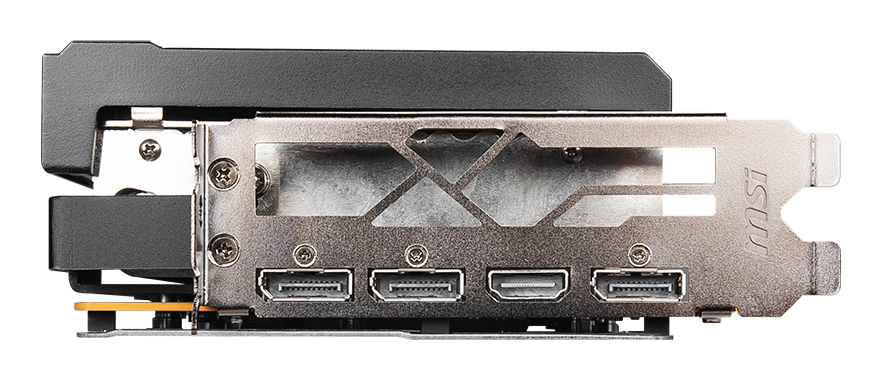

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 225 W |
| Supplementary power connectors | 2x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.41 kg |
| Length | 297 mm |
| Depth | 58 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.04 kg |
| Package type | Box |
