GeForce GTX 650 Ti Boost
Model GeForce GTX 650 Ti BoostPart no. N650TI-2GD5 BE
58 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight490 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory2 GB
- Interface typePCI Express 3.0
- PhysXYes
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 490 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 2 GB
- Interface type
- PCI Express 3.0
- PhysX
- Yes
- Brand
- MSI
- Category
- GPU
- Model
- GeForce GTX 650 Ti Boost
- Part number
- N650TI-2GD5 BE
- Also known as
- MSI GeForce GTX 650 Ti Boost NVIDIA 2 GB GDDR5
Specifications
58 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| CUDA | Yes |
| CUDA cores | 768 |
| Processor frequency | 980 MHz |
| Processor boost clock speed | 1033 MHz |
| Graphics card RAMDAC | 400 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way SLI |
| Stream processors | 768 |
| Processor cores | 1 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 2 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 192 bit |
| Memory clock speed | 6008 MHz |
| Memory bandwidth (max) | 144.2 GB/s |

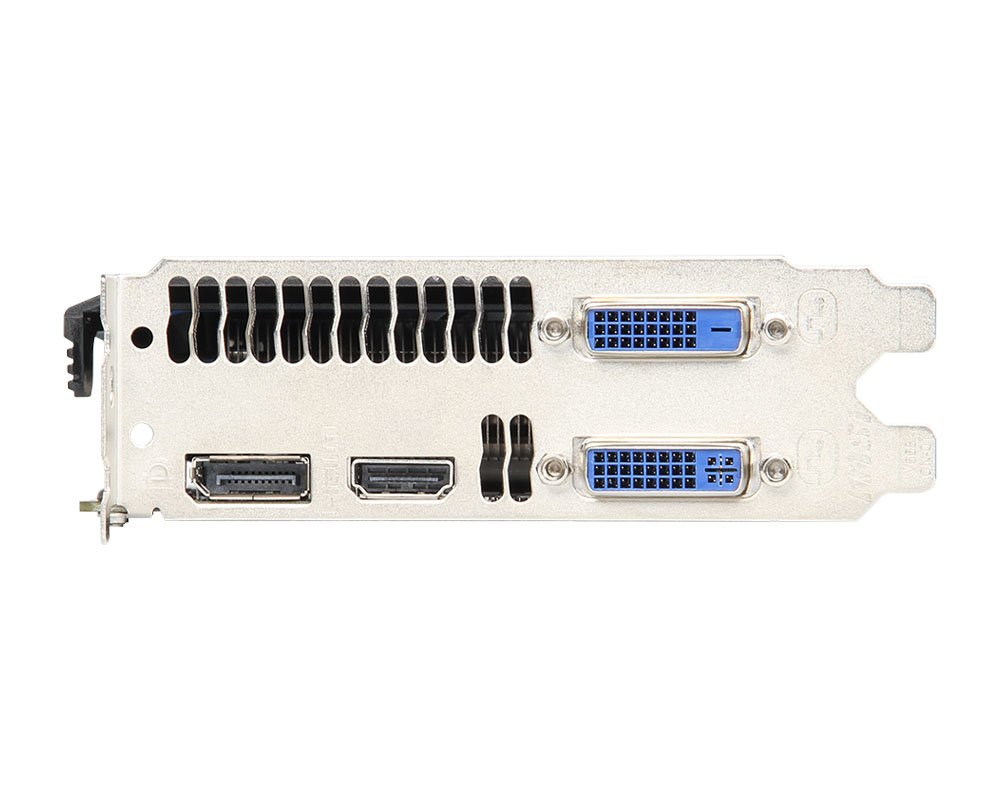

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4a |
| DVI ports quantity | 2 |
| Dual VGA | No |
| TV-in port | No |
| TV-out | No |
| VGA (D-Sub) ports quantity | 0 |
| Video in | No |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.3 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
| Dual DVO | No |
| Full HD | Yes |
| Texture Fill Rate (TFR) | 62.7 GTexel/s |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Power consumption (typical) | 134 W |
| Supplementary power connectors | 1x 6-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | No |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 490 g |
| Length | 220 mm |
| Depth | 36 mm |
| Height | 111 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI | Yes |
| Maximum operating temperature | 97 °C |
| Number of processors installed | 1 |
