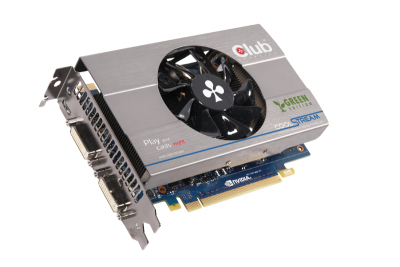

CGNX-XT56024B graphics card NVIDIA GeForce GTX 560 Ti
1 GB GDDR5
Model CGNX-XT56024BEAN 8717249410546
61 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight449 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory1 GB
- Interface typePCI Express 2.0
- PhysXYes
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 449 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express 2.0
- PhysX
- Yes
- Brand
- CLUB3D
- Category
- GPU
- Model
- CGNX-XT56024B
- Part number
- CGNX-XT56024B
- EAN / UPC
- 8717249410546
- Also known as
- CLUB3D CGNX-XT56024B graphics card NVIDIA GeForce GTX 560 Ti 1 GB GDDR5
Specifications
61 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 560 Ti |
| Maximum resolution | 2560 x 1600 pixels |
| CUDA | Yes |
| CUDA cores | 384 |
| Processor frequency | 822 MHz |
| Shader clock | 1645 MHz |
| Graphics card RAMDAC | 400 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 2560 x 1600 pixels |
| Maximum displays per videocard | 2 |
| Parallel processing technology support | 2-Way SLI |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 256 bit |
| Memory clock speed | 4008 MHz |
| Memory bandwidth (max) | 129 GB/s |

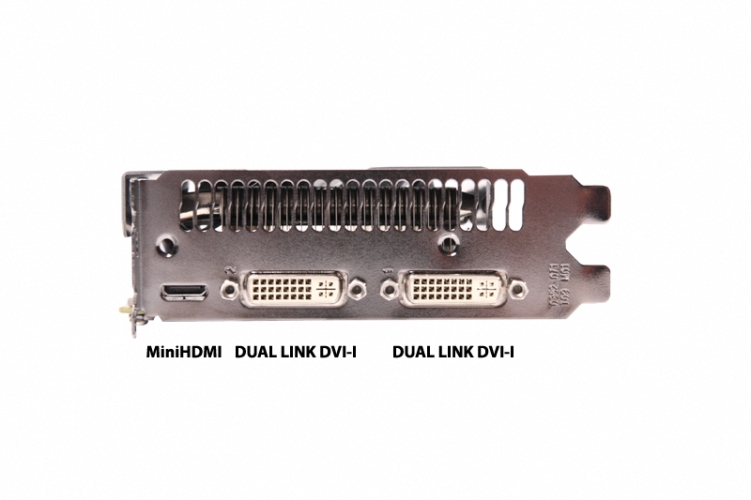

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 2 |
| DisplayPorts quantity | 0 |
| Mini HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| DVI ports quantity | 2 |
| TV-in port | No |
| TV-out | No |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.2 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Certification | CE, RoHS, FCC |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 6-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Wi |
| Minimum system requirements | Installation software requires CD-ROM drive, a keyboard, a mouse and a display. DVD playback requires DVD drive and DVD Blu-ray playback requires Blu-ray drive and Blu-ray disc. |
| Minimum RAM | 1024 MB |
| Minimum processor | Intel Pentium 4, AMD Athlon XP |
| Minimum storage drive space | 200 MB |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 449 g |
| Length | 168 mm |
| Depth | 38 mm |
| Height | 107 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 107 mm |
| Package depth | 168 mm |
| Package height | 38 mm |
| Package weight | 449 g |

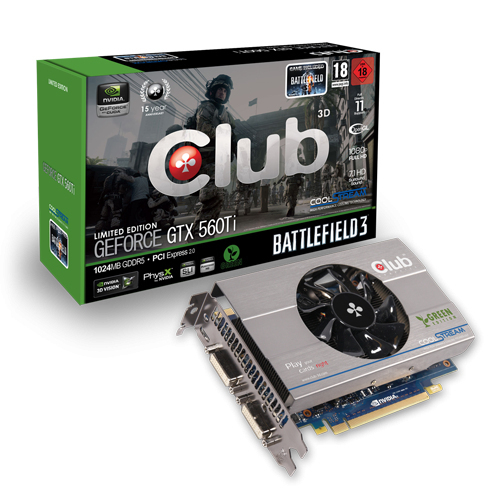

Packaging content
| Specification | Value |
|---|---|
| Bundled software | Battlefield 3 game |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | Yes |
| Compatible operating systems | Microsoft Windows XP 32/64-Bit Microsoft Windows Vista 32/64-Bit Microsoft Windows 7 32/64-Bit |
