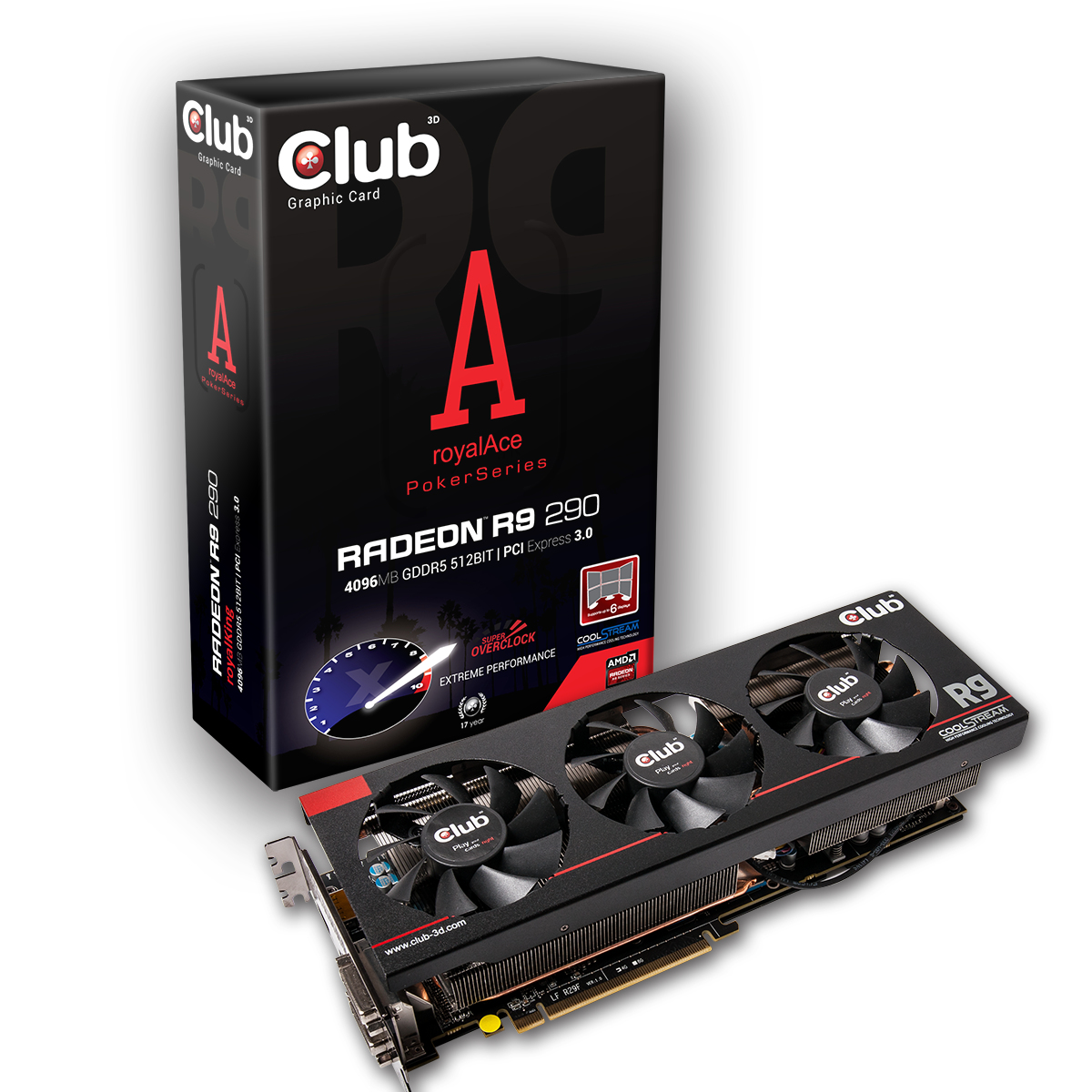

CGAX-R9298SO graphics card AMD Radeon R9 290
4 GB GDDR5
Model CGAX-R9298SOEAN 854365005596
58 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.41 kg
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express 3.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.41 kg
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express 3.0
- Brand
- CLUB3D
- Category
- GPU
- Model
- CGAX-R9298SO
- Part number
- CGAX-R9298SO
- EAN / UPC
- 854365005596, 8717249400615
- Also known as
- CLUB3D CGAX-R9298SO graphics card AMD Radeon R9 290 4 GB GDDR5
Specifications
58 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon R9 290 |
| Maximum resolution | 4096 x 3112 pixels |
| CUDA | No |
| Processor frequency | 1040 MHz |
| FireStream | Yes |
| Graphics card RAMDAC | 400 MHz |
| Maximum digital resolution | 4096 x 3112 pixels |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way CrossFireX |
| Stream processors | 2560 |
| Processor cores | 1 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 512 bit |
| Memory clock speed | 5400 MHz |
| Memory bandwidth (max) | 320 GB/s |

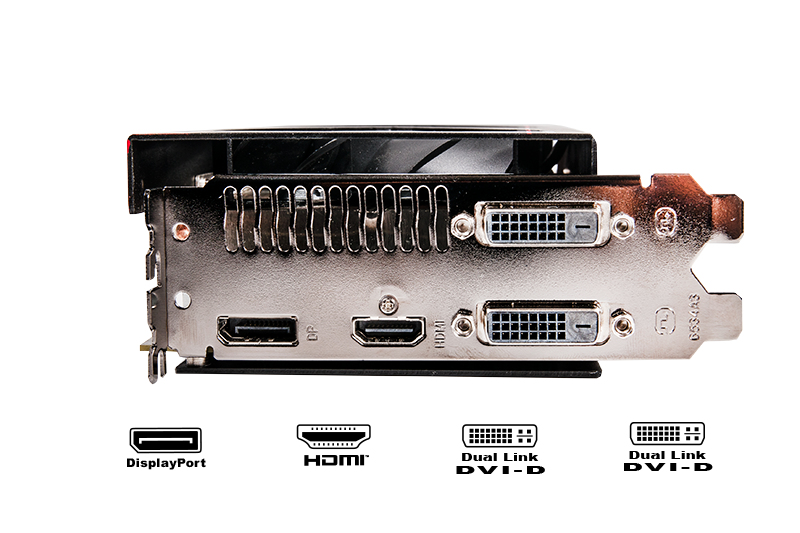

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 2 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4a |
| DVI ports quantity | 2 |
| DisplayPort version | 1.2 |
| Dual VGA | Yes |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11.2 |
| Shader model version | 5.0 |
| OpenGL version | 4.3 |
| OpenCL version | 1.2 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| Full HD | Yes |
| HD3D Technology | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 250 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.41 kg |
| Length | 308 mm |
| Depth | 53 mm |
| Height | 125 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 78 mm |
| Package depth | 354 mm |
| Package height | 242 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
| Bundled software | Club3D RoyalFlush OC Software |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
