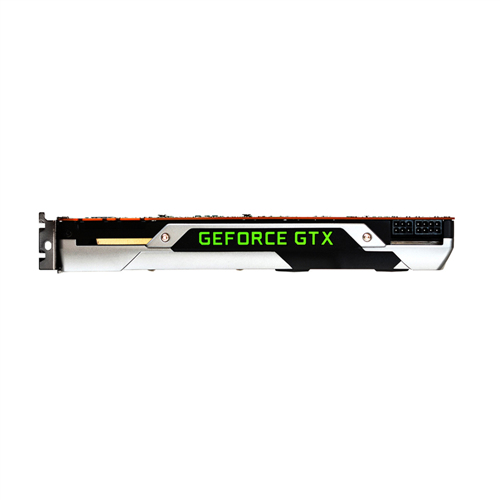

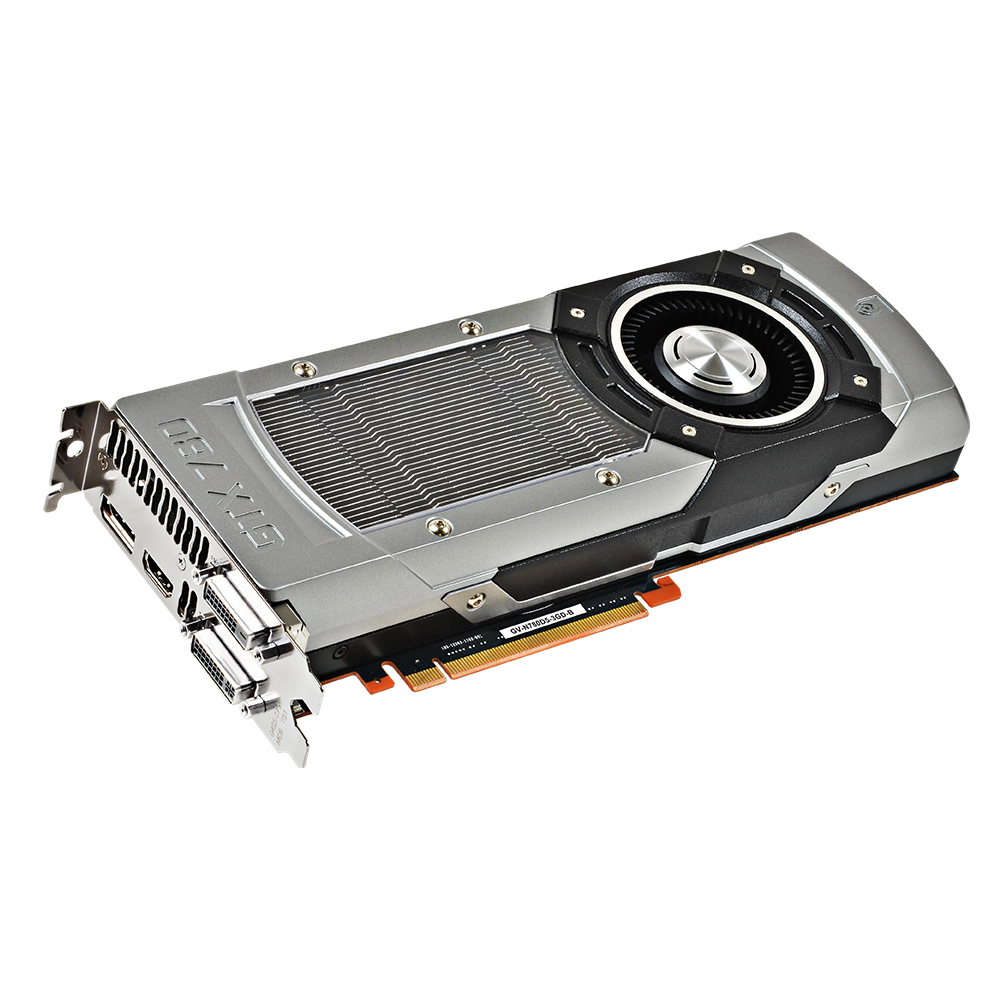

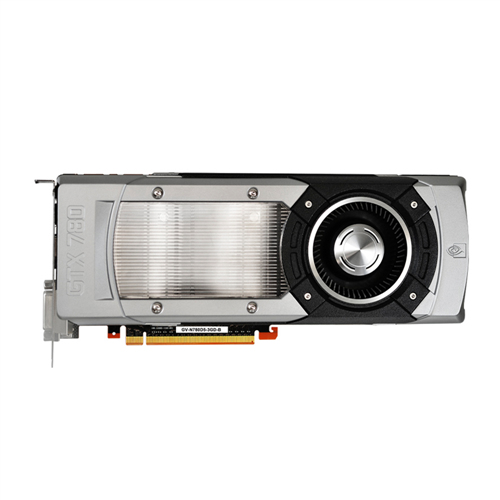

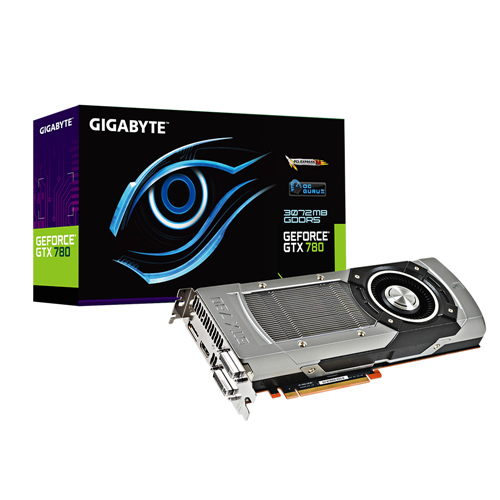

GAMING GV-N780D5-3GD-B graphics card NVIDIA GeForce GTX 780
3 GB GDDR5
Model GV-N780D5-3GD-BEAN 818313017611
59 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourMulticolour
- Graphics processor familyNVIDIA
- Discrete graphics card memory3 GB
- Interface typePCI Express 3.0
- PhysXYes
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Multicolour
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 3 GB
- Interface type
- PCI Express 3.0
- PhysX
- Yes
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-N780D5-3GD-B
- Part number
- GV-N780D5-3GD-B
- EAN / UPC
- 818313017611, 4719331319106
- Also known as
- GIGABYTE GAMING GV-N780D5-3GD-B graphics card NVIDIA GeForce GTX 780 3 GB GDDR5
Specifications
59 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 780 |
| Maximum resolution | 4096 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 2304 |
| Processor frequency | 863 MHz |
| Processor boost clock speed | 900 MHz |
| FireStream | No |
| Graphics card RAMDAC | 400 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way SLI, 3-Way SLI |
| Stream processors | 2304 |
| Processor cores | 1 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 3 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 384 bit |
| Memory clock speed | 6008 MHz |
| Memory bandwidth (max) | 288.4 GB/s |

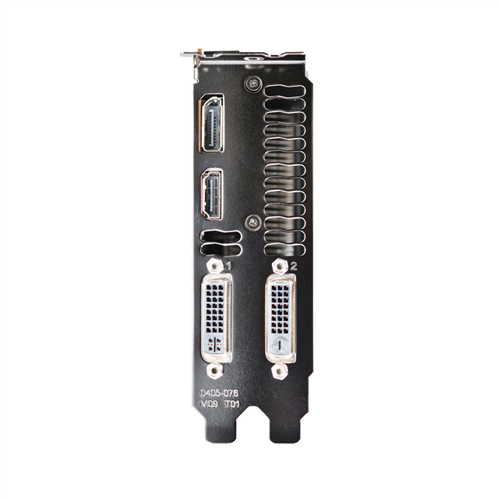

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 1.4a |
| DVI ports quantity | 2 |
| DisplayPort version | 1.2 |
| TV-in port | No |
| TV-out | No |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 11.1 |
| Shader model version | 5.0 |
| OpenGL version | 4.3 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
| Full HD | Yes |
| Texture Fill Rate (TFR) | 160.5 GTexel/s |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Multicolour |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Power consumption (typical) | 250 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 95 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | No |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 282 mm |
| Depth | 43 mm |
| Height | 110 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
