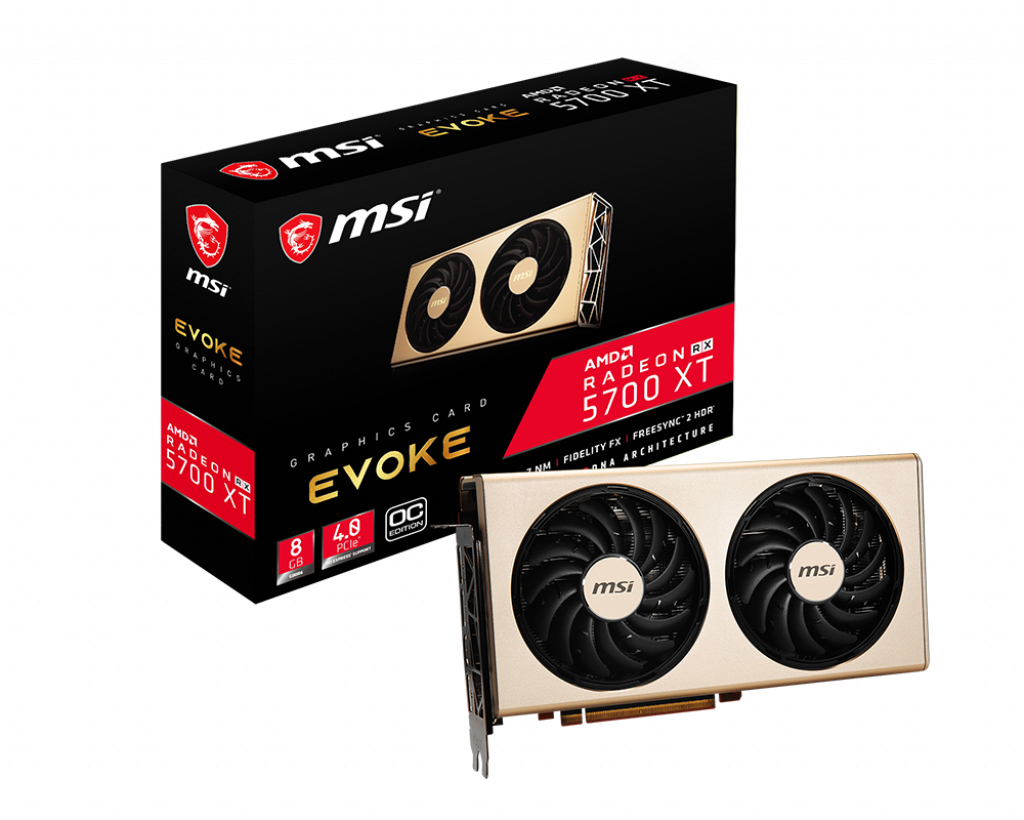

EVOKE V381-001R AMD Radeon RX 5700 XT
8 GB GDDR6
Model V381-001RPart no. RADEON RX 5700 XT EVOKE OCEAN 824142194492
41 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight894 g
- ColourBlack, Copper
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 894 g
- Colour
- Black, Copper
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 4.0
- Brand
- MSI
- Category
- GPU
- Model
- V381-001R
- Part number
- RADEON RX 5700 XT EVOKE OC
- EAN / UPC
- 824142194492, 4719072666057
- Also known as
- MSI EVOKE V381-001R AMD Radeon RX 5700 XT 8 GB GDDR6
Specifications
41 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5700 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1690 MHz |
| Processor boost clock speed | 1945 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Crossfire |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, Copper |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 225 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 894 g |
| Length | 256 mm |
| Depth | 51 mm |
| Height | 129 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
