RX 5500 XT MECH 4G OC
Model RX 5500 XT MECH 4G OCEAN 824142204474
41 specifications Checked today
- Weight705 g
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express 4.0
- DirectX version12.0
Overview
- Weight
- 705 g
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express 4.0
- DirectX version
- 12.0
- Brand
- MSI
- Category
- GPU
- Model
- RX 5500 XT MECH 4G OC
- Part number
- RX 5500 XT MECH 4G OC
- EAN / UPC
- 824142204474, 4719072693152
- Also known as
- MSI MECH RX 5500 XT 4G OC graphics card AMD Radeon RX 5500 XT 4 GB GDDR6
Specifications
41 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5500 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1647 MHz |
| Processor boost clock speed | 1845 MHz |
| Maximum displays per videocard | 4 |
| Stream processors | 1408 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 14 Gbit/s |

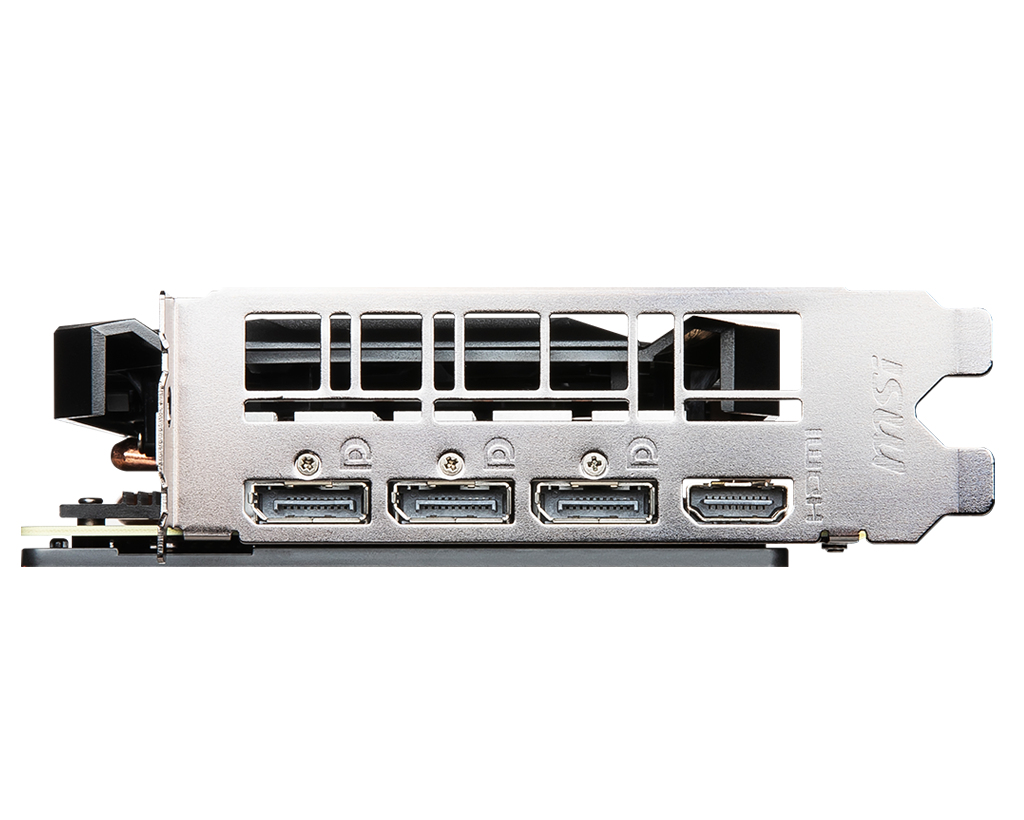

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Power consumption (typical) | 130 W |
| Supplementary power connectors | 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 705 g |
| Length | 215 mm |
| Depth | 40 mm |
| Height | 128 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.06 kg |
| Package type | Box |
