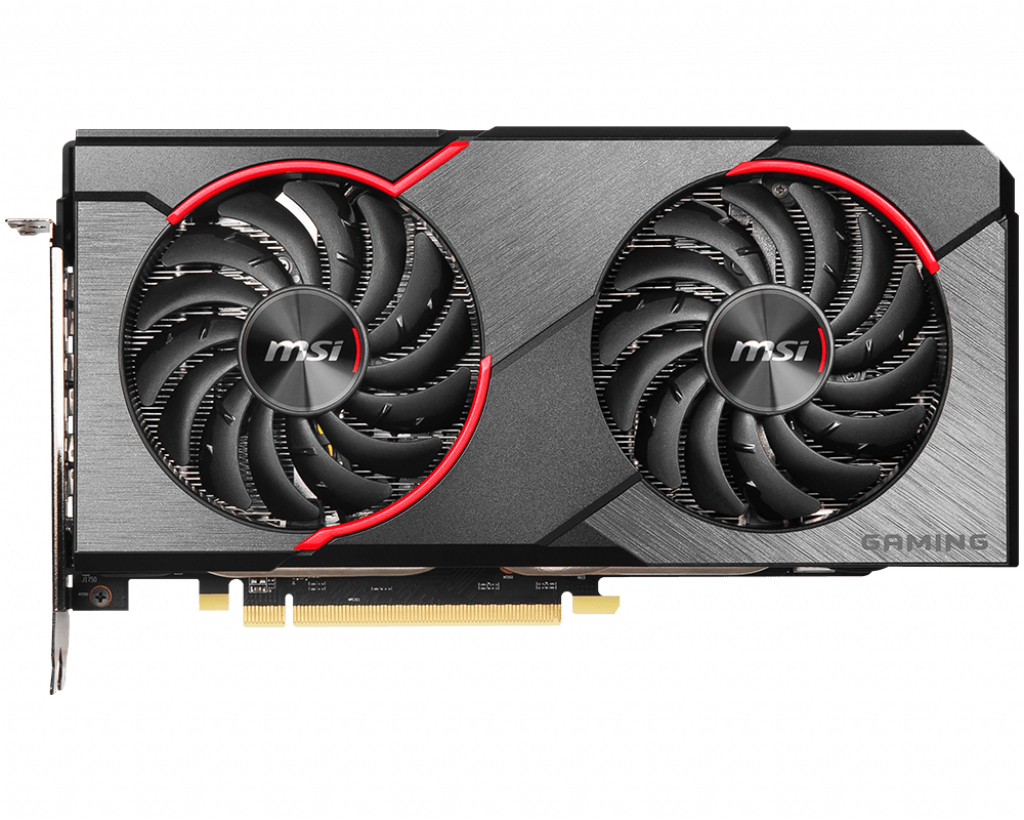

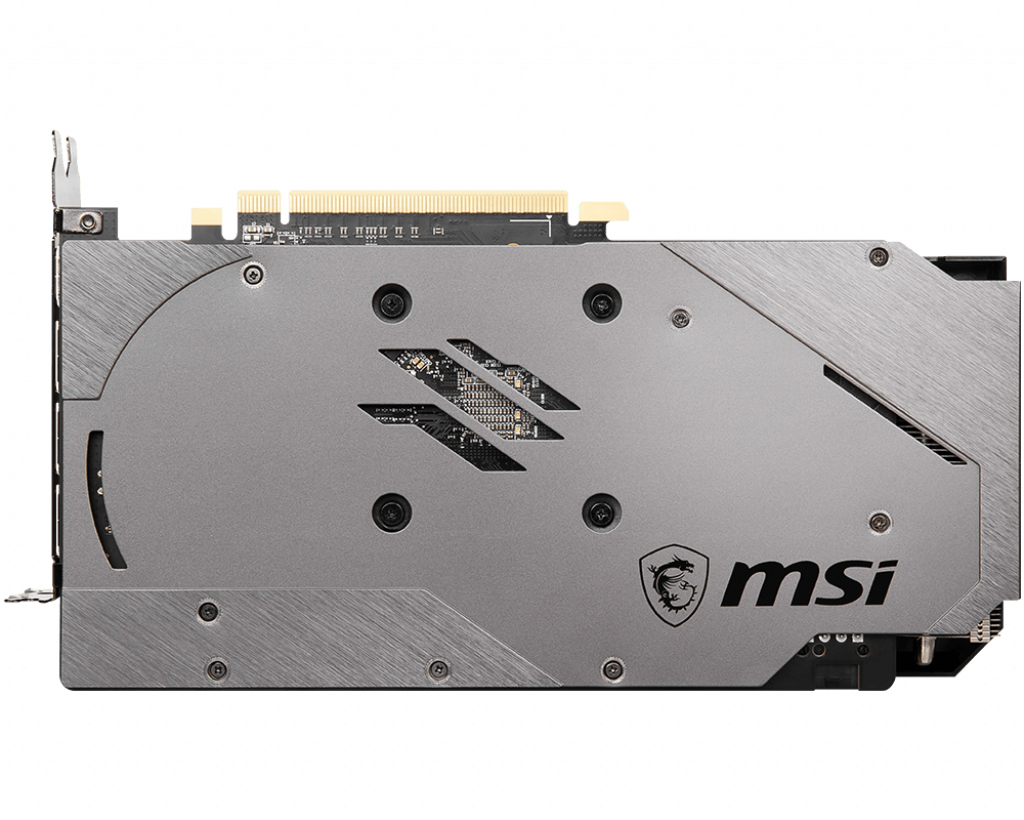

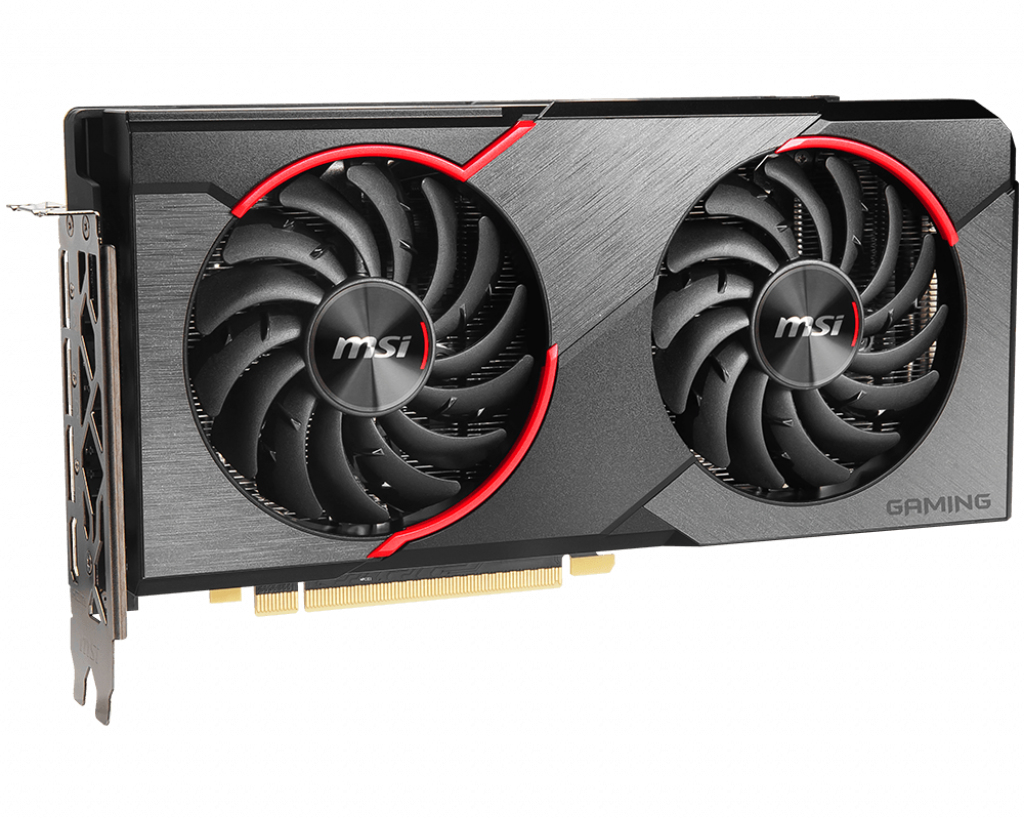

MSI RX 5500 XT GAMING X

RX 5500 XT GAMING X

Model RX 5500 XT GAMING X

39 specifications Checked today

Weight686 g
ColourBlack, Metallic
Graphics processor familyAMD
Discrete graphics card memory8 GB
Interface typePCI Express 4.0
PhysXNo

See all specifications

Overview

Weight: 686 g
Colour: Black, Metallic
Graphics processor family: AMD
Discrete graphics card memory: 8 GB
Interface type: PCI Express 4.0
PhysX: No

Brand: MSI
Category: GPU
Model: RX 5500 XT GAMING X
Part number: RX 5500 XT GAMING X
Also known as: MSI GAMING RX 5500 XT X graphics card AMD Radeon RX 5500 XT 8 GB GDDR6

Specifications

39 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	AMD
Graphics processor	Radeon RX 5500 XT
Maximum resolution	7680 x 4320 pixels
CUDA	No
Processor frequency	1685 MHz
Processor boost clock speed	1845 MHz
FireStream	Yes
Maximum displays per videocard	4
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	128 bit
Data transfer rate	14 Gbit/s

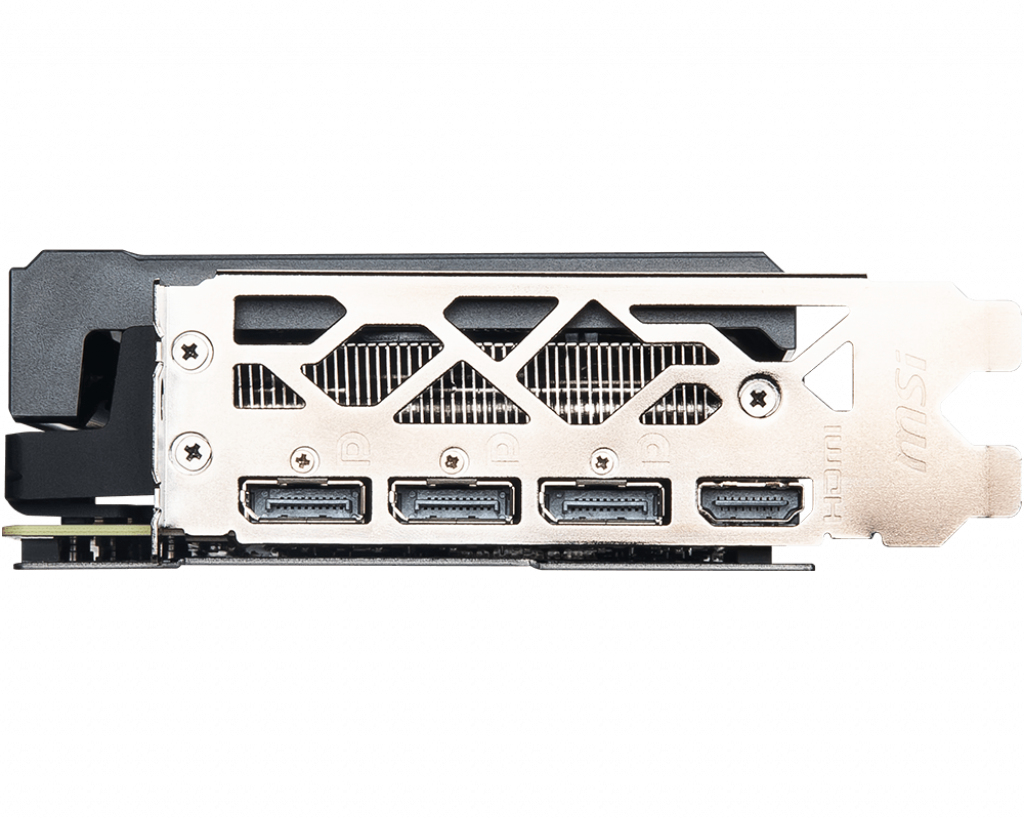

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4

Performance

Specification	Value
PhysX	No
TV tuner integrated	No
DirectX version	12.0
Shader model version	No
OpenGL version	4.6
Virtual Reality (VR) ready	Yes
HDCP	Yes
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Number of fans	2 fan(s)
Product colour	Black, Metallic

Power

Specification	Value
Minimum system power supply	450 W
Power consumption (typical)	130 W
Supplementary power connectors	1x 8-pin

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 7, Windows 8

Weight & dimensions

Specification	Value
Weight	686 g
Length	247 mm
Depth	47 mm
Height	128 mm

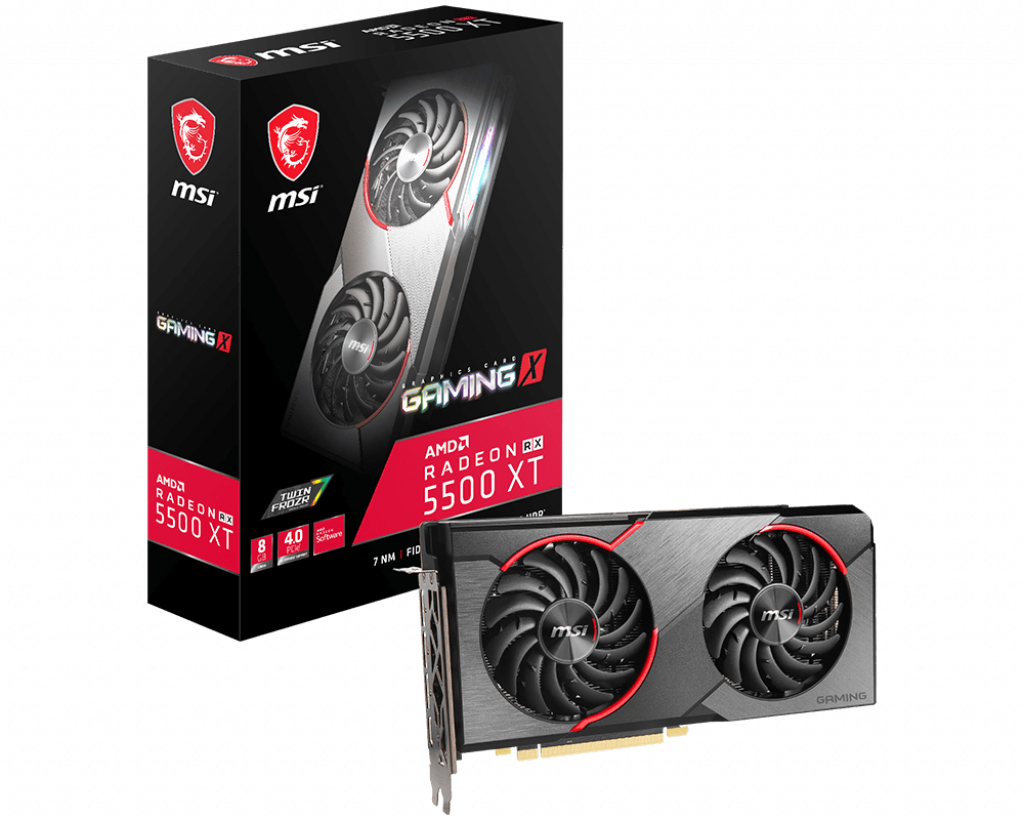

Packaging data

Specification	Value
Package weight	998 g
Package type	Box
