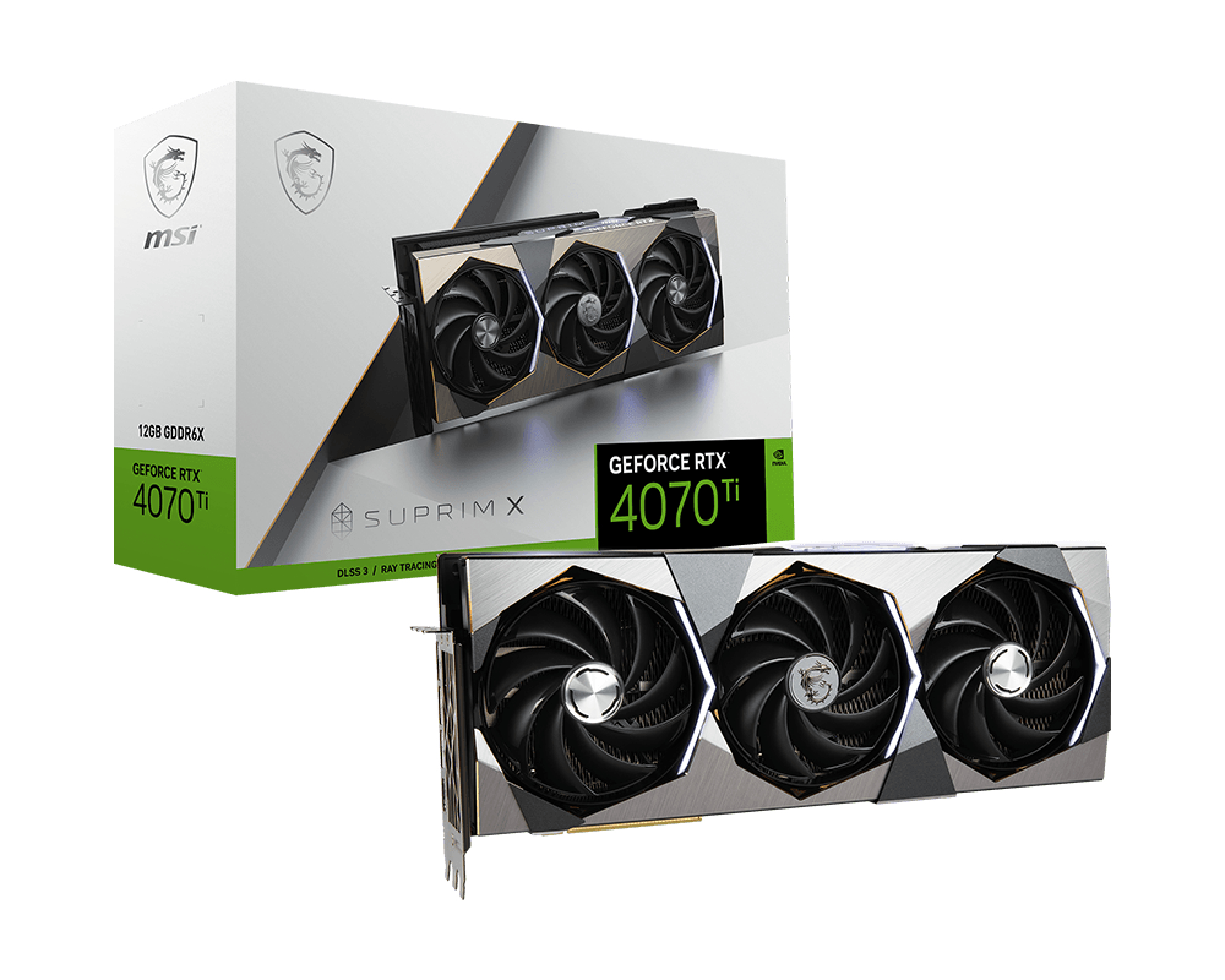

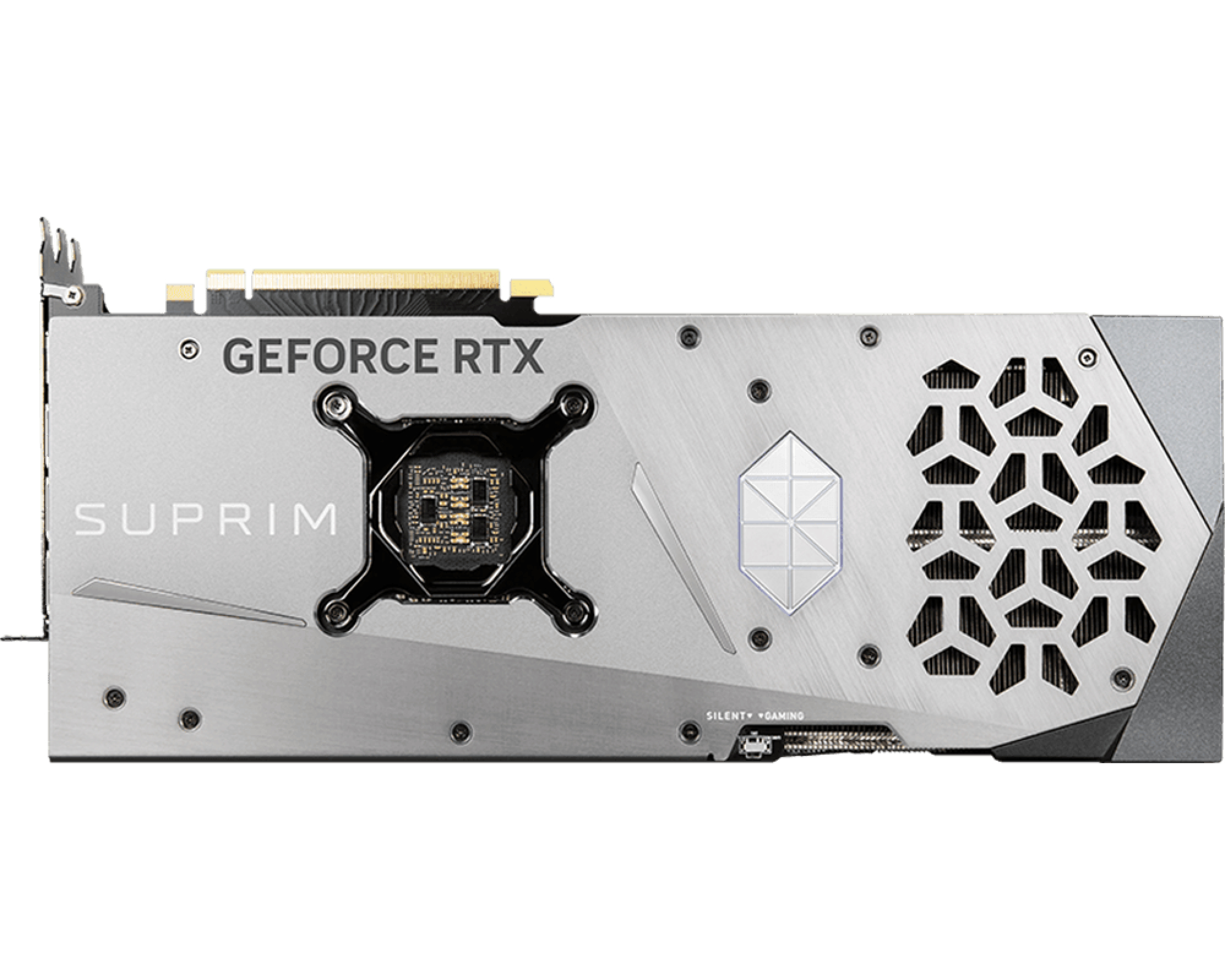

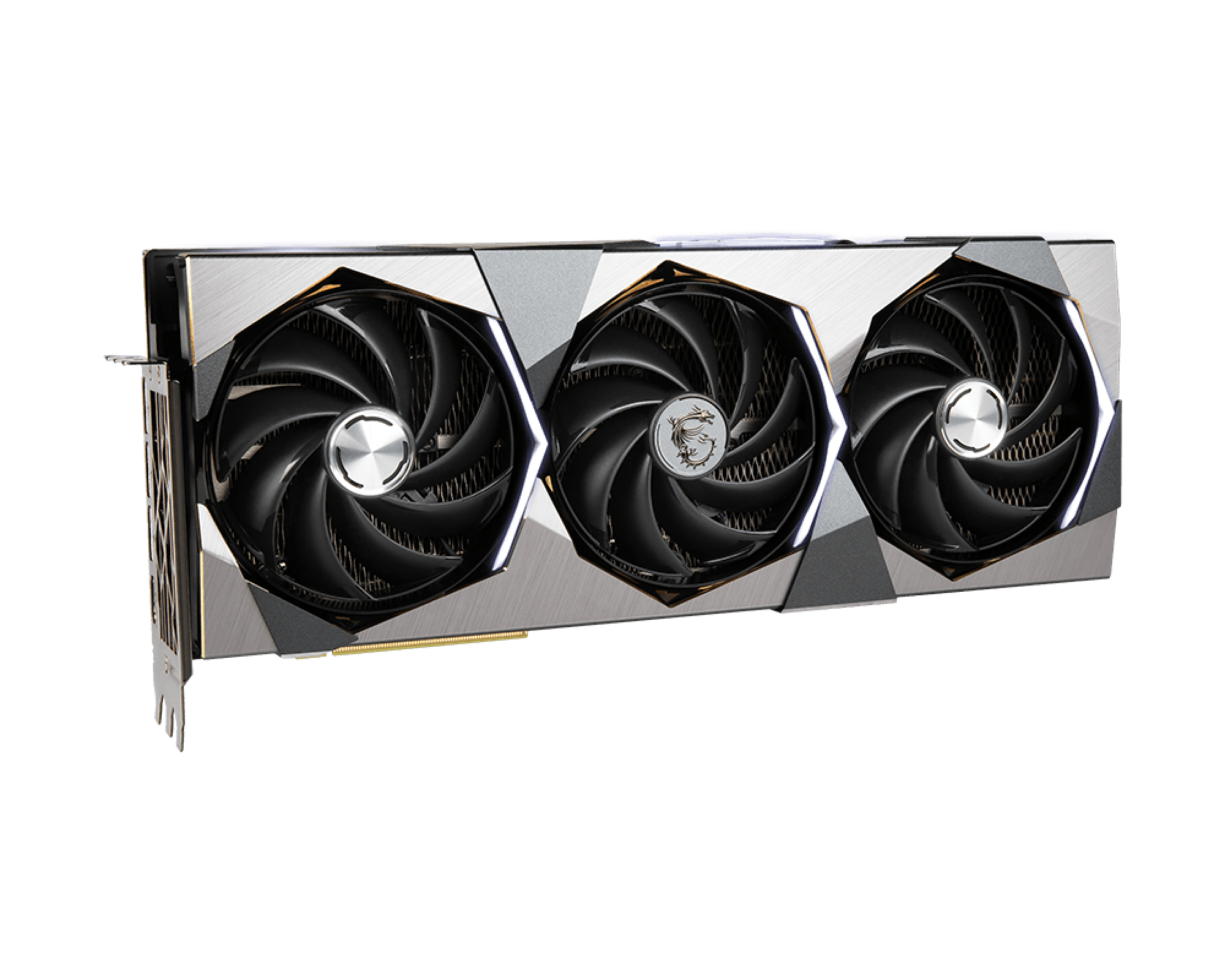

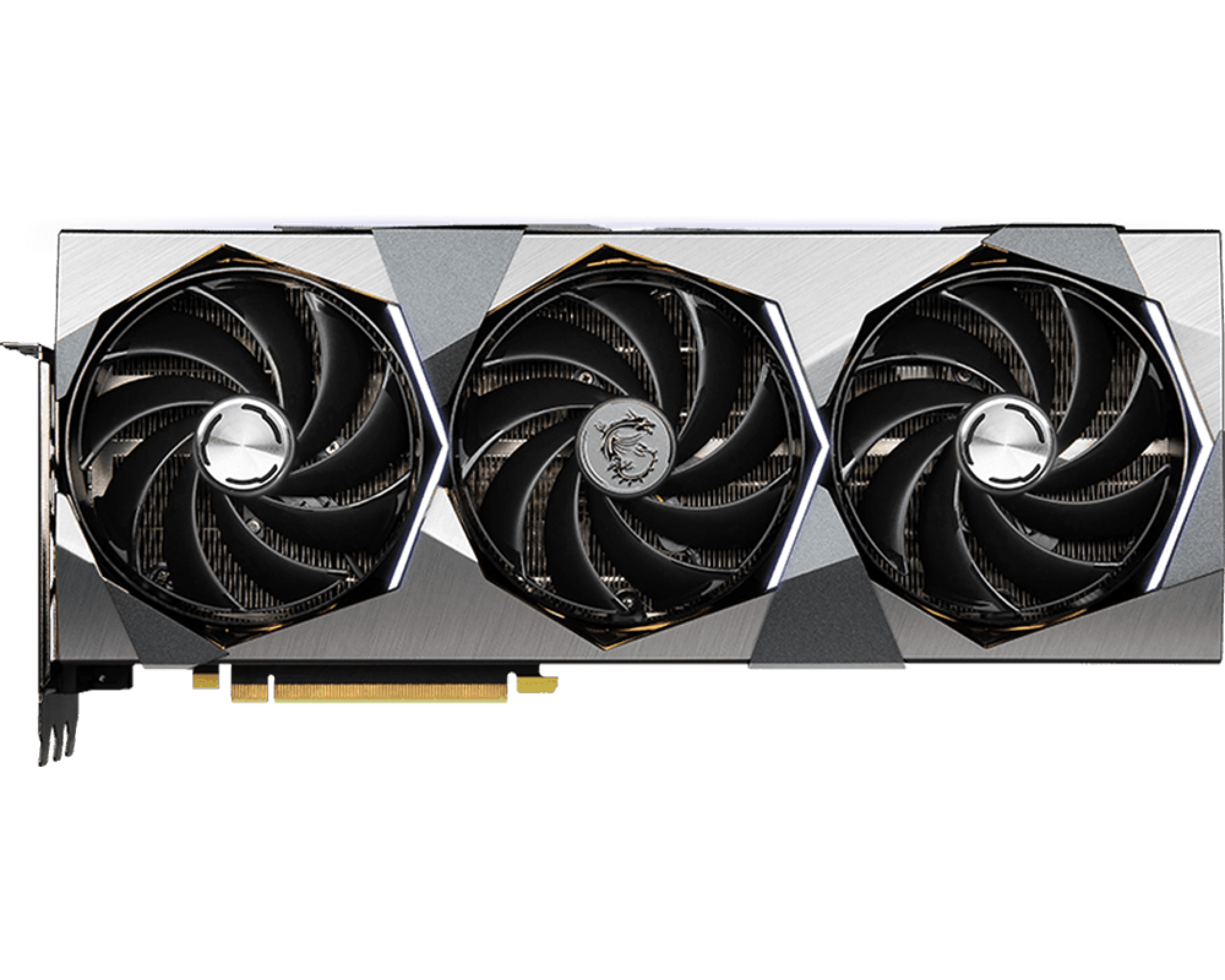

RTX4070 Ti Suprim X
Model RTX4070 Ti Suprim XPart no. GEFORCE RTX 4070 TI SUPRIM X 12GEAN 824142306468
43 specifications Checked today
- Weight2.02 kg
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 4.0
- TV tuner integratedNo
Overview
- Weight
- 2.02 kg
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 4.0
- TV tuner integrated
- No
- Brand
- MSI
- Category
- GPU
- Model
- RTX4070 Ti Suprim X
- Part number
- GEFORCE RTX 4070 TI SUPRIM X 12G
- EAN / UPC
- 824142306468, 4711377027304
- Also known as
- MSI SUPRIM RTX4070 Ti X NVIDIA GeForce RTX 4070 Ti 12 GB GDDR6X
Specifications
43 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 7680 |
| Processor frequency | 2790 MHz |
| Processor boost clock speed | 2775 MHz |
| Processor frequency (OC mode) | 2775 MHz |
| Processor boost clock speed (Gaming mode) | 2775 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 192 bit |
| Number of pipelines | 4 |
| Data transfer rate | 21 Gbit/s |

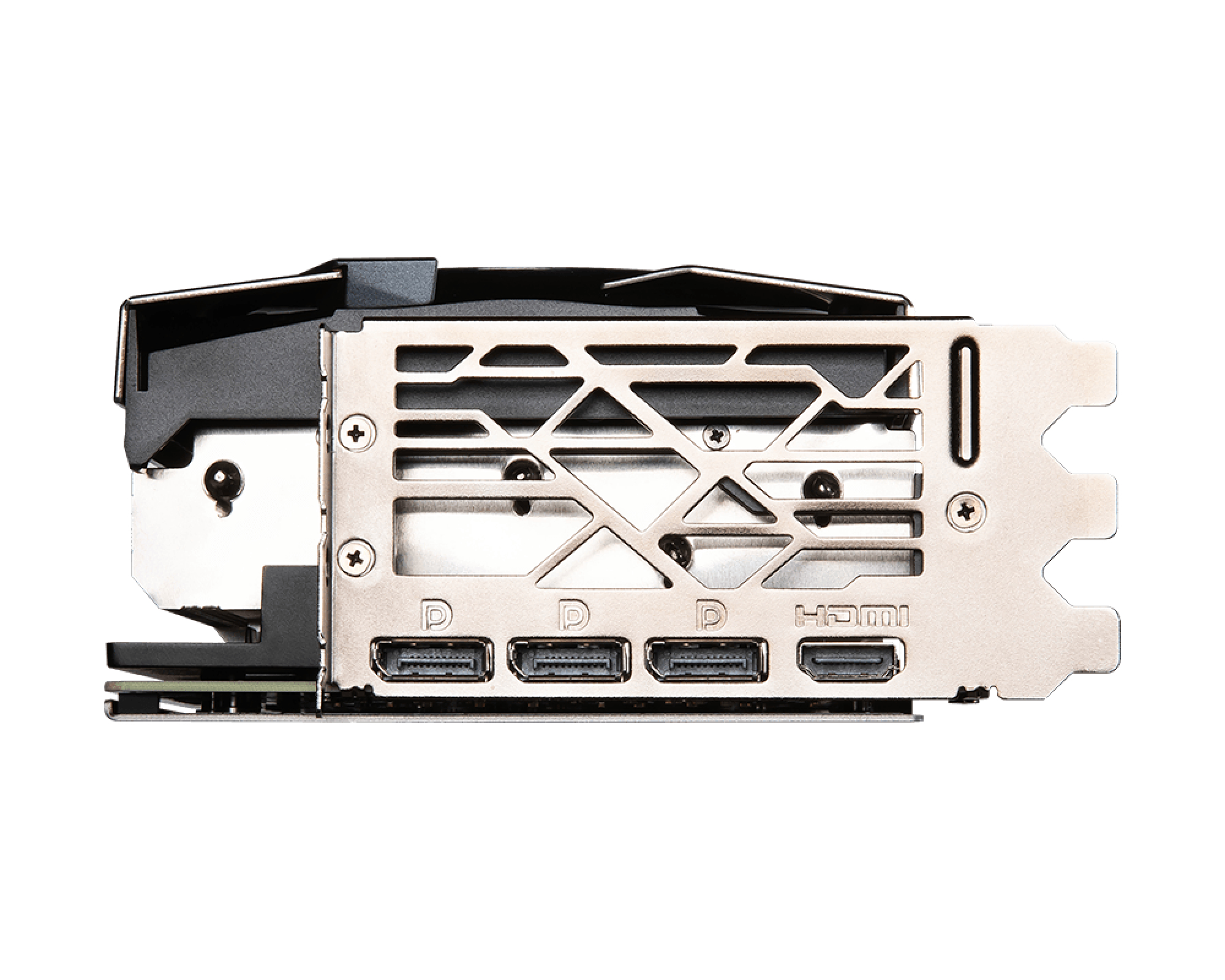

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | No |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX FAN 5.0 |
| Number of fans | 3 fan(s) |
| Illumination | Yes |
| Illumination colour | Blue |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 285 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.02 kg |
| Length | 338 mm |
| Depth | 73 mm |
| Height | 142 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.22 kg |
| Package type | Box |
