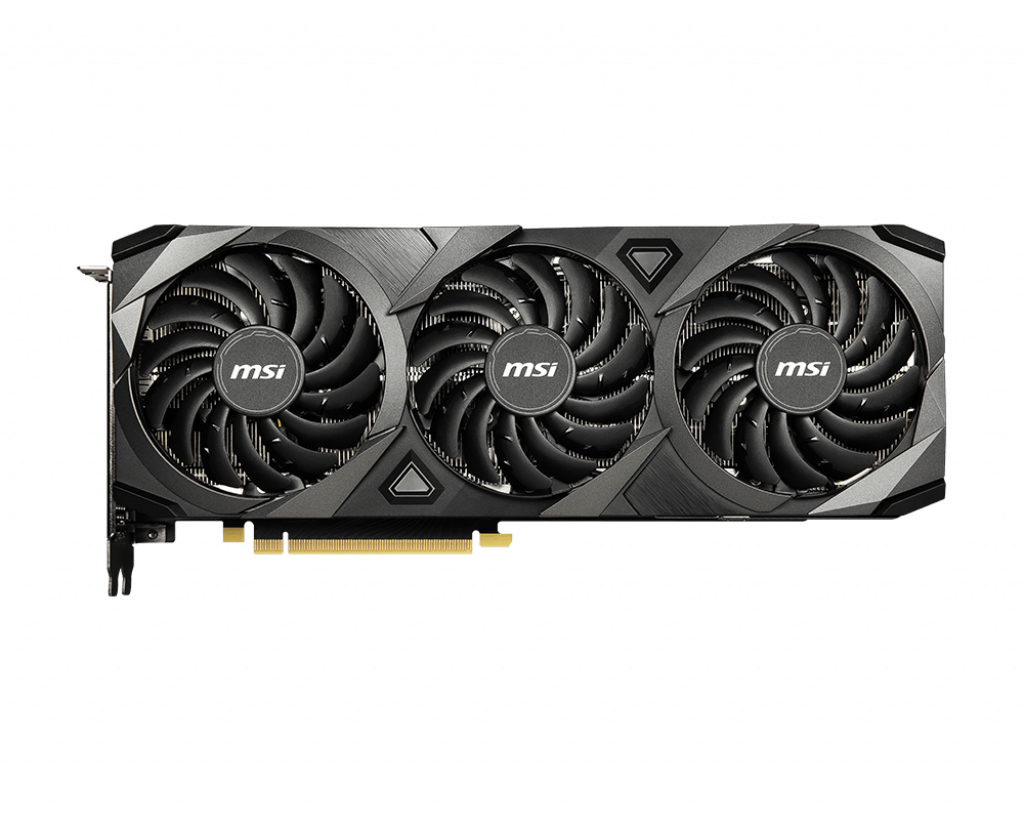

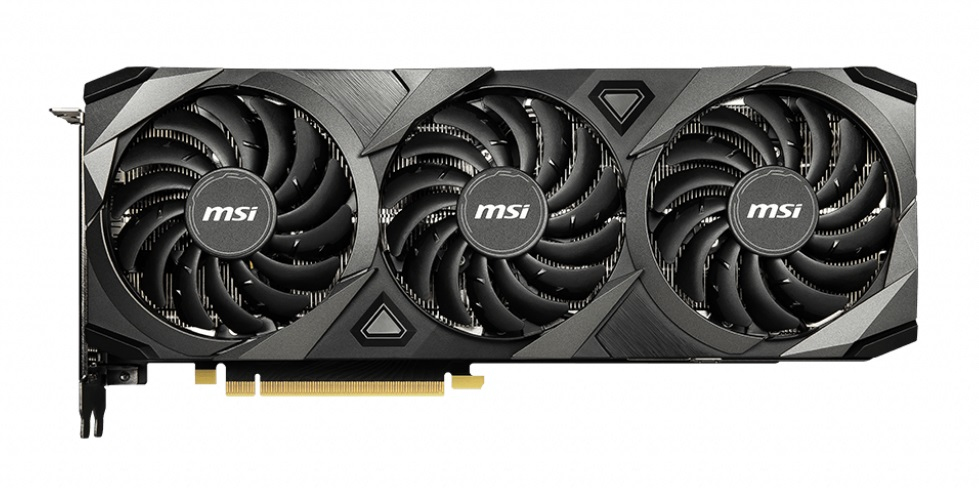

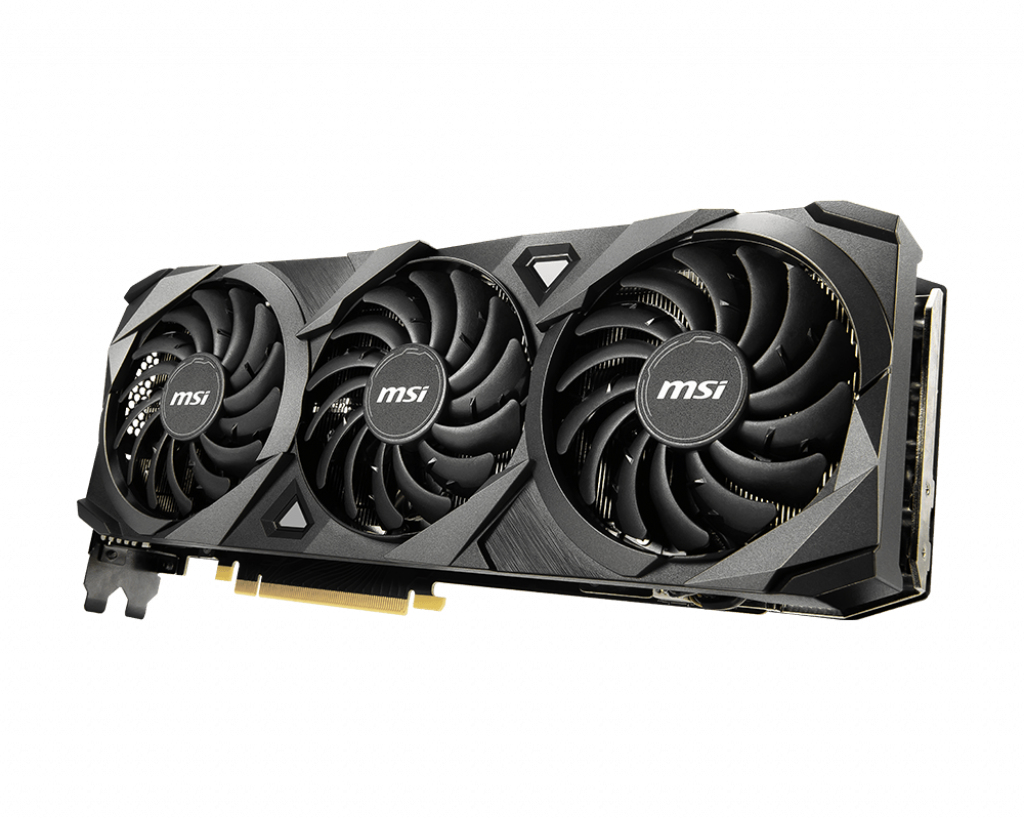

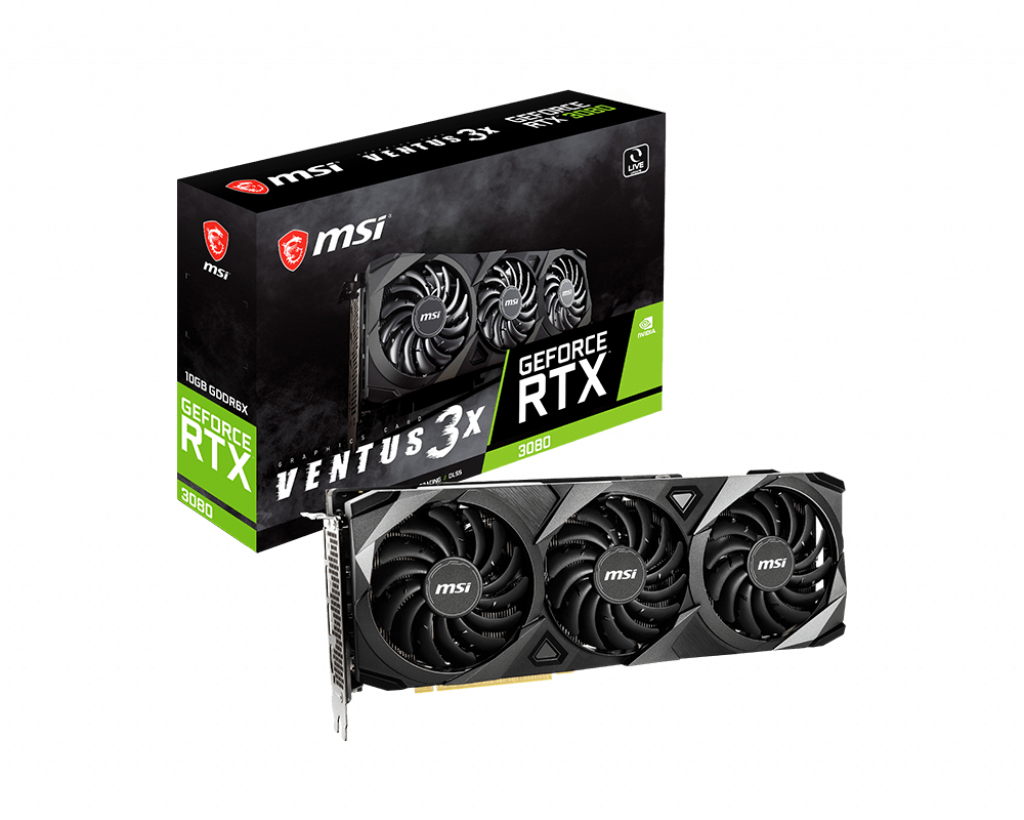

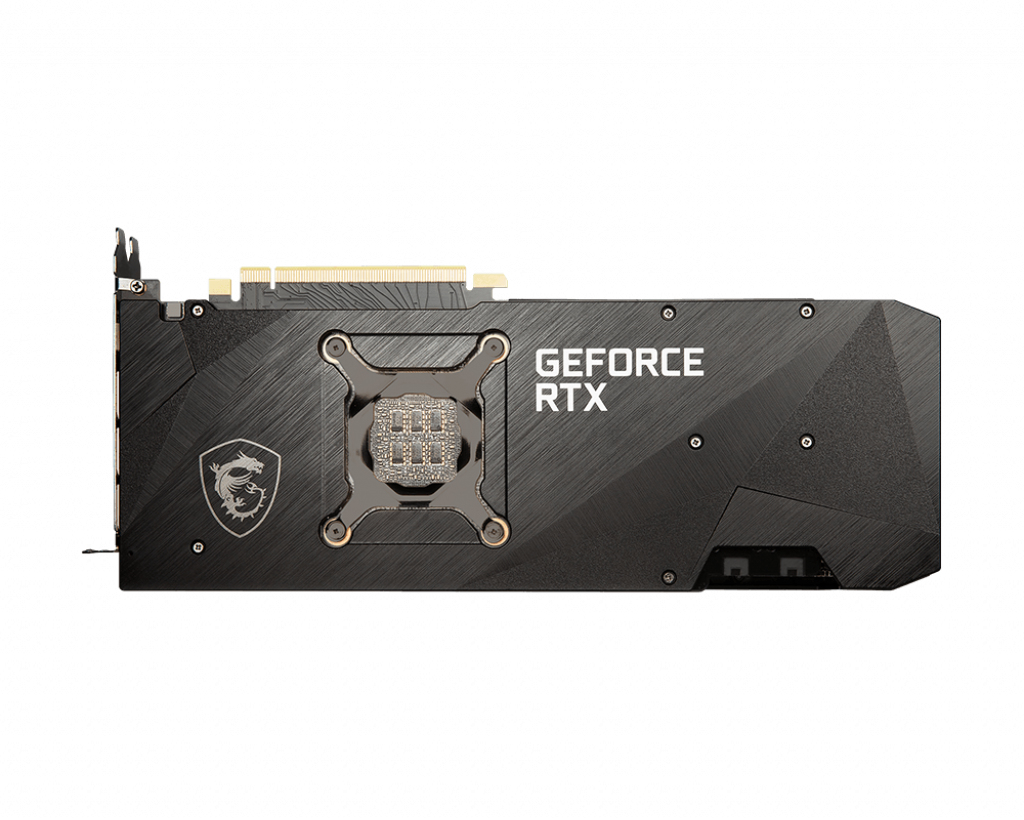

MSI RTX 3080 VENTUS 3X 10G

RTX 3080 VENTUS 3X 10G

Model RTX 3080 VENTUS 3X 10G

42 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
Weight1.37 kg
Graphics processor familyNVIDIA
Discrete graphics card memory10 GB
Interface typePCI Express 4.0
PhysXYes

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Weight: 1.37 kg
Graphics processor family: NVIDIA
Discrete graphics card memory: 10 GB
Interface type: PCI Express 4.0
PhysX: Yes

Brand: MSI
Category: GPU
Model: RTX 3080 VENTUS 3X 10G
Part number: RTX 3080 VENTUS 3X 10G
Also known as: MSI VENTUS RTX 3080 3X 10G graphics card NVIDIA GeForce RTX 3080 10 GB GDDR6X

Specifications

42 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3080
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	8704
Processor boost clock speed	1710 MHz
FireStream	No
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	10 GB
Graphics card memory type	GDDR6X
Memory bus	320 bit
Data transfer rate	19 Gbit/s

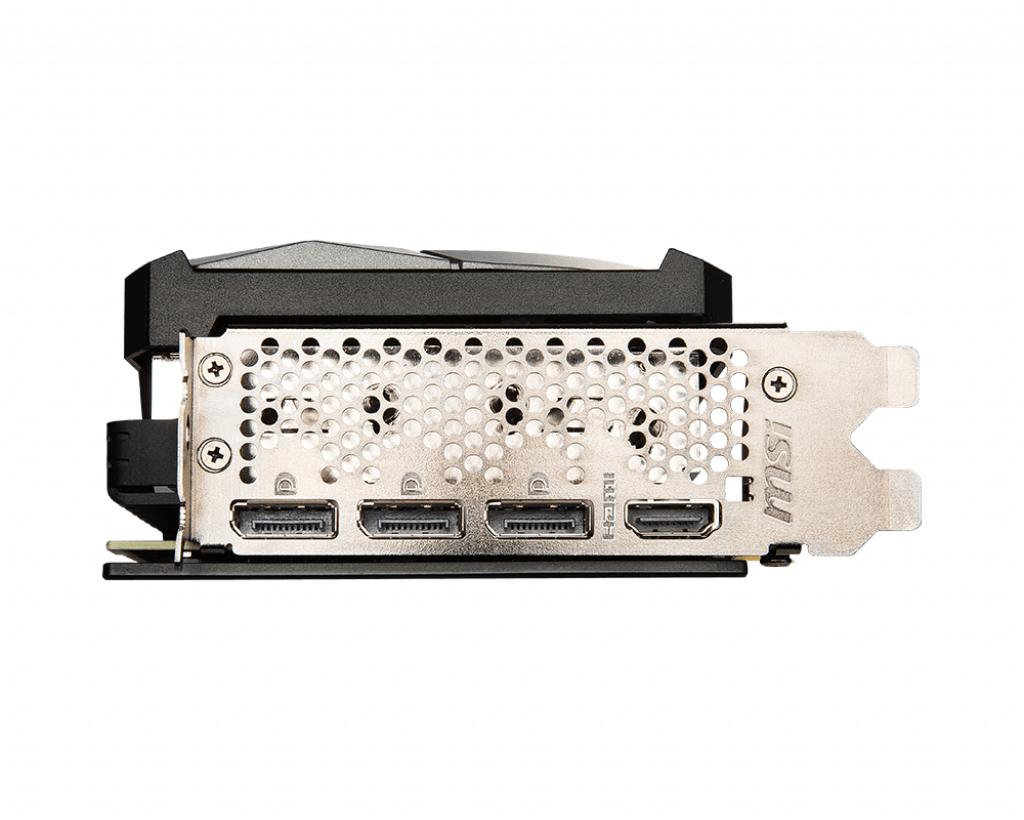

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	Yes
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Virtual Reality (VR) ready	Yes
HDCP	Yes
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Number of fans	3 fan(s)
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2

Power

Specification	Value
Minimum system power supply	750 W
Power consumption (typical)	320 W
Supplementary power connectors	2x 8-pin

Weight & dimensions

Specification	Value
Weight	1.37 kg
Length	305 mm
Depth	57 mm
Height	120 mm

Packaging data

Specification	Value
Package weight	1.99 kg
Package type	Box
