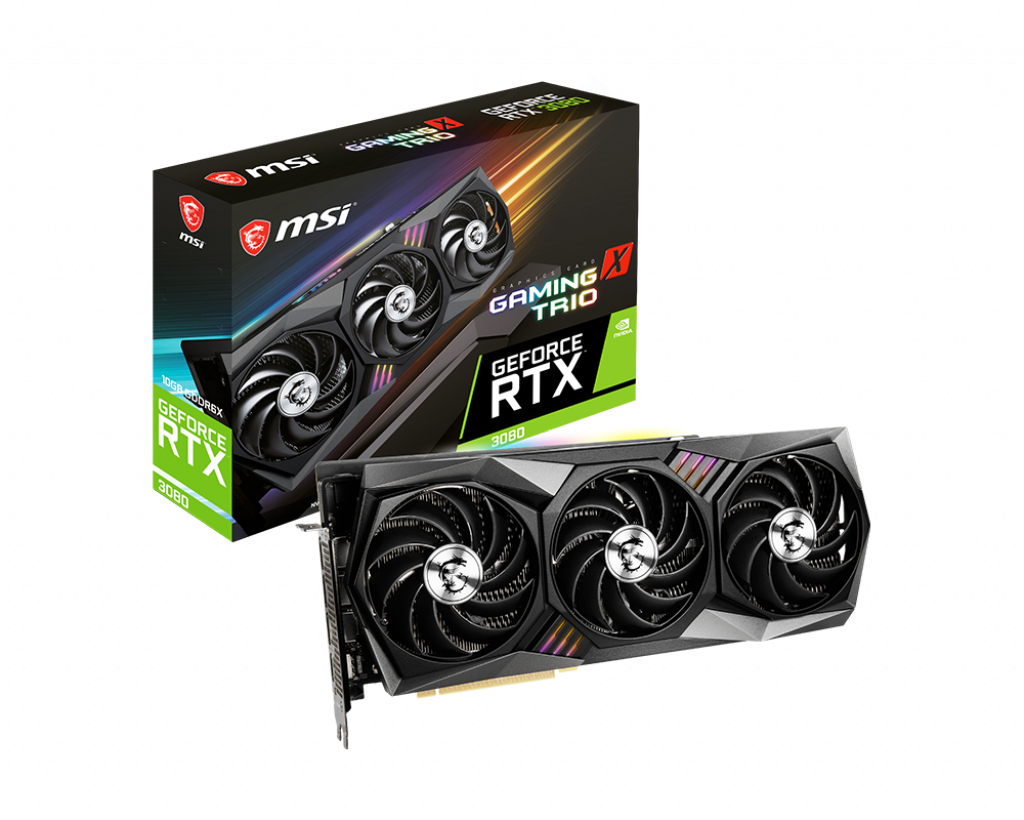

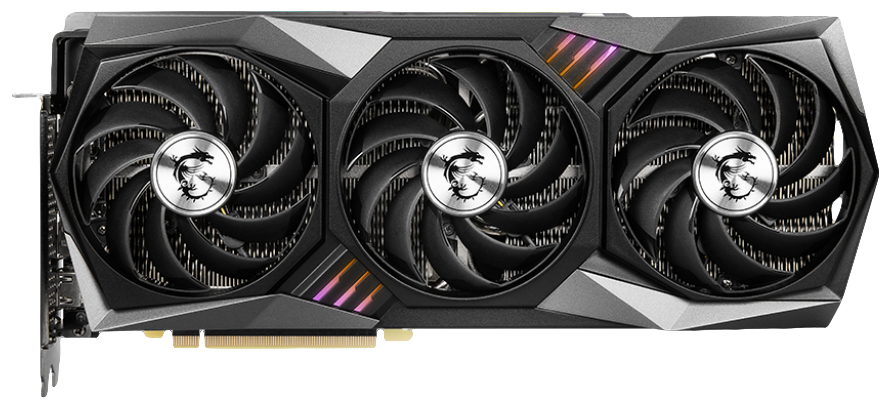

RTX 3080 GAMING X TRIO 10G
Model RTX 3080 GAMING X TRIO 10GEAN 824142228302
50 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.56 kg
- Graphics processor familyNVIDIA
- Discrete graphics card memory10 GB
- Interface typePCI Express x16 4.0
- PhysXYes
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.56 kg
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 10 GB
- Interface type
- PCI Express x16 4.0
- PhysX
- Yes
- Brand
- MSI
- Category
- GPU
- Model
- RTX 3080 GAMING X TRIO 10G
- Part number
- RTX 3080 GAMING X TRIO 10G
- EAN / UPC
- 824142228302, 4719072762544
- Also known as
- MSI GAMING RTX 3080 X TRIO 10G graphics card NVIDIA GeForce RTX 3080 10 GB GDDR6X
Specifications
50 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8704 |
| Processor boost clock speed | 1815 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 320 bit |
| Data transfer rate | 19 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 340 W |
| Supplementary power connectors | 3x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.56 kg |
| Length | 323 mm |
| Depth | 56 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 406 mm |
| Package depth | 90 mm |
| Package height | 299.8 mm |
| Package weight | 2.38 kg |
| Package type | Box |
