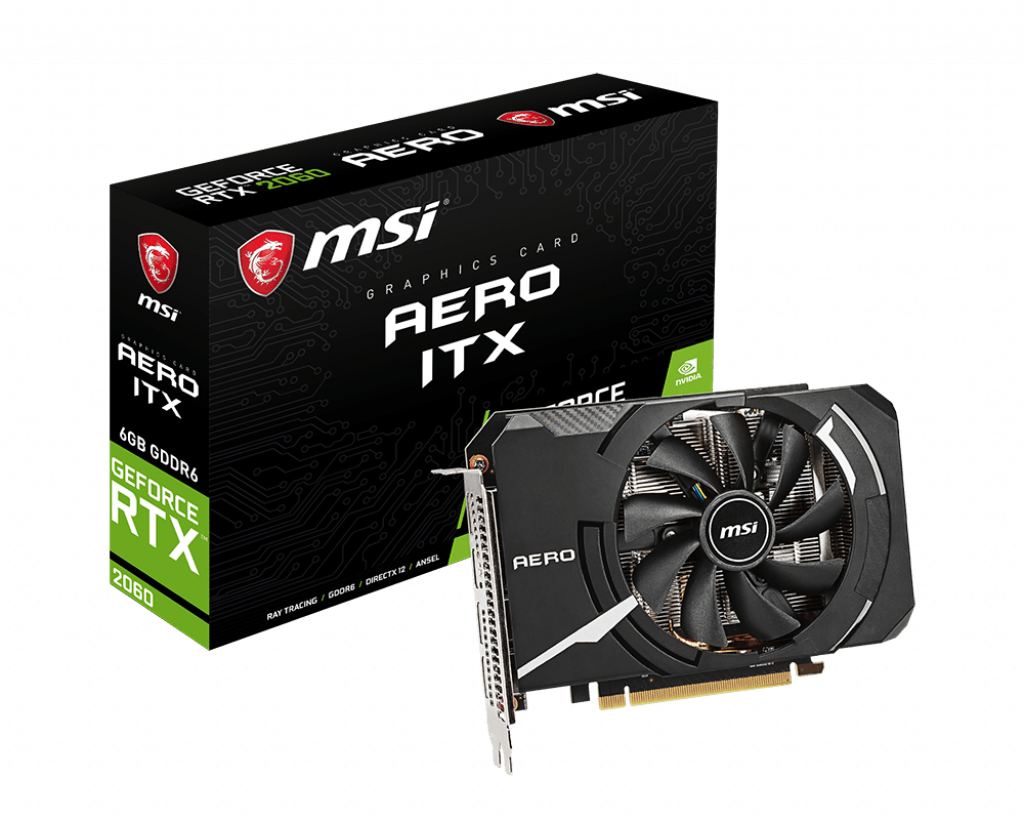

RTX 2060 Aero ITX 6G
Model RTX 2060 Aero ITX 6GPart no. RTX 2060 AERO ITX 6G
46 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight457 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory6 GB
- Interface typePCI Express x16 3.0
- PhysXYes
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 457 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 6 GB
- Interface type
- PCI Express x16 3.0
- PhysX
- Yes
- Brand
- MSI
- Category
- GPU
- Model
- RTX 2060 Aero ITX 6G
- Part number
- RTX 2060 AERO ITX 6G
- Also known as
- MSI AERO ITX GeForce RTX 2060 6G
Specifications
46 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 1920 |
| Processor boost clock speed | 1680 MHz |
| FireStream | No |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 6 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Data transfer rate | 14 Gbit/s |
| Memory bandwidth (max) | 336 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Power consumption (typical) | 160 W |
| Supplementary power connectors | 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 457 g |
| Length | 175 mm |
| Depth | 43 mm |
| Height | 126 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 539 g |
| Package type | Box |
