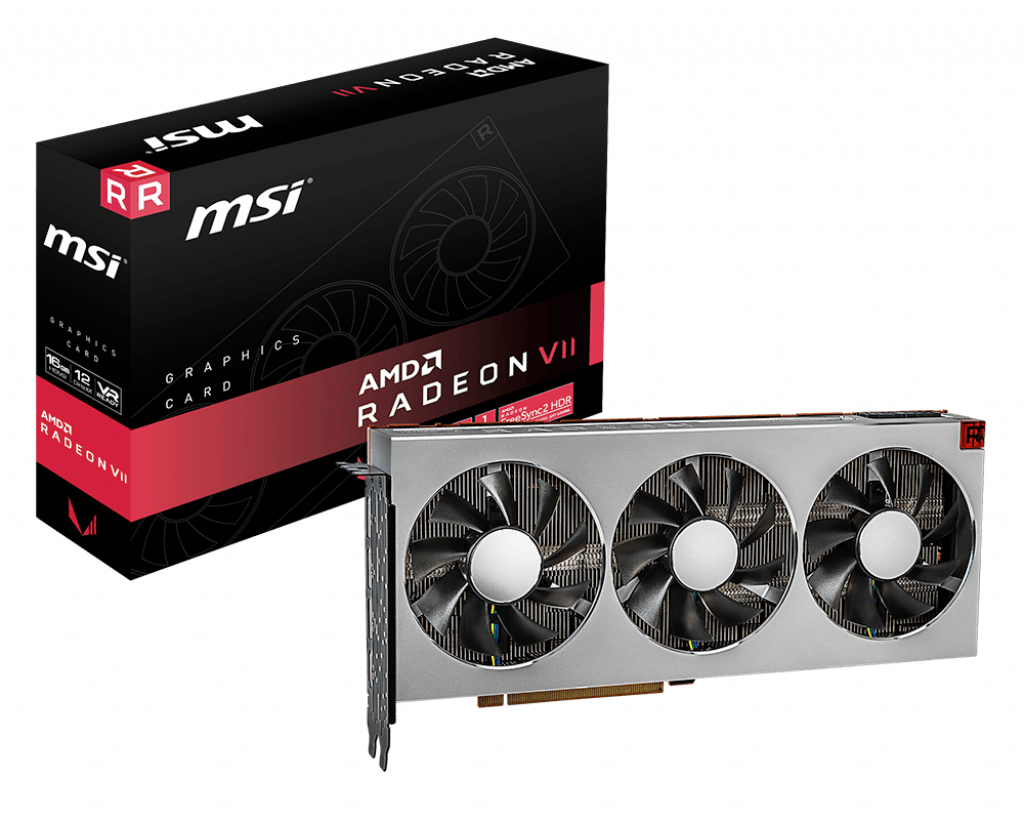

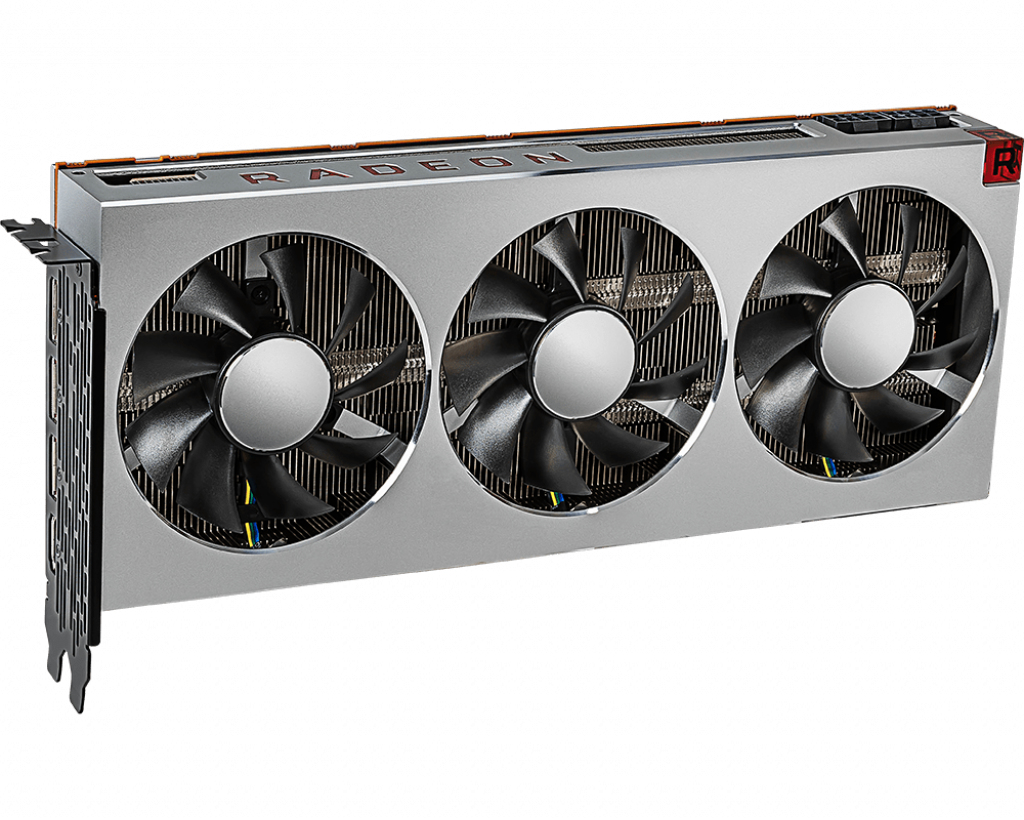

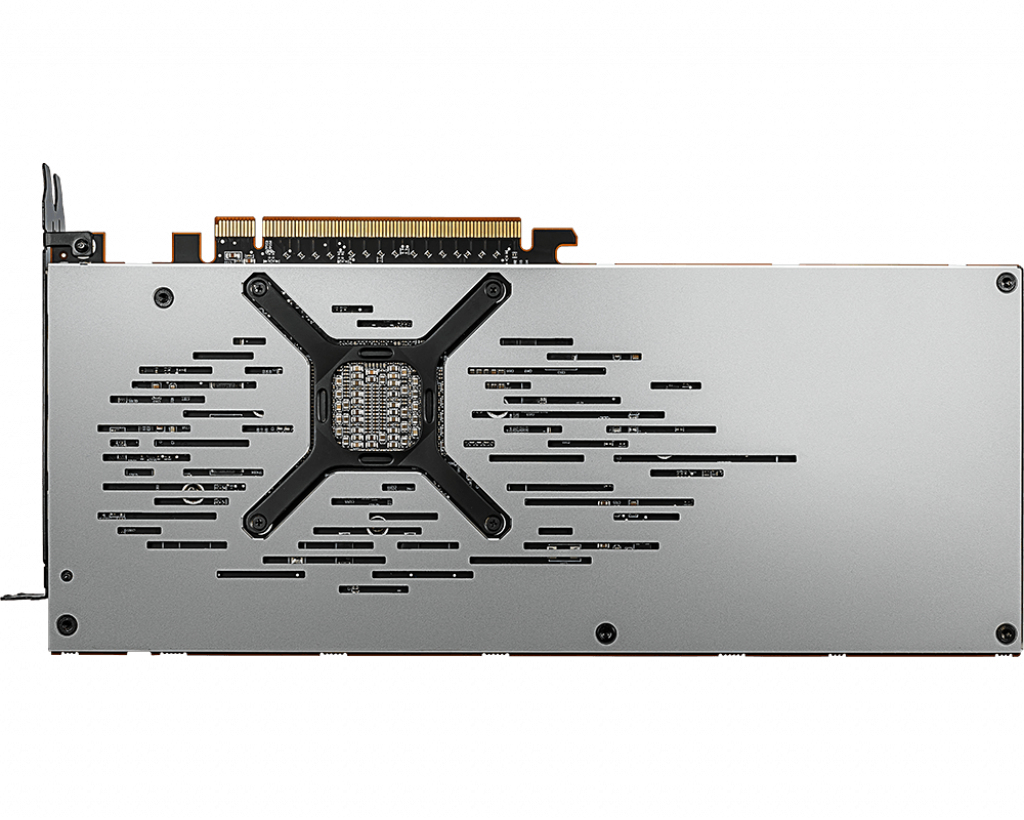

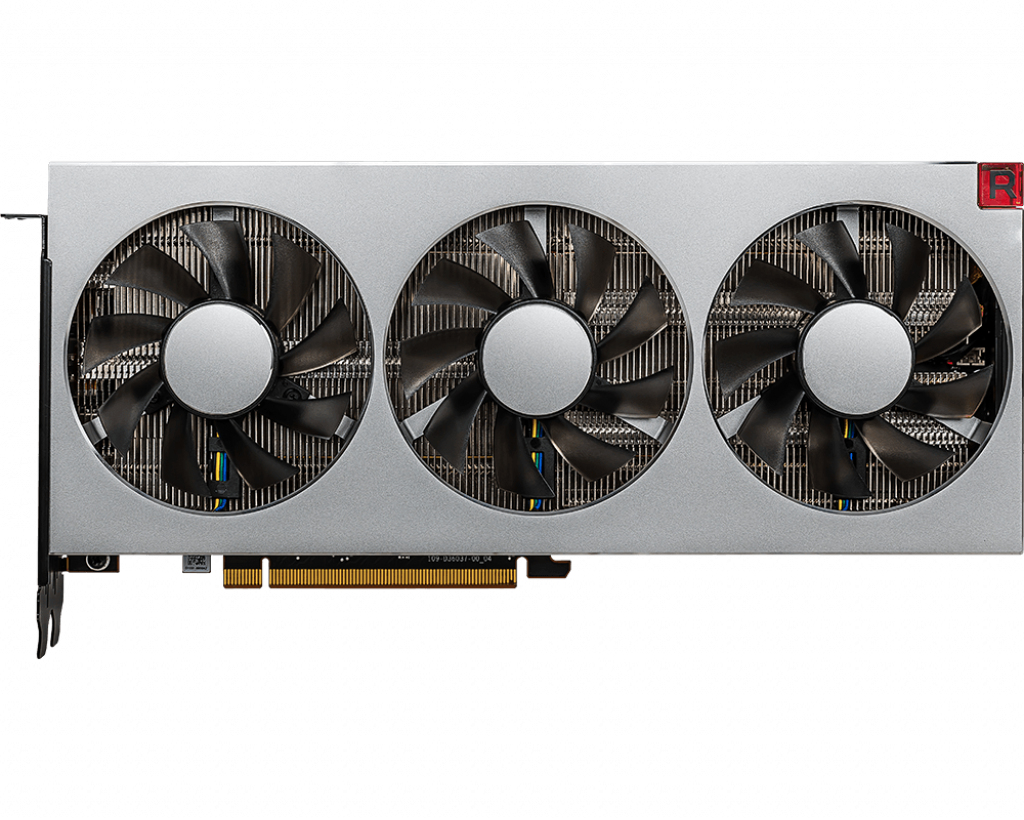

Radeon VII 16G
Model Radeon VII 16GPart no. RADEON VII 16GEAN 824142179079
45 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.28 kg
- ColourSilver
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 3.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.28 kg
- Colour
- Silver
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 3.0
- Brand
- MSI
- Category
- GPU
- Model
- Radeon VII 16G
- Part number
- RADEON VII 16G
- EAN / UPC
- 824142179079, 4719072625016
- Also known as
- MSI Radeon VII 16G AMD 16 GB High Bandwidth Memory 2 (HBM2)
Specifications
45 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon VII |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1400 MHz |
| Processor boost clock speed | 1750 MHz |
| FireStream | Yes |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | CrossFire |
| Stream processors | 3840 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | High Bandwidth Memory 2 (HBM2) |
| Memory bus | 4096 bit |
| Data transfer rate | 2000 Gbit/s |

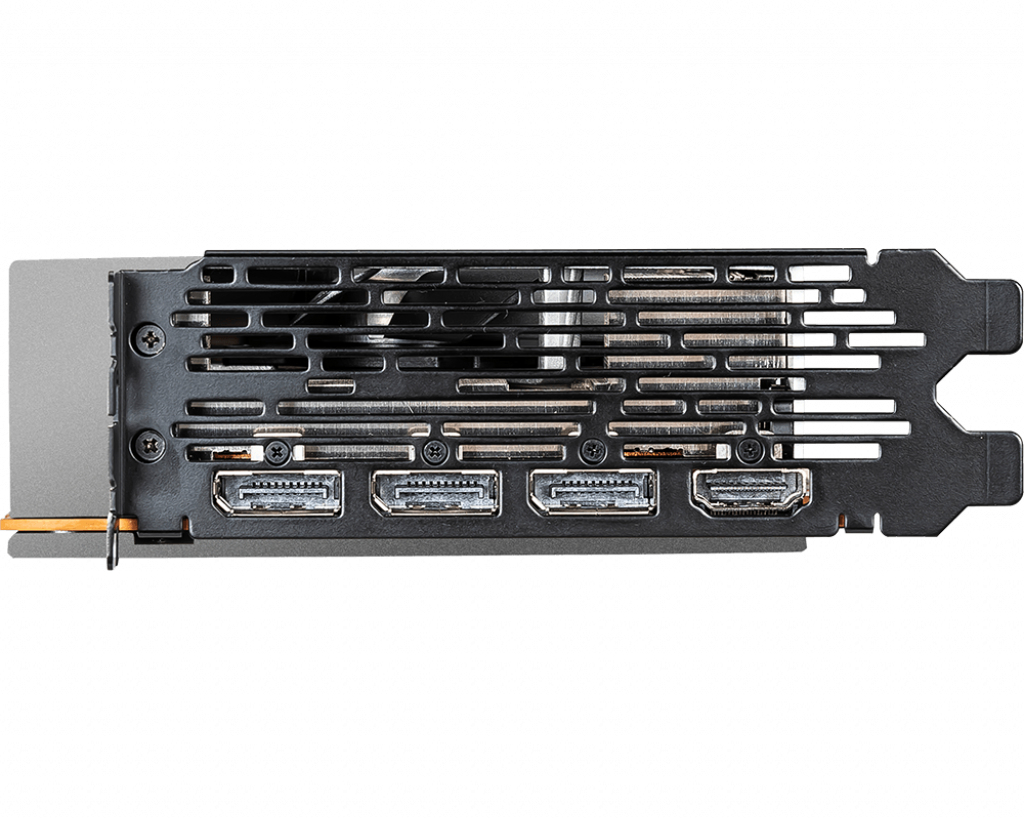

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 300 W |
| Supplementary power connectors | 2x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.28 kg |
| Length | 267 mm |
| Depth | 40 mm |
| Height | 121 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.77 kg |
