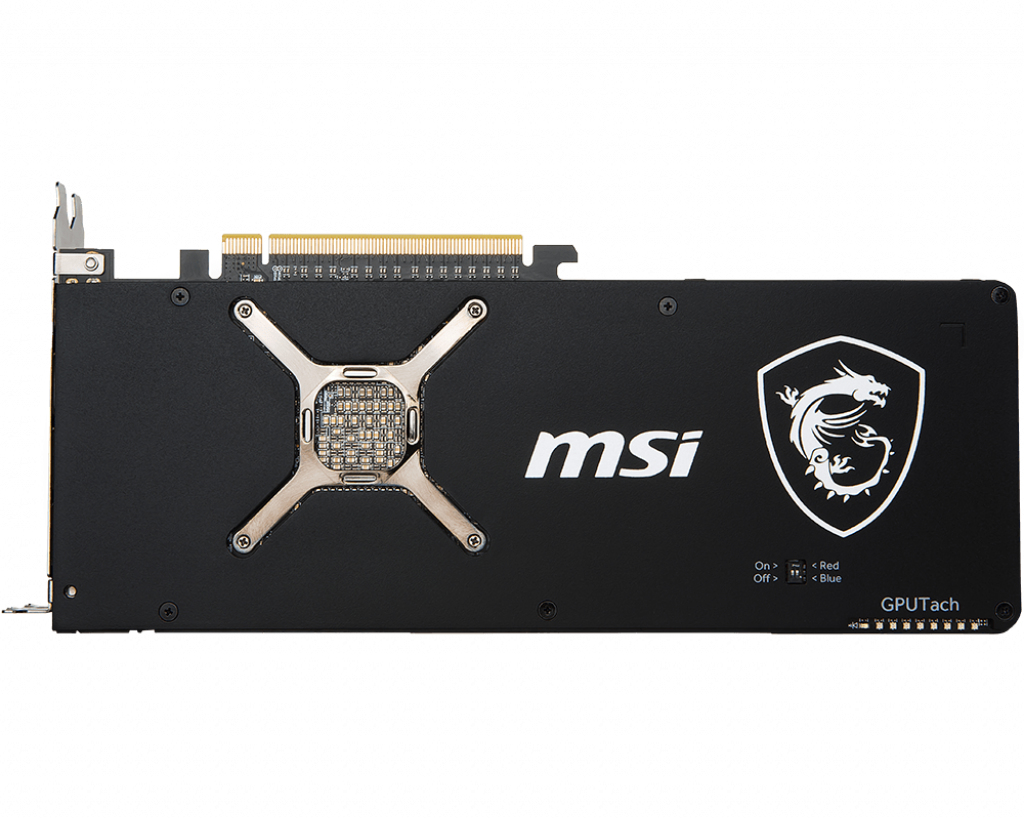

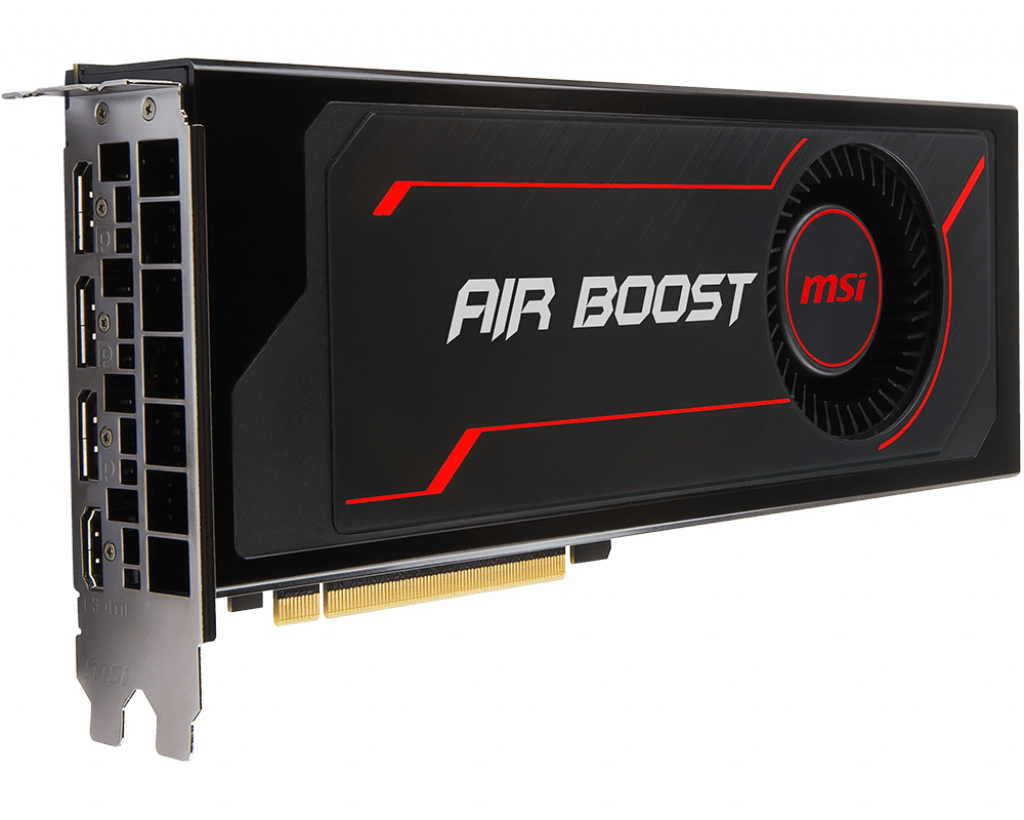

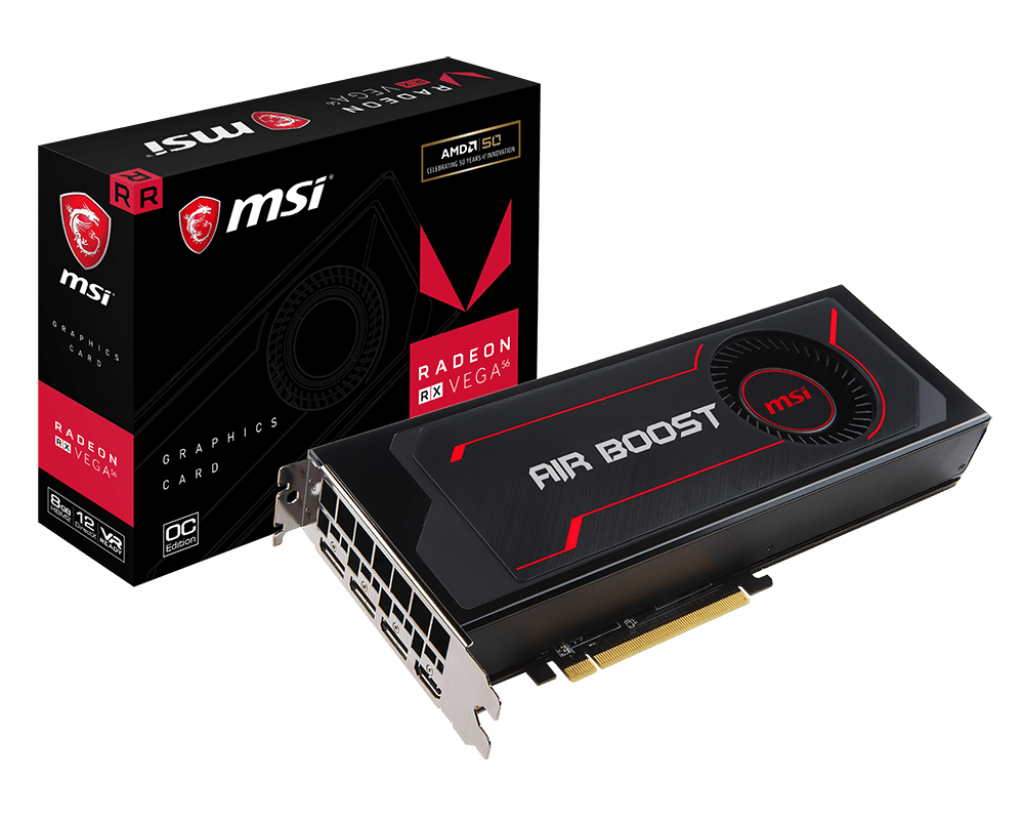

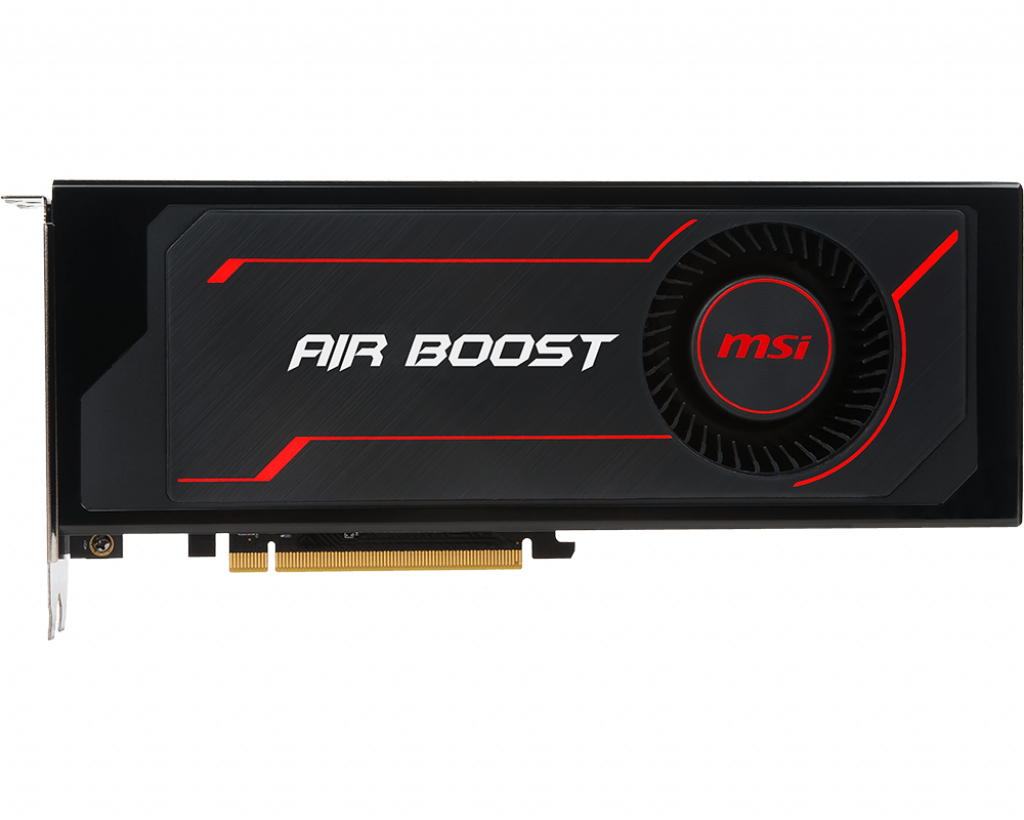

MSI RADEON RX VEGA 56 AIR BOOST 8G OC
Model RADEON RX VEGA 56 AIR BOOST 8G OCEAN 824142156728
33 specifications Checked 5 days ago
- Weight1.07 kg
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express x16
- DirectX version12.0
- Cooling typeActive
Overview
- Weight
- 1.07 kg
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16
- DirectX version
- 12.0
- Cooling type
- Active
- Brand
- MSI
- Category
- GPU
- Model
- RADEON RX VEGA 56 AIR BOOST 8G OC
- Part number
- RADEON RX VEGA 56 AIR BOOST 8G OC
- EAN / UPC
- 824142156728
- Also known as
- MSI RADEON RX VEGA 56 AIR BOOST 8G OC graphics card AMD 8 GB High Bandwidth Memory 2 (HBM2)
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX Vega 56 |
| Processor frequency | 1181 MHz |
| Processor boost clock speed | 1520 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 4-Way CrossFireX |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | High Bandwidth Memory 2 (HBM2) |
| Memory bus | 2048 bit |
| Memory clock speed | 800 MHz |

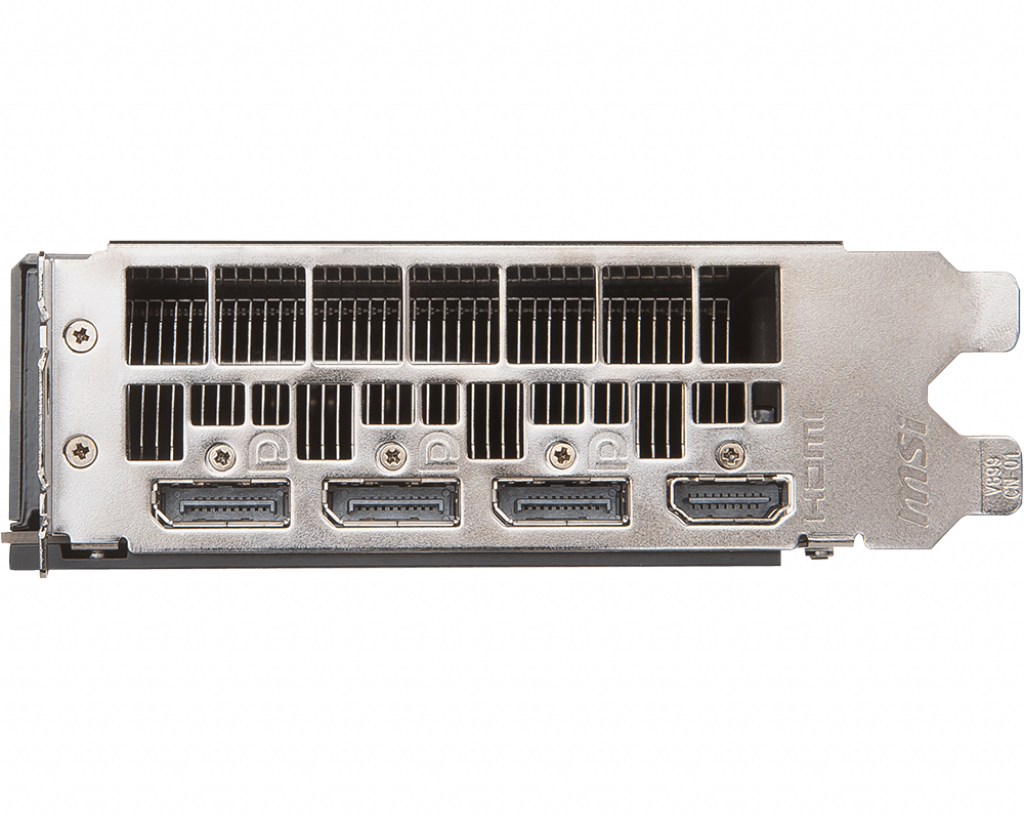

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| Illumination colour | Multi |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Power consumption (typical) | 210 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.07 kg |
| Length | 270 mm |
| Depth | 40 mm |
| Height | 110 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.61 kg |
| Package type | Box |
