Radeon RX 6800 XT 16G
Model Radeon RX 6800 XT 16GPart no. RADEON RX 6800 XT 16GEAN 4719072779047
43 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.52 kg
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 4.0
- PhysXNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.52 kg
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 4.0
- PhysX
- No
- Brand
- MSI
- Category
- GPU
- Model
- Radeon RX 6800 XT 16G
- Part numbers
- RADEON RX 6800 XT 16G, RADEON RX 6800 XT 16
- EAN / UPC
- 4719072779047
- Also known as
- MSI Radeon RX 6800 XT 16G AMD 16 GB GDDR6
Specifications
43 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6800 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 1825 MHz |
| Processor boost clock speed | 2250 MHz |
| FireStream | Yes |
| Maximum displays per videocard | 4 |
| Stream processors | 4608 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 16 Gbit/s |

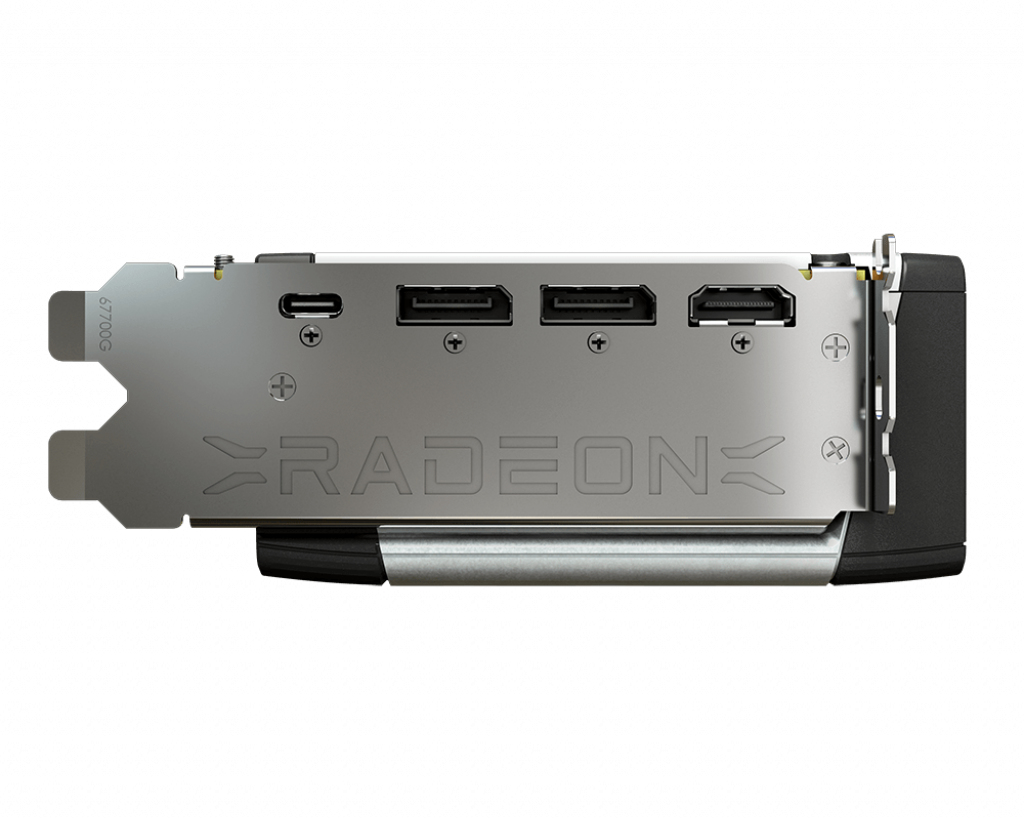

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| USB Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 300 W |
| Power consumption (typical) | 750 W |
| Supplementary power connectors | 2x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.52 kg |
| Length | 267 mm |
| Depth | 50 mm |
| Height | 120 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.03 kg |
| Package type | Box |
