Radeon RX 580 ARMOR 8G
Model Radeon RX 580 ARMOR 8GPart no. RX 580 ARMOR 8GEAN 4719072523725
40 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack, White
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
- PhysXNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black, White
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- PhysX
- No
- Brand
- MSI
- Category
- GPU
- Model
- Radeon RX 580 ARMOR 8G
- Part number
- RX 580 ARMOR 8G
- EAN / UPC
- 4719072523725
- Also known as
- MSI ARMOR Radeon RX 580 8G AMD 8 GB GDDR5
Specifications
40 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 580 |
| CUDA | No |
| Processor boost clock speed | 1340 MHz |
| FireStream | No |
| Maximum displays per videocard | 5 |
| Parallel processing technology support | 2-Way CrossFireX |
| Stream processors | 2304 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 256 bit |
| Memory clock speed | 8000 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |

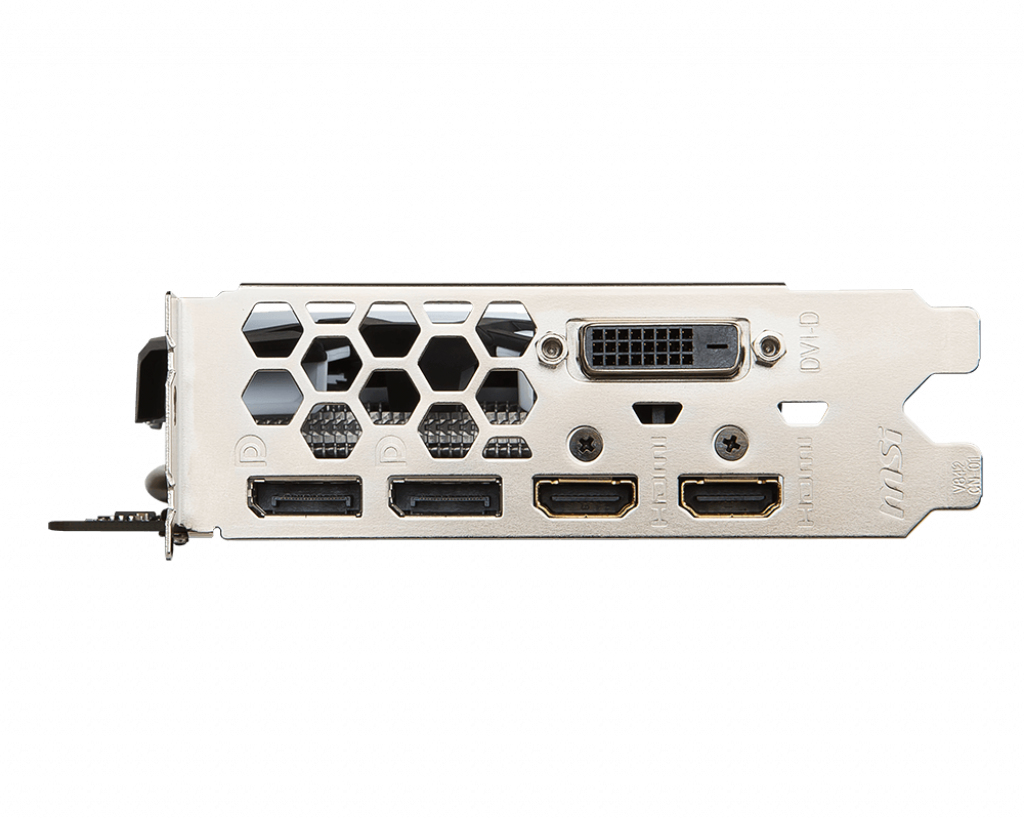

| HDMI ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | Yes |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Power consumption (typical) | 185 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 269 mm |
| Depth | 38 mm |
| Height | 125 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| User guide | Yes |
