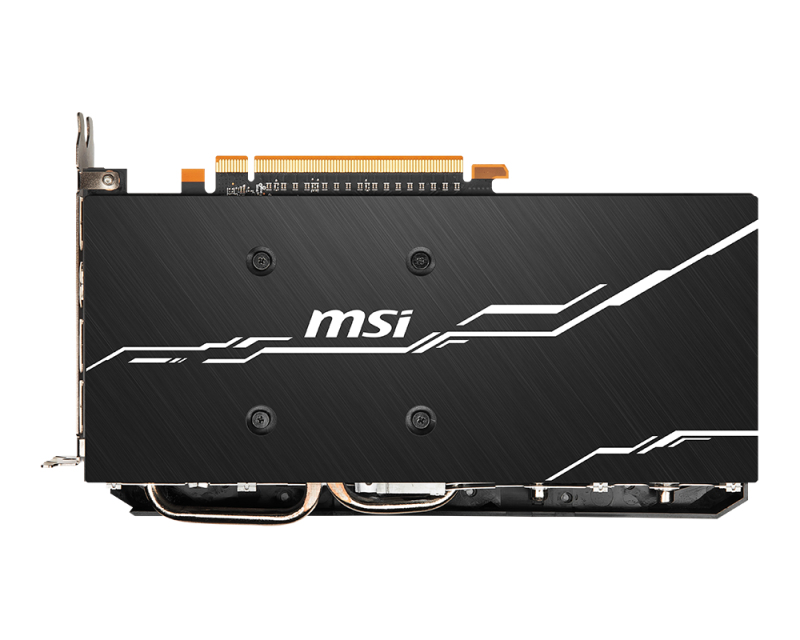

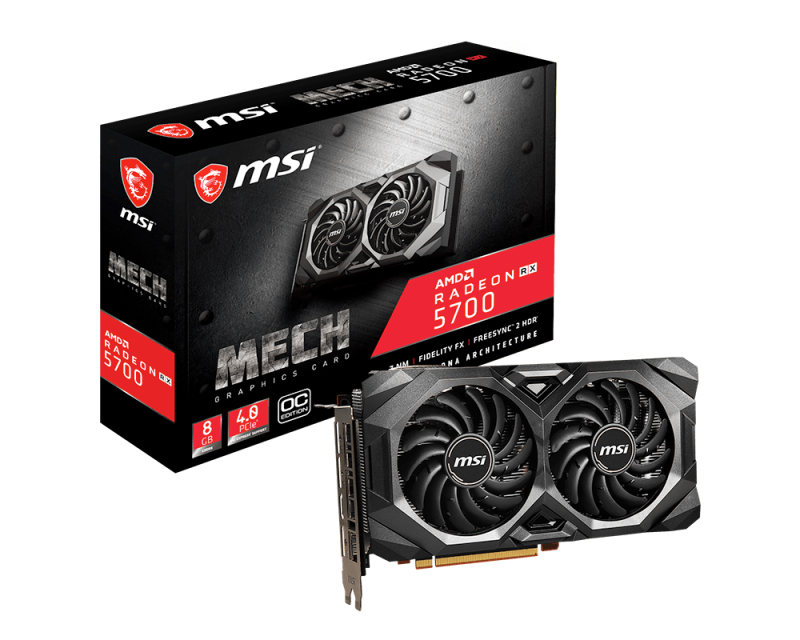

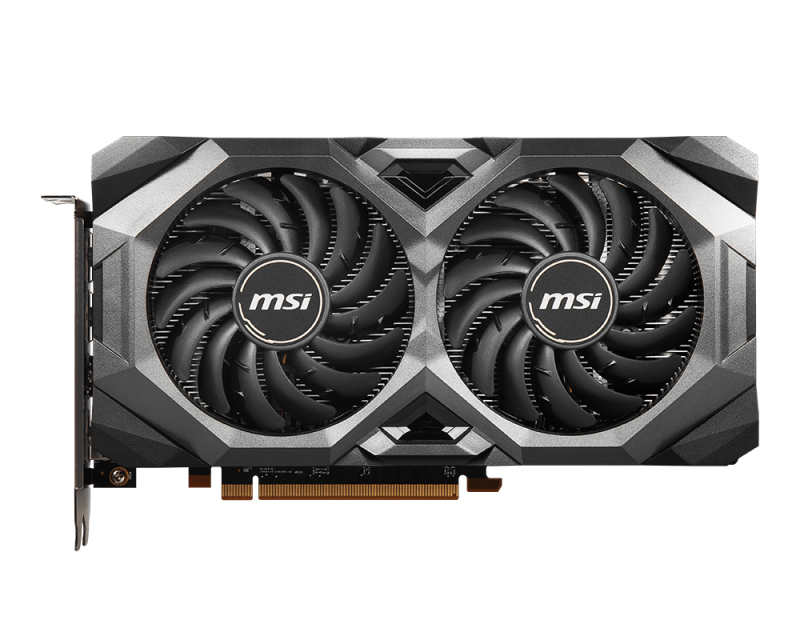

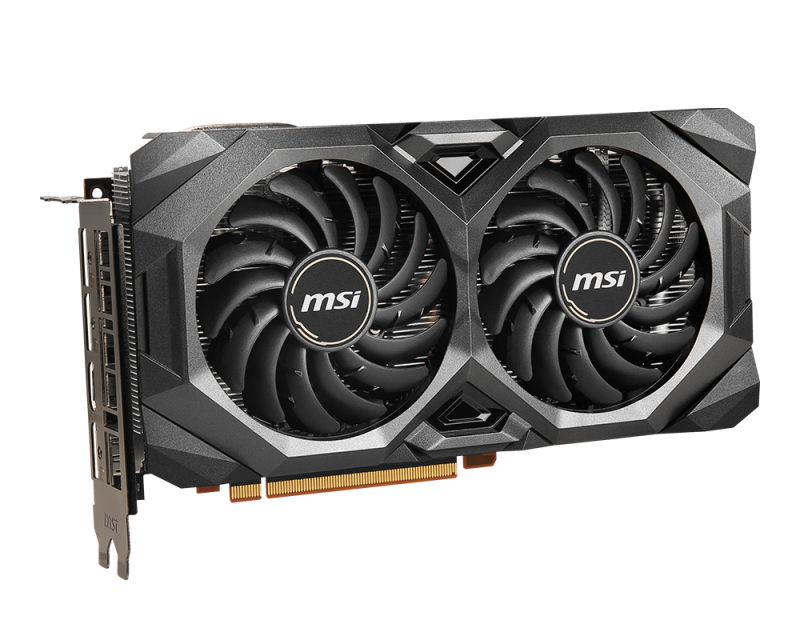

Radeon RX 5700 MECH OC
Model Radeon RX 5700 MECH OCPart no. RADEON RX 5700 MECH
33 specifications Checked today
- Weight788 g
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
- DirectX version12.0
- Cooling typeActive
Overview
- Weight
- 788 g
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- DirectX version
- 12.0
- Cooling type
- Active
- Brand
- MSI
- Category
- GPU
- Model
- Radeon RX 5700 MECH OC
- Part number
- RADEON RX 5700 MECH
- Also known as
- MSI MECH Radeon RX 5700 OC AMD 8 GB GDDR6
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5700 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2304 |
| Processor frequency | 1515 MHz |
| Processor boost clock speed | 1750 MHz |
| Processor boost clock speed (Gaming mode) | 1675 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 14000 MHz |

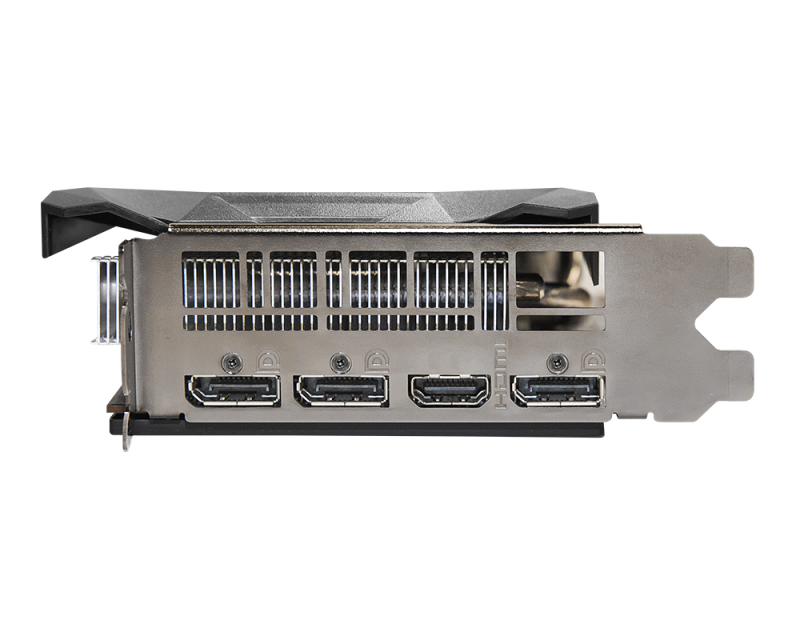

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 3.0 |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 180 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 788 g |
| Length | 232 mm |
| Depth | 46 mm |
| Height | 126 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.23 kg |
