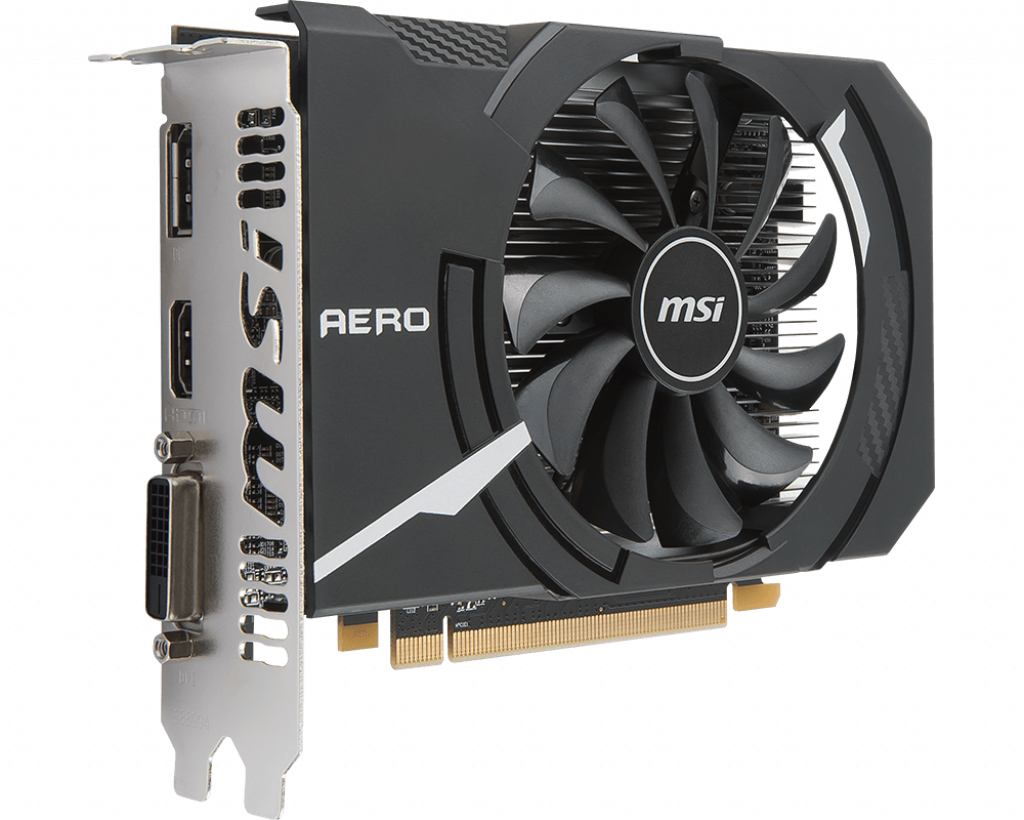

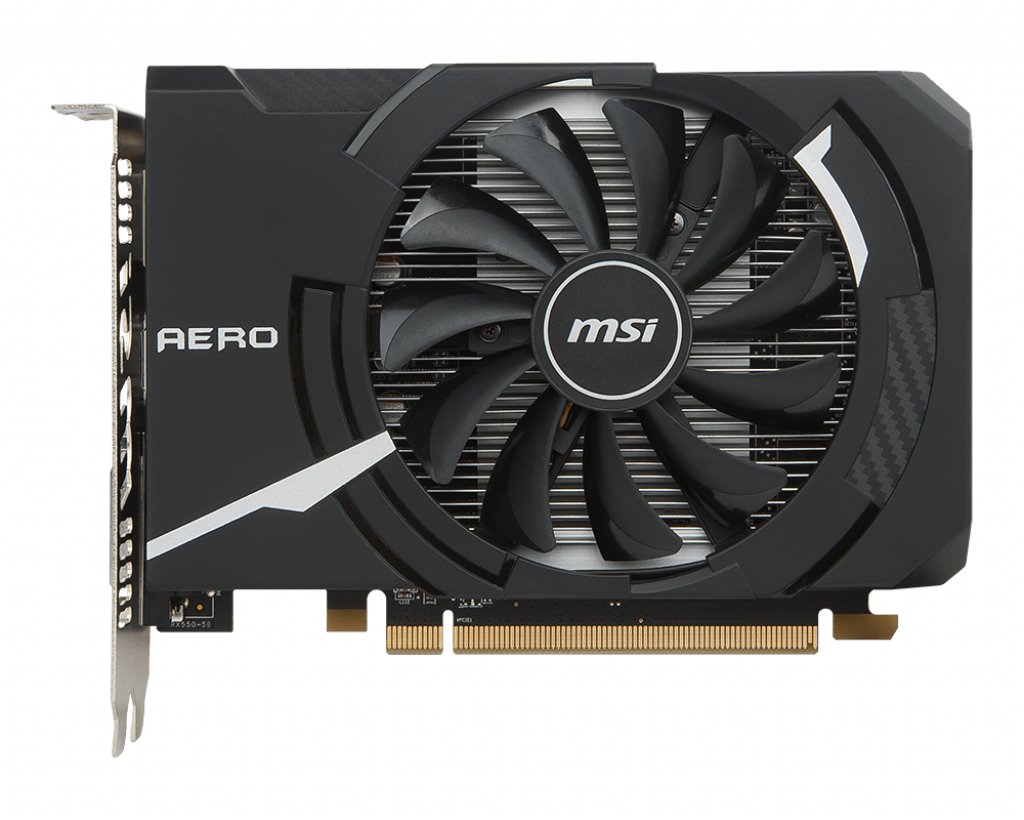

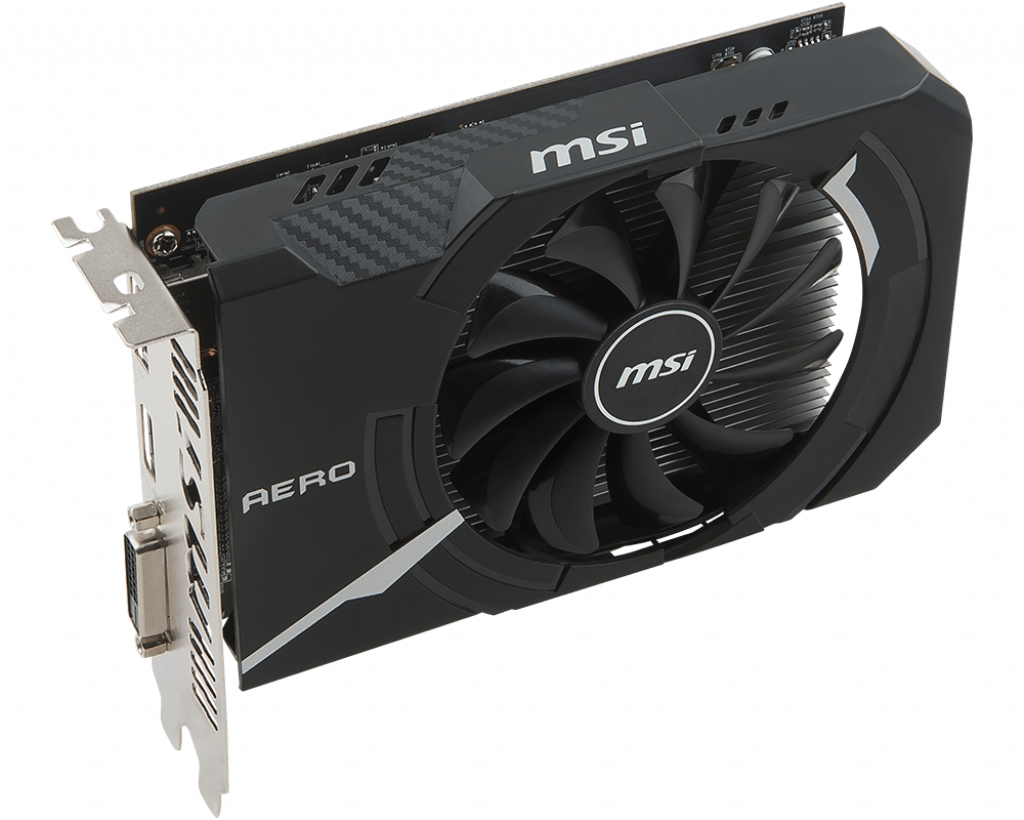

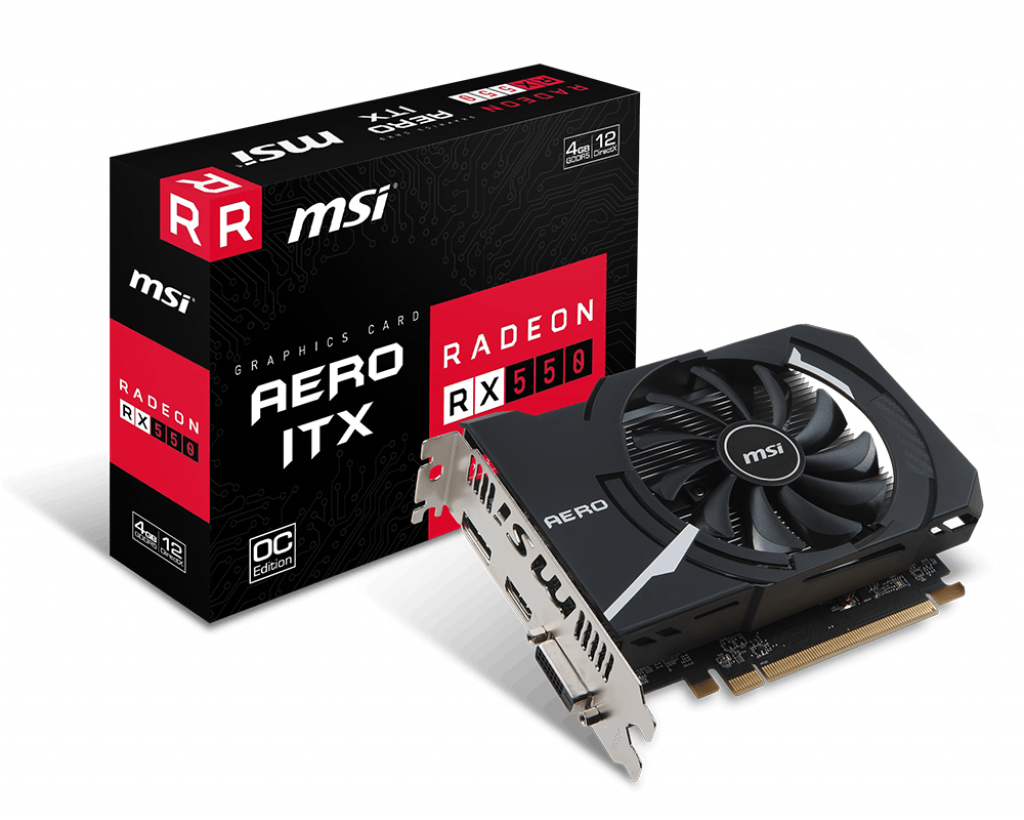

MSI Radeon RX 550 AERO ITX 4G OC
Model Radeon RX 550 AERO ITX 4G OCPart no. V809-248R
37 specifications Checked 5 days ago
- TypeFull-Height/Half-Length (FH/HL)
- Weight285 g
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express x16
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 285 g
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express x16
- Brand
- MSI
- Category
- GPU
- Model
- Radeon RX 550 AERO ITX 4G OC
- Part number
- V809-248R
- Also known as
- MSI AERO ITX Radeon RX 550 4G OC AMD 4 GB GDDR5
Specifications
37 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 550 |
| Processor frequency | 1203 MHz |
| FireStream | No |
| Maximum displays per videocard | 3 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory clock speed | 7000 MHz |

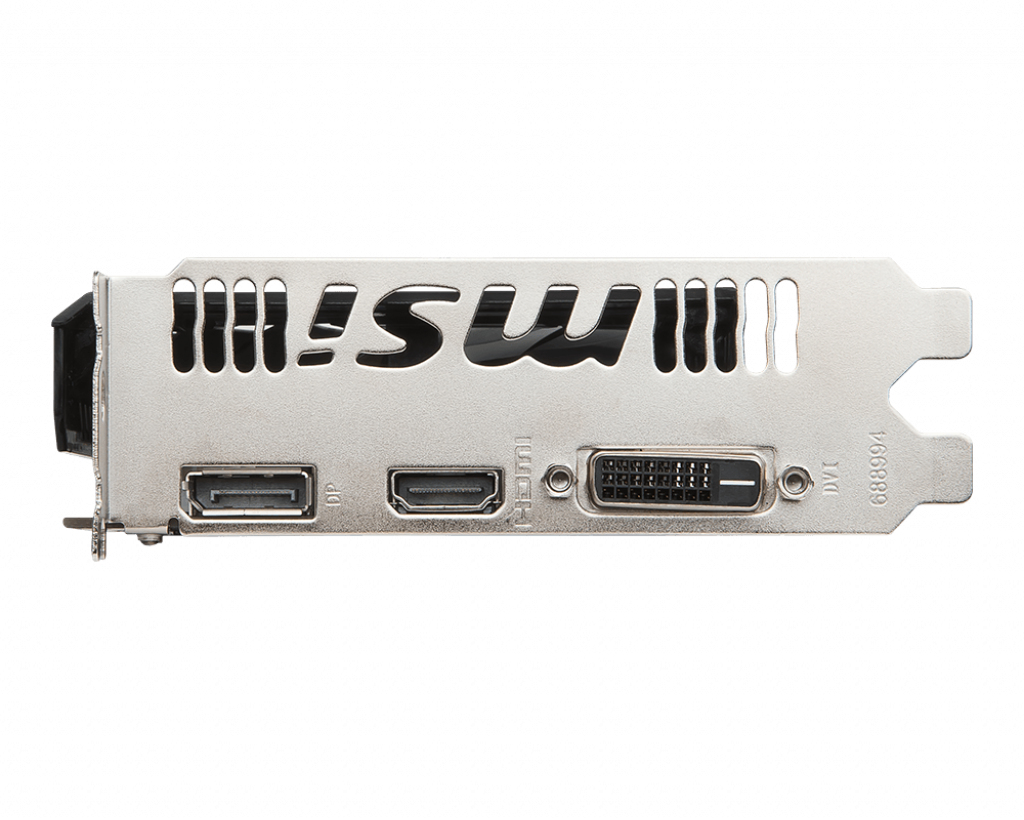

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0 |
| DVI ports quantity | 1 |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| AMD FreeSync | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 400 W |
| Power consumption (typical) | 50 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 285 g |
| Length | 155 mm |
| Depth | 38 mm |
| Height | 112 mm |
