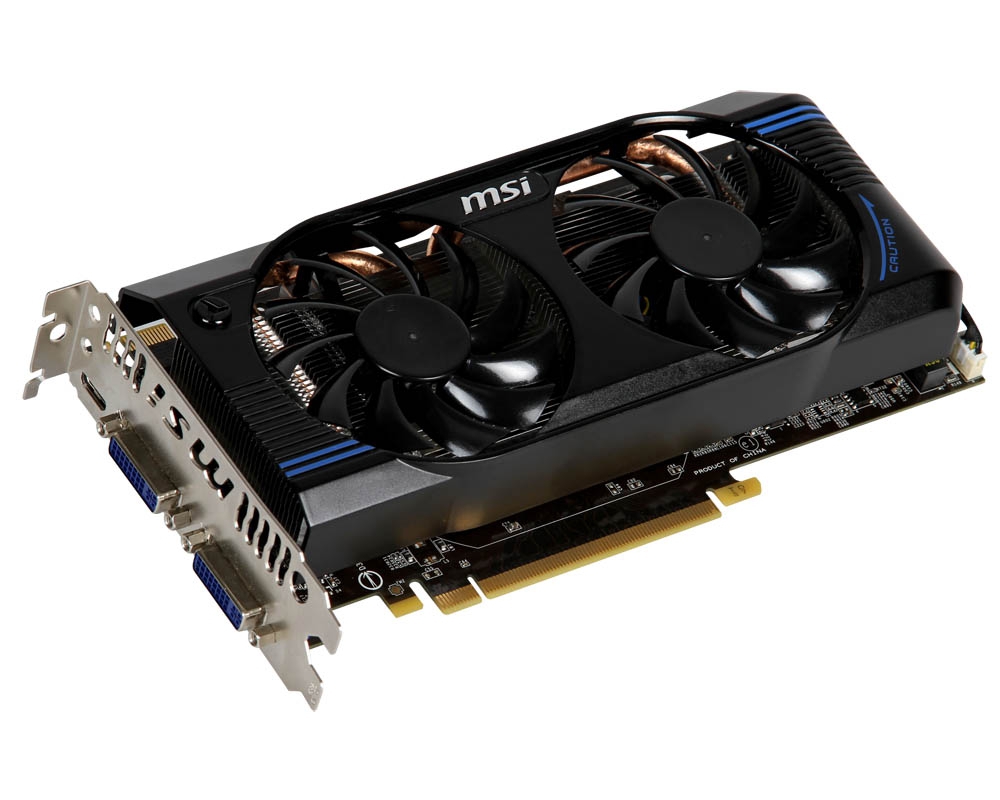

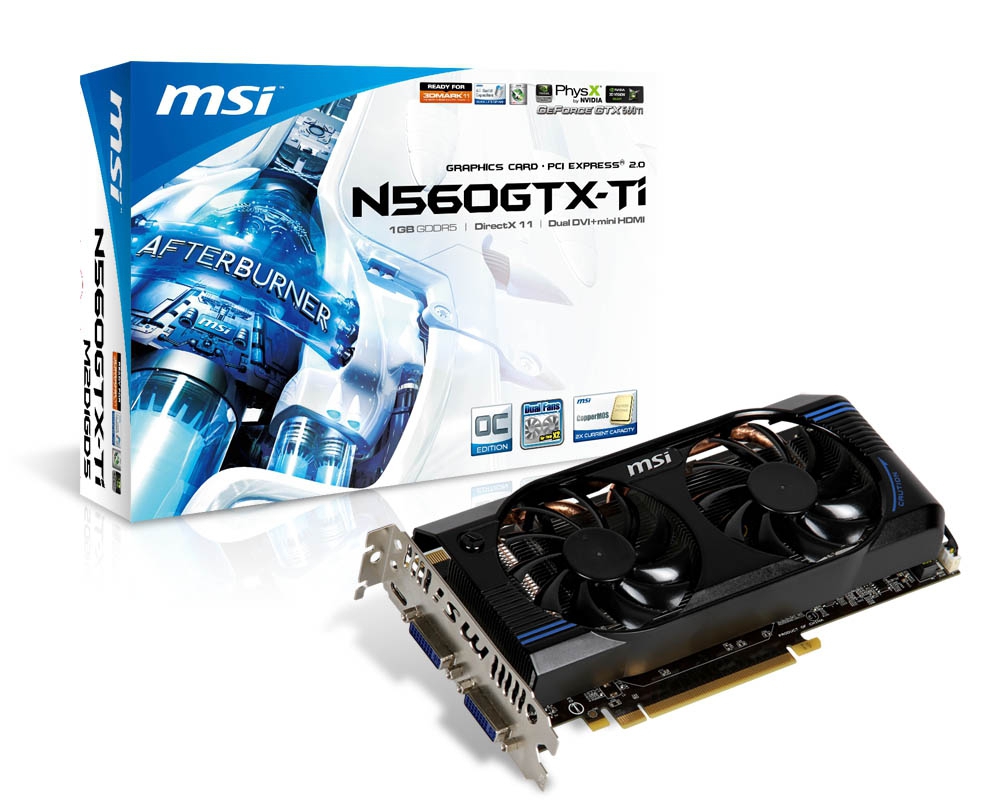

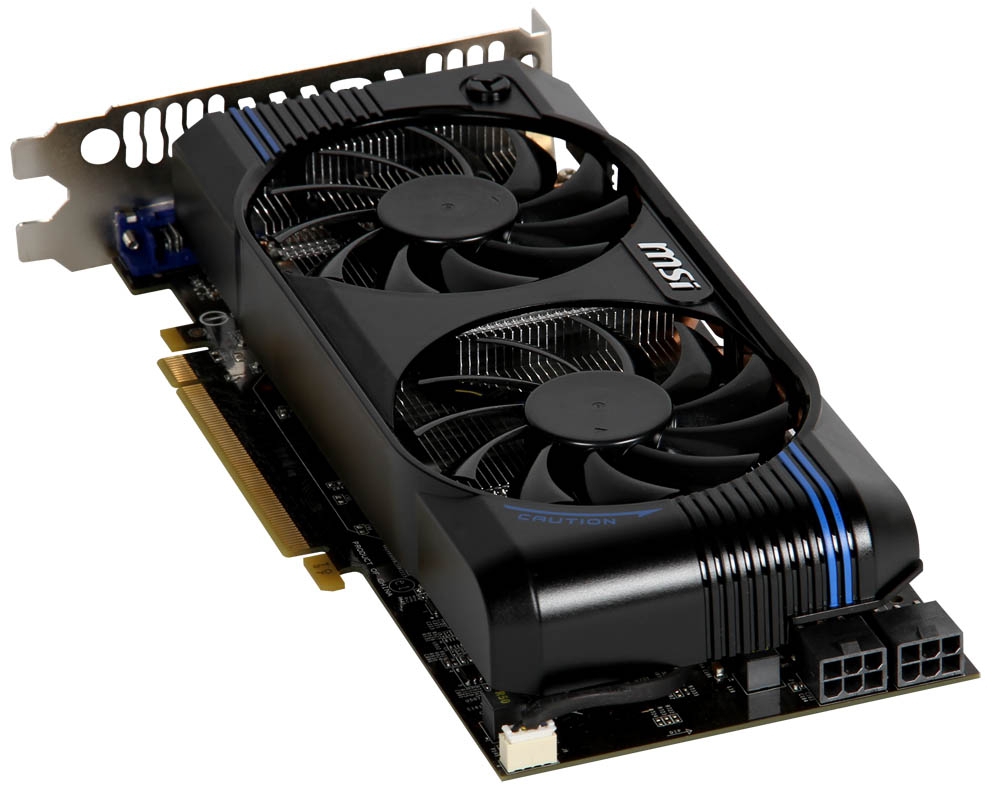

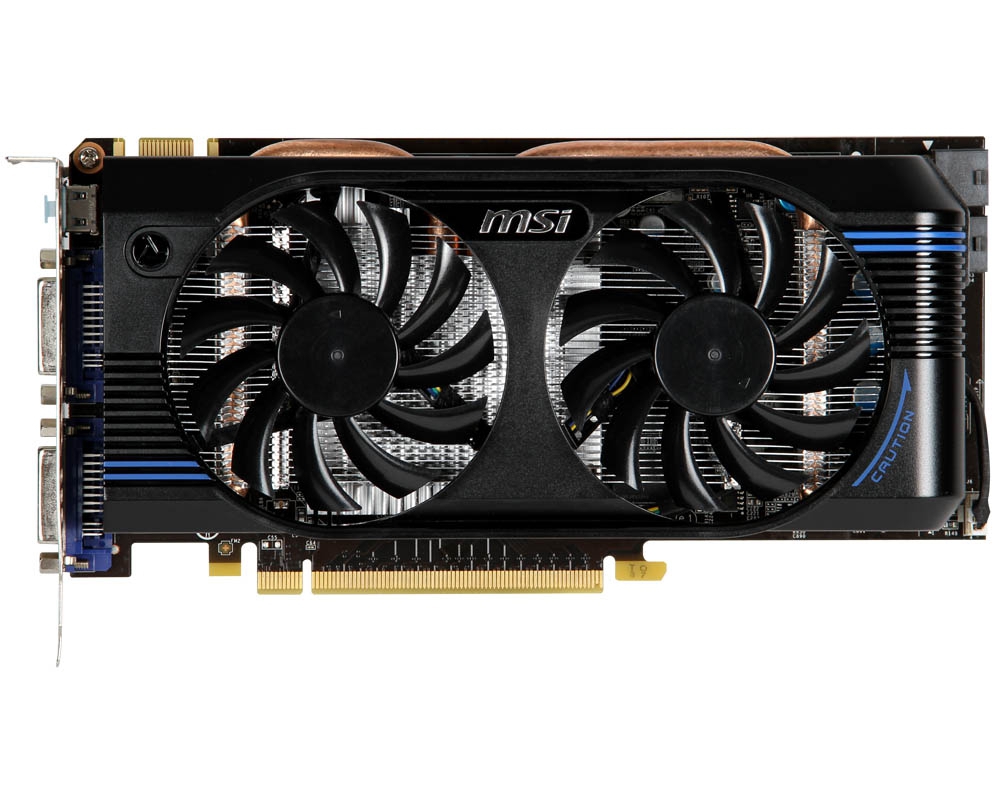

MSI N560GTX-TIM2D1GD5/OC graphics card NVIDIA GeForce GTX 560 Ti
1 GB GDDR5
Model N560GTX-TIM2D1GD5/OCEAN 816909091854
29 specifications Checked 3 days ago
- Graphics processor familyNVIDIA
- Discrete graphics card memory1 GB
- Interface typePCI Express 2.0
- PhysXYes
- Cooling typeActive
- Length238 mm
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express 2.0
- PhysX
- Yes
- Cooling type
- Active
- Length
- 238 mm
- Brand
- MSI
- Category
- GPU
- Model
- N560GTX-TIM2D1GD5/OC
- Part number
- N560GTX-TIM2D1GD5/OC
- EAN / UPC
- 816909091854
- Also known as
- MSI N560GTX-TIM2D1GD5/OC graphics card NVIDIA GeForce GTX 560 Ti 1 GB GDDR5
Specifications
29 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 560 Ti |
| Maximum resolution | 2560 x 1600 pixels |
| Processor frequency | 832 MHz |
| Graphics card RAMDAC | 400 MHz |
| Parallel processing technology support | 2-Way SLI |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 256 bit |
| Memory clock speed | 4008 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |

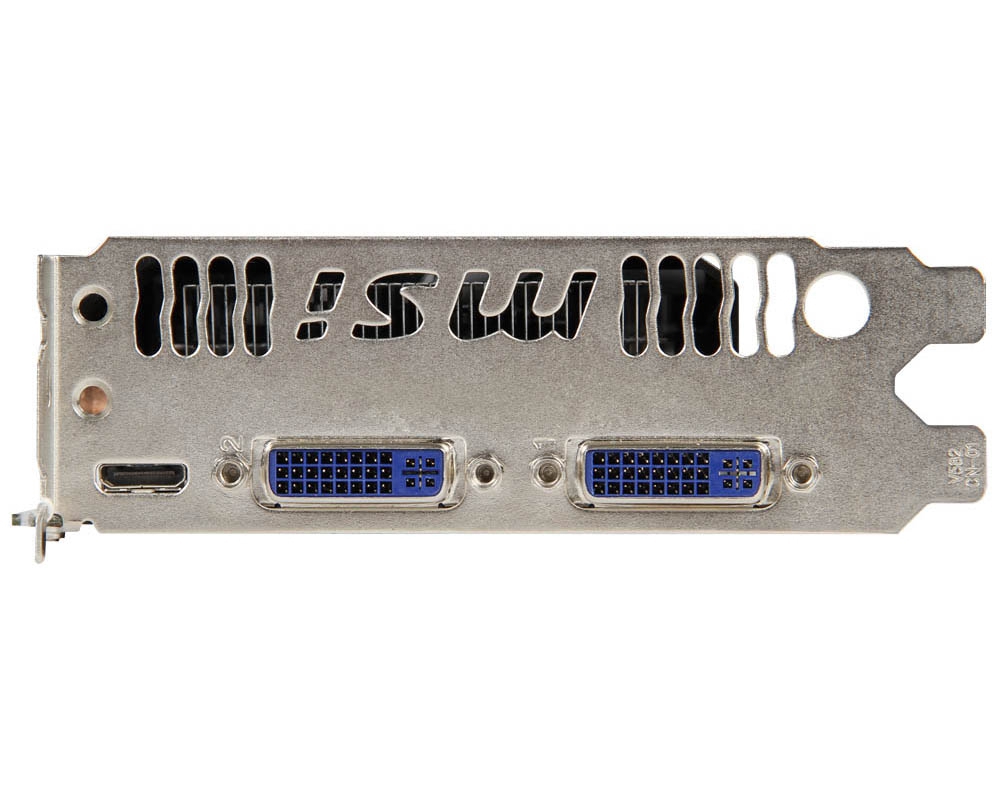

| DVI-I ports quantity | 2 |
| DisplayPorts quantity | 0 |
| Mini HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 11 |
| OpenGL version | 4.1 |
| HDCP | Yes |
| Dual Link DVI | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 238 mm |
| Depth | 40 mm |
| Height | 112 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | Yes |
