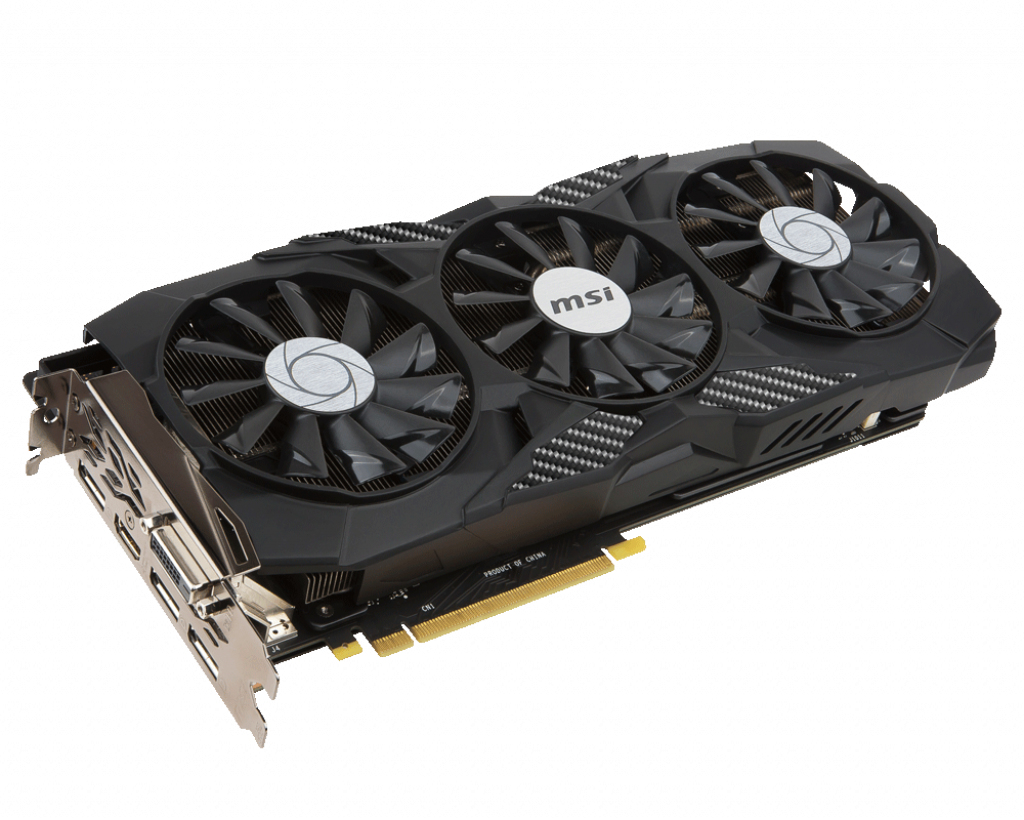

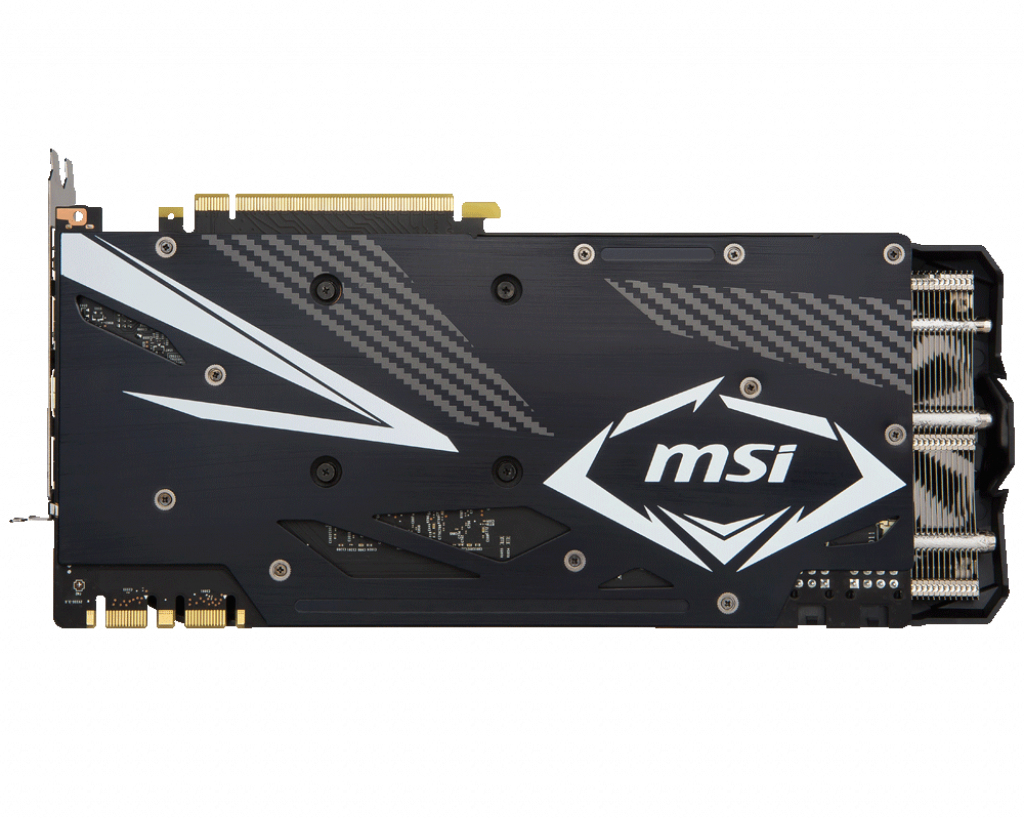

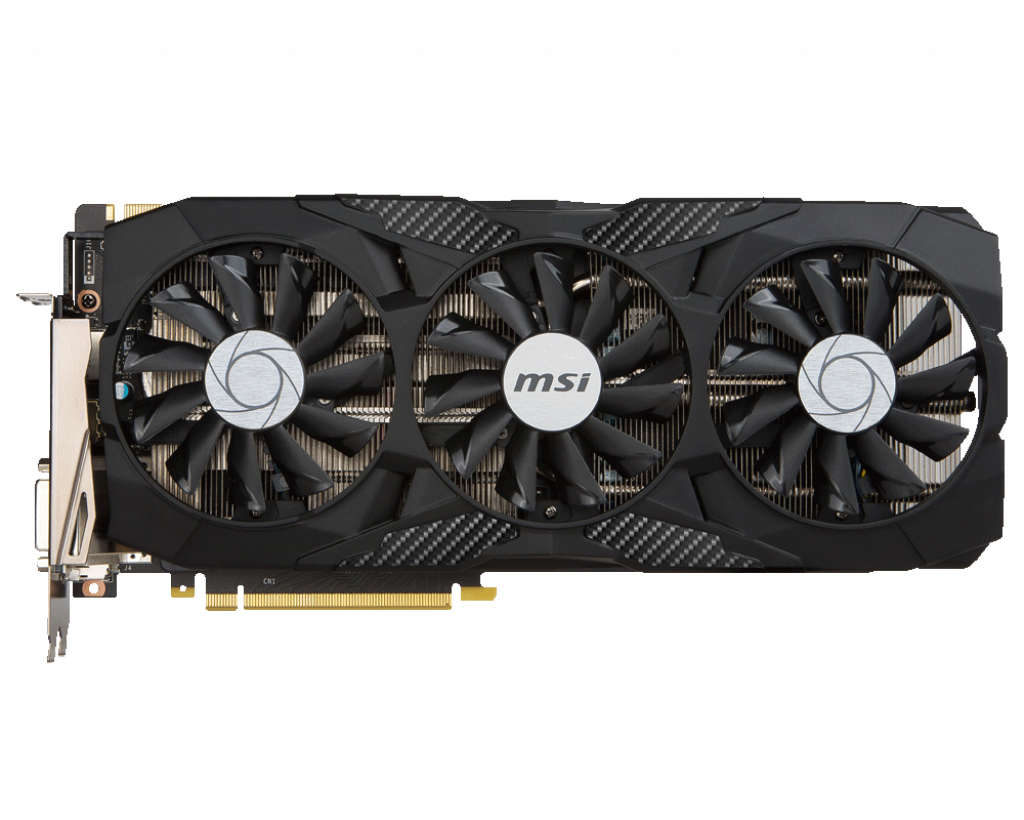

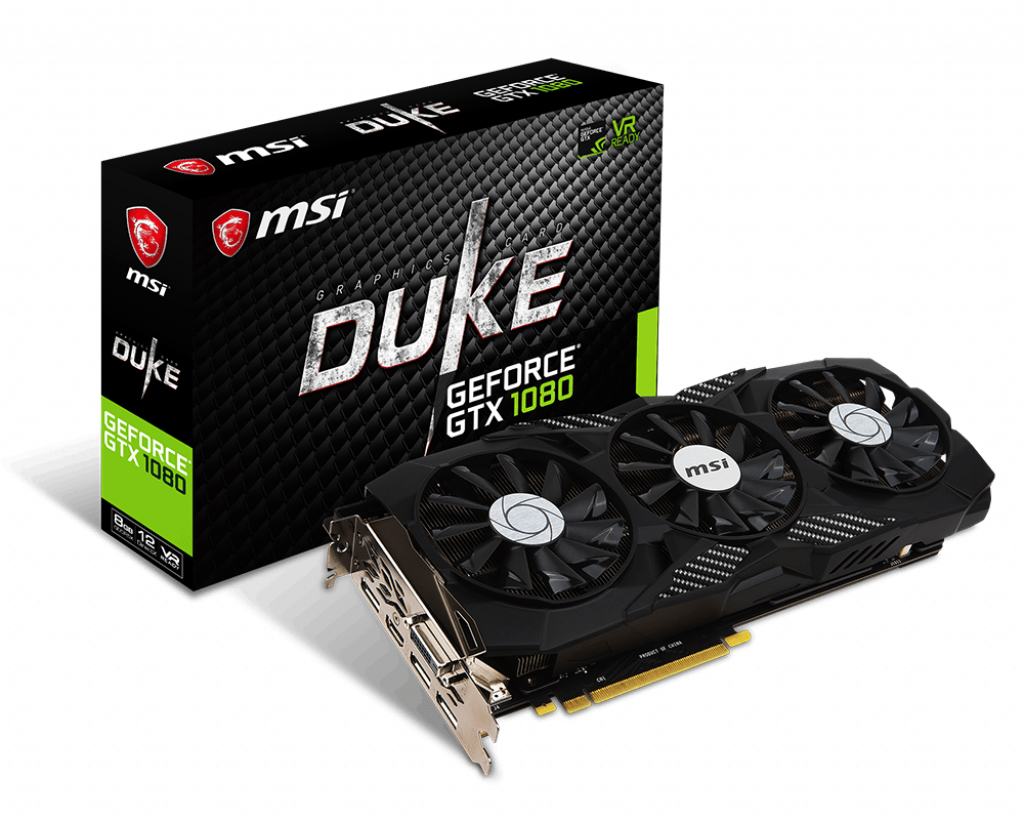

GTX 1080 DUKE 8G OC
Model GTX 1080 DUKE 8G OC
45 specifications Checked yesterday
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.12 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.12 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- Brand
- MSI
- Category
- GPU
- Model
- GTX 1080 DUKE 8G OC
- Part number
- GTX 1080 DUKE 8G OC
- Also known as
- MSI DUKE GeForce GTX 1080 8G OC
Specifications
45 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 1080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2560 |
| Processor frequency | 1708 MHz |
| Processor boost clock speed | 1847 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way SLI |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR5X |
| Memory bus | 256 bit |
| Memory clock speed | 10108 MHz |

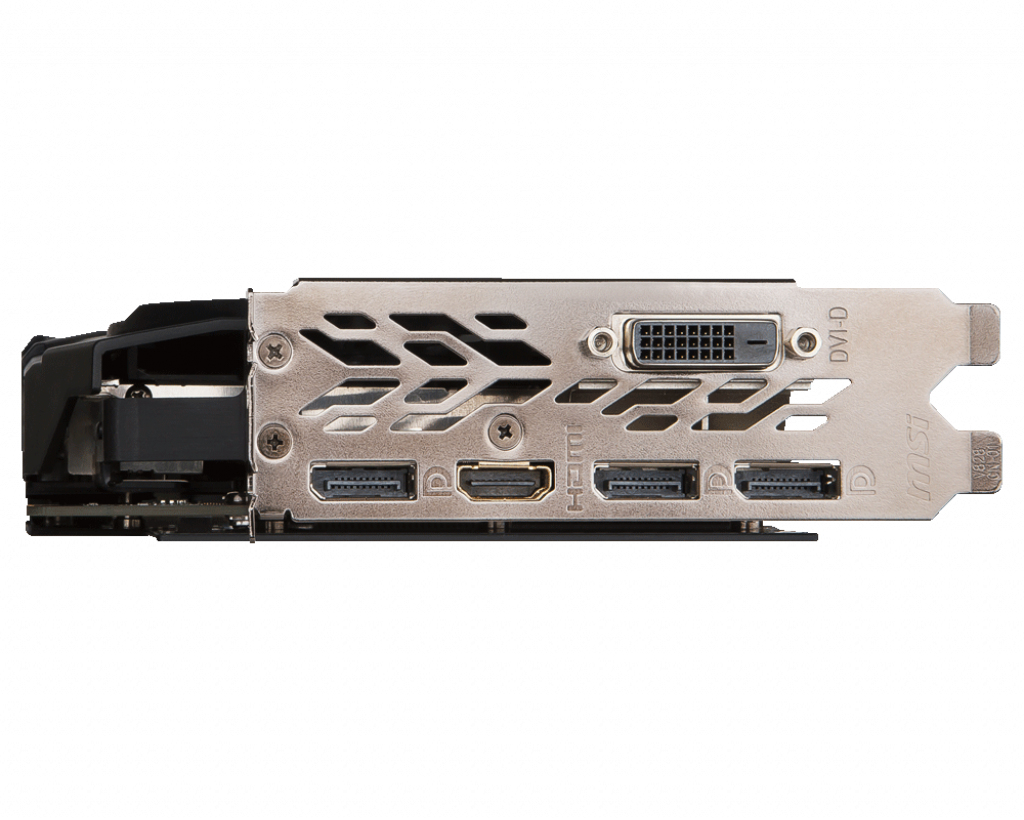

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Power consumption (typical) | 180 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.12 kg |
| Length | 312 mm |
| Depth | 40 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
