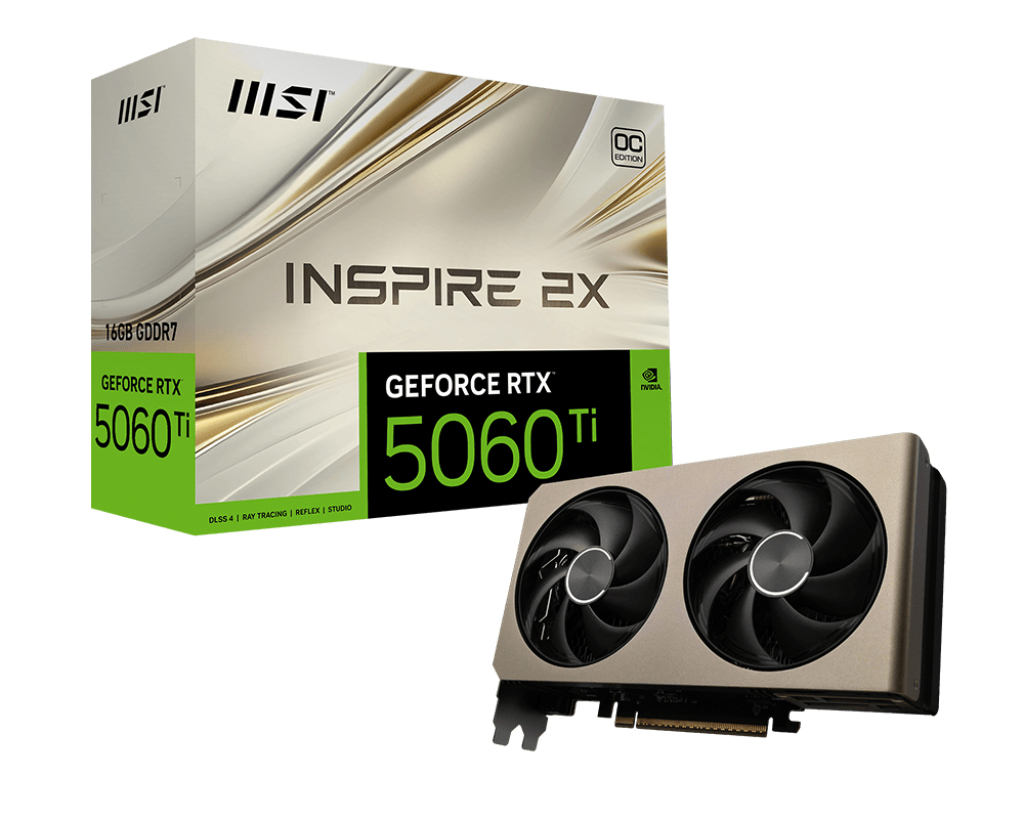

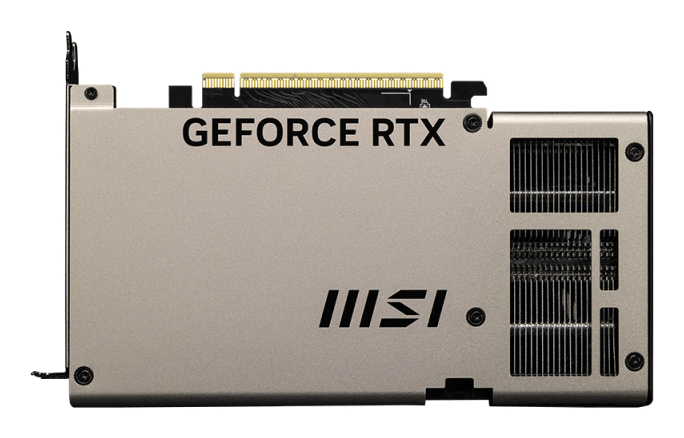

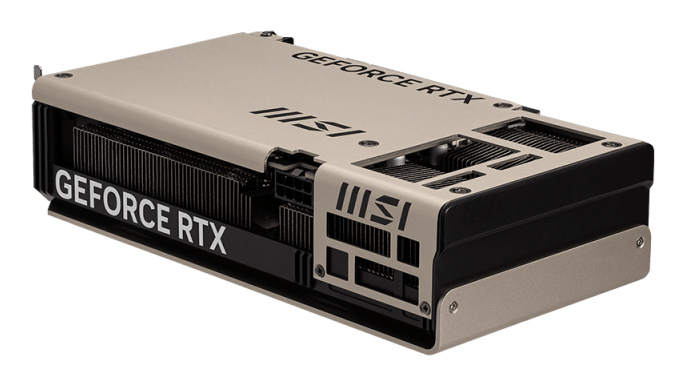

MSI GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC
Model GeForce RTX™ 5060 Ti 16G INSPIRE 2X OCPart no. RTX 5060 TI 16G INSPIRE 2X OCEAN 4711377335768
36 specifications Checked yesterday
- Weight657 g
- ColourBeige
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 5.0
- TV tuner integratedNo
Overview
- Weight
- 657 g
- Colour
- Beige
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 5.0
- TV tuner integrated
- No
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC
- Part number
- RTX 5060 TI 16G INSPIRE 2X OC
- EAN / UPC
- 4711377335768
- Also known as
- MSI GeForce RTX™ 5060 Ti 16G INSPIRE 2X OC NVIDIA GeForce RTX 5060 Ti 16 GB GDDR7
Specifications
36 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4608 |
| Processor boost clock speed | 2617 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |

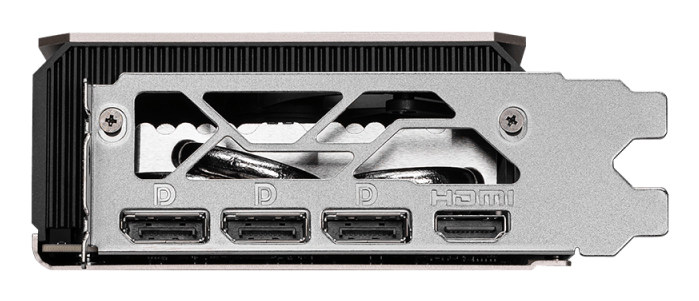

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1b |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Product colour | Beige |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Power consumption (typical) | 180 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 657 g |
| Length | 204 mm |
| Depth | 117 mm |
| Height | 50 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 927 g |
| Package type | Box |
