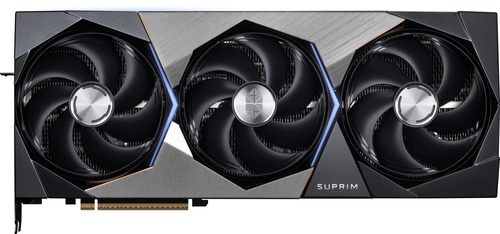

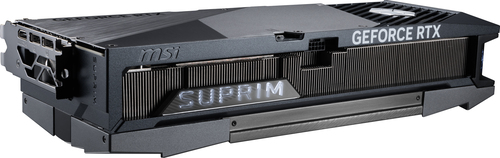

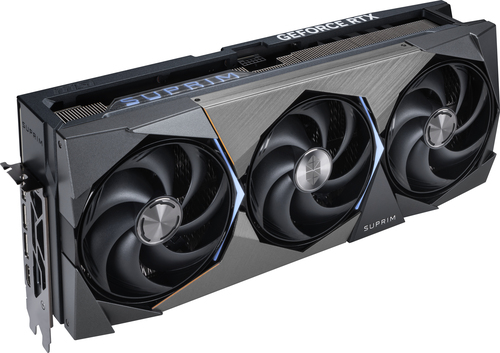

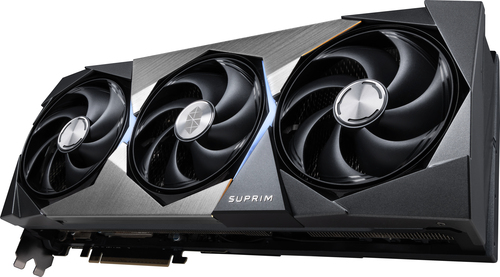

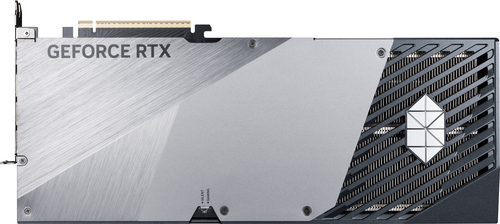

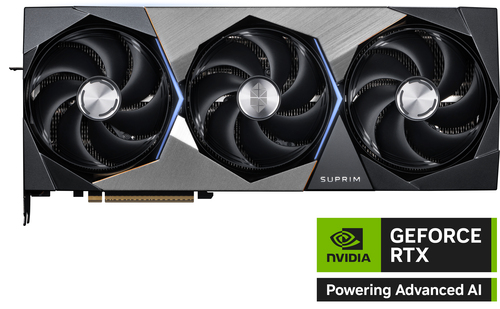

GeForce RTX5080 16G SUPRIM SOC
Model GeForce RTX5080 16G SUPRIM SOCPart no. GEFORCE RTX 5080 16G SUPRIM SOCEAN 4711377292238
46 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight2.61 kg
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 2.61 kg
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX5080 16G SUPRIM SOC
- Part number
- GEFORCE RTX 5080 16G SUPRIM SOC
- EAN / UPC
- 4711377292238
- Also known as
- MSI SUPRIM GeForce RTX5080 16G SOC NVIDIA GeForce RTX 5080 16 GB GDDR7
Specifications
46 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10752 |
| Processor boost clock speed | 2745 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory bandwidth (max) | 30 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Power consumption (typical) | 360 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.61 kg |
| Length | 359 mm |
| Depth | 76 mm |
| Height | 150 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 446 mm |
| Package depth | 117 mm |
| Package height | 271 mm |
| Package weight | 3.55 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
