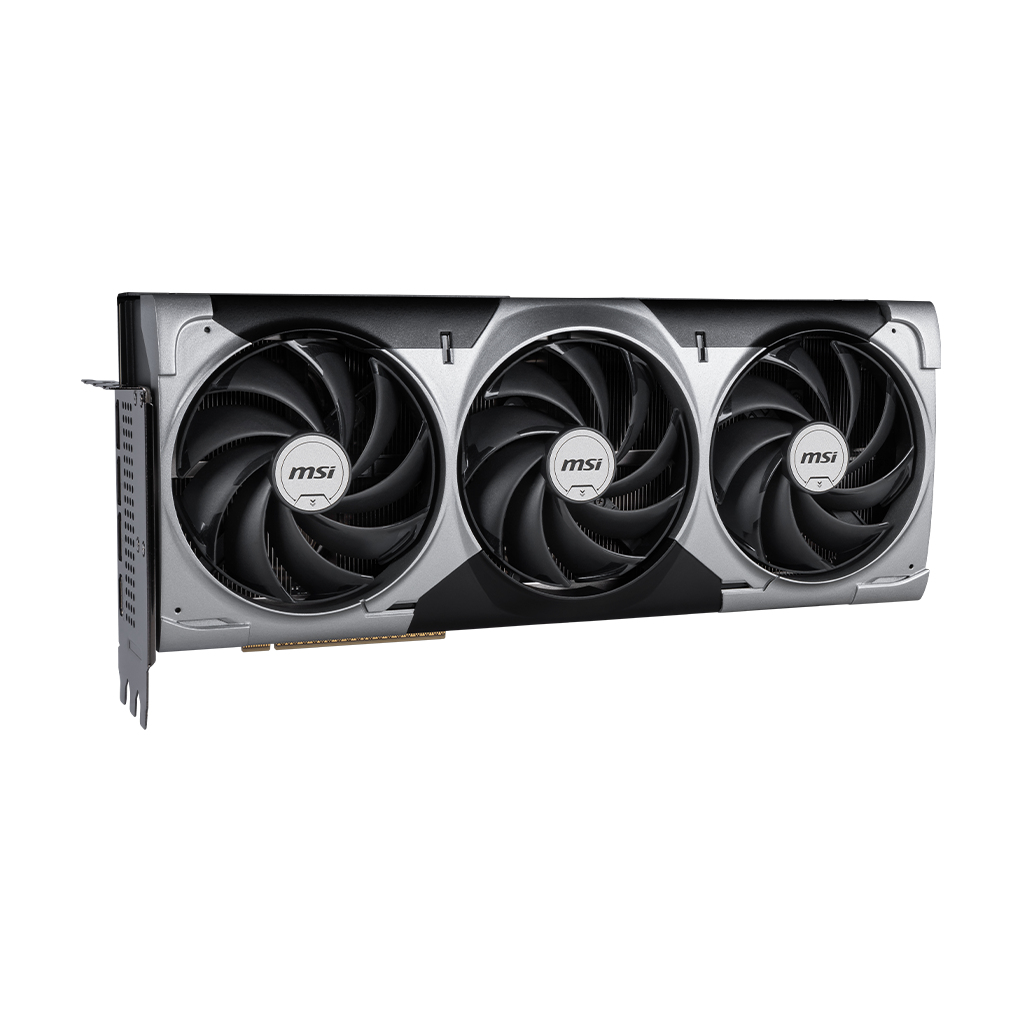

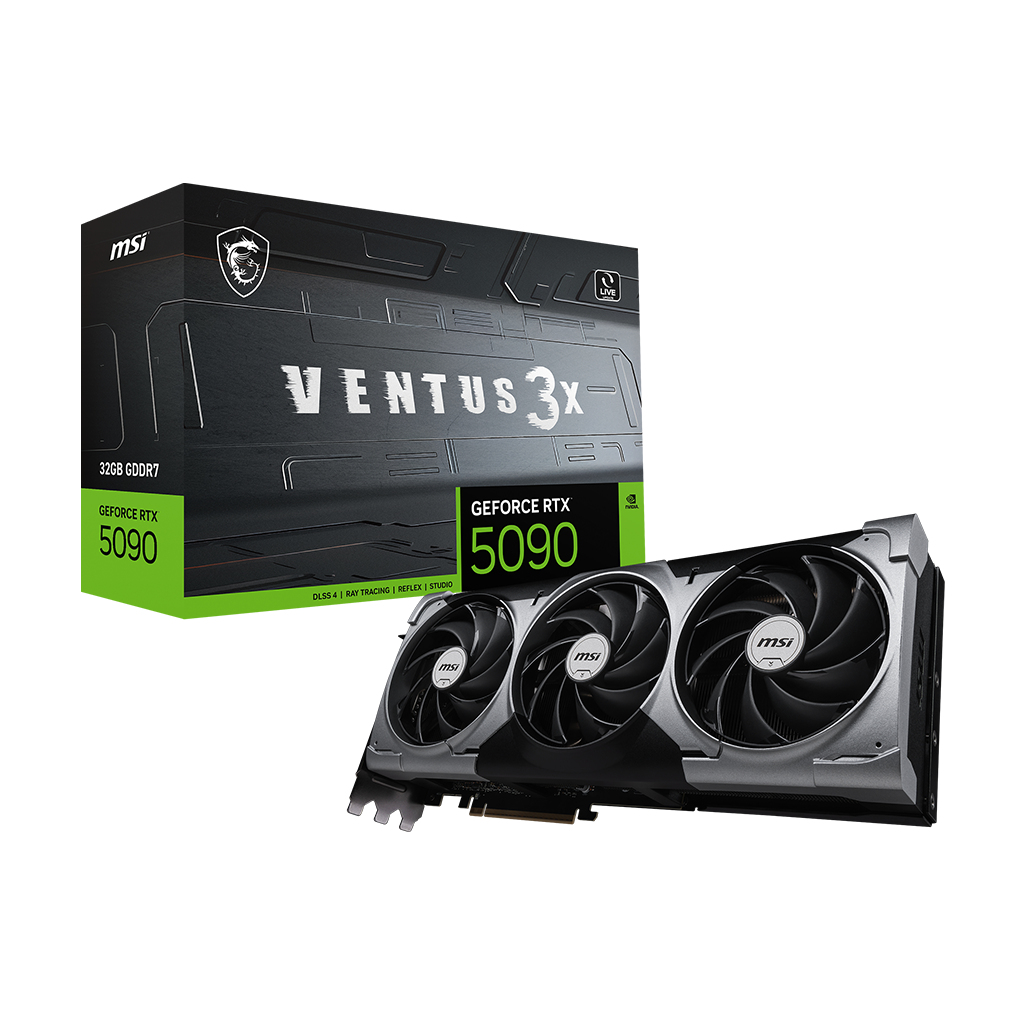

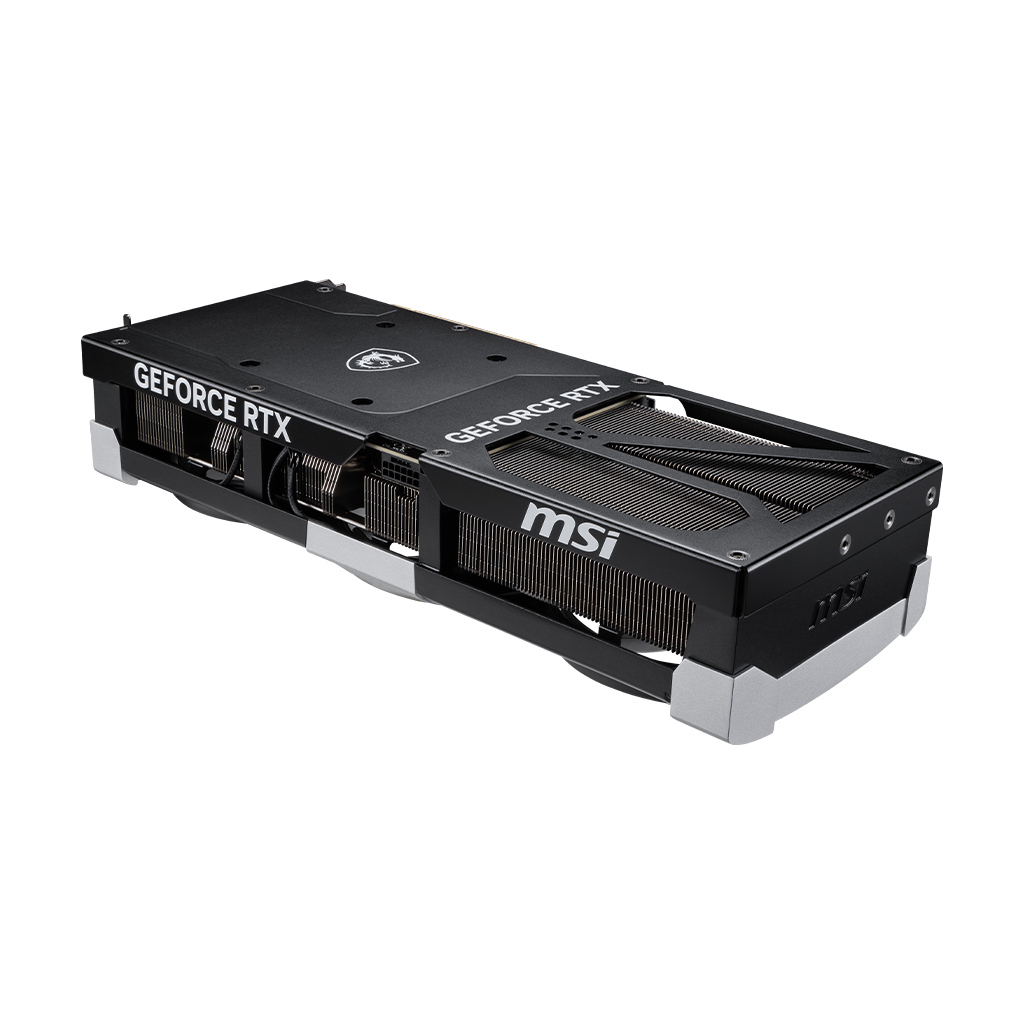

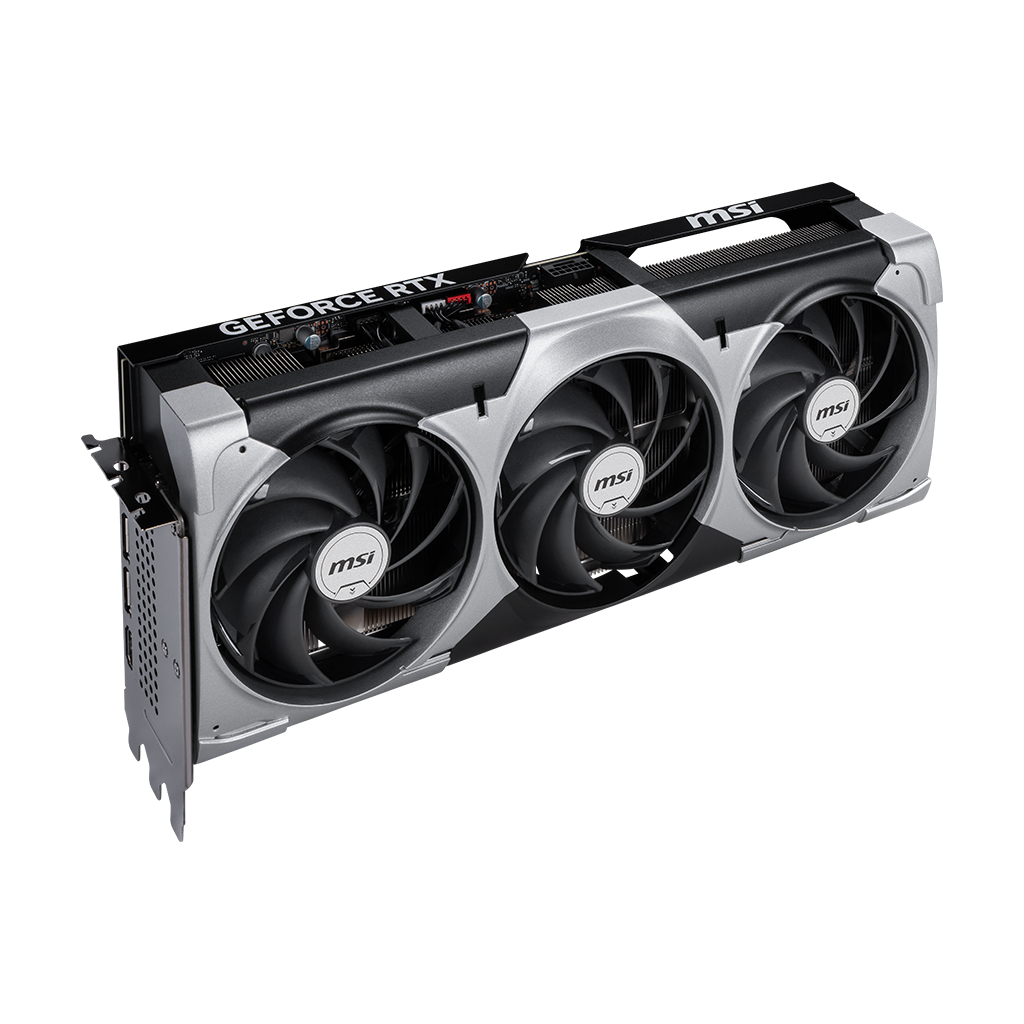

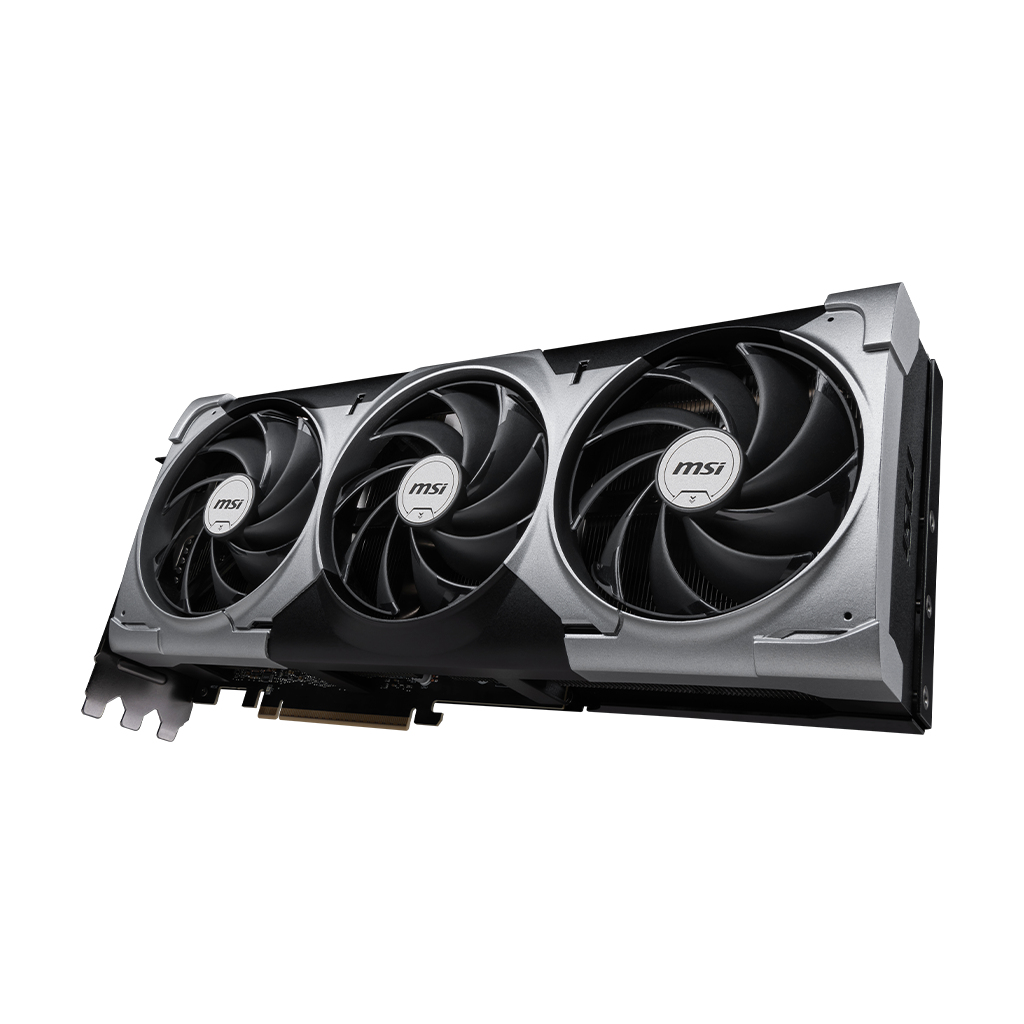

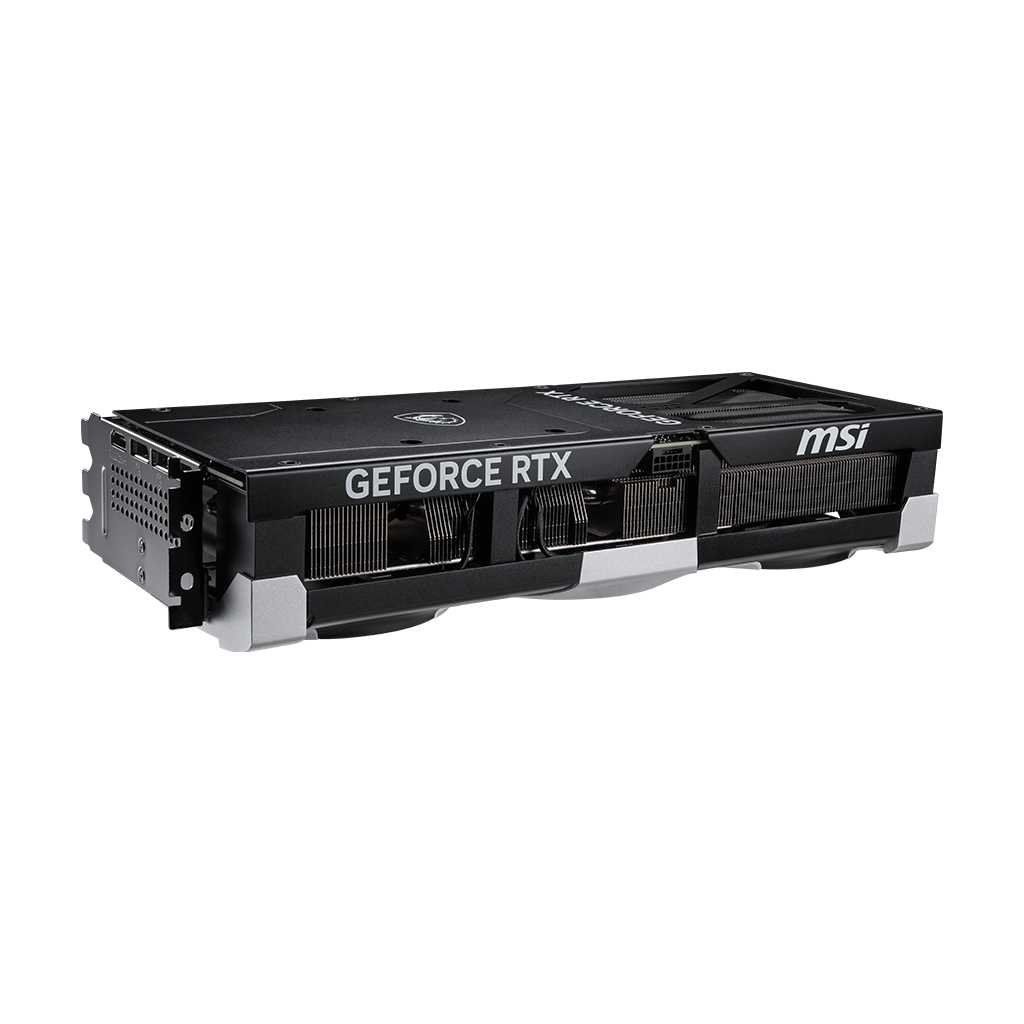

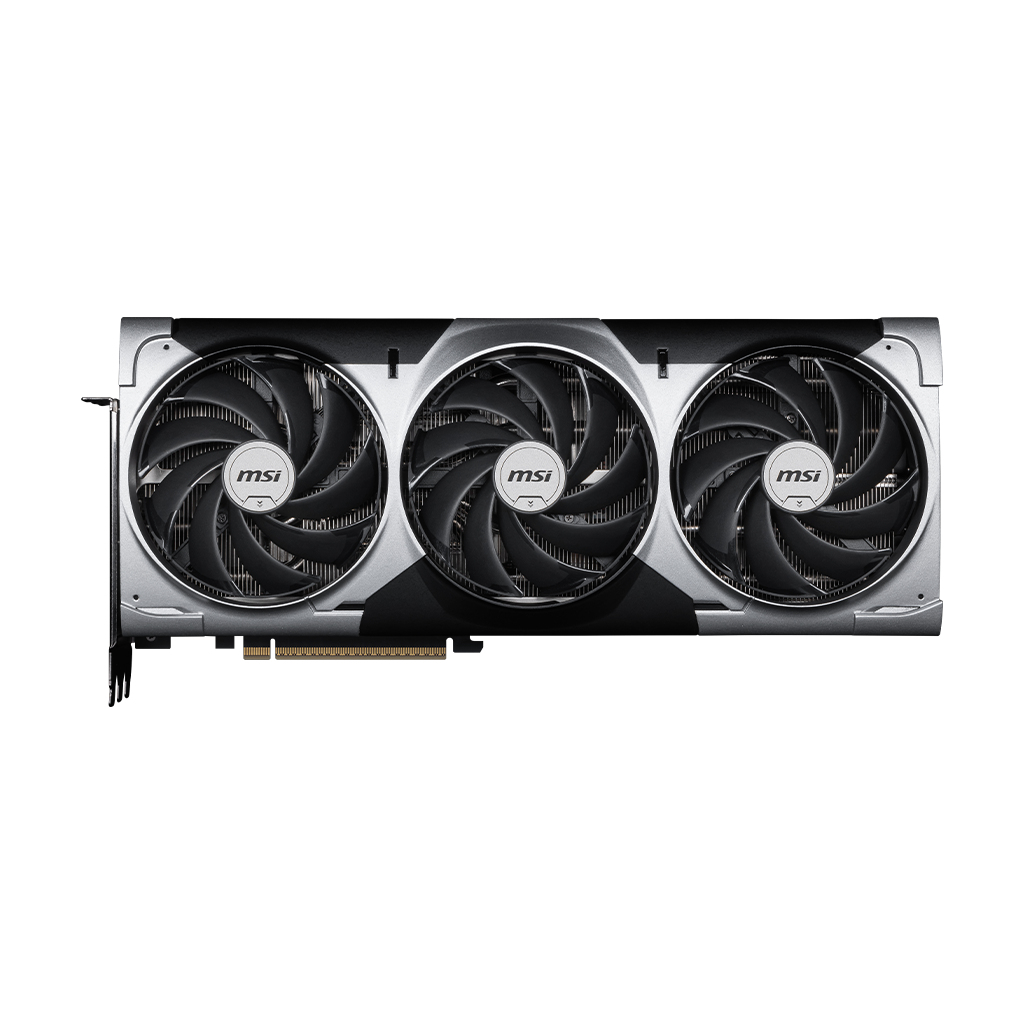

GeForce RTX 5090 32GB VENTUS 3X OC
Model GeForce RTX 5090 32GB VENTUS 3X OCPart no. GEFORCE RTX 5090 32G VENTUS 3XEAN 824142402993
40 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.88 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory32 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.88 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 32 GB
- Interface type
- PCI Express x16 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 5090 32GB VENTUS 3X OC
- Part number
- GEFORCE RTX 5090 32G VENTUS 3X
- EAN / UPC
- 824142402993
- Also known as
- MSI GeForce RTX 5090 32GB VENTUS 3X OC NVIDIA GDDR7
Specifications
40 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 21760 |
| Processor boost clock speed | 2407 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Data transfer rate | 28 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 1000 W |
| Power consumption (typical) | 575 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.88 kg |
| Length | 325 mm |
| Depth | 67 mm |
| Height | 139 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |

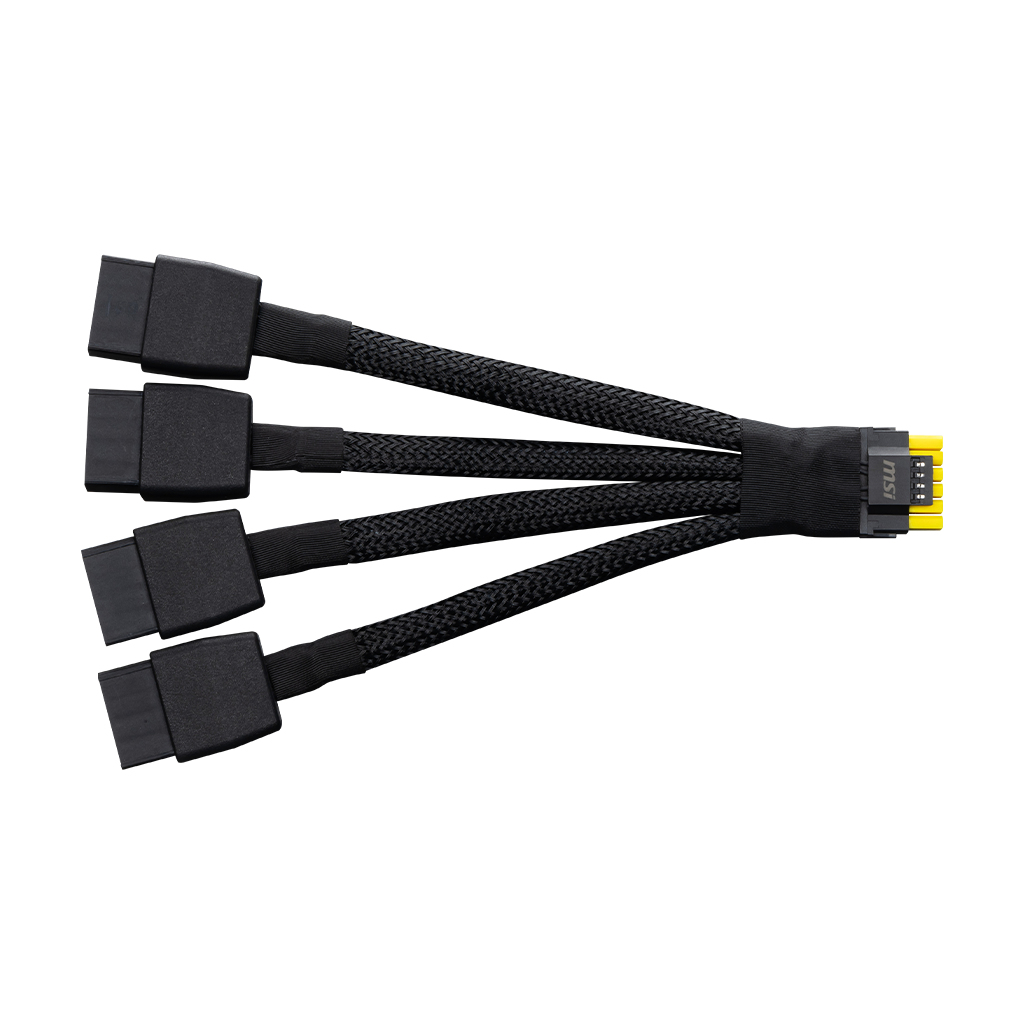

| Cables included | Power |
