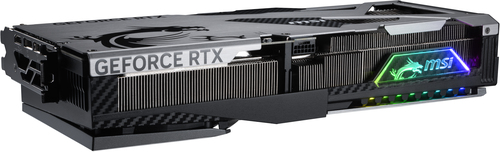

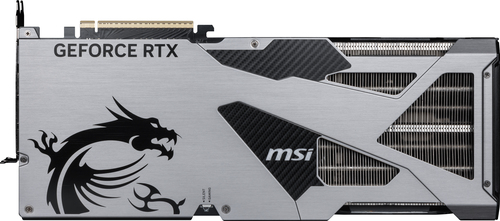

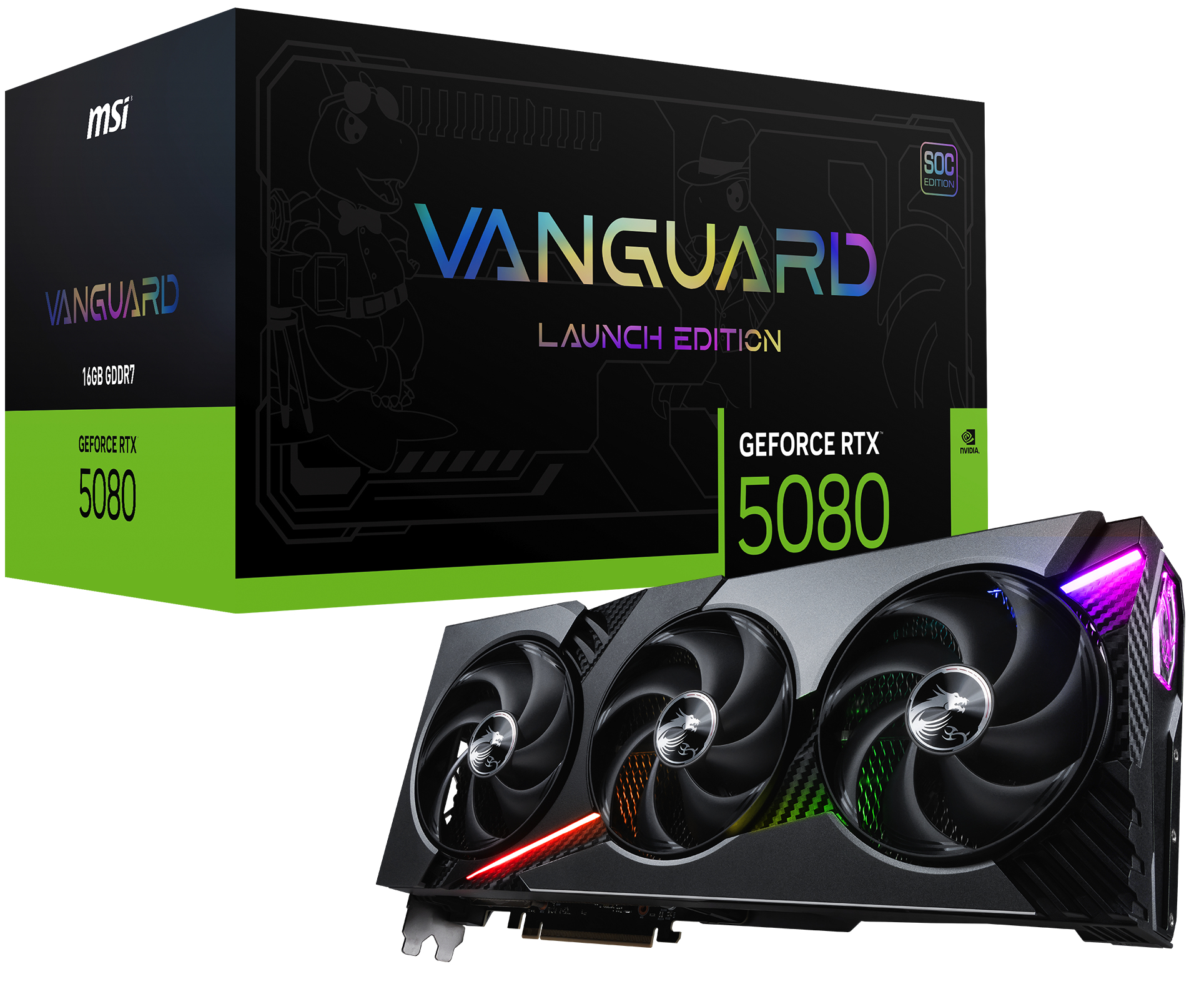

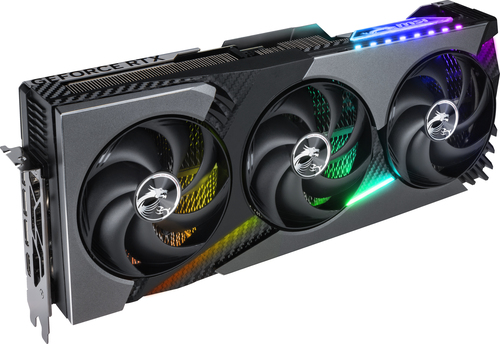

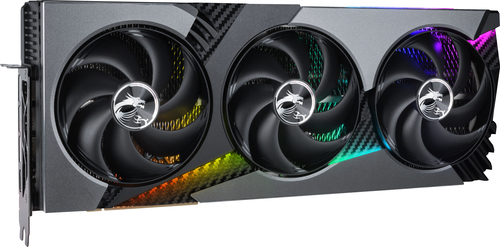

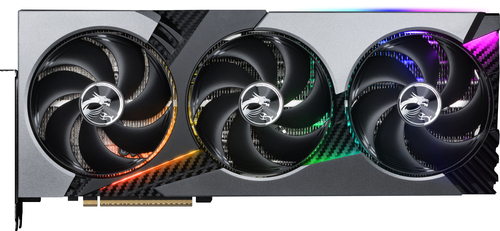

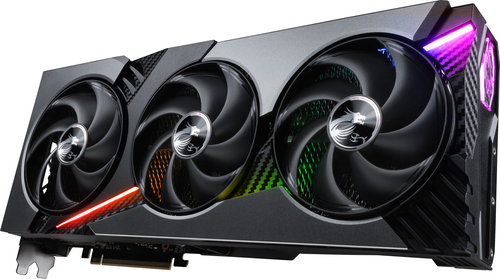

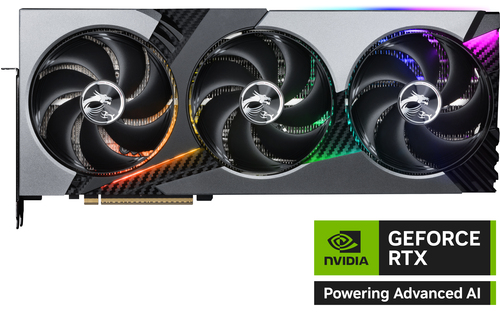

GeForce RTX 5080 16G VANGUARD SOC LAUNCH EDITION
Model GeForce RTX 5080 16G VANGUARD SOC LAUNCH EDITIONPart no. GEFORCE RTX 5080 16G VANGUARD SOC LAUNCH EDITIONEAN 4711377296960
47 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.95 kg
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.95 kg
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 5080 16G VANGUARD SOC LAUNCH EDITION
- Part number
- GEFORCE RTX 5080 16G VANGUARD SOC LAUNCH EDITION
- EAN / UPC
- 4711377296960
- Also known as
- MSI GeForce RTX 5080 16G VANGUARD SOC LAUNCH EDITION NVIDIA 16 GB GDDR7
Specifications
47 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10752 |
| Processor boost clock speed (Gaming mode) | 2730 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory bandwidth (max) | 30 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Fan diameter | 12 cm |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Power consumption (typical) | 360 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.95 kg |
| Length | 357 mm |
| Depth | 66 mm |
| Height | 151 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 451 mm |
| Package depth | 212 mm |
| Package height | 250 mm |
| Package weight | 3.99 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
