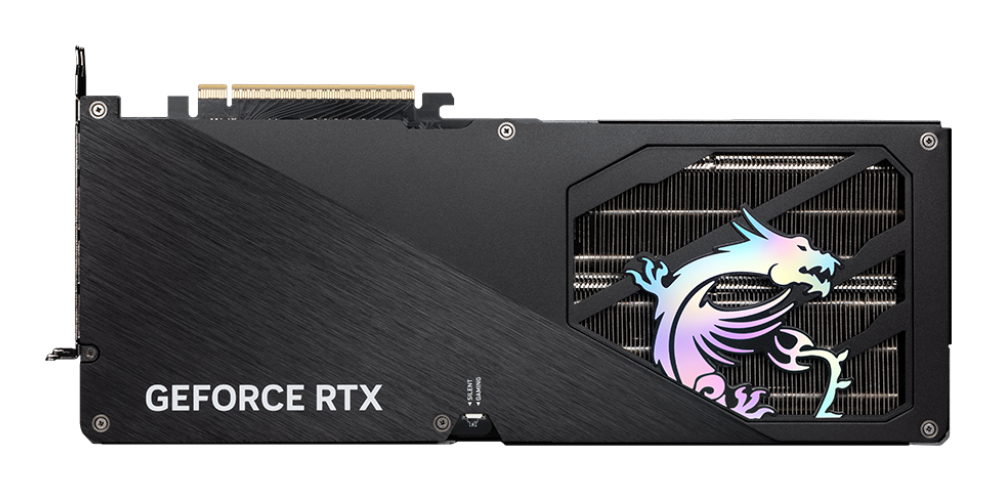

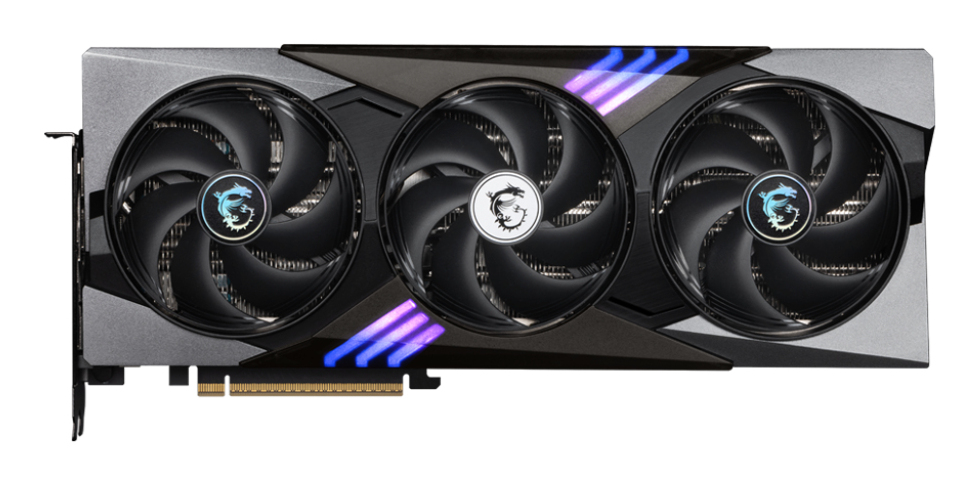

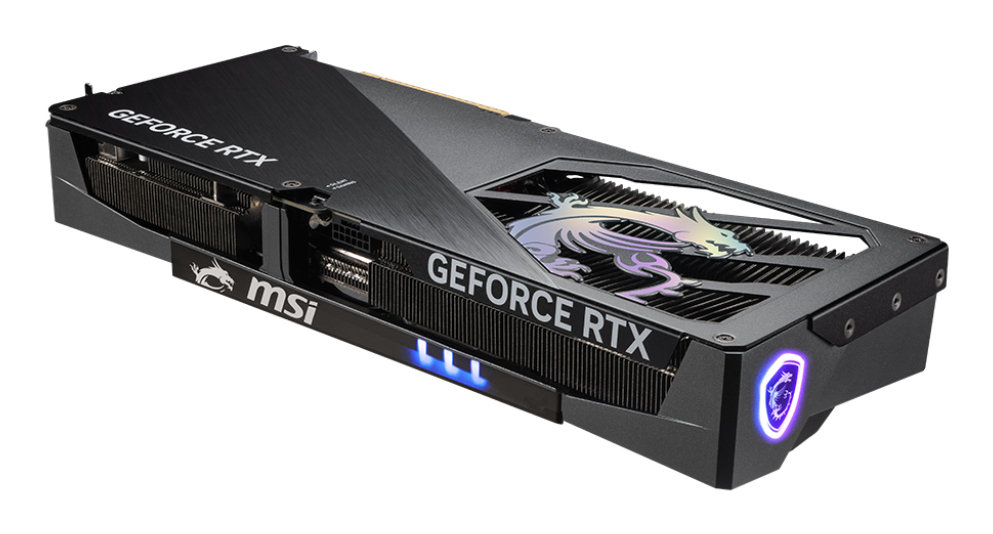

GeForce RTX 5080 16G GAMING TRIO
Model GeForce RTX 5080 16G GAMING TRIOPart no. G5080-16GTEAN 4711377292153
44 specifications Checked today
- Weight1.36 kg
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
- TV tuner integratedNo
Overview
- Weight
- 1.36 kg
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- TV tuner integrated
- No
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 5080 16G GAMING TRIO
- Part numbers
- G5080-16GT, GEFORCE RTX 5080 16G GAMING TRIO
- EAN / UPC
- 4711377292153, 824142395714
- Also known as
- MSI GAMING GeForce RTX 5080 16G TRIO NVIDIA 16 GB GDDR7
Specifications
44 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10752 |
| Processor boost clock speed | 2617 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 30 Gbit/s |

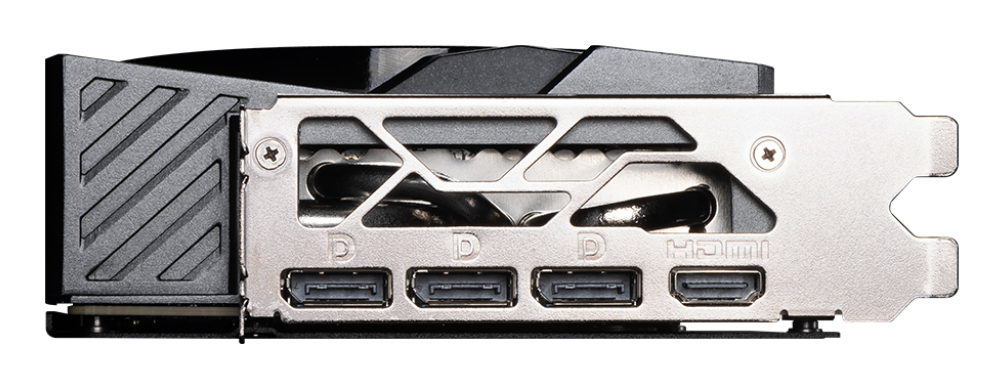

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TRI FROZR 4 |
| Number of fans | 3 fan(s) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Power consumption (typical) | 360 W |

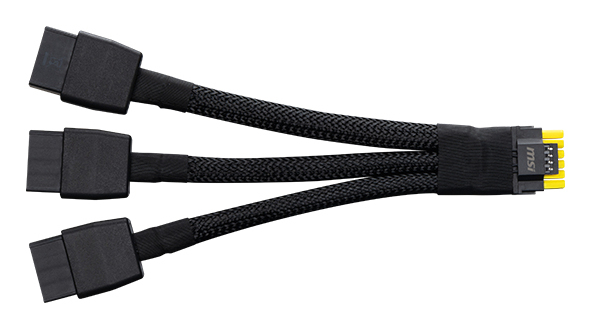

| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.36 kg |
| Length | 338 mm |
| Depth | 50 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.89 kg |

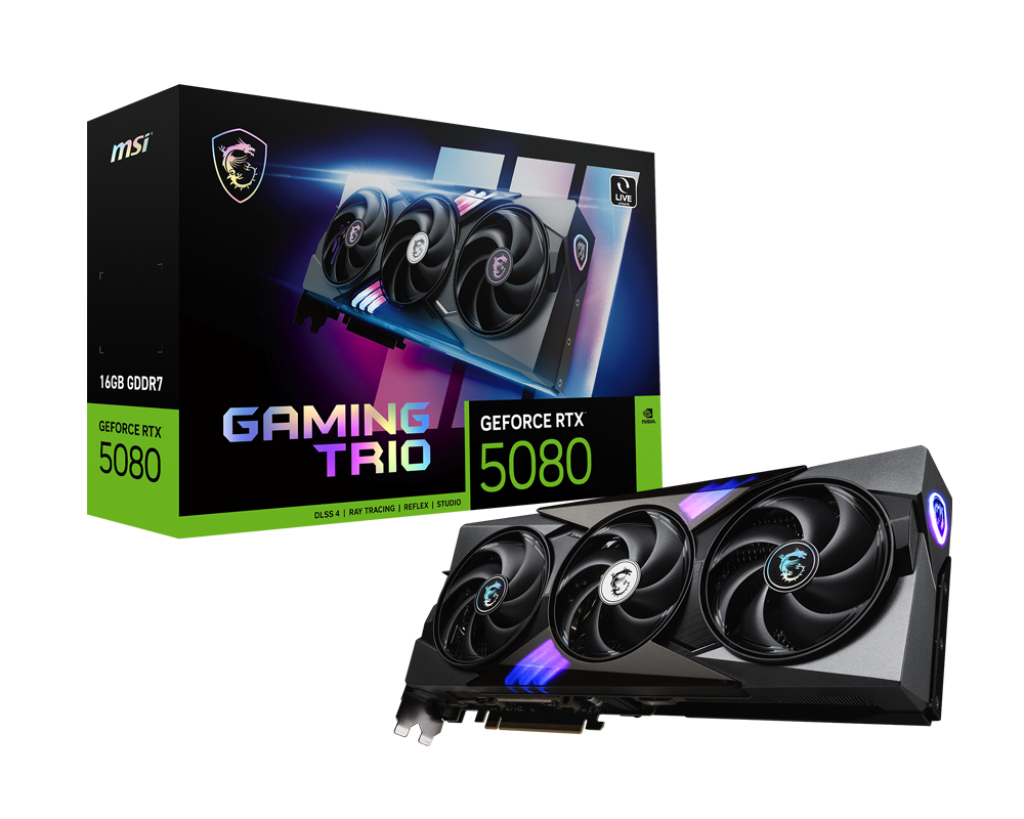

| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
