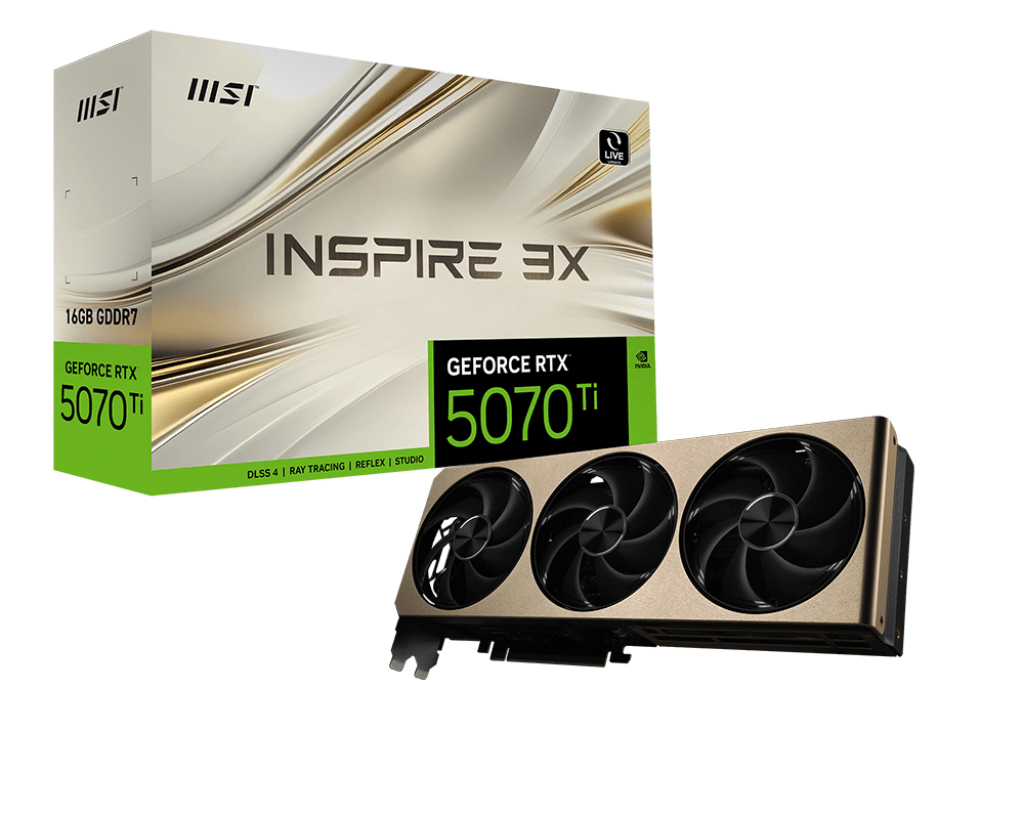

GeForce RTX 5070 Ti 16G INSPIRE 3X
Model GeForce RTX 5070 Ti 16G INSPIRE 3XPart no. GEFORCE RTX 5070 TI 16G INSPIRE 3XEAN 4711377330633
41 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight904 g
- ColourBronze
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 904 g
- Colour
- Bronze
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 5070 Ti 16G INSPIRE 3X
- Part number
- GEFORCE RTX 5070 TI 16G INSPIRE 3X
- EAN / UPC
- 4711377330633
- Also known as
- MSI GeForce RTX 5070 Ti 16G INSPIRE 3X NVIDIA 16 GB GDDR7
Specifications
41 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8960 |
| Processor boost clock speed | 2452 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 28 Gbit/s |

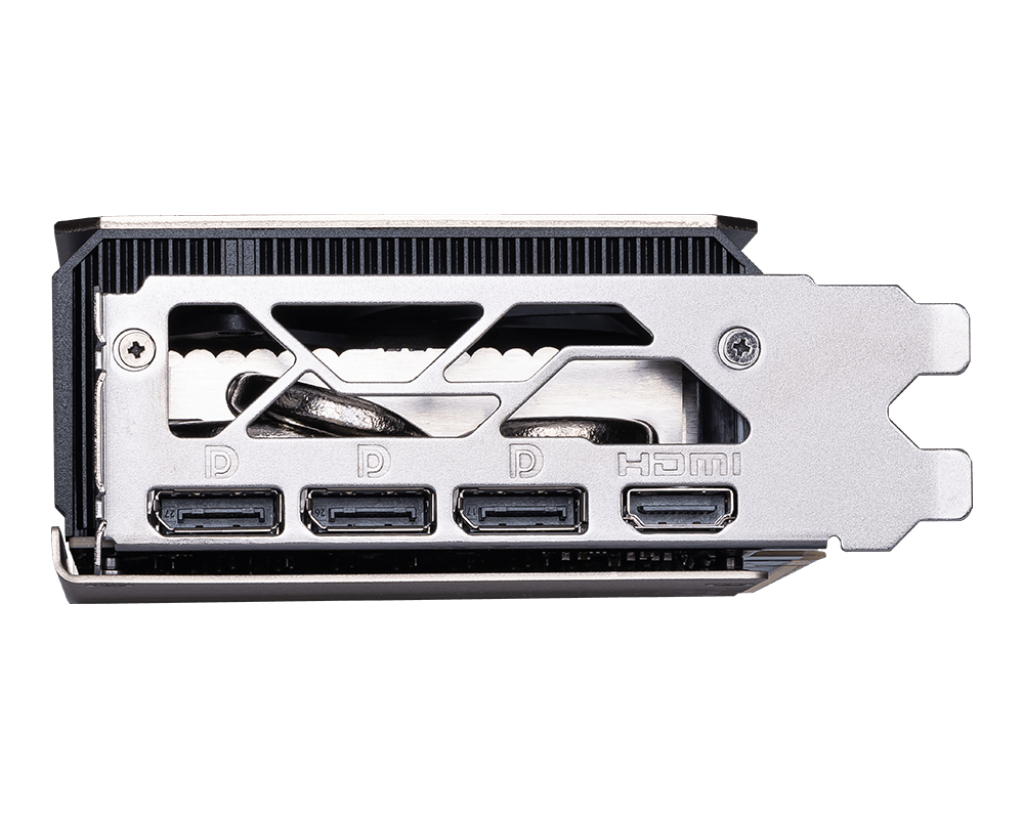

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| SFF ready | Yes |
| Product colour | Bronze |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 300 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 904 g |
| Length | 288 mm |
| Depth | 50 mm |
| Height | 112 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.36 kg |
| Package type | Box |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Forest Stewardship Council (FSC) |
