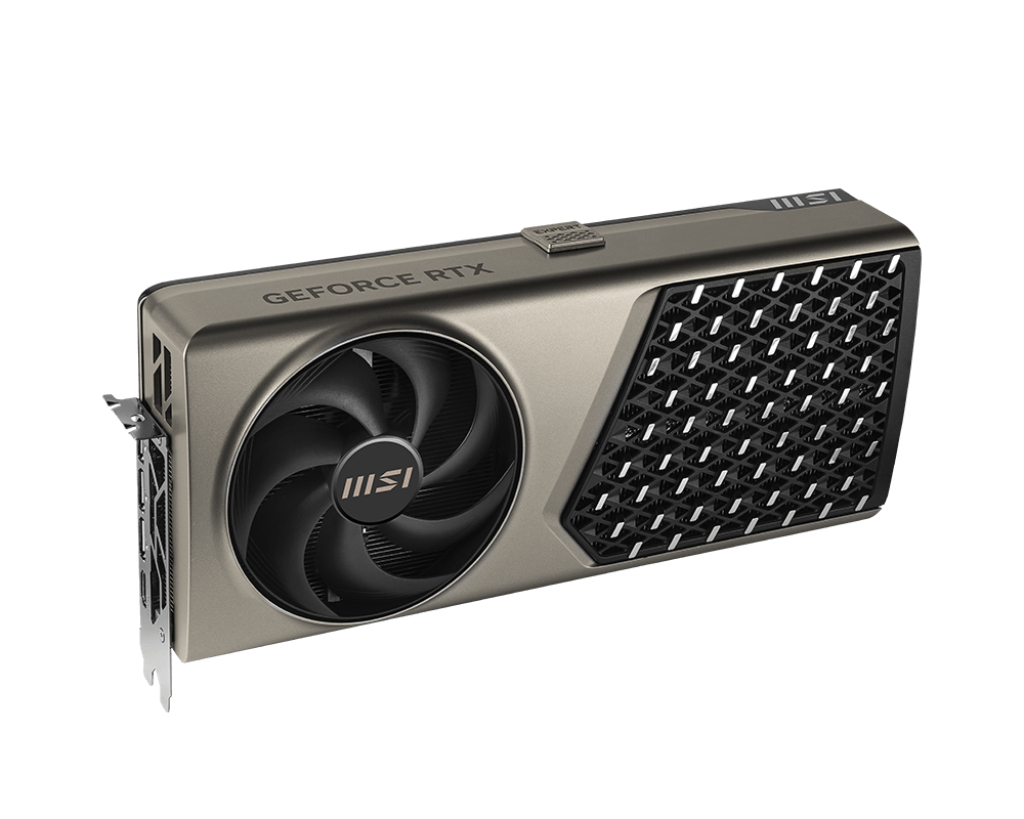

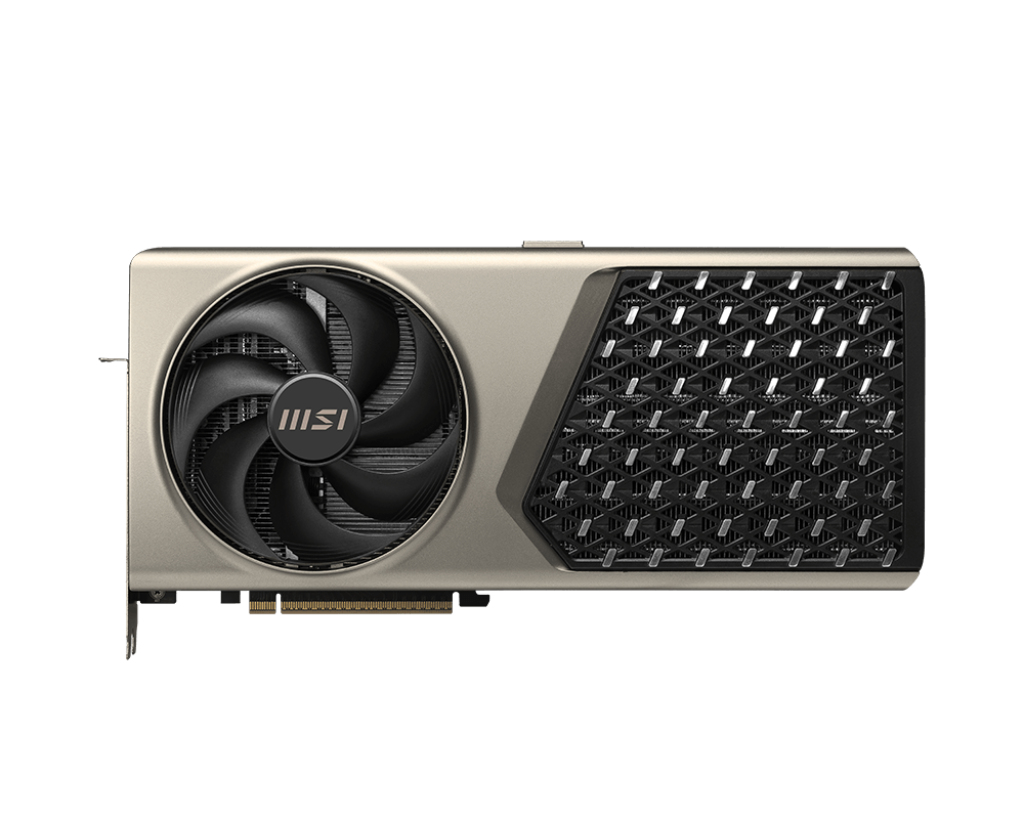

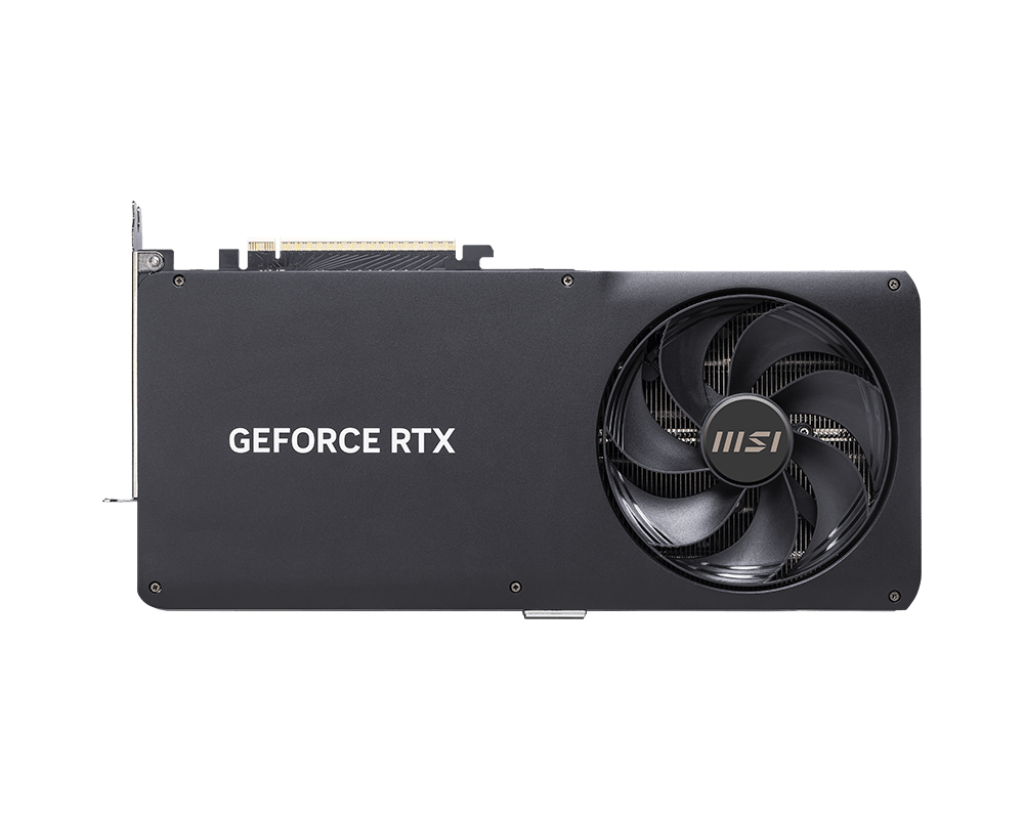

GeForce RTX 5070 Ti 16G EXPERT OC
Model GeForce RTX 5070 Ti 16G EXPERT OCPart no. GEFORCE RTX 5070 TI 16G EXPERT OCEAN 824142431610
41 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight1.88 kg
- ColourBlack, Bronze
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 1.88 kg
- Colour
- Black, Bronze
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 5070 Ti 16G EXPERT OC
- Part number
- GEFORCE RTX 5070 TI 16G EXPERT OC
- EAN / UPC
- 824142431610, 4711377362238
- Also known as
- MSI GeForce RTX 5070 Ti 16G EXPERT OC NVIDIA 16 GB GDDR7
Specifications
41 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8960 |
| Processor boost clock speed | 2580 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 28 Gbit/s |

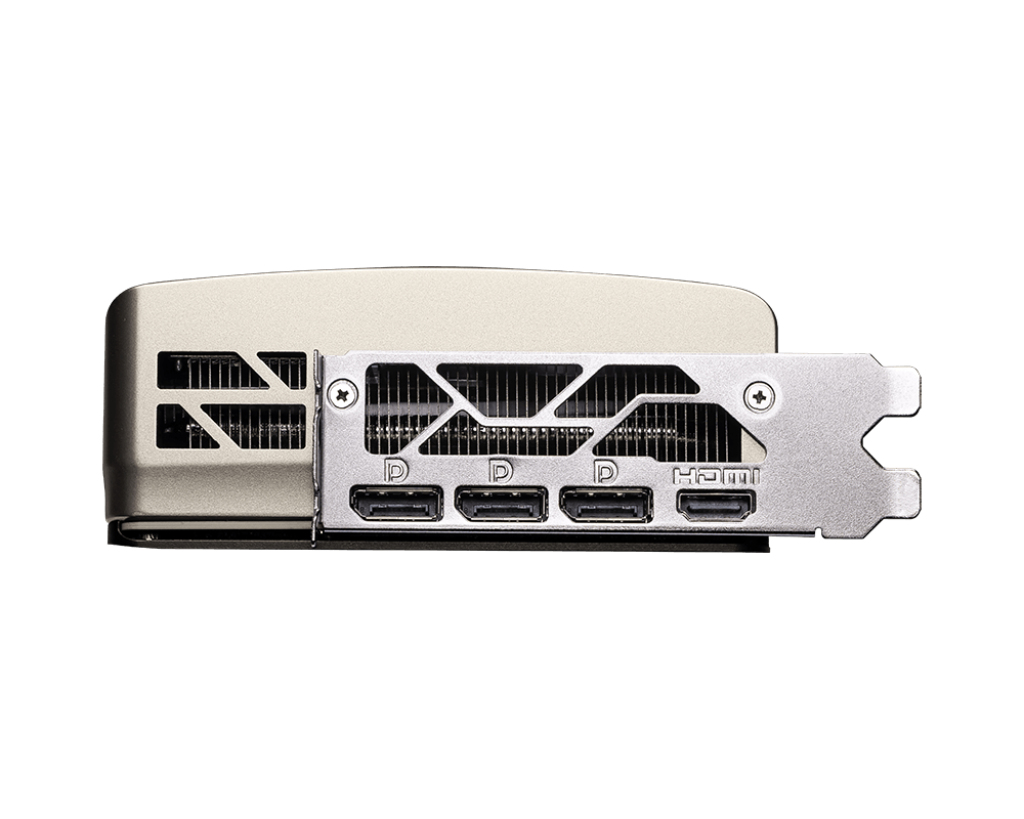

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Product colour | Black, Bronze |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 300 W |

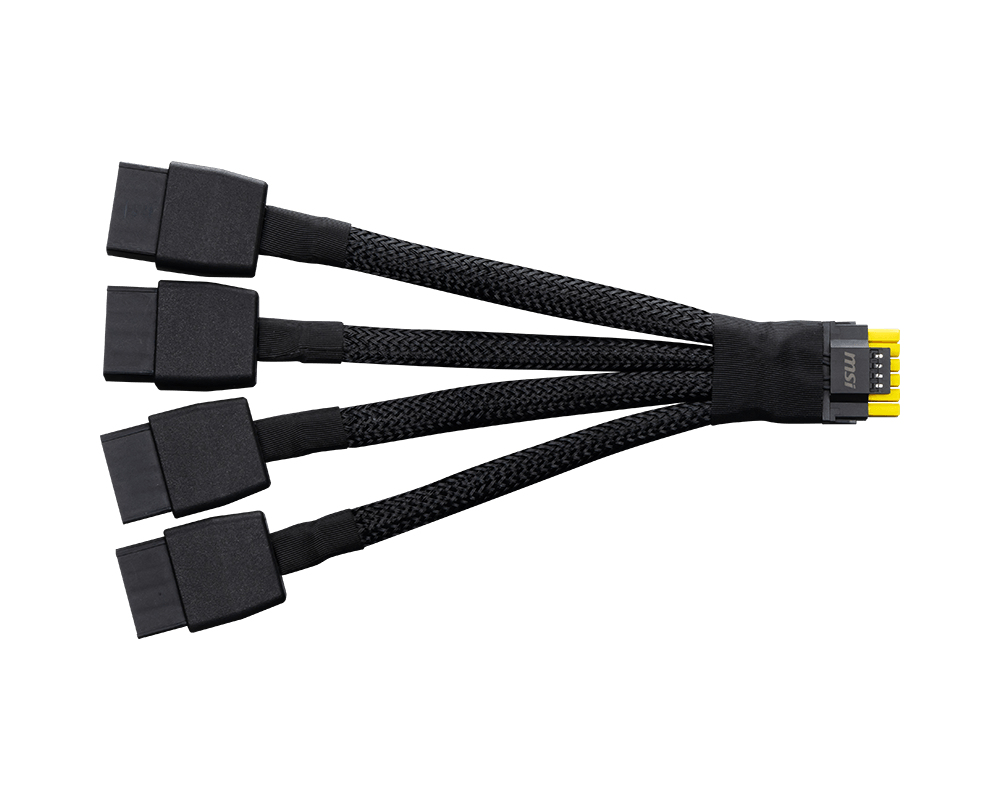

| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.88 kg |
| Length | 319 mm |
| Depth | 60 mm |
| Height | 150 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.75 kg |
| Package type | Box |
