GEFORCE RTX 5060 8G VENTUS 3X OC
Model GEFORCE RTX 5060 8G VENTUS 3X OCEAN 824142423776
42 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight684 g
- ColourBlack, Silver
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 684 g
- Colour
- Black, Silver
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GEFORCE RTX 5060 8G VENTUS 3X OC
- Part number
- GEFORCE RTX 5060 8G VENTUS 3X OC
- EAN / UPC
- 824142423776
- Also known as
- MSI GEFORCE RTX 5060 8G VENTUS 3X OC graphics card NVIDIA 8 GB GDDR7
Specifications
42 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3840 |
| Processor boost clock speed | 2535 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |

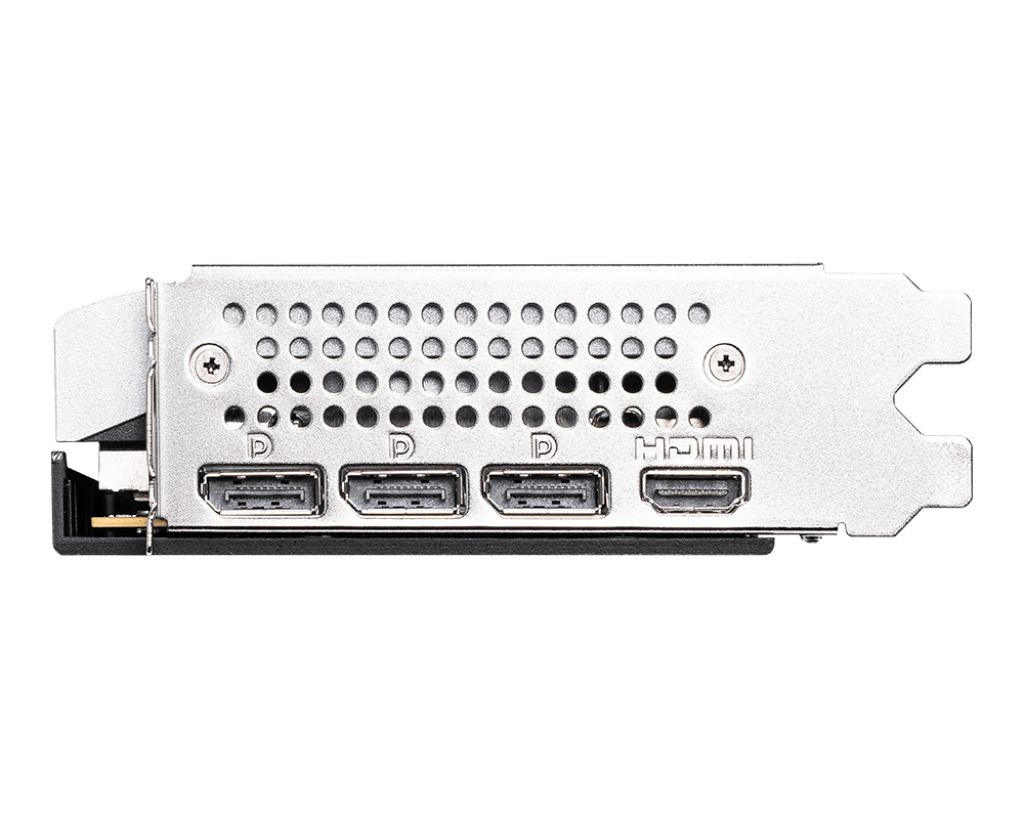

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX FAN 5.0 |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Power consumption (typical) | 145 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 684 g |
| Length | 303 mm |
| Depth | 41 mm |
| Height | 121 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.04 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
