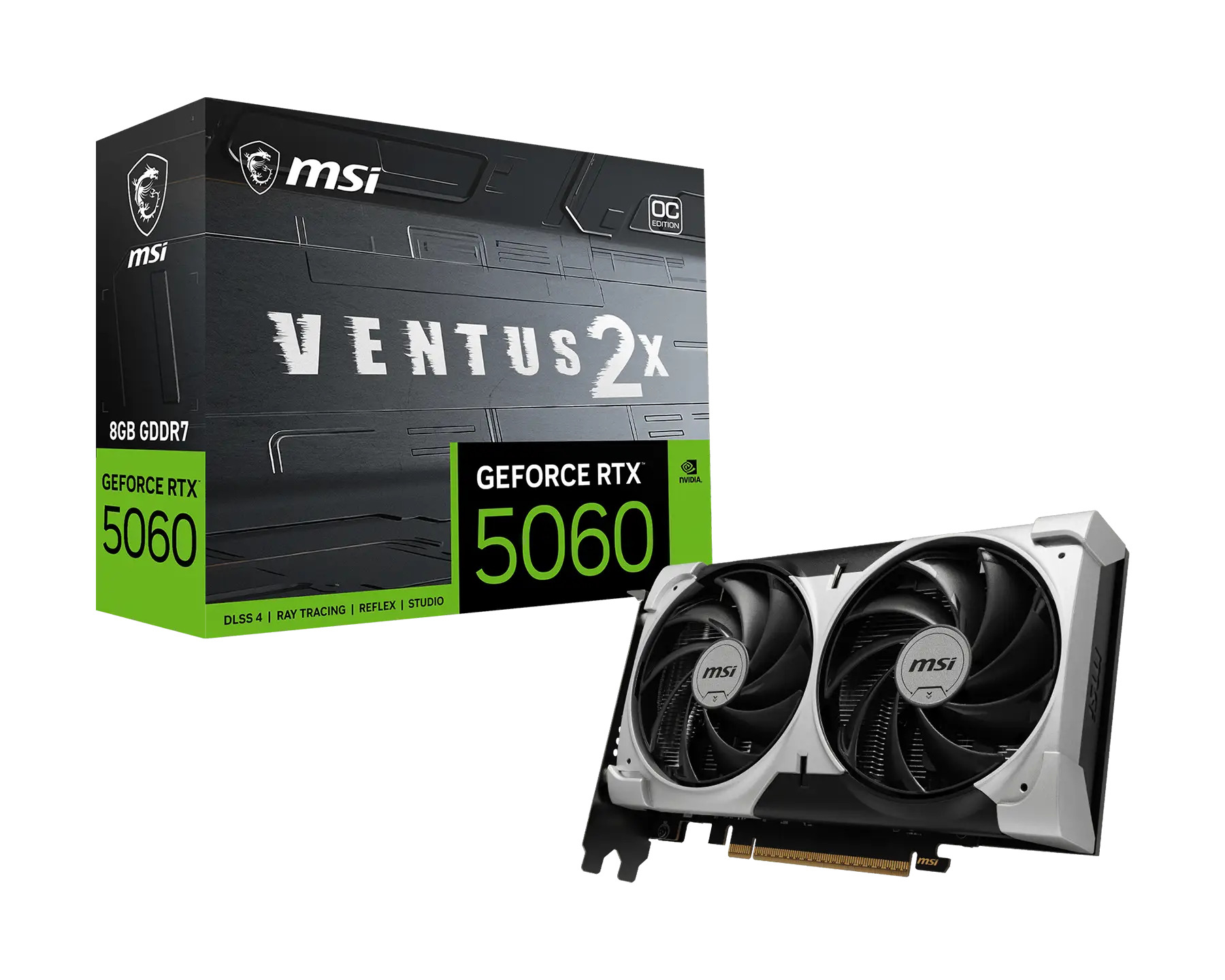

MSI GeForce RTX 5060 8G VENTUS 2X OC V1

GeForce RTX 5060 8G VENTUS 2X OC V1

Model GeForce RTX 5060 8G VENTUS 2X OC V1Part no. GEFORCE RTX 5060 8G VENTUS 2X OC V1

37 specifications Checked today

TypeFull-Height/Half-Length (FH/HL)
Weight548 g
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 5.0
TV tuner integratedNo

See all specifications

Overview

Type: Full-Height/Half-Length (FH/HL)
Weight: 548 g
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 5.0
TV tuner integrated: No

Brand: MSI
Category: GPU
Model: GeForce RTX 5060 8G VENTUS 2X OC V1
Part number: GEFORCE RTX 5060 8G VENTUS 2X OC V1
Also known as: MSI GeForce RTX 5060 8G VENTUS 2X OC V1 NVIDIA 8 GB GDDR7

Specifications

37 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5060
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	3840
Processor frequency	2535 MHz
Processor boost clock speed	2527 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR7
Memory bus	128 bit
Data transfer rate	28 Gbit/s

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 5.0

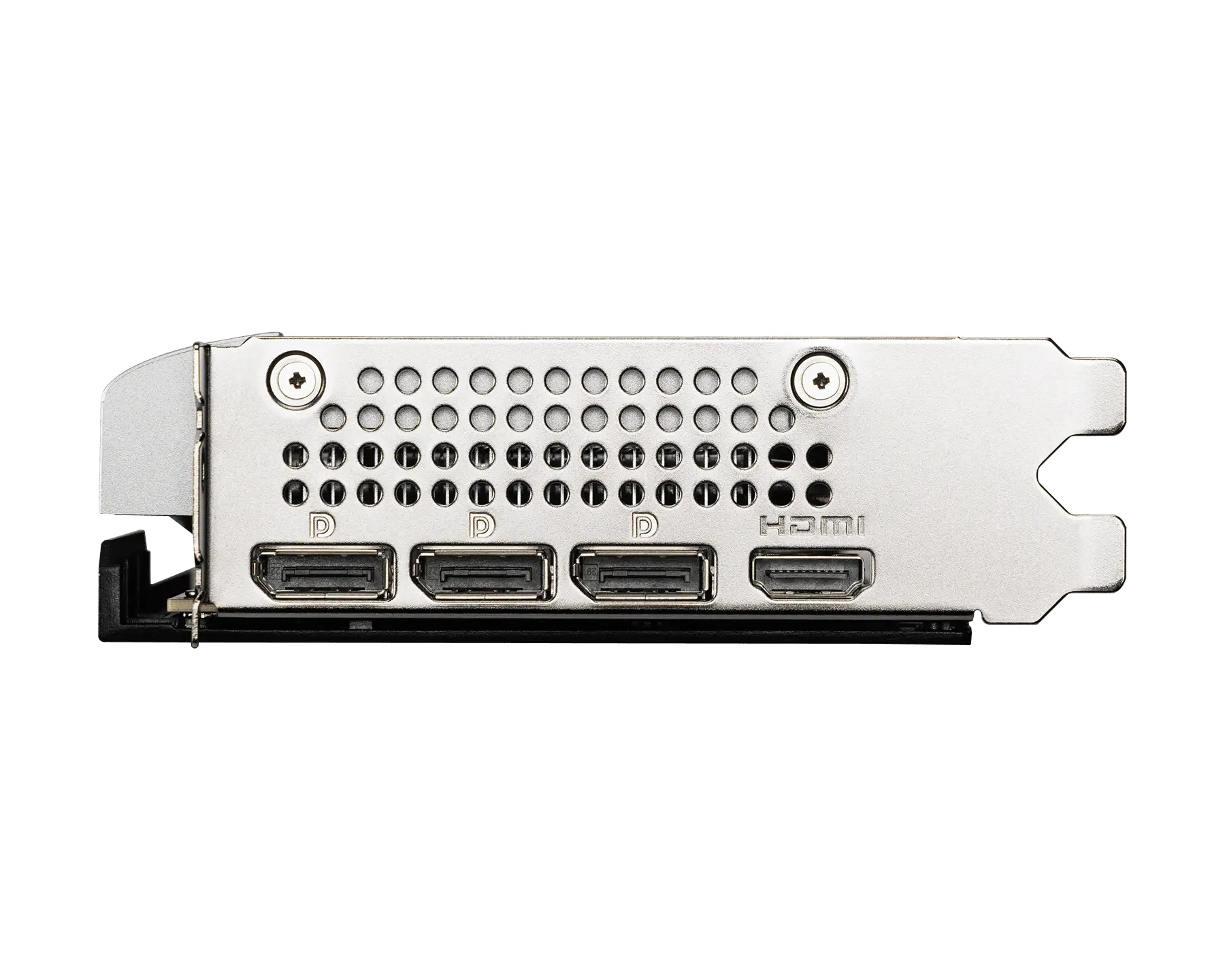

HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1b

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	MSI TORX FAN 5.0

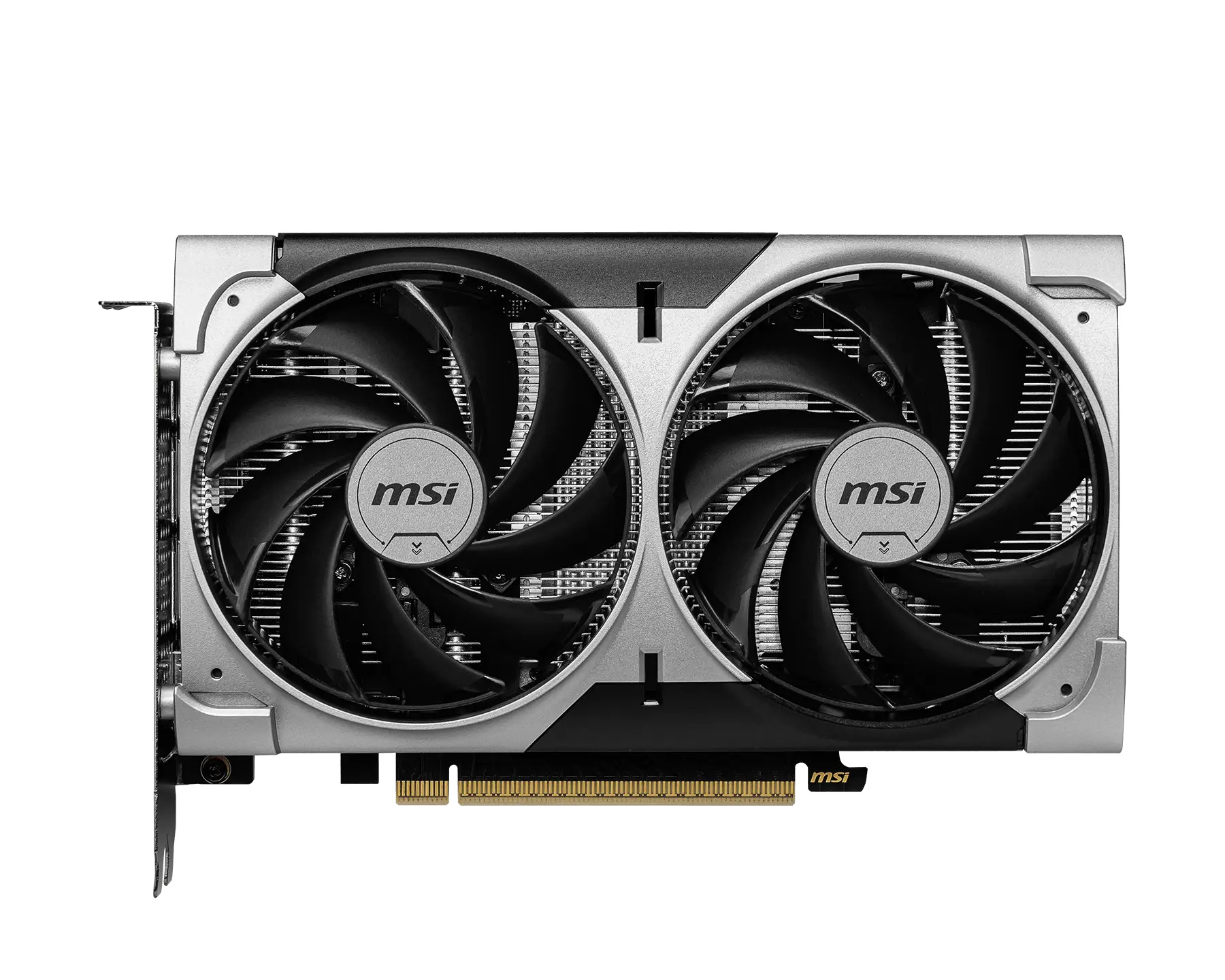

Number of fans	2 fan(s)
Form factor	Full-Height/Half-Length (FH/HL)

Power

Specification	Value
Minimum system power supply	550 W
Power consumption (typical)	145 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Weight	548 g
Length	197 mm
Depth	41 mm
Height	120 mm

Packaging data

Specification	Value
Package weight	840 g
