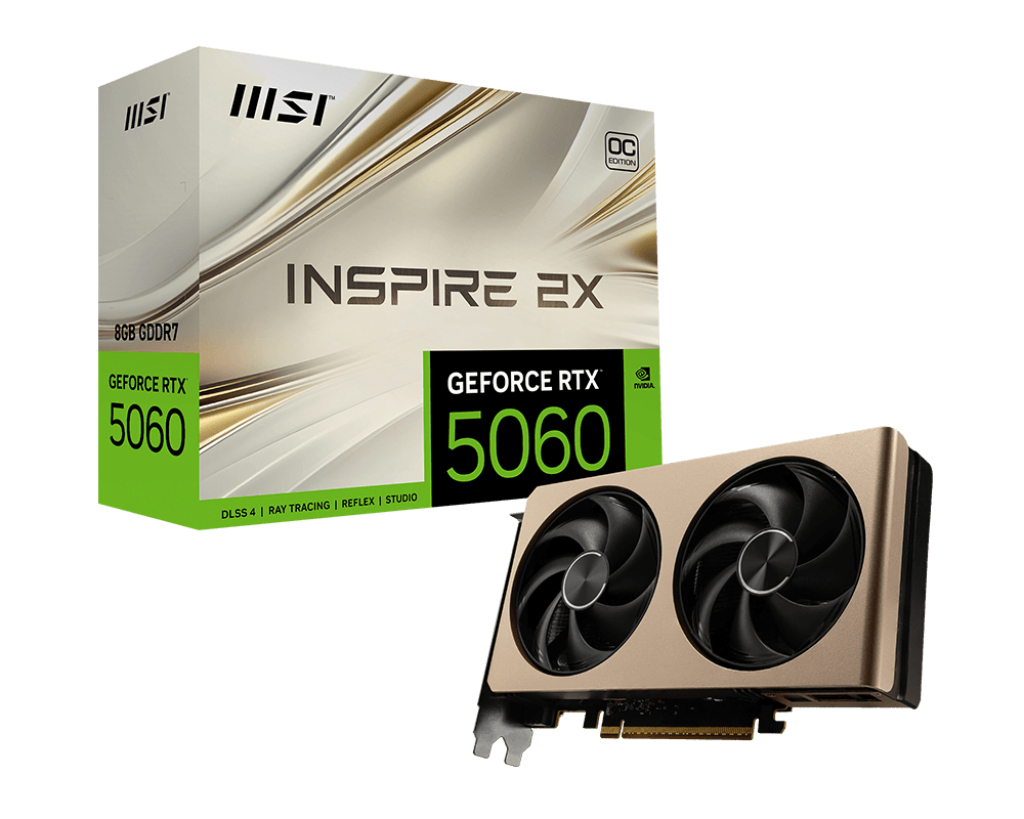

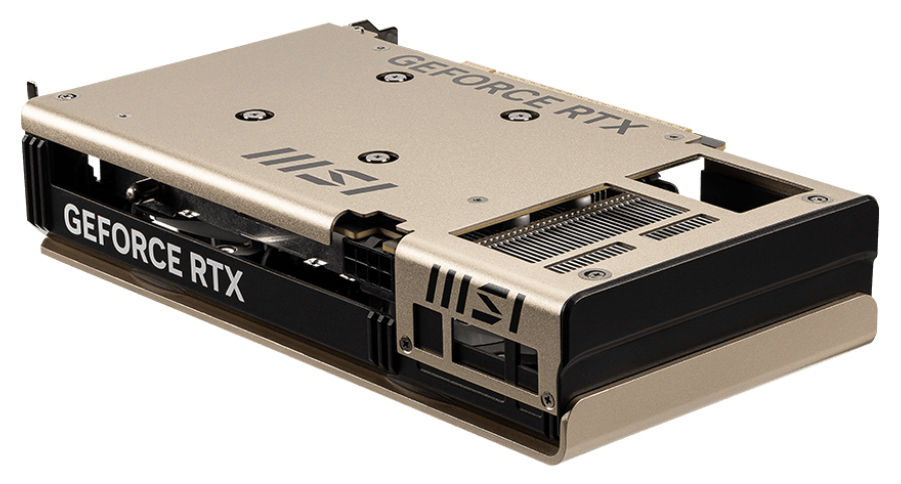

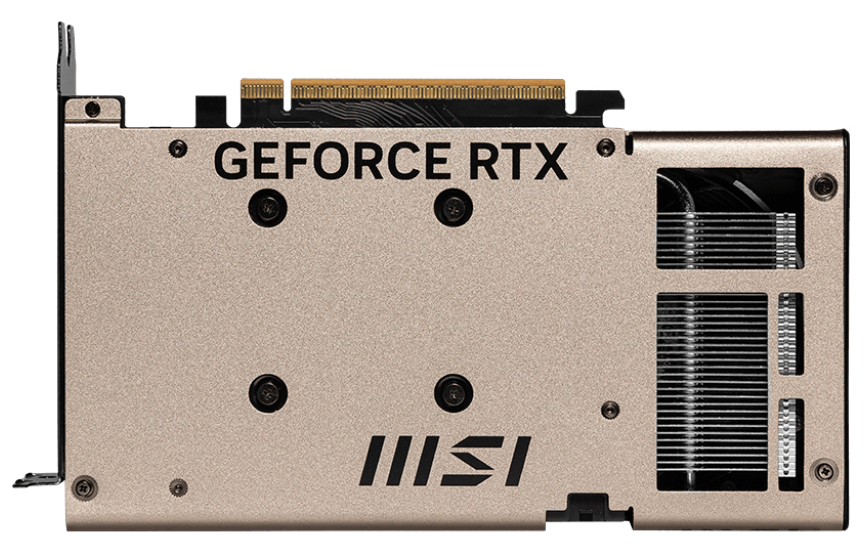

MSI GEFORCE RTX 5060 8G INSPIRE 2X OC

GEFORCE RTX 5060 8G INSPIRE 2X OC

Model GEFORCE RTX 5060 8G INSPIRE 2X OCEAN 824142423882

38 specifications Checked today

TypeFull-Height/Half-Length (FH/HL)
ColourSilver
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 5.0
TV tuner integratedNo

See all specifications

Overview

Type: Full-Height/Half-Length (FH/HL)
Colour: Silver
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 5.0
TV tuner integrated: No

Brand: MSI
Category: GPU
Model: GEFORCE RTX 5060 8G INSPIRE 2X OC
Part number: GEFORCE RTX 5060 8G INSPIRE 2X OC
EAN / UPC: 824142423882, 4711377344210
Also known as: MSI GEFORCE RTX 5060 8G INSPIRE 2X OC graphics card NVIDIA 8 GB GDDR7

Specifications

38 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 5060
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	3840
Processor frequency	2550 MHz
Processor boost clock speed	2535 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR7
Memory bus	128 bit
Data transfer rate	28 Gbit/s

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 5.0

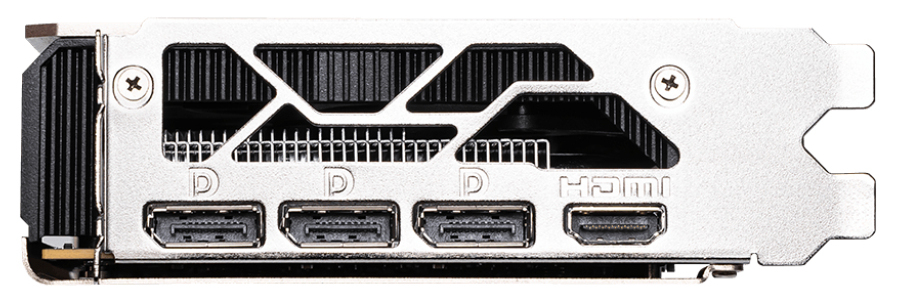

HDMI ports quantity	1
DisplayPorts quantity	3
Thunderbolt 3 ports quantity	0
Mini HDMI ports quantity	0
HDMI version	2.1b
DisplayPort version	2.1b
Mini DisplayPorts quantity	0

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
NVIDIA G-SYNC	Yes
Overclocked (OC) edition	Yes

Design

Specification	Value
Cooling type	Active
Number of fans	2 fan(s)
Fan diameter	12 cm
Form factor	Full-Height/Half-Length (FH/HL)
Number of slots	2
Product colour	Silver

Power

Specification	Value
Power consumption (typical)	145 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	204 mm
Depth	41 mm
Height	117 mm

Packaging data

Specification	Value
Package type	Box
