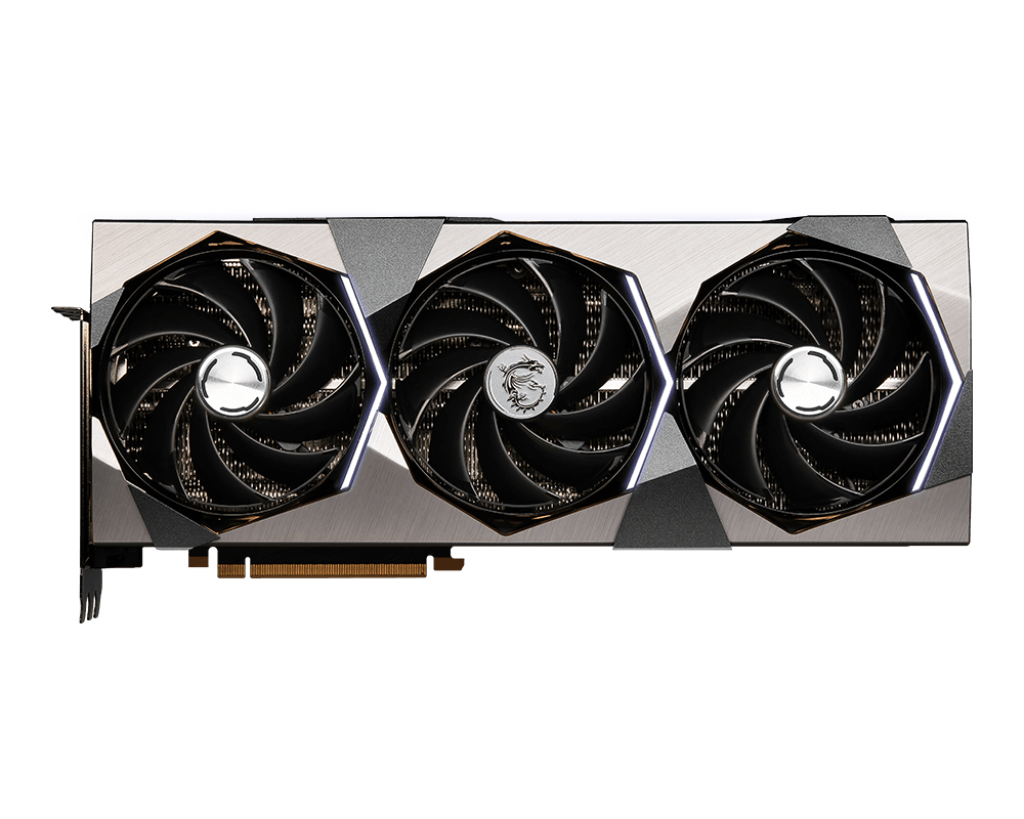

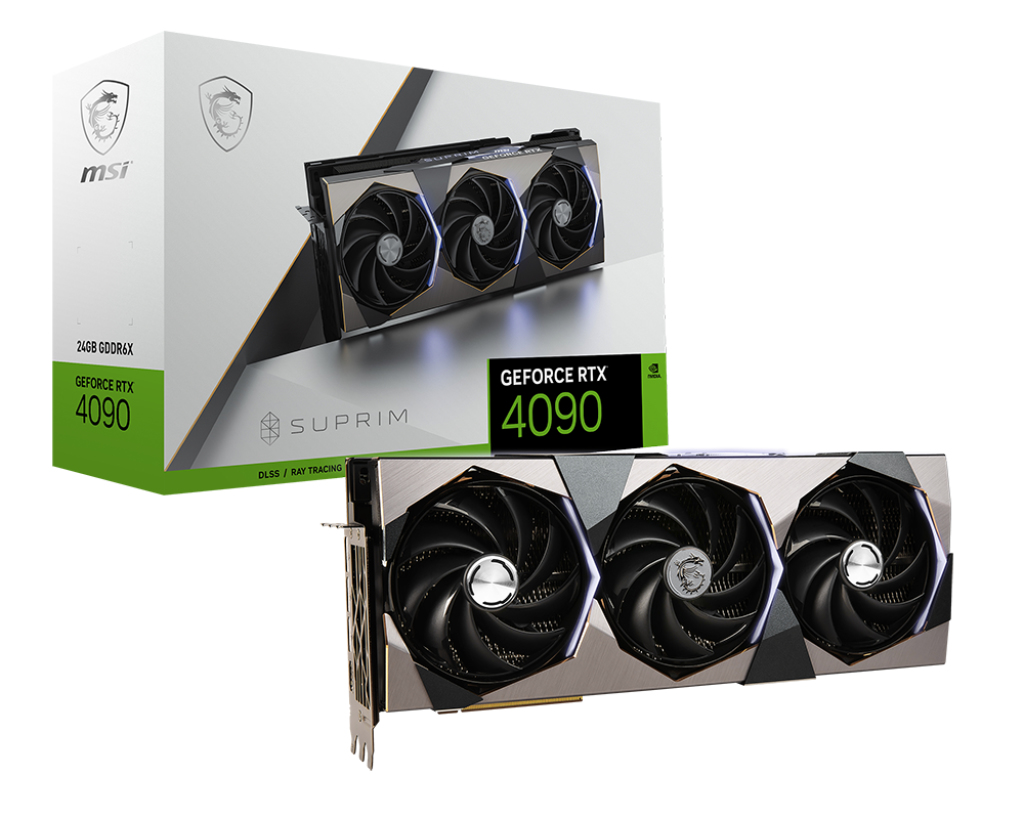

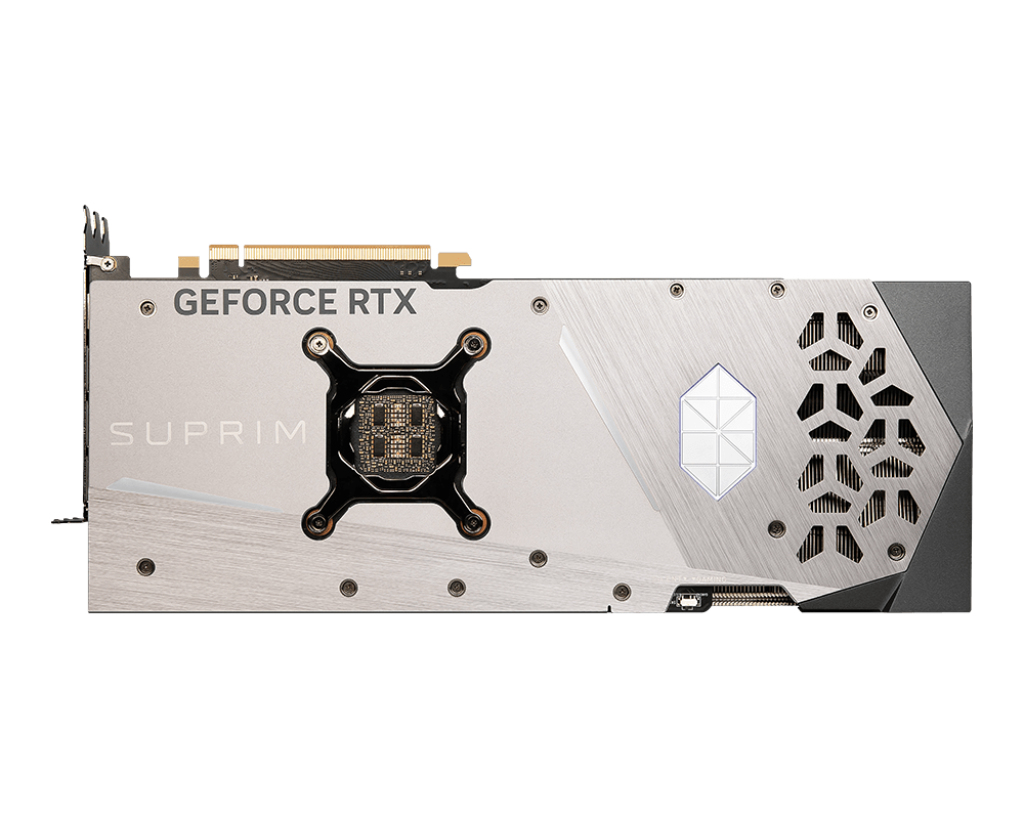

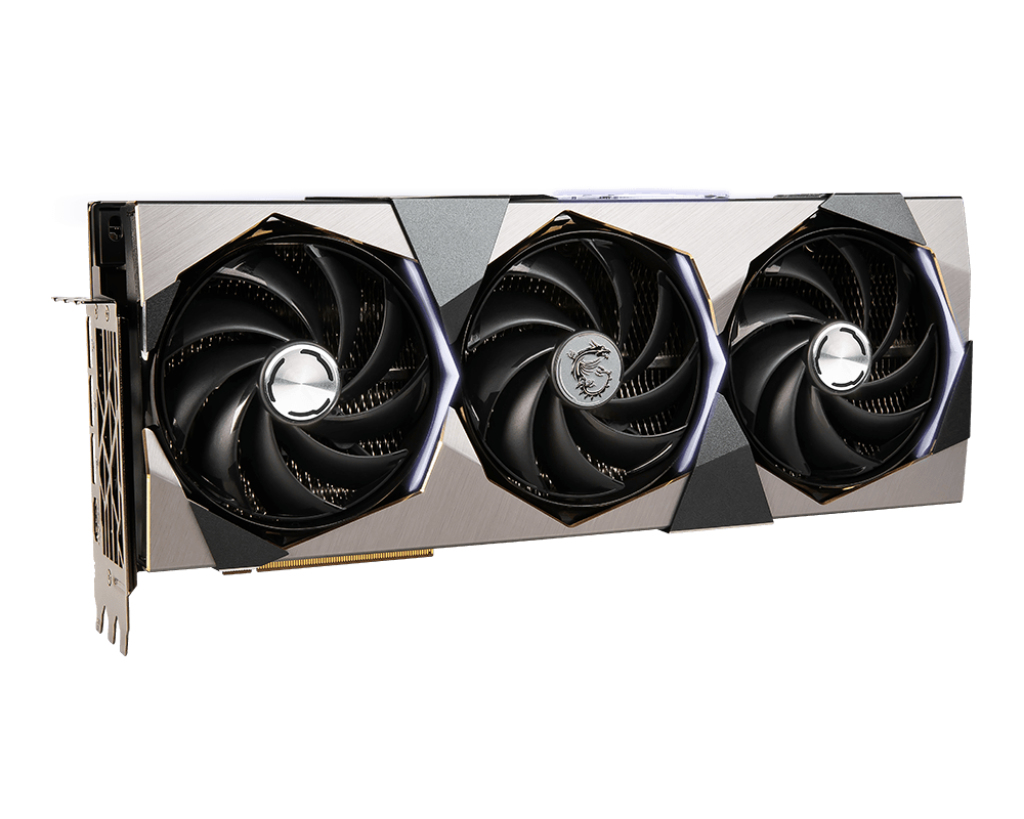

MSI GeForce RTX 4090 SUPRIM 24G

GeForce RTX 4090 SUPRIM 24G

Model GeForce RTX 4090 SUPRIM 24G

39 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
Weight2.41 kg
ColourWhite
Graphics processor familyNVIDIA
Discrete graphics card memory24 GB
Interface typePCI Express 4.0

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Weight: 2.41 kg
Colour: White
Graphics processor family: NVIDIA
Discrete graphics card memory: 24 GB
Interface type: PCI Express 4.0

Brand: MSI
Category: GPU
Model: GeForce RTX 4090 SUPRIM 24G
Part number: GeForce RTX 4090 SUPRIM 24G
Also known as: MSI SUPRIM GeForce RTX 4090 24G graphics card NVIDIA 24 GB GDDR6X

Specifications

39 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4090
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	16384
Maximum displays per videocard	4
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	24 GB
Graphics card memory type	GDDR6X
Memory bus	384 bit
Data transfer rate	21 Gbit/s

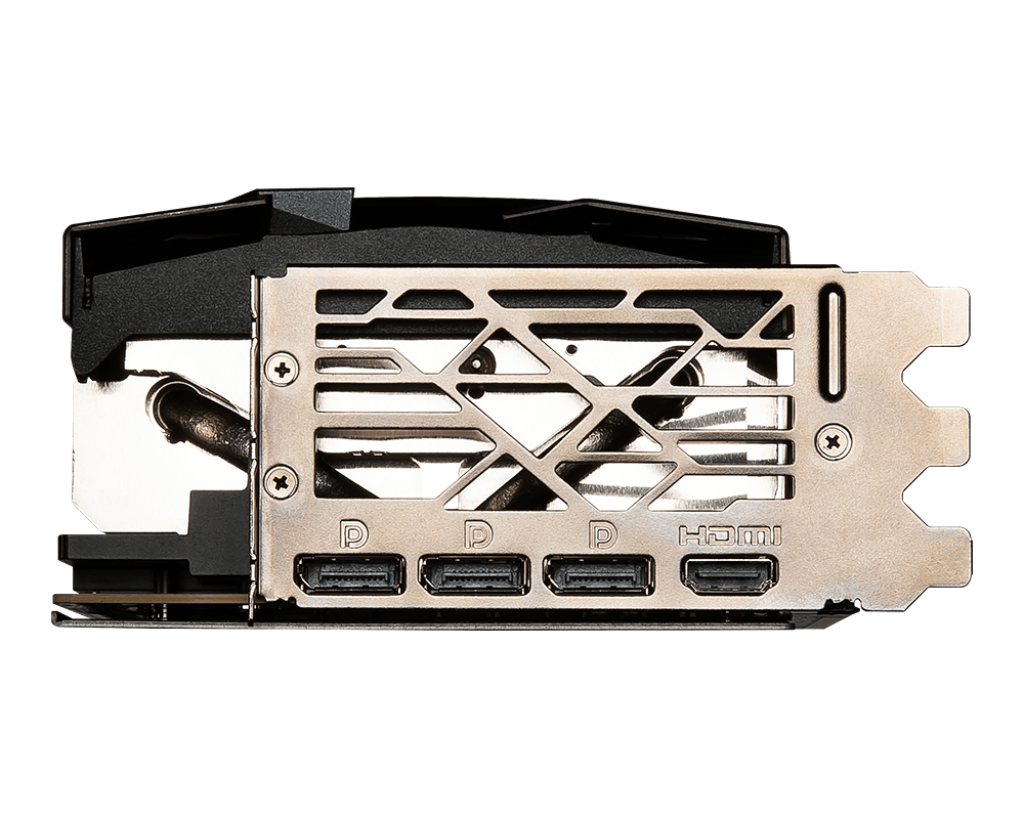

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	MSI TORX FAN 5.0
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White

Power

Specification	Value
Minimum system power supply	850 W
Power consumption (max)	1000 W
Power consumption (typical)	450 W

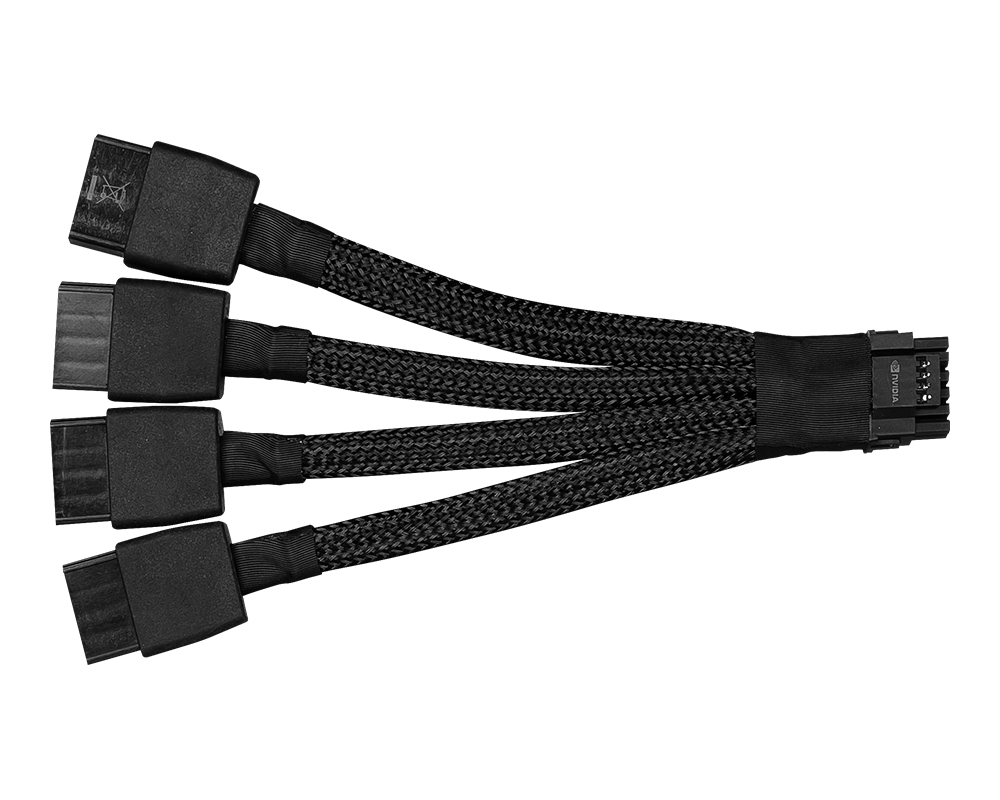

Supplementary power connectors	1x 16-pin

Weight & dimensions

Specification	Value
Weight	2.41 kg
Length	336 mm
Depth	78 mm
Height	142 mm

Packaging data

Specification	Value
Package weight	3.64 kg
Package type	Box
