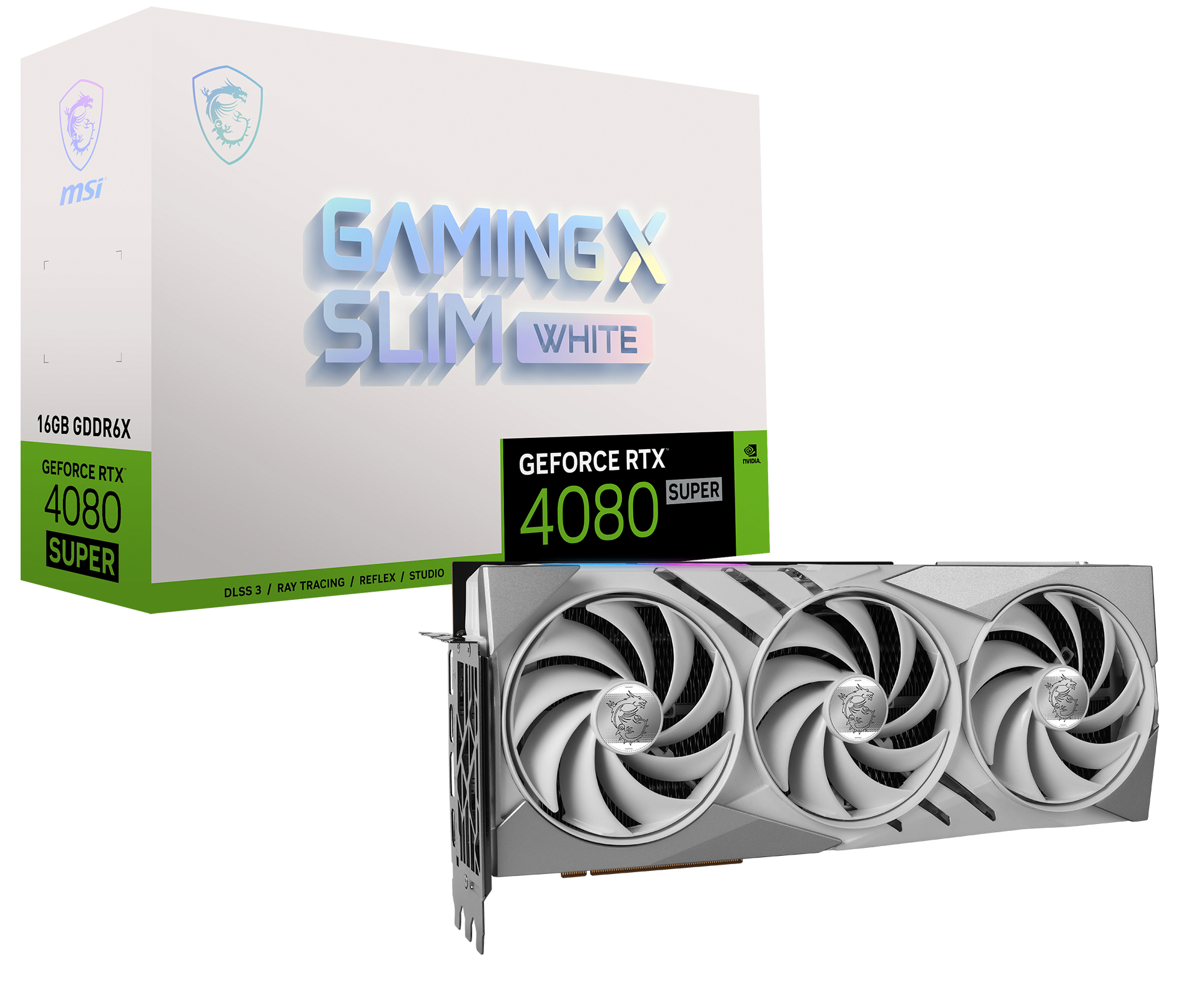

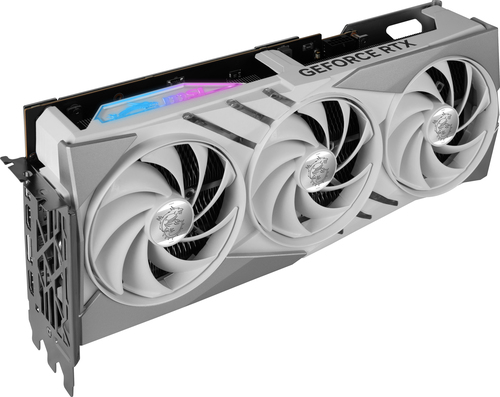

GeForce RTX 4080 SUPER 16G GAMING X SLIM WHITE
Model GeForce RTX 4080 SUPER 16G GAMING X SLIM WHITEPart no. GEFORCE RTX 4080 SUPER 16G GAMING X SLIM WHITEEAN 824142346594
44 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.63 kg
- ColourWhite
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.63 kg
- Colour
- White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 4.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 4080 SUPER 16G GAMING X SLIM WHITE
- Part number
- GEFORCE RTX 4080 SUPER 16G GAMING X SLIM WHITE
- EAN / UPC
- 824142346594, 4711377170703
- Also known as
- MSI GeForce RTX 4080 SUPER 16G GAMING X SLIM WHITE NVIDIA 16 GB GDDR6X
Specifications
44 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4080 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10240 |
| Processor frequency | 2625 MHz |
| Processor boost clock speed | 2610 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 256 bit |
| Memory bandwidth (max) | 23 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 1.2a |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX FAN 5.0 |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Power consumption (typical) | 320 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.63 kg |
| Length | 322 mm |
| Depth | 62 mm |
| Height | 136 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 411 mm |
| Package height | 107 mm |
| Package weight | 2.33 kg |
| Package type | Box |
