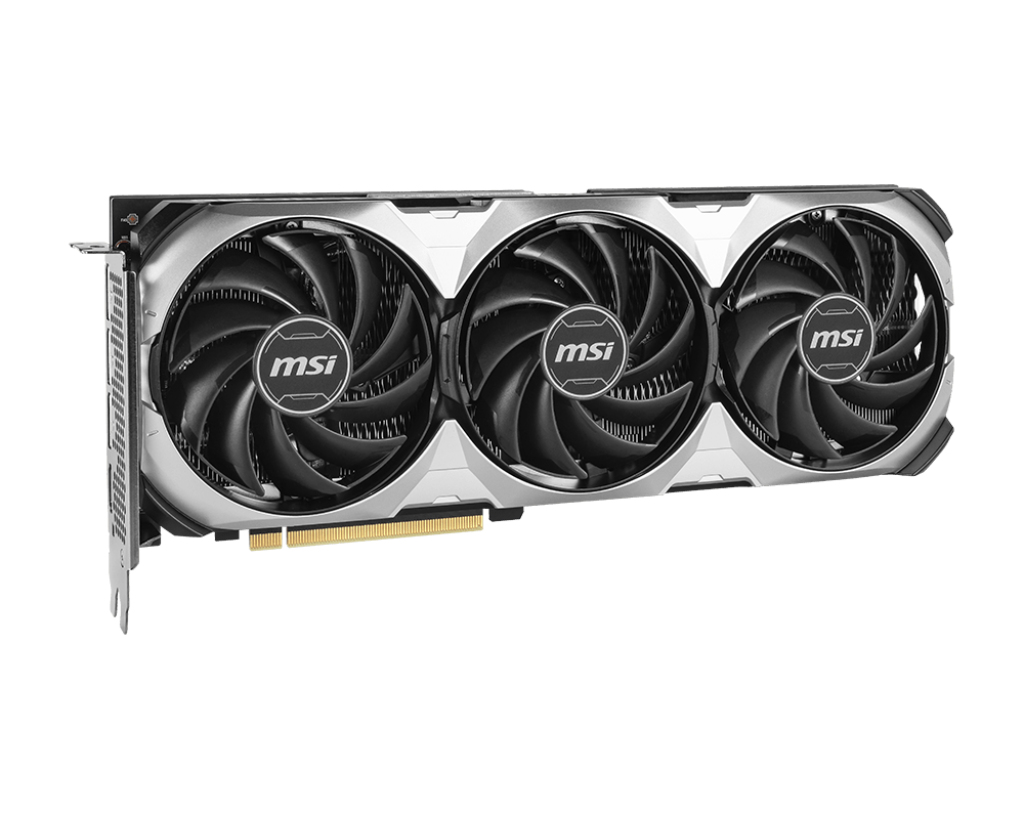

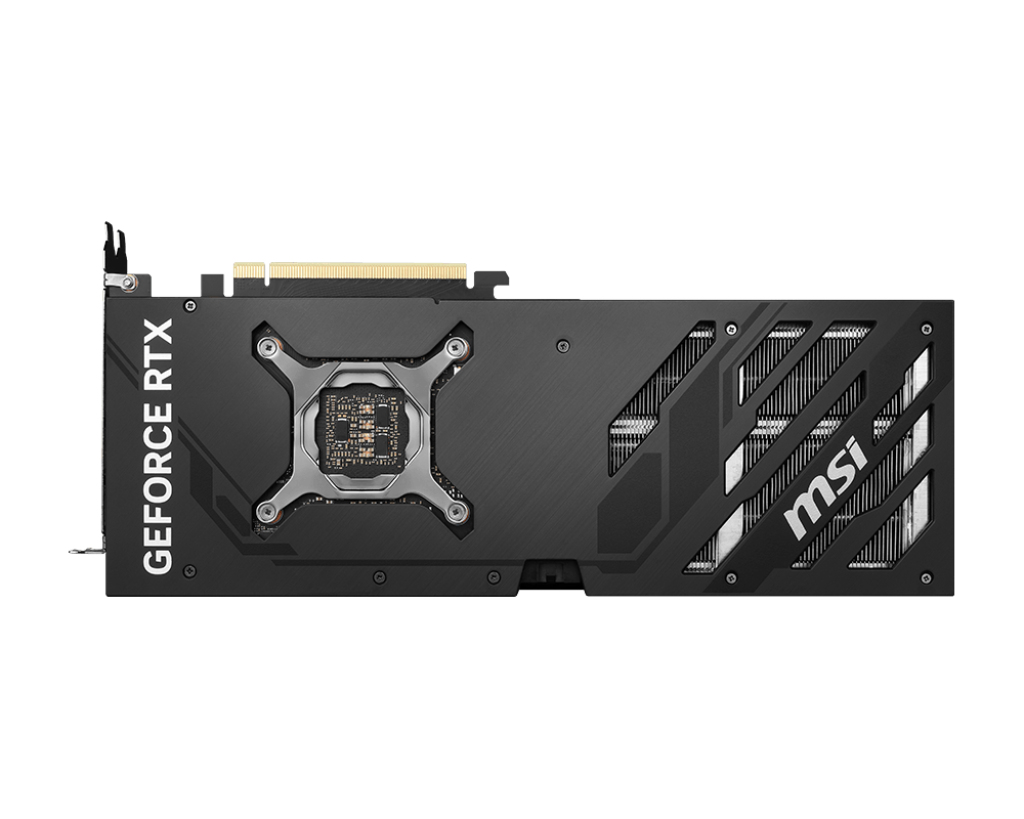

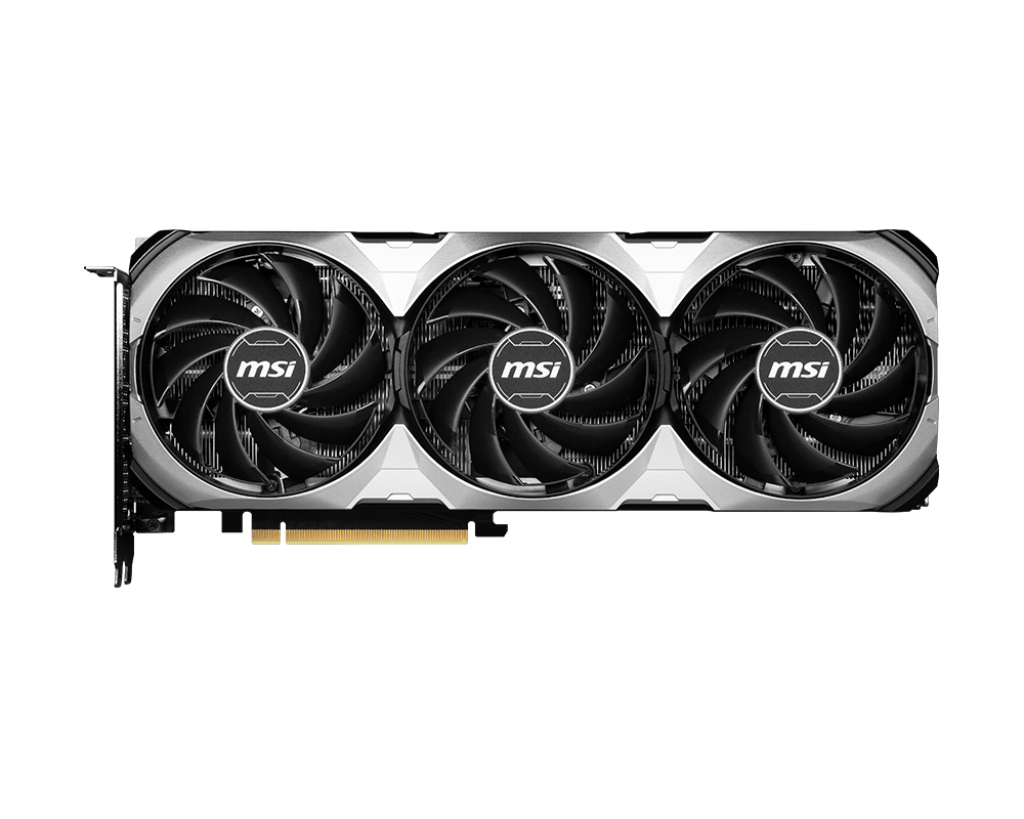

MSI GeForce RTX 4070 VENTUS 3X E1 12G OC

GeForce RTX 4070 VENTUS 3X E1 12G OC

Model GeForce RTX 4070 VENTUS 3X E1 12G OCPart no. GEFORCE RTX 4070 VENTUS 3X E1 12G OCEAN 4711377262026

39 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
Weight822 g
ColourBlack, Grey
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express 4.0

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Weight: 822 g
Colour: Black, Grey
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express 4.0

Brand: MSI
Category: GPU
Model: GeForce RTX 4070 VENTUS 3X E1 12G OC
Part number: GEFORCE RTX 4070 VENTUS 3X E1 12G OC
EAN / UPC: 4711377262026
Also known as: MSI VENTUS GeForce RTX 4070 3X E1 12G OC NVIDIA 12 GB GDDR6X

Specifications

39 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor frequency	2520 MHz
Processor boost clock speed	2505 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6X
Memory bus	192 bit
Memory bandwidth (max)	21 GB/s

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
NVIDIA G-SYNC	Yes

Design

Specification	Value
Cooling type	Active
Cooling technology	MSI TORX Fan 4.0
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Illumination	Yes
Product colour	Black, Grey

Power

Specification	Value
Minimum system power supply	650 W
Power consumption (typical)	200 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Weight	822 g
Length	308 mm
Depth	43 mm
Height	120 mm

Packaging data

Specification	Value
Package weight	1.12 kg
Package type	Box
